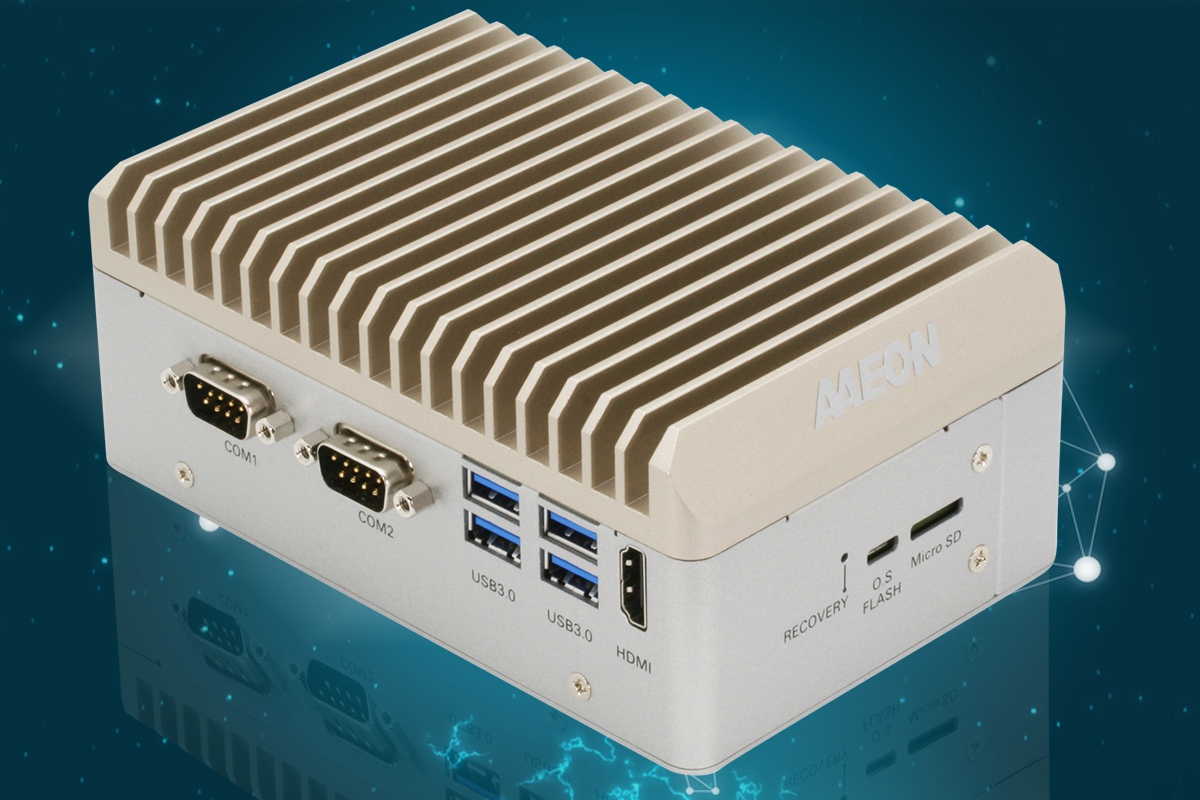

BOXER-8230AI
AI@Edge Compact Fanless Embedded AI System with NVIDIA® Jetson™ TX2 NX
Features
- NVIDIA Jetson TX2 NX
- 4GB LPDDR4
- Multi-storage option: 16GB eMMC / MicroSD slot / 2.5 drive bay
- Support Operating Temperature -25°C ~ 75°C
- GbE LAN x 5
- USB 3.2 Gen 1 x 4
- 10~24Vdc Power input
BOXER-8230AI嵌入式AI边缘系统结合了创新的NVIDIA® Jetson™ TX2 NX，旨在为智能应用和边缘网络提供动力支持。NVIDIA Jetson TX2 NX搭载双核NVIDIA Denver 2 64位CPU和四核Arm® Cortex®-A57 MPCore处理器复合体，提供256个CUDA®核心和4GB内置LPDDR4内存。总体而言，这提供了高达1.33 TFLOPS的AI处理速度，性能完美介于Jetson Nano™和Jetson Xavier™ NX之间。系统还配备了16GB内置eMMC存储，可以通过microSD卡槽进行扩展。.
BOXER-8230AI具有灵活的I/O布局，包括四个USB 3.2 Gen 1端口、五个千兆LAN端口和两个COM端口，可以部署各种传感器或摄像头。BOXER-8230AI设计坚固，适用于多种环境。无风扇设计有效防止灰尘进入，确保可靠运行；宽广的工作温度范围（-15°C至65°C）保证无论部署在何处都能提供稳定性能。
NVIDIA Jetson TX2 NX
The NVIDIA Jetson TX2 NX provides powerful AI edge computing without breaking budgets. Featuring a 6-core ARM CPU and Pascal™ GPU with 256 CUDA cores, it delivers processing speeds up to 1.33 FLOPS, capable of running multiple AI inferences, with great cost to performance value.

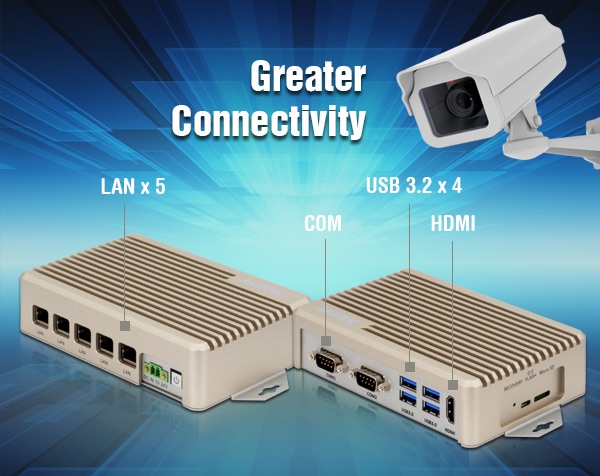

Greater Connectivity
The BOXER-8230AI features a broad I/O layout with five Gigabit Ethernet ports, four USB3.2 Gen 1 ports, COM ports and HDMI, providing greater flexibility to support more devices and applications while delivering higher bandwidth to enable video streaming without frame loss.

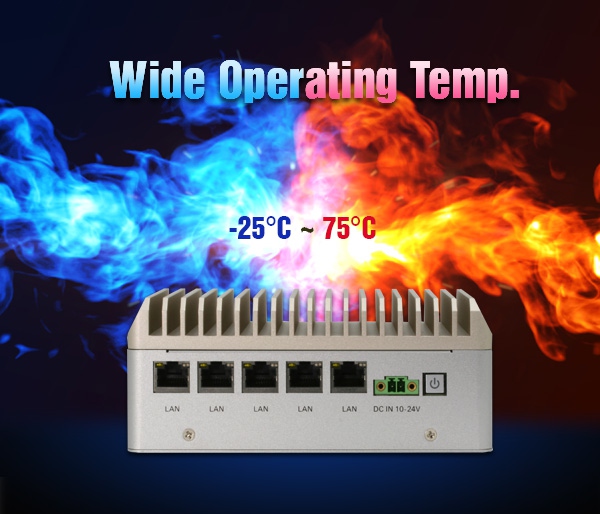

Wide Operating Temperature
The BOXER-8230AI features rugged design to operate in harsh environments, designed with a wide operating temperature range of -25°C up to 75°C, delivering consistent performance wherever it is deployed, even in extreme conditions.

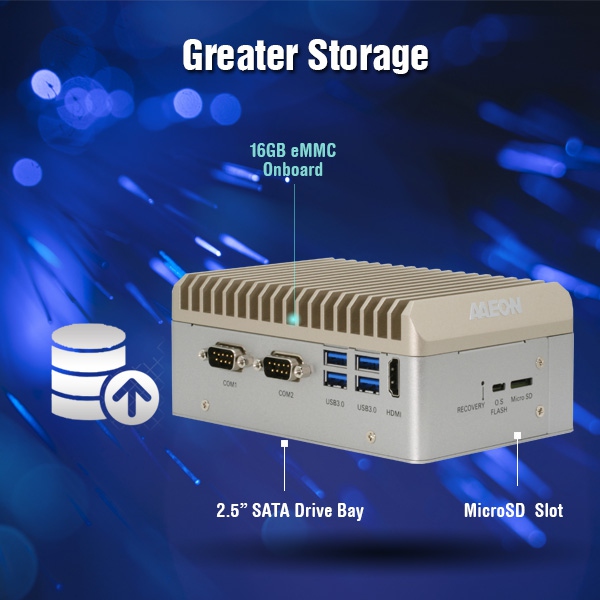

Greater Storage
Get more flexible and capable storage with 16 GB onboard eMMC storage, microSD slot and 2.5” SATA drive bay, enabling users to store more data, video or images locally on the system. AAEON services can also provide boot option customization based on per-project needs.

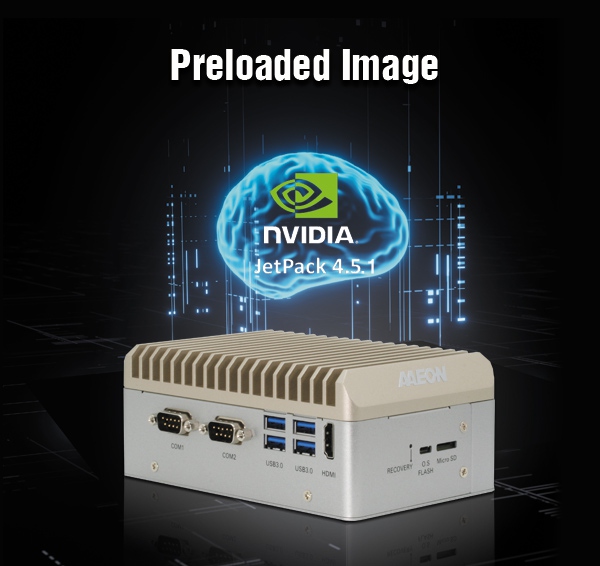

Preloaded Image
AAEON offers a range of services for the BOXER-8230AI, from providing NVIDIA JetPack 4.5.1 preinstalled on all new systems, to offering a range of per-basis software services such as third-party driver support and more.
System | |
| AI Accelerator | NVIDIA® Jetson™ TX2 NX |
| CPU | NVIDIA® Denver 2 (Dual-Core) Processor & ARM® Cortex® -A57 MPCore (Quad-Core) Processor |
| System Memory | 4GB 128-bit LPDDR4 @ 1600 MHz |
| Storage Device | eMMC 5.1 16GB |
| Display Interface | HDMI Type A x 1 for HDMI 2.0 |
| Ethernet | RJ-45 x 5 for GbE LAN |
| I/O | USB Type A x 4 for USB 3.2 Gen 1 |
| Expansion | SATA III Port x 1 for 2.5” SATA drive (A4/JP46E-A2 only) |
| Indicator | Power LED x 1 |
| OS Support | Linux (NVIDIA Jetpack 4.5 or above) |
Power Supply | |
| Power Requirement | DC-in 10V~24V with 2-pin terminal block ATX mode |
Mechanical | |
| Mounting | Wall mount kit |
| Dimensions (W x D x H) | A3/JP46E-A1 : 6.92” x 3.94” x 1.54”(175.8mm x 100.0mm x 39.0mm) |
| Gross Weight | A3/JP46E-A1 : 2.91lbs (1.3kg) |
| Net Weight | A3/JP46E-A1 : 1.51lbs (0.67kg) |
Environmental | |
| Operating Temperature | A3/JP46E-A1 : -13°F ~ 149°F(-25°C ~ 65°C,according to IEC60068-2 with 0.5 m/s AirFlow) |
| Storage Temperature | -40°F ~ 176°F (-40°C ~ 80°C) |
| Storage Humidity | 5 ~ 95% @ 40°C, non-condensing |
| Anti-Vibration | 3.5Grm / 5~500Hz / operation (eMMC, MicroSD, or SSD) |
| Anti-Shock | 50G peak acceleration (11 msec. duration, eMMC, microSD, or SSD) |
| Certification | CE / FCC class A |
