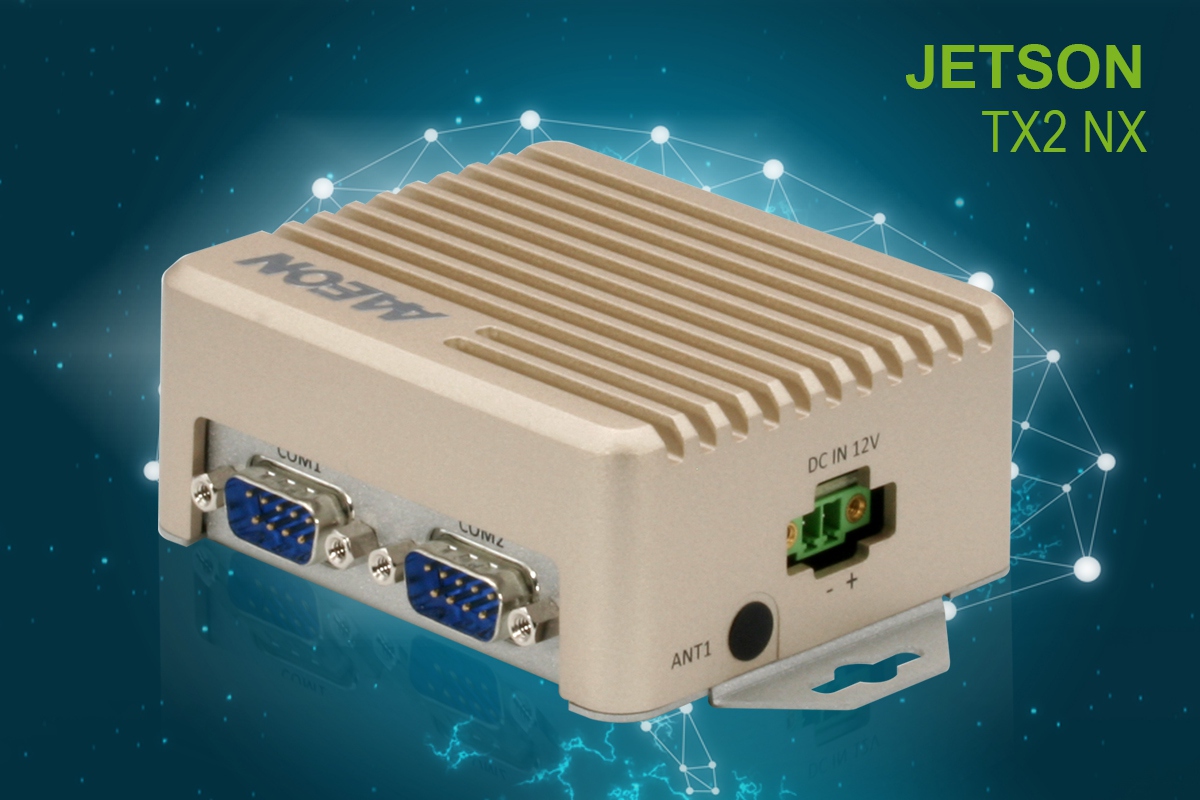

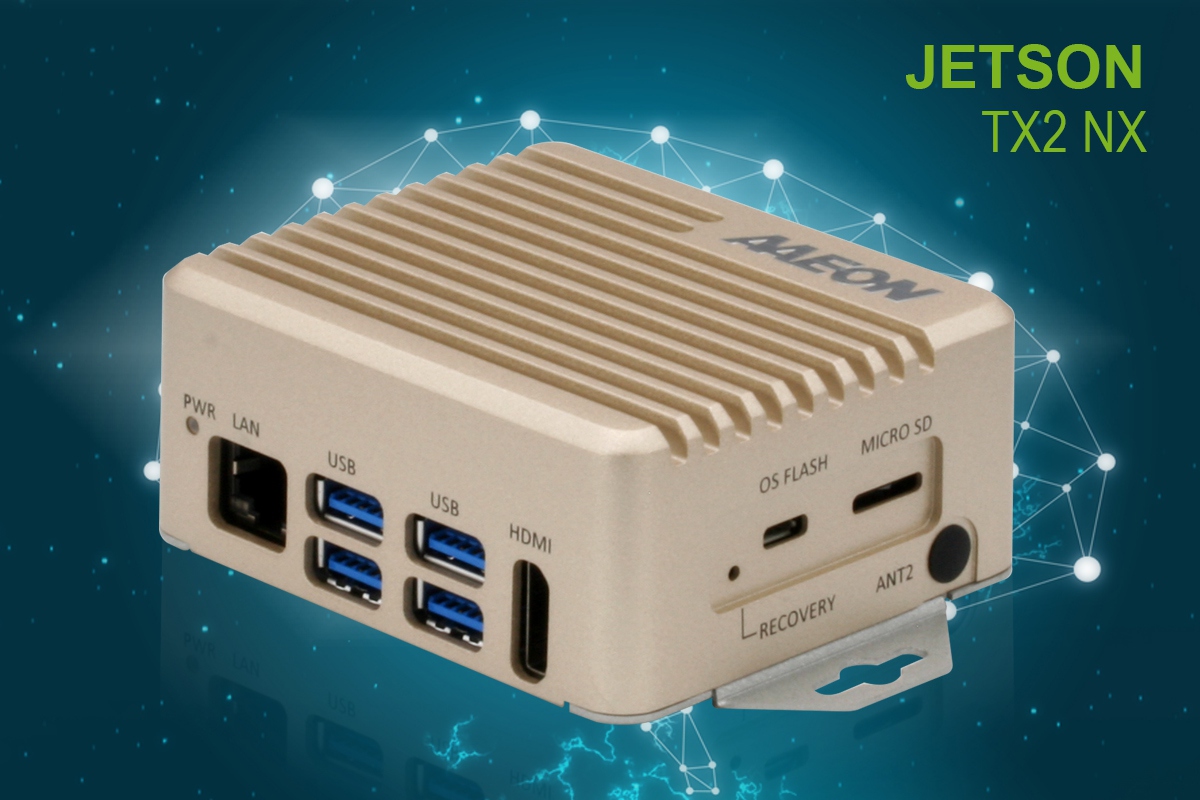

Edge AI Compact Fanless Embedded BOX PC w/ NVIDIA Jetson TX2 NX
NVIDIA Jetson TX2 NX. www.aaeon.ai

BOXER-8231AI

基于NVIDIA Jetson TX2 NX的AI@Edge紧凑型无风扇嵌入式Box PC

功能特点

  • NVIDIA® Jetson™ TX2 NX
  • 4GB LPDDR4 + 16GB eMMC
  • USB3.2 Gen 1 x 4
  • LAN x 1 + RS-232 x 2
  • 12Vdc电源输入
产品介绍

BOXER-8231AI是研扬科技AI边缘系列系统的最新平台，由NVIDIA® Jetson™ TX2 NX驱动。

产品咨询

与BOXER-8221AI和BOXER-8251AI具有相同的I/O配置，紧凑的尺寸(88 x 75 x 39mm)和坚固的设计意味着BOXER-8231AI可以在恶劣的工作环境中操作，并为任何AI应用提供灵活性，如面部识别、车牌识别和人员计数。

线上商店
技术规格
BOXER-8231AI

System

AI Accelerator NVIDIA® Jetson™ TX2 NX
CPU 4 Core ARM A57 Complex and 2 core NVIDIA Denver2 64-bit CPU
System Memory 4GB LPDDR4
Storage Device 16GB eMMC + MicroSD
Display Interface HDMI 2.0
Ethernet 10/100/1000Base-TX x 1
I/O

USB 3.2 Gen 1 x 4
LAN x 1
RS-232 x 2
HDMI x 1
MicroSD x 1
DC Power Input x 1
Recovery Button x 1
Micro-USB for Flash OS x 1

Expansion M.2 E-Key 2230 x 1(for WiFi)
Indicator Power LED x 1
OS Support

Linux (AAEON ACLinux 4.9), Linux (NVIDIA Jetpack 4.5 and above)

Power Supply

Power Requirement 12Vdc w/ 2-pin terminal block

Mechanical

Mounting Wallmount
Dimensions (W x D x H) 3.46” x 2.95” x 1.53” (88mm x 75mm x 39mm)
Gross Weight 1.10 lb (0.5 kg)
Net Weight 0.66 lb (0.3 kg)

Environmental

Operating Temperature

-25°C ~ 45°C, according to IEC60068-2 with 0.5 m/s AirFlow

Storage Temperature -40°F ~ 176°F (-40°C ~ 80°C)
Storage Humidity 95% @ 40°C, non-condensing
Anti-Vibration 3.5 Grms/ 5 ~ 500Hz/ operation – eMMC
Anti-Shock 50G peak acceleration (11 msec. duration) – eMMC
Certification CE/FCC class A
下载
规格书
使用手册
有关装箱单、详细规格和其他产品信息，请下载规格书或使用手册。
