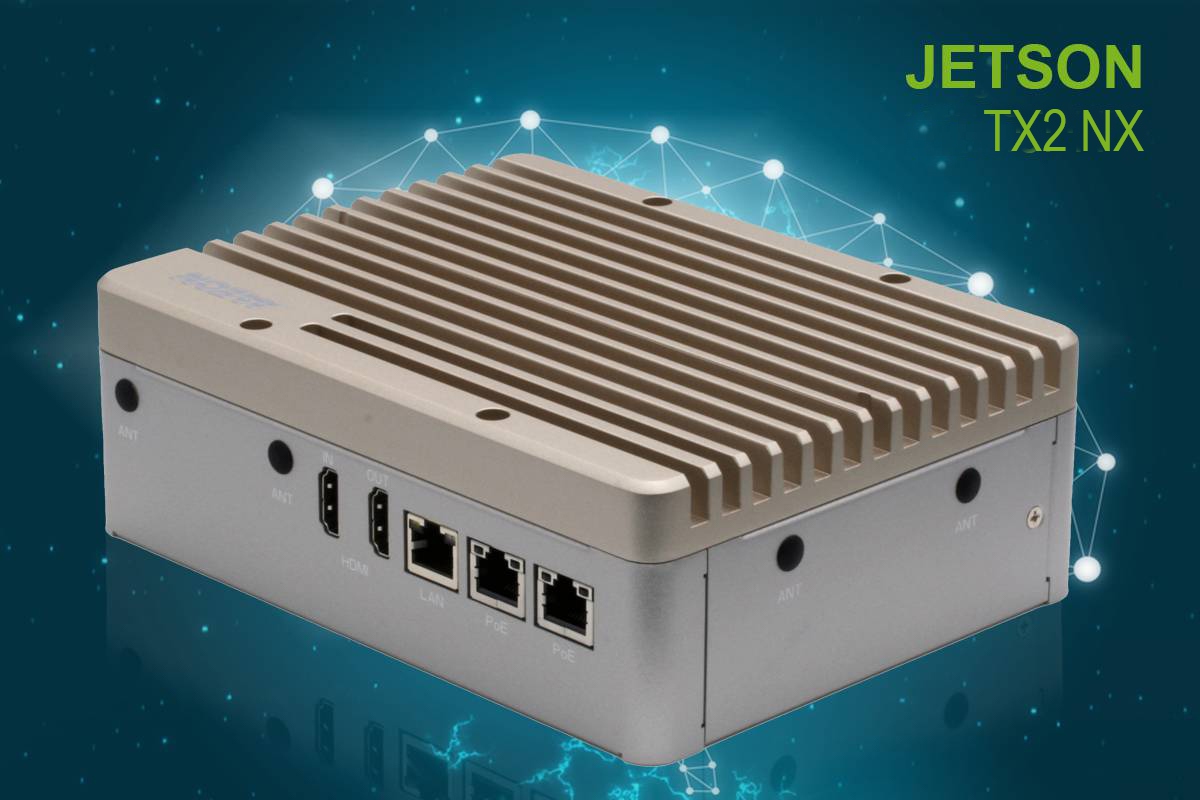

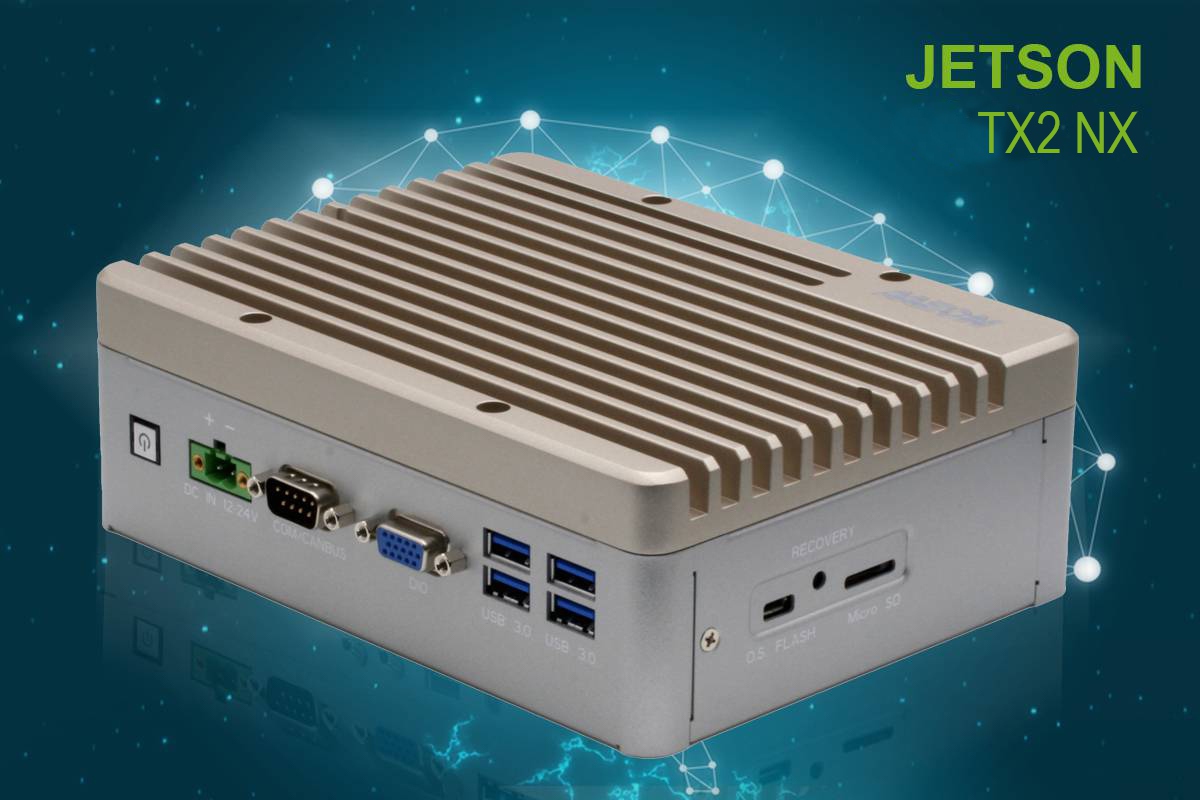

BOXER-8233AI

BOXER-8233AI

基于NVIDIA® Jetson™ TX2 NX的AI@Edge紧凑型无风扇嵌入式BOX PC

功能特点

  • NVIDIA Jetson TX2 NX
  • 4GB LPDDR4
  • 多存储选择: 16GB eMMC / MicroSD插槽 / mSATA插槽 / 2.5“驱动器托架
  • GbE PoE/PSE LAN x 2
  • HDMI输入 x 1 & HDMI输出 x 1
  • 数字I/O 13-channel
  • 用于WiFi/LTE的扩展支持
产品介绍

BOXER-8233AI引入了创新的NVIDIA®Jetson™TX2 NX，并将其与PoE PSE支持和HDMI输入的灵活性相结合。NVIDIA JETSON TX2 NX采用双核NVIDIA Denver 2 64位CPU和四核Arm® Cortex®-A57 MPCore处理器，提供256个CUDA®核心和4GB板载LPDD4内存。总的来说，提供了高达1.33 TFLOPS的人工智能处理速度，具有完美的介于Jetson Nano™和Jetson Xavier™ NX之间的性能。

BOXER-8233AI提供了更大的灵活性，以满足广泛应用的需要。得益于16GB板载eMMC存储，并可使用microSD卡、mSATA模块或借助快速访问面板，易于安装的2.5”SATA III（6.0 Gbps）驱动器进行扩展。BOXER-8233AI具有两个PoE PSE端口（802.3af），总功率高达60W。

产品咨询

此外，BOXER-8233AI具有HDMI输入功能，允许开发人员和用户快速将AI驱动的视觉分析添加到从NVR监控系统到安全检查点X射线扫描仪和医疗设备的广泛应用中。

BOXER-8233AI还通过Mini Card插槽和M.2 2230插槽提供可扩展性，允许用户和开发人员快速添加Wi-Fi网络支持等功能。BOXER-8233AI仍然提供灵活的I/O加载，包括四个USB3.2 Gen 2端口、COM和DIO端口，设计用于连接多种传感器、控制设备等。

技术规格
BOXER-8233AI

System

AI Accelerator NVIDIA® Jetson™ TX2 NX
CPU

NVIDIA® Denver 2 (Dual-Core) Processor & ARM® Cortex® -A57 MPCore (Quad-Core) Processor

System Memory 4GB 128-bit LPDDR4
Storage Device

eMMC 16GB
MicroSD slot x 1
Full-size mSATA (sharing slot with Full-size minicard module)
2.5” SATA drive bay x 1

Display Interface HDMI Type A x 1 for HDMI 2.0
Ethernet

RJ-45 x 2 for GbE PoE/PSE (802.3at)
RJ-45 x 1 for GbE LAN

I/O

USB Type A x 4 for USB 3.2 Gen 1
USB Micro A/B x 1 for OS Flash
RJ45 x 2 for GbE PoE/PSE x 2 (802.3at) (Total 60W)
RJ-45 x 1 for GbE LAN
DB-9 x 1 for RS-232/485 & CANbus
DB15 x1 for Digital I/O 13-Channel (programmable)
Recovery port x1
MicroSD slot x 1
Antenna opening x 4
HDMI Type A for HDMI 2.0 output x 1
HDMI Type A for HDMI 1.4 input x 1
Power Button x 1

Expansion

Full-size minicard slot x1 (PCIe/USB/mSATA, default PCIe)
M.2 E-Key 2230 x 1 (for WiFi)
SIM socket x 1
SATA III (6.0 Gbps) port x 1 for 2.5” drive

Indicator Power LED x 1
OS Support Linux (NVIDIA Jetpack 4.5.1)

Power Supply

Power Requirement DC 12V~24V with 2-pin terminal block ATX mode

Mechanical

Mounting Wall mount kit
Dimensions (W x D x H) 7.09“ x 5.35“ x 2.41“ (180.0 mm x 136 .0 mm x 61.1 mm)
Gross Weight 4.63 lbs. (2.1kg)
Net Weight 2.87 lbs. (1.3kb)

Environmental

Operating Temperature 5°F ~ 131°F (-15°C ~ 55°C, according to IEC60068-2 with 0.5 m/s airflow)
Storage Temperature -40°F ~ 176°F (-40°C ~ 80°C)
Storage Humidity 5 ~ 95% @ 40°C, non-condensing
Anti-Vibration 3.5Grm / 5~500Hz / operation (eMMC, MicroSD, mSATA, or SSD)
Anti-Shock 50G peak acceleration (11 msec. duration, eMMC, microSD, mSATA, or SSD)
Certification CE / FCC class A / UKCA
下载
规格书
产品内容与配件等资讯请下载「规格表」以参考详情。
