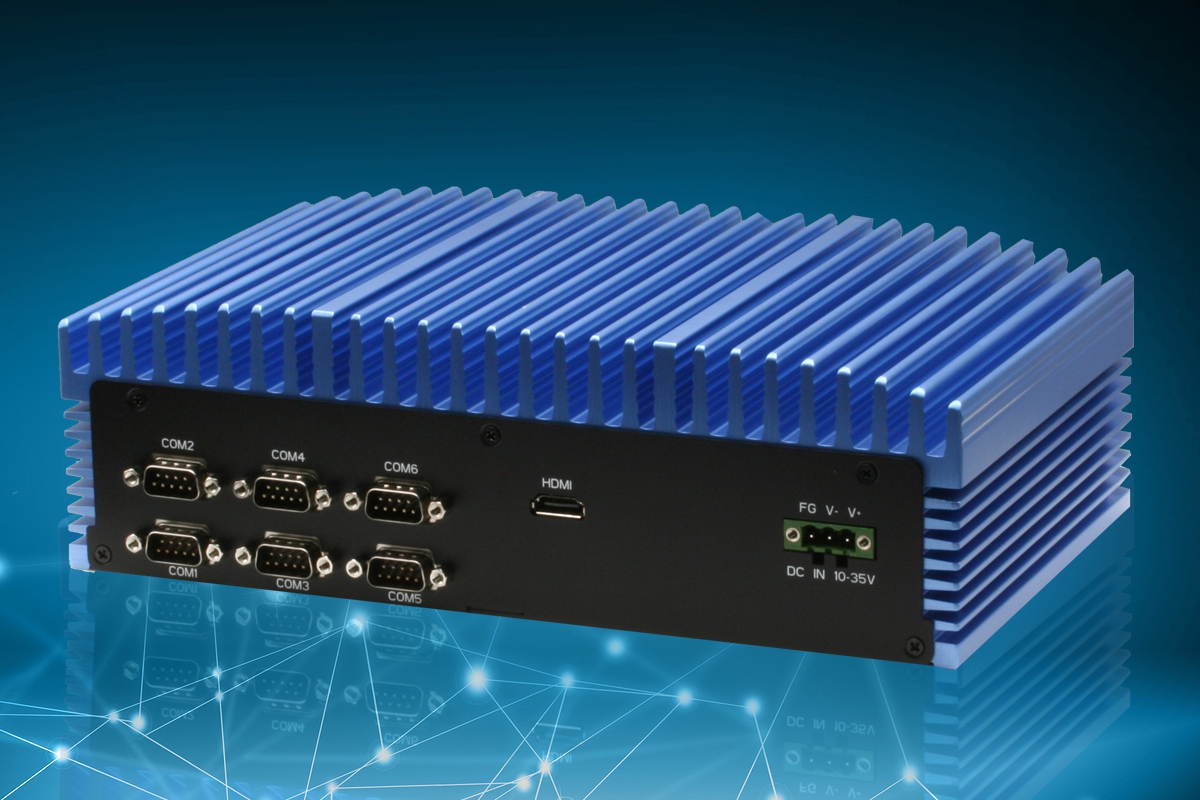

BOXER-6641 Rear View
BOXER-6641

BOXER-6641

Fanless Embedded Box PC with Socket Type 8th Generation Intel® Processor


Features

  • Extreme Computing Power & Graphic Display Capability
  • Desktop Grade Socket Type Core™ - i3/i5/i7/i9 Processor for A1 & A5 model (max. TDP up to 65W)
  • Desktop Grade Socket Type Core™ - i3/i5/i7/i9/Xeon® Processor for A2 & A6 model (max. TDP up to 71W)
  • Supports DDR4 ECC or Non-ECC SODIMM, Up to 64GB
  • Supports Intel® GbE LAN x 4 (i211 x 3 + i219 x 1)
  • Supports Intel® AMT (A2 & A6 Model)
  • Supports HDMI x 2 Dual Display
  • Supports USB 3.2 Gen 1 x 8 (A2 & A6 model)
  • Supports BIOS Selectable RS-232/422/485 x 6
  • Wide Range DC 10~35V Input
Overview

The BOXER-6641 is designed to provide users with unmatched flexibility and performance. Available with two chipsets, the H310 (BOXER-6641-A1) and C246 (BOXER-6641-A2), the system offers a range of processors from the 8th Generation Intel® Core™ and Xeon® processor family (formerly Coffee Lake), from Celeron® G4900T and Pentium® G5400T up to Xeon® E-2124G (up to 71W). Combined with up to 32GB of ECC or non-ECC DDR4 2666MHz RAM and support for two hard drives, the BOXER-6641 is currently the most powerful fanless industrial system available on the market.

The BOXER-6641 is built to easily integrate into any industrial application. I/O features include six COM ports and up to eight USB 3.2 Gen 1 ports (A2 model). The BOXER-6641 also comes with four Intel® Gigabit Ethernet ports, including one Intel® i219 chipset, with built-in support for Intel® vPRO and Active Management Technology (Intel® AMT) available on BOXER-6641-A2.

The BOXER-6641 is expandable with two mPCIe slots, capable of supporting AI applications with solutions such as AAEON’s AI Core X with Intel® Movidius® Myriad™ X VPU.

The BOXER-6641 is designed with several key features to ensure reliable service in harsh industrial environments. In addition to fanless construction, the BOXER-6641 offers wide voltage input of 10V to 35V, wide operating temperature range from -20°C to 55°C (-20°C to 45°C with 71W processor), and an all-metal chassis. The BOXER-6641 is easy to maintain, with only six screws needed to remove the top heatsink to access the CPU, and removing the bottom panel provides easy access to the memory and storage devices.

Specifications
BOXER-6641

System

CPU

Intel® Xeon® E-2124G (for A2 & A6 model only)
Intel® i9-9900T
Intel® i7-9700TE
Intel® i7-8700T
Intel® i5-8500T
Intel® i3-8100T
Pentium® G5400T
Celeron® G4900T

Chipset Intel® C246/H310
System Memory DDR4-2666 SO-DIMM slot x 2, Up to 64GB, ECC or Non-ECC Support
Display Interface HDMI x 2
Storage Device 2.5” SATA HDD/SSD Bay x 1 (x 2 for A5 & A6 model)
Ethernet Intel® i211 x 3, i219 x 1
I/O

HDMI x 2
RJ-45 x 4 for GbE LAN (i211 x 3, i219 x 1)

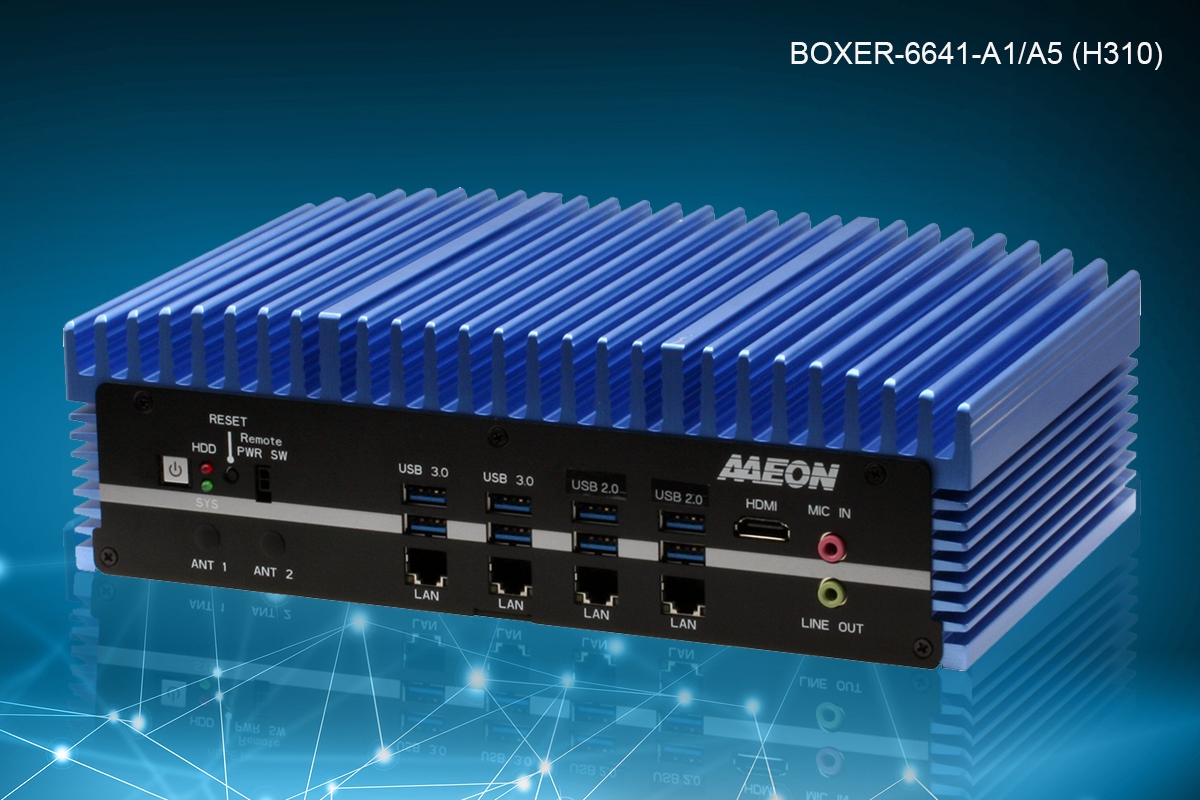

USB 3.2 Gen 1 x 4, USB2.0 x 4 (A1 & A5 model)

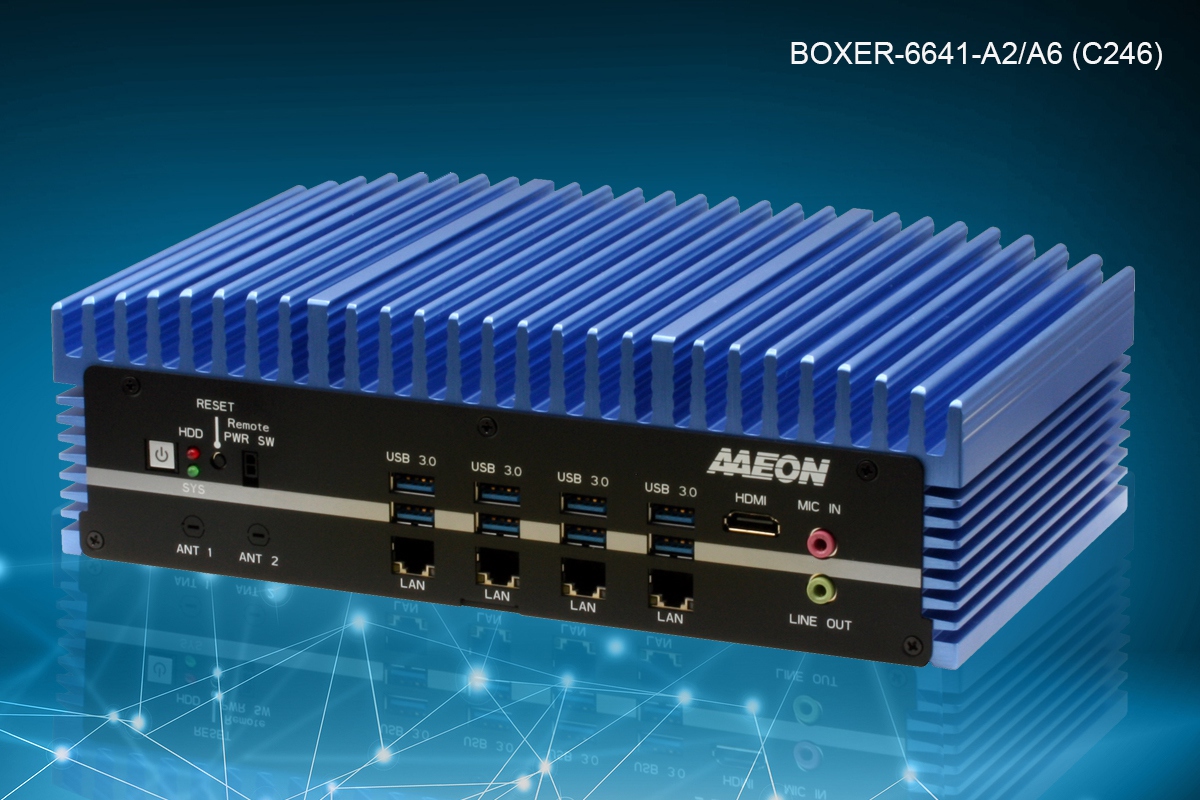

USB 3.2 Gen 1 x 8 (A2 & A6 model)
DB-9 x 6 for RS-232/422/485
Audio x 1 (MIC-in, Line-out)
3 pin 10~35V Power Input x 1
Power Button x 1
Remote Power switch x 1
Reset Button x 1
HDD LED x 1
SYS LED x 1

Expansion

Full-size Mini PCIe x 1
Full-size Mini Card x 1 (PCIe/mSATA switch by BIOS, Default: mSATA)
SIM slot x 1

Indicator

HDD LED x 1
SYS LED x 1

OS Support

Windows® 10 64-bit
Linux Ubuntu 18.04

Power Supply

Power Requirement 3-pin DC Input 10~35V

Mechanical

Mounting Wallmount
Dimensions (W x H x D) 10.4” x 3.19” x 6.15” (264.2mm x 80.92mm x 156.2mm)
Gross Weight 10.4 lb (4.7 kg)
Net Weight 8.2 lb (3.7 kg)

Environmental

Operating Temperature

-4°F ~ 131°F (-20°C ~ 55°C) with 0.5 m/s airflow – with TDP ≦ 35W CPU
-4°F ~ 113°F (-20°C ~ 45°C) with 0.5 m/s airflow – with TDP >35W CPU

Storage Temperature -40°F ~ 176°F (-40°C ~ 80°C)
Storage Humidity 5 ~ 95% @ 40°C, non-condensing
Anti-Vibration

2 Grms/ 5 ~ 500Hz/ operation – SSD/mSATA
1 Grms/ 5 ~ 500Hz/ operation – HDD

Anti-Shock
Certification CE/FCC class A
Downloads
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
