BOXER-8222AI | Fanless Embedded Box PC with NVIDIA Jetson Nano

BOXER-8222AI

AI@Edge Fanless Embedded Box PC with NVIDIA® Jetson Nano™, PD Port


Features

  • NVIDIA® Jetson Nano™
  • PoE/PD x 1
  • 4GB LPDDR4 + 32GB SD card slot
  • USB 3.2 Gen 1 x 4
  • M.2 E-key slot x 1 for WiFi function expansion
  • DC 12 ~ 24V wide voltage power input
  • Wide working temperature -10°C ~ 70°C
Overview

The BOXER-8222AI is powered by the innovative and energy efficient NVIDIA® Jetson Nano™ SoC. Specialized for AI edge computing, the Jetson Nano utilizes the quad-core ARM® Cortex®-A57 MPCore processor with NVIDIA Maxwell™ GPU architecture featuring 128 NVIDIA CUDA® cores. This innovative design allows processing speeds up to 472 GFLOPs and is capable of operating multiple neural networks or processing several high-resolution images at the same time. The NVIDIA Jetson Nano also features onboard 4GB RAM and MicroSD card slot supporting up to 32GB of storage.

The BOXER-8222AI features a PoE PD (Powered Device) LAN port, allowing for deployment without a dedicated power supply when connected to a PSE Gateway (Power Supply Equipment).

The BOXER-8222AI utilizes the 802.3at standard, supporting power input of 25.6W, more than enough to power the system and connected devices such as USB cameras and sensors.

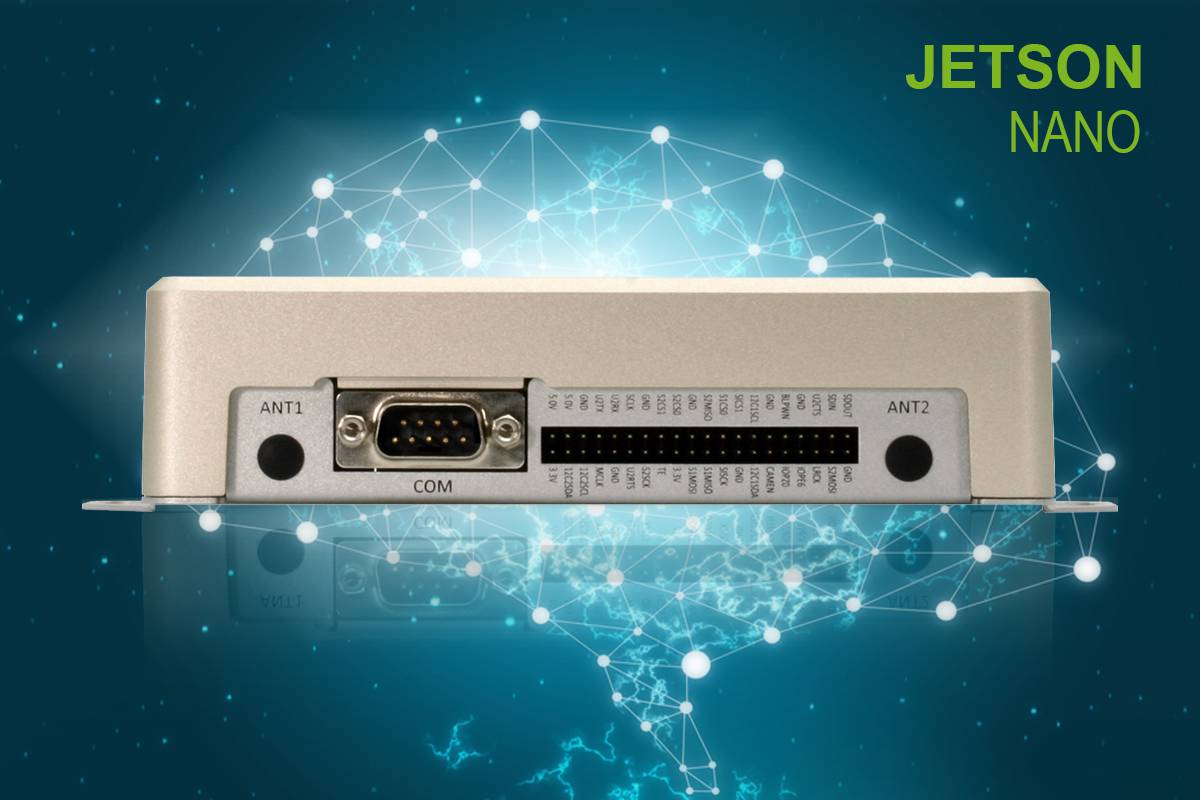

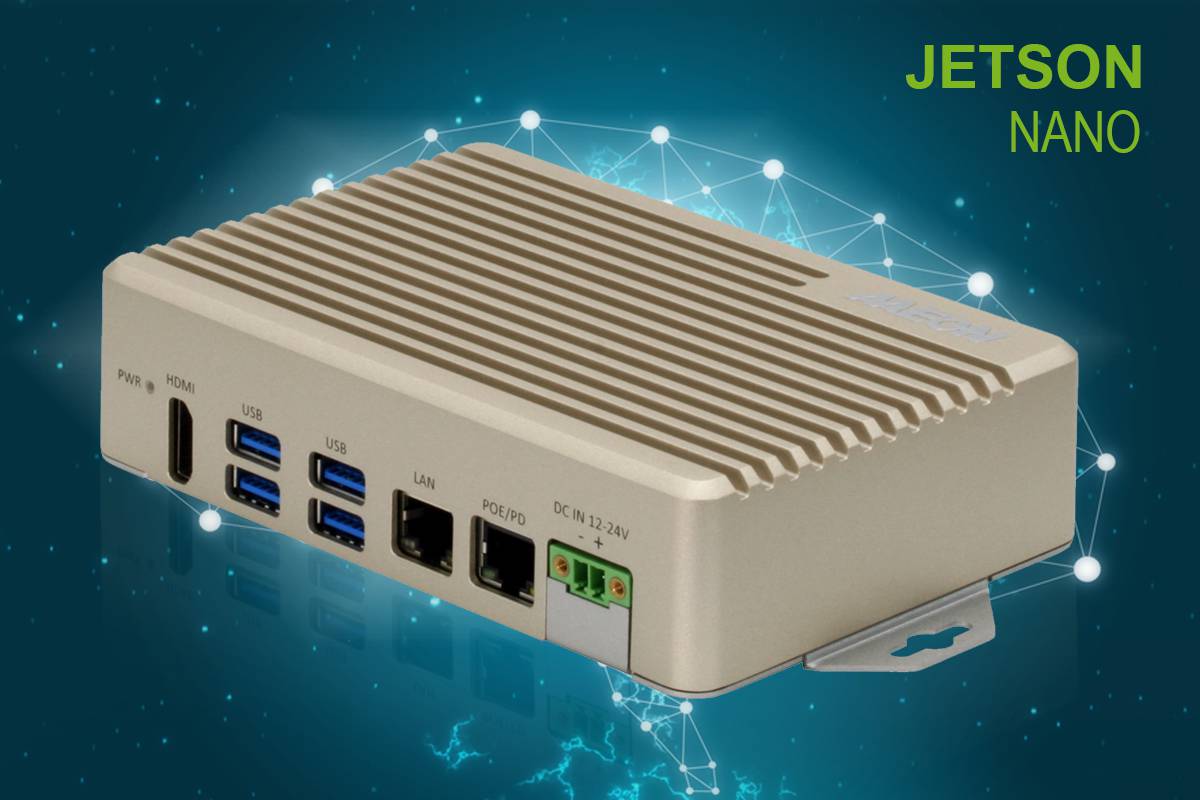

The BOXER-8222AI is designed with a flexible I/O loadout including a 40-pin I/O connector designed to support a wide range of sensors and controllers. It also features four USB3.2 Gen 2 ports, RS-232 COM port, as well as LAN and HDMI ports. The BOXER-8222AI also supports Wi-Fi expansion with an onboard M.2 2230 slot.

The BOXER-8222AI is designed to operate in a range of rugged environments, featuring a fan-less design to ensure reliable operation. It can operate in temperatures from -10°C up to 70°C without a loss in performance. Its compact size also makes it easy to deploy in tight spaces, putting it closer to where it’s needed.

Specifications
BOXER-8222AI

System

AI Accelerator Nvidia Jetson Nano
CPU Quad Core ARM® Cortex®-A57 MPCore Proccessor
System Memory 4GB LPDDR4
Storage Device 32GB Micro-SD (A version) or 16GB eMMC (B version)
Display Interface HDMI 2.0
Ethernet 10/100/1000Base-TX x 1
I/O USB 3.2 Gen 1 x 4 LAN x 1 RS-232 x 2 HDMI x 1 MicroSD x 1 DC Power Input x 1 Recovery Button x 1 Micro-USB for Flash OS x 1
Expansion M.2 E-Key 2230 x 1(for WiFi)
Indicator Power LED x 1
OS Support Linux (AAEON ACLinux 4.9, Compliance with Ubuntu 18.04)

Power Supply

Power Requirement 12Vdc w/ 2-pin terminal block

Mechanical

Mounting Wallmount
Dimensions (W x D x H) 3.39” x 2.87” x 1.3” (88mm x 75mm x 39mm)
Gross Weight 1.10 lb (0.5 Kg)
Net Weight 0.66 lb (0.3 Kg)

Environmental

Operating Temperature -4°F ~ 122°F (-20°C ~ 50°C, according to IEC60068-2 with 0.5 m/s AirFlow)
Storage Temperature -49°F ~176°F (-45°C ~ 80°C)
Storage Humidity 95% @ 40°C, non-condensing
Anti-Vibration 3 Grms/ 5 ~ 500Hz/ operation – MicroSD or eMMC
Certification CE/FCC class A
Downloads
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
