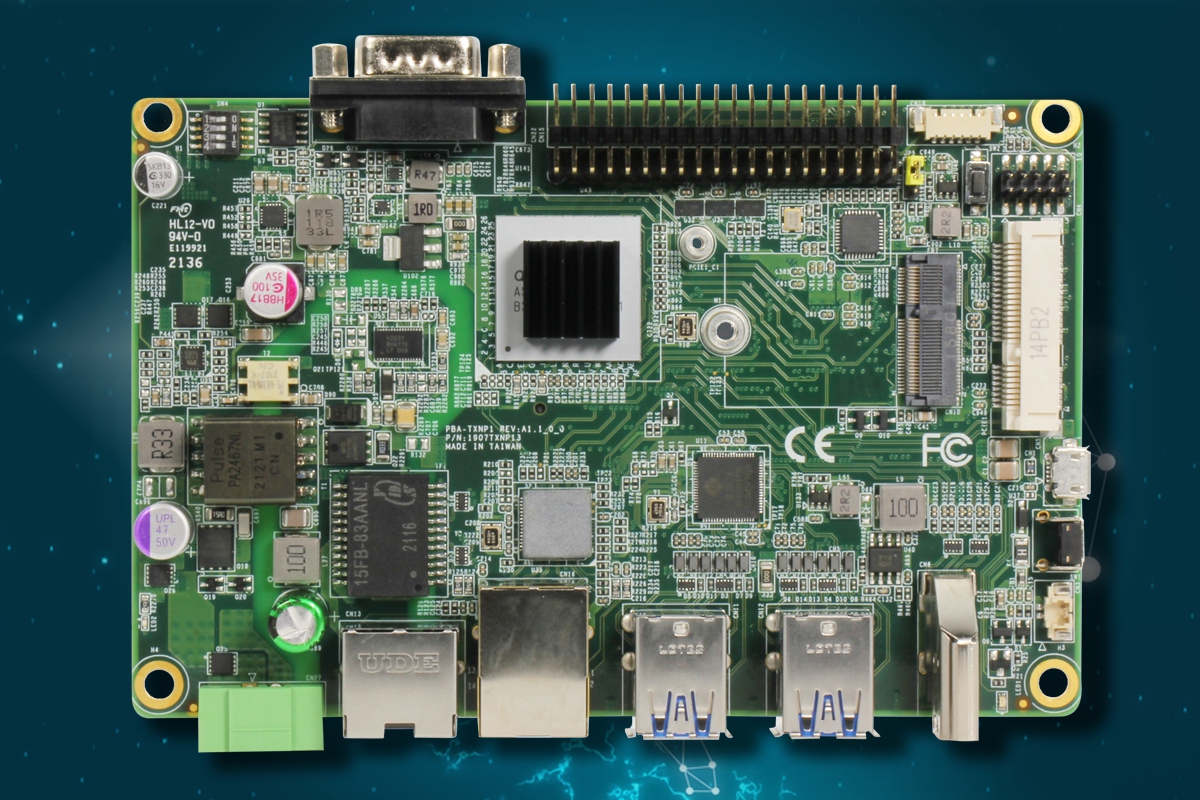

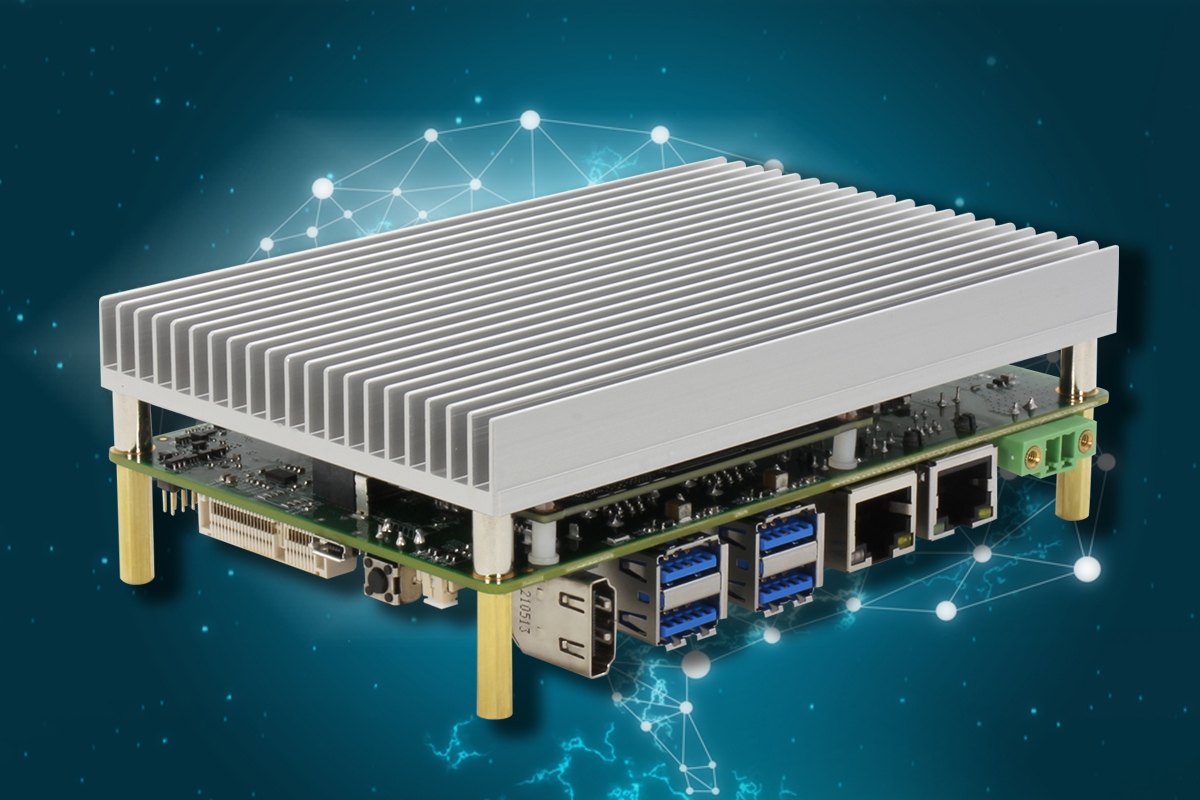

BOXER-8222AI-KIT

AI@Edge development system powered by the NVIDIA Jetson Nano™ module


Features

  • NVIDIA Jetson Nano™
  • PoE/PD x 1
  • 4GB LPDDR4 + 16GB eMMCC
  • USB 3.2 Gen 1 x 4
  • M.2 E-key slot x 1 for WiFi function expansion
  • DC 12 ~ 24V wide voltage power input
Overview
Specifications
BOXER-8222AI-KIT

System

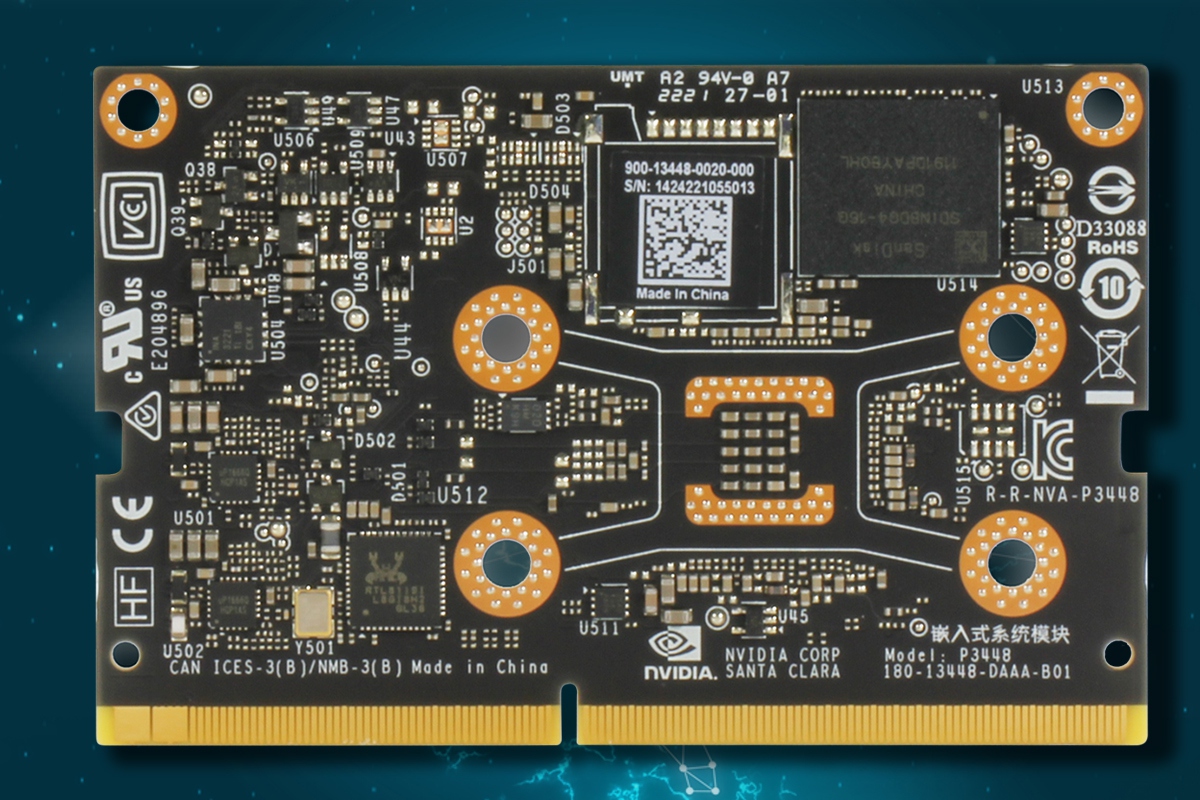

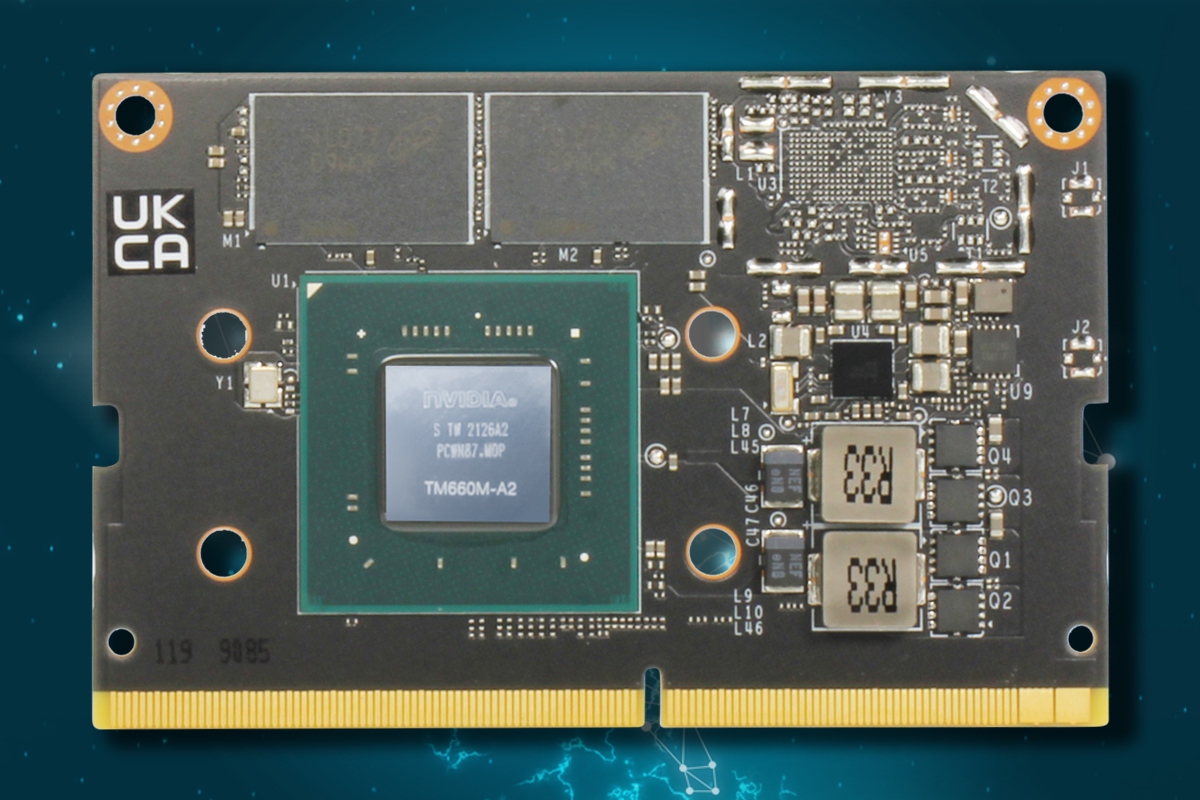

AI Accelerator NVIDIA Jetson Nano™
CPU Quad Core ARM® Cortex®-A57 MPCore Processor
System Memory 4GB LPDDR4
Storage Device

16 GB eMMC
Mini-Card (Full Size) x 1 (PCIE+SATA+USB)

Display Interface HDMI 2.0 x 1
Ethernet 10/100/1000Base-TX x 2
I/O

USB 3.2 Gen 1 x 4
LAN x 1
PD x1 (Powered Device)
40-pin I/O x 1 (GPIO/I2S/I2C/Audio/SPI/UART)
RS-232 x 1
HDMI x 1
Mico-USB x 1 for Flash OS
DC Power Input x 1
Recovery Button x 1
Micro-USB for Flash OS x 1

Expansion

Antenna x 2
M.2 2230 E Key x 1 (for Wi-Fi)

Indicator Power LED x 1
OS Support Jetpack 4.5 and above

Power Supply

Power Requirement DC 12V~24V 2-pin terminal
Downloads

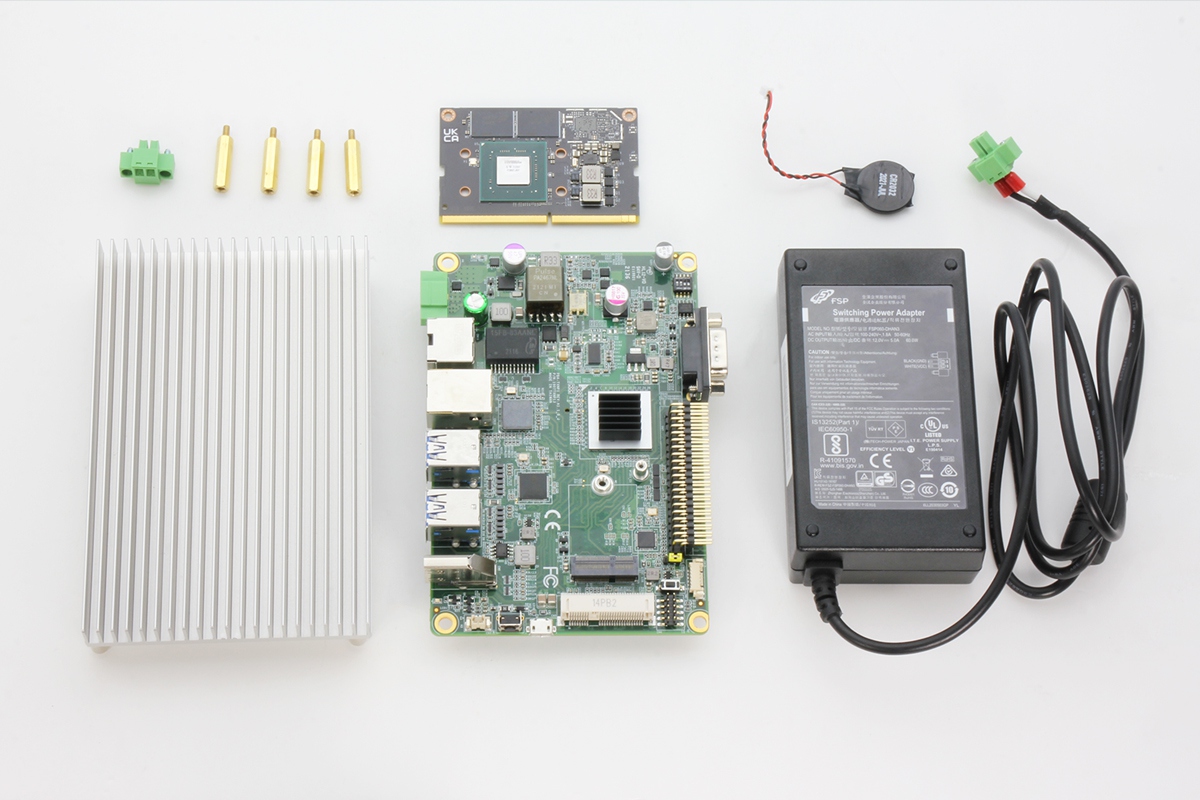

For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
