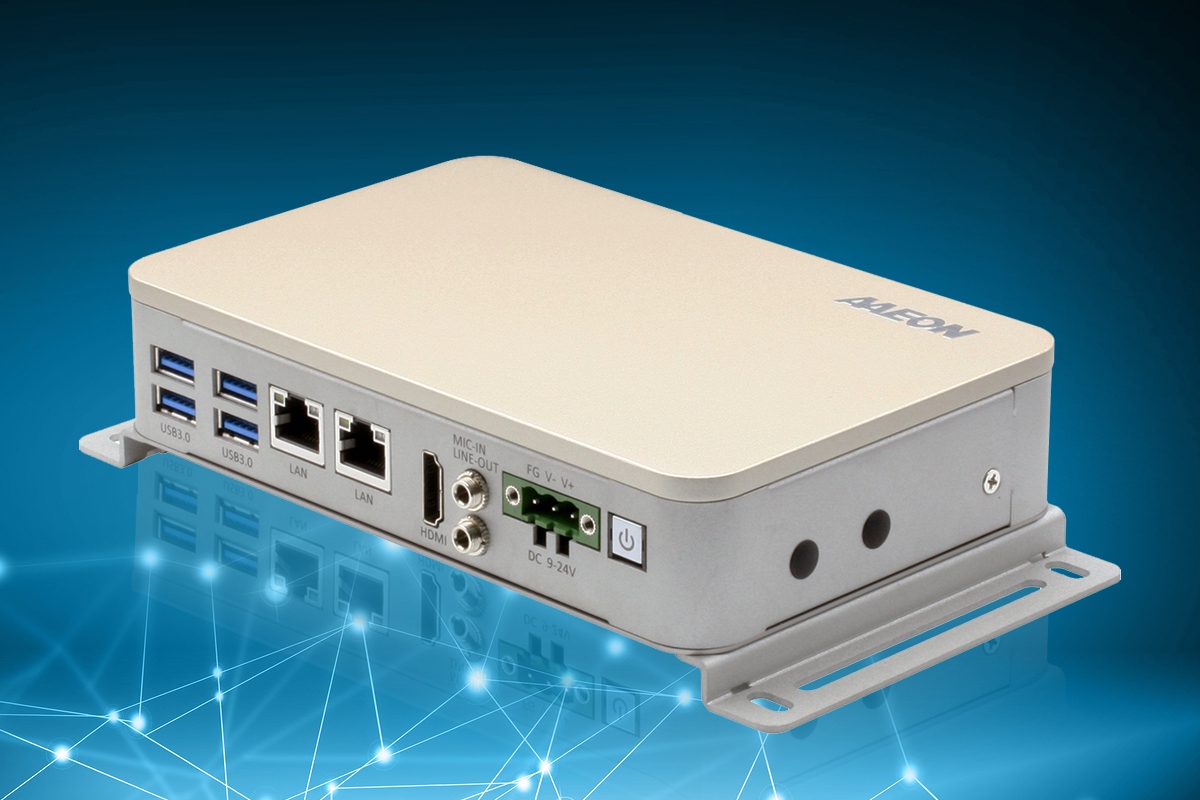

BOXER-8310AI

AI@Edge Din Rail Mount Embedded BOX PC with Intel® Movidius™ Myriad™ VPU & Intel® Pentium™ Processor


Features

  • Design for AI@Edge application
  • Built-in Intel® Movidius™ Myriad™ X VPU, support AI computing
  • Slim Boxer Design: 35mm
  • Rich I/O, Design for Auto System Control
  • Gigabit Ethernet x 2, USB 3.2 Gen 1 x 4
  • Support Wallmount
Overview

At the core of the BOXER-8300AI series is the innovative AI Core X module from AAEON. Each AI Core X module features the Intel® Movidius™ Myriad™ X VPU. The Intel® Movidius™ Myriad™ X provides high performance processing, with speeds up to 105 fps (80 fps typical) and 1 TOPS as a dedicated neural network. The BOXER-8300AI Series features improved thermal design, allowing the Intel® Movidius™ Myriad™ X to operate at higher temperatures without loss of performance.

The BOXER-8310AI offers users entry-level value and performance in a compact fanless system. Small enough to fit almost anywhere, this embedded AI@Edge system is powered by a choice of Intel® Pentium™ N4200 or Intel® Celeron™ N3350 processors with up to 8 GB of RAM.

The BOXER-8310AI features one AI Core X module, providing users with processing capability to power AI solutions such as traffic monitoring, people counting, or even smart retail solutions. With its improved thermal design, the BOXER-8310AI can operate easily in temperatures from -20°C to as high as 55°C.

The BOXER-8300AI series offers users several advantages over other embedded AI@Edge systems. All BOXER-8300AI systems are compatible with the Intel® Distribution of OpenVINO toolkit, allowing users to run AI inferences on existing frameworks (such as TensorFlow or Caffe) or to create their own. The BOXER-8300AI supports expandable storage, supporting the full suite of Linux and Ubuntu. The BOXER-8310AI also features a half-sized Mini-Card Slot with support for mSATA, and memory is also easy to replace and upgrade.

Specifications
BOXER-8310AI

System

AI Accelerator Intel® Movidius+S3:S23™ Myriad™ X x 1
CPU Intel® Pentium® N4200 Intel® Celeron® N3350
System Memory DDR3L SODIMM slot x 1 Supports 1867 MHz and up to 8GB
Storage Device mSATA
Display Interface HDMI 1.4 VGA
Ethernet 10/100/1000 Base-TX x 2
I/O Power Button x 1 USB Type A x 4 for USB 3.2 Gen 1 HDMI type A x 1 for HDMI v1.4b RJ45 x 2 for GbE LAN with LED indicator (i211-AT x2) Power Input x 1 3-pin terminal block in default (+, - , GND) Co-layout Mic-in x 1, Line-out x 1 DB-9 x 3 for RS-242/422/485 (Switch by BIOS) DB-15 x1 for VGA Remote On/Off Antenna Holes x 2 DC-in 3-pin terminal block (9~24V) x 1
Expansion Half-size Minicard slot x 1 (mSATA only)
Indicator Power LED x1, HDD active LED x 1
OS Support Linux (Debian 9.8)

Power Supply

Power Requirement 3 Pin 9-24V DC-in terminal block

Mechanical

Mounting Wallmount
Dimensions (W x H x D) 6.54” x 4.2” x 1.38” (166mm x 106.6mm x 35mm)
Gross Weight 3.6 lb (1.6 kg)
Net Weight 1.3 lb (0.6 kg)

Environmental

Operating Temperature “-13°F ~ 131°F (-25°C ~ 55°C) with W.T. SSD (according to IEC68-2-14 with 0.5 m/s airFlow ; with industrial devices)“
Storage Temperature -4°F ~ 158°F (-20°C ~ 70°C)
Storage Humidity 95% @ 40°C, non-condensing
Anti-Vibration 3 Grms/ 5 ~ 500Hz/ operation – mSATA
Certification CE/FCC class A
Downloads
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
