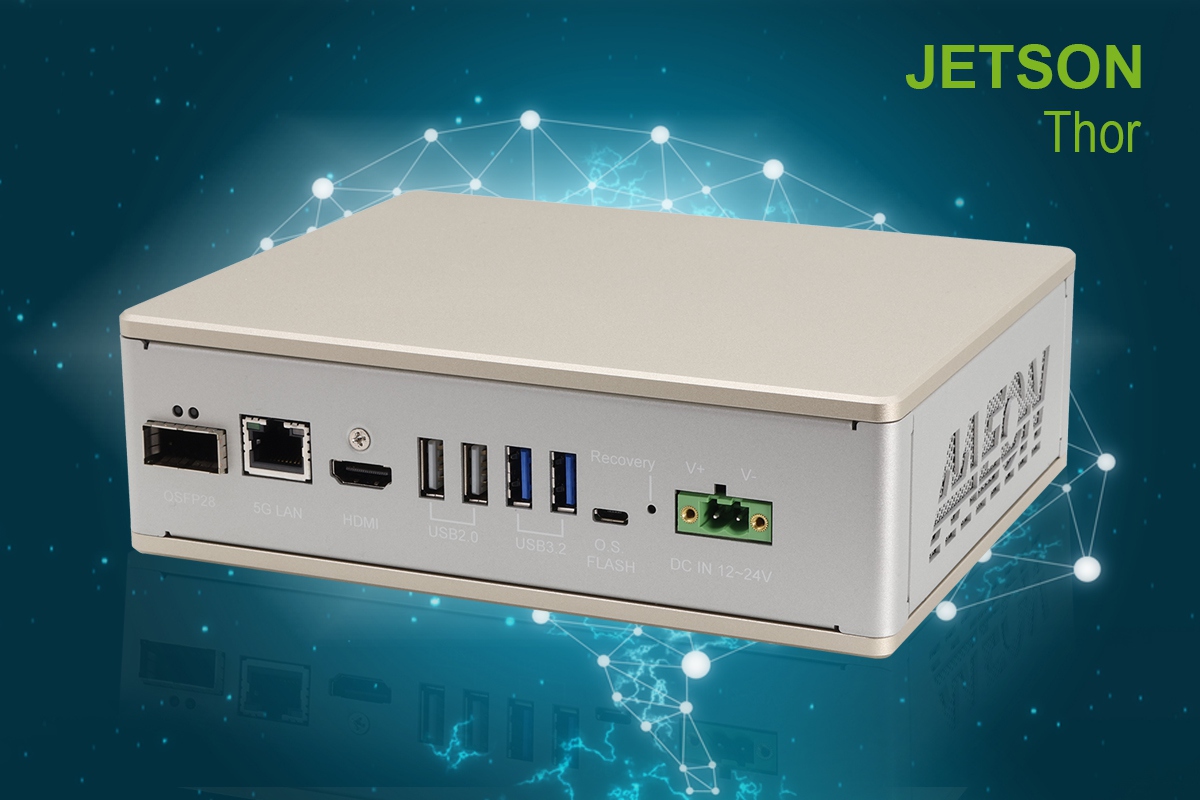

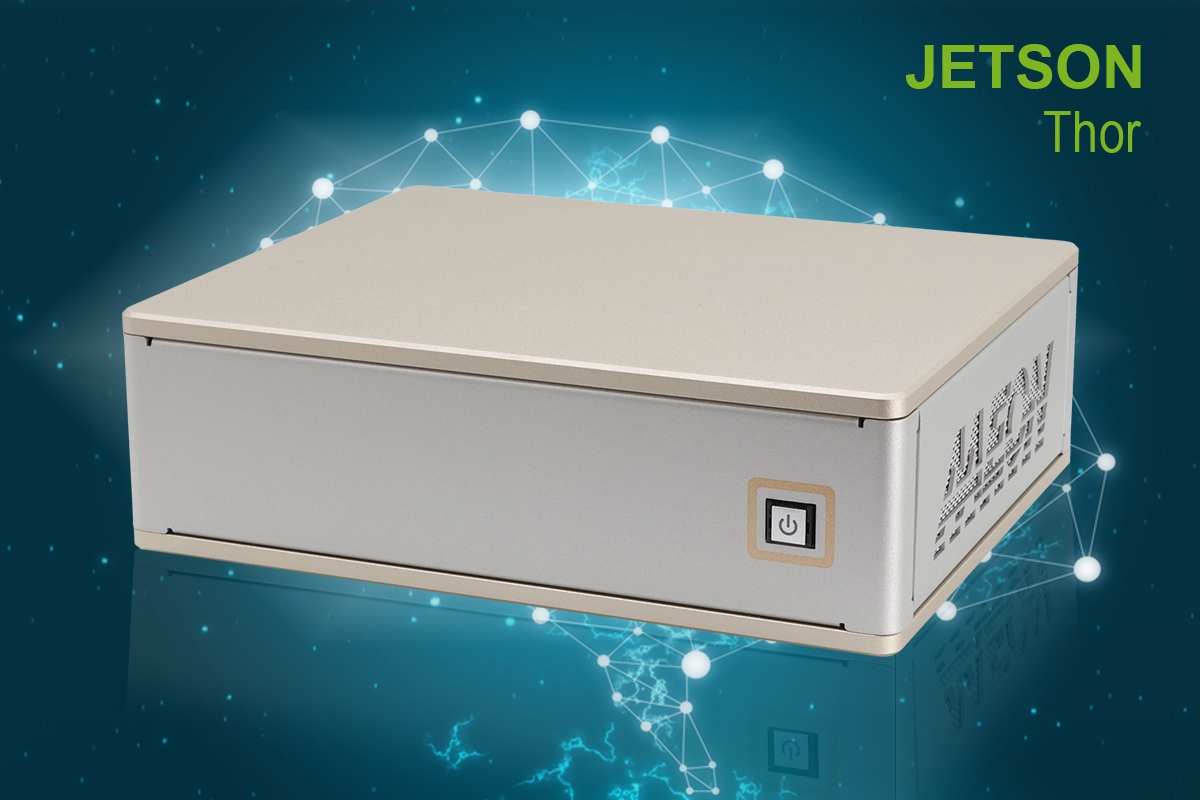

BOXER-8740AI
AI@Edge Embedded Box PC Powered by NVIDIA® Jetson Thor™
Features
- NVIDIA® Jetson T5000™
- QSFP28 x 1 for 25GbE × 4
- 5GbE LAN x 1
- USB 3.2 Gen 2 x 2, USB 2.0 x 2
- M.2 expansion for 5G, Wi-Fi, and NVMe SSD
Empower the next generation of AI at the edge with the BOXER-8470AI, AAEON’s AI@Edge Box PC engineered to deliver exceptional performance and scalability powered by the NVIDIA® Jetson T5000™. Featuring advanced, high-speed interfaces within a compact and rugged enclosure, the BOXER-8470AI is purpose-built to harness the groundbreaking AI capabilities of the NVIDIA® Jetson T5000™ and its integrated NVIDIA Blackwell architecture GPU for demanding edge AI and server-class inference applications.
Designed with scalability in mind, the BOXER-8470AI integrates the essential features required for building high-performance AI inference systems in a space-efficient, mountable form factor.
Leveraging the immense AI compute power of the NVIDIA® Jetson T5000™, the system delivers high-bandwidth network connectivity alongside flexible modular wireless expansion, enabling developers and system integrators to deploy robust, future-ready edge AI solutions.
Purpose-built to accelerate advanced AI workloads, the BOXER-8470AI supports NVIDIA JetPack™ 7.0 and above, granting access to the full NVIDIA AI software stack for physical AI applications. This includes NVIDIA Isaac™ for robotics development, NVIDIA Metropolis for visual agentic AI, and the NVIDIA Holoscan platform for high-speed sensor data processing—empowering users to rapidly develop, deploy, and scale next-generation AI systems at the edge.
System | |
| AI Accelerator | NVIDIA® Jetson T5000™ (2560-core NVIDIA Blackwell architecture GPU with fifth-gen Tensor Cores) |
| CPU | 14-core Arm® Neoverse®-V3AE 64-bit |
| System Memory | 128GB 256-bit LPDDR5X |
| Storage Device | M.2 2280 M-Key x 1 for NVMe |
| Display Interface | HDMI x 1 for HDMI 2.0 |
| Ethernet | QSFP28 x 1 for 25GbE x 4 RJ-45 x 1 for 5GbE |
| I/O | USB 3.2 Gen 2 (Type-A) x 2 USB 2.0 x 2 Micro USB x 1 for OS Flash Recovery Button x 1 Reset Button x 1 Power Button x 1 |
| Expansion | M.2 2280 M-Key x 1 for NVMe M.2 3052 B-Key x 1 for 4G/LTE M.2 2230 E-Key x 1 for WiFi 7 Nano SIM slot x 1 |
| Indicator | Power LED x 1 System LED x 1 |
| OS Support | NVIDIA Jetpack™ 7.0 and above |
Power Supply | |
| Power Requirement | 2 pin phoenix type x 1 for DC 12V~24V DC in |
Mechanical | |
| Mounting | TBD |
| Dimensions (W x D x H) | 7.09” x 5.67” x 2.37” (180mm x 144mm x 60.2mm) |
| Gross Weight | TBD |
| Net Weight | TBD |
Environmental | |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | TBD |
| Storage Humidity | TBD |
| Anti-Vibration | TBD |
| Anti-Shock | TBD |
| Certification | CE/FCC class B |
