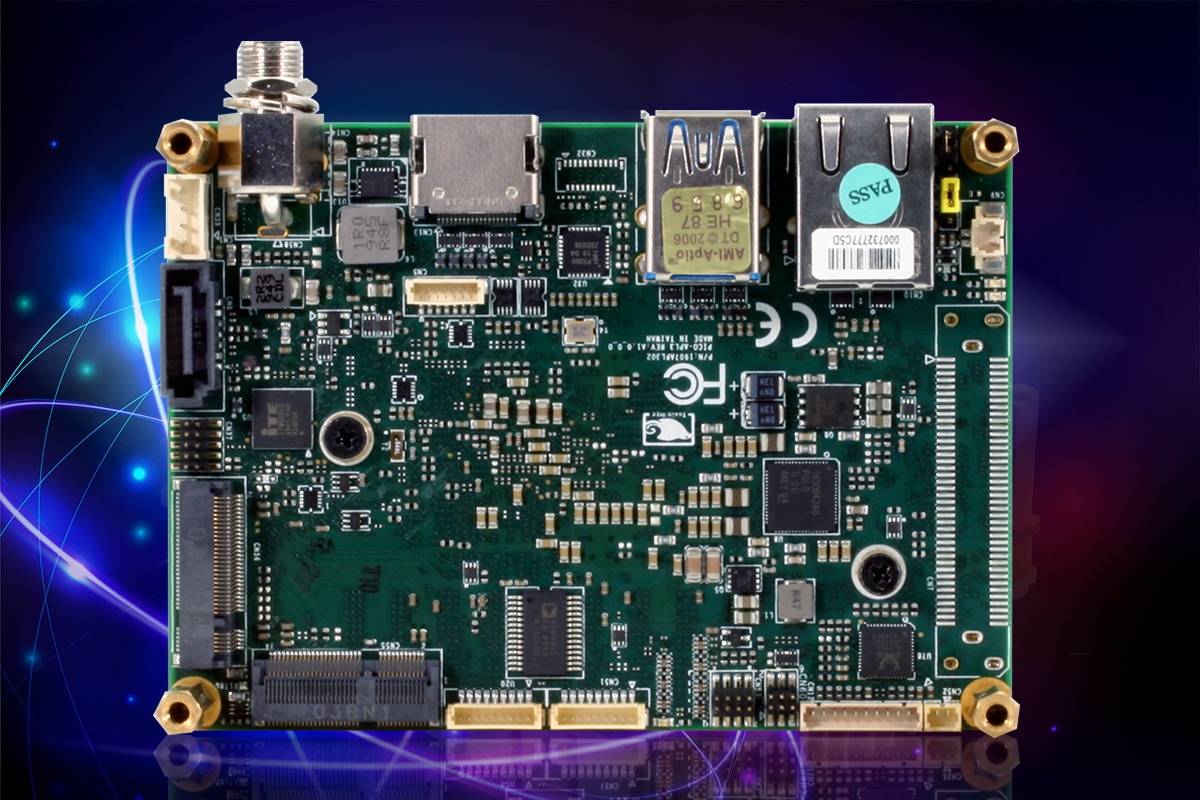

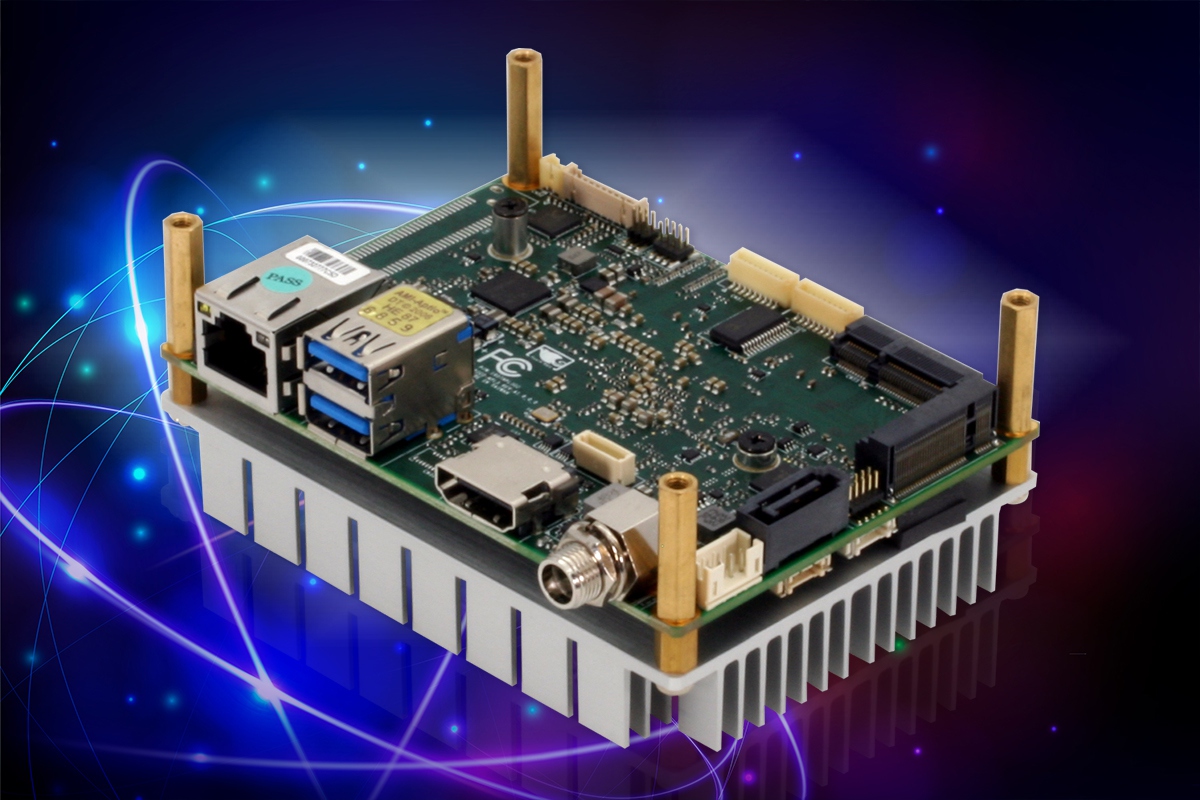

PICO-APL3-A10-FAI1
AI Edge Computing Kit with Kneron KL520 NPU
Features
- Intel® Pentium® N4200 Processor SoC
- Onboard Storage eMMC 32GB
- Onboard DDR3L 4GB
- Single Gigabit Ethernet Support
- HDMI 1.4b for Display
- USB 3.2 Gen 1 x 2, USB 2.0 x 2, SATA 6.0Gb/s x 1
- M.2 B Key (2280) x 1, M.2 E Key (2230) x 1
- M2AI-2280-520 x 1
- EverFocus Full HD Camera EUA1200 x 1
Overview
Specifications
PICO-APL3-A10-FAI1
System | |
| Form Factor | Pico-ITX |
| CPU | Intel® Atom™ Processor SoC |
| CPU Frequency | Up to 2.4 GHz |
| Chipset | Intel® Atom™ Processor SoC |
| Memory Type | Onboard DDR3L 4GB |
| Max. Memory Capacity | 4GB |
| BIOS | AMI/SPI |
| Wake On LAN | Yes |
| Watchdog Timer | 255 Levels |
| Power Requirement | +12V, AT/ATX |
| Power Supply Type | Lockable |
| Power Consumption (Typical) | Intel® N4200 processor, DDR3L 4GB, 1.1A@12V |

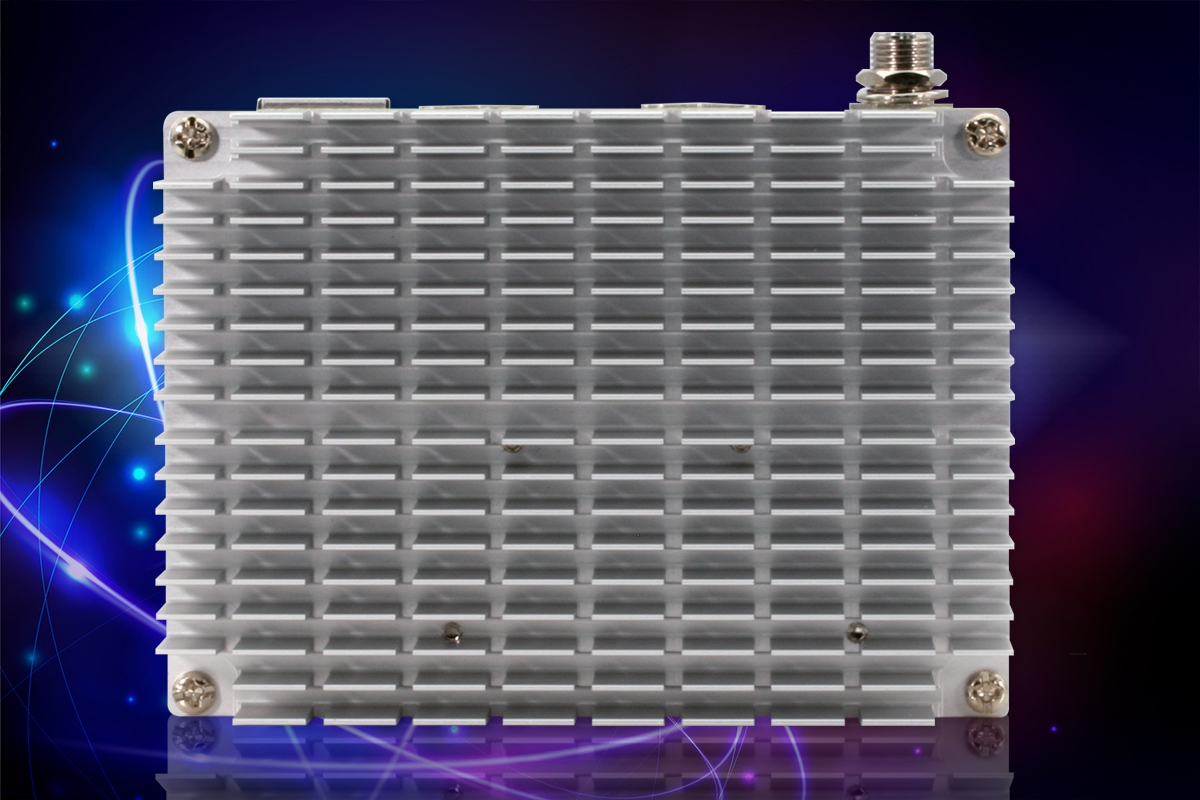

| System Cooling | Heatsink |
| Dimension | 3.94“ x 2.84“ (100 mm x 72 mm) |
| Gross Weight | 0.55 lb (0.25 kg) |
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C) |
| Storage Temperature | -40˚F ~ 176˚F (-40˚C ~ 80˚C) |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF (Hours) | 110,000 |
| Certification | CE,FCC |
Display | |
| Chipset | Intel® Atom™ Processor SoC |
| Resolution | HDMI 1.4b: 3840 x 2160@30Hz |
| LCD Interface | — |
| I/O | |
| Storage/SSD | SATA 6.0Gb/s x 1, 5V/12V Power reserved M.2 2280 (B Key) x 1 eMMC 32GB |
| Ethernet | Realtek 8111G x 1 |
| USB Port | USB 3.2 Gen 1 x 2 Rear IO USB 2.0 x 2 (Internal, co-use with FAN connector) |
| Serial Port | COM1: RS-232 |
| Audio | — |
| DIO | 4-bit |
| Expansion Slot | M.2 2230 x 1 (E-Key) I2C, Smbus |
| SIM | — |
| TPM | — |
| Touch | — |
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
