VPC-3350AI

AI@Edge Compact Fanless Embedded BOX PC with Google Edge TPU


Features

  • Intel® Atom® x5-E3940 Processor
  • 2 x Intel® Myriad™ X VPU inside
  • Supports DDR3L SODIMM up to 8 GB
  • Supports Two Display by HDMI x1, DP x 1
  • Intel® Giga Ethernet x 5 Ports, including 4 x PoE Ports, 1 x LAN
  • 4-CH DI & 4-CH DO (Isolation, optional )
  • -20 °C to 60 °C fanless operation
Overview

The VPC-3350AI is based on a flexible platform powered by Intel® Atom™ x5 E3940 (formerly Apollo Lake) paired with two Intel® Movidius® Myriad™ X VPU modules. Together, these modules provide the VPC-3350AI with processing speeds up to 210 FPS and 8 TOPs as a dedicated neural network accelerator (evaluated by GooLeNet). This configuration of two VPUs with processor allows the VPC-3350AI to support asynchronous processing of AI models, allowing for higher framerates and faster, smoother image processing for AI inferences.

The VPC-3350AI features an innovative thermal solution providing wide temperature operations from -20°C to 60°C, perfect for operating in almost any environment.

The VPC-3350AI is designed with an assortment of I/O ports including four POE ports, two COM, and USB 3.2 Gen 1 ports, allowing for flexibility to integrate with any project.

AAEON’s industry leading OEM/ODM and manufacturer services provide options for clients to configure the VPC-3350AI to their needs, including providing up to four Intel® Movidius® Myriad™ X VPUs, expanded I/O and functionality for in-vehicle operations.

With Intel® Movidius® Myriad™ X, the VPC-3350AI is a perfect fit for AI and edge computing applications, including license plate and facial recognition. As an in-vehicle AI embedded system, it helps to power driver safety applications such as advanced driver-assist systems (ADAS) or driver monitoring and behavior analysis for heavy vehicle operators.

× Unboxing VPC-3350AI
Specifications
VPC-3350AI

System

Form Factor Multi-PoE & Fanless Appliance
Processor Intel® Pentium®/ Celeron®/ Atom™ Processor (Default: E3940; Project base: N4200/N3350, or E3950 w/ customized chassis)
AI Accelerator 2 x Intel® Myriad™ X, up to 4 Myriad™ X (Project base)
Main Memory Up to 8GB, DDR3L 204-pin SODIMM
Display HDMI x 1, DP x 1
Ethernet Intel® i211 (colay i210)
Smart PoE 4 ports, sharing 60W of power budget for every four PoE ports
RAID support
Expansion Slot SATA x 1
GPS, G-Sensor

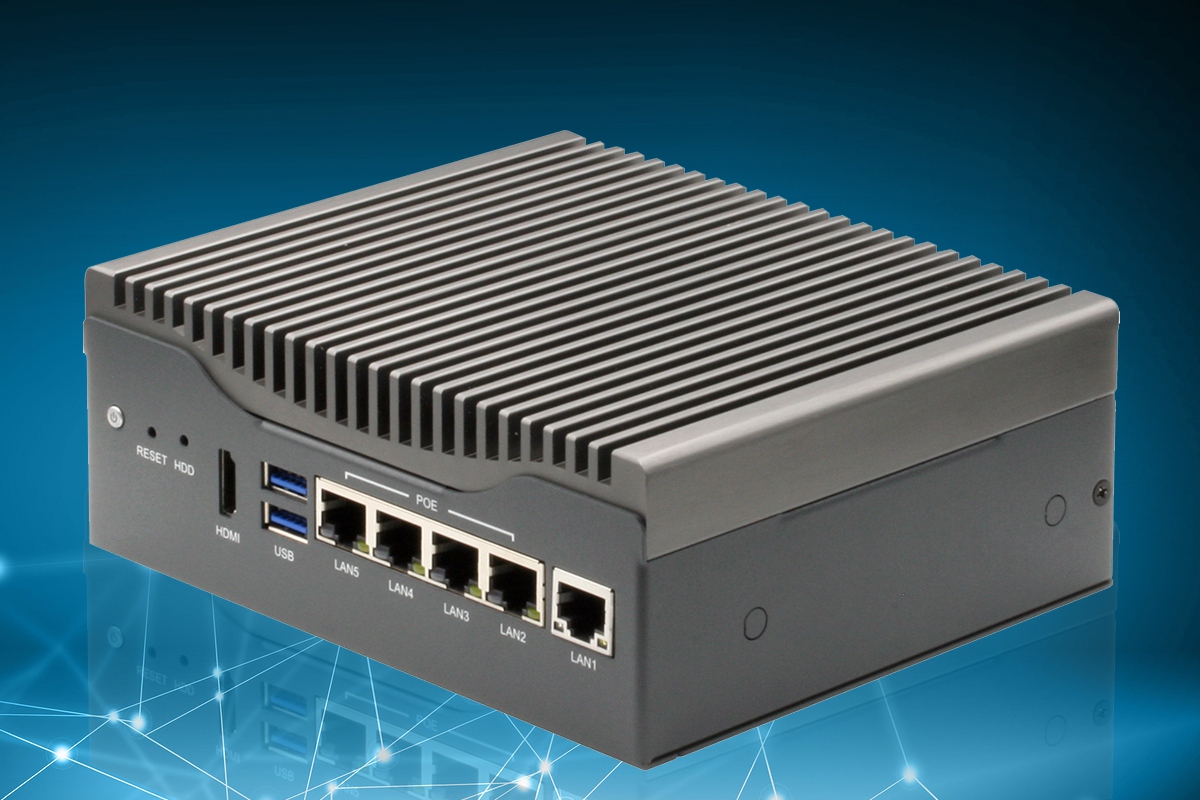

Front I/O Panel Power Button x 1, Reset Button x 1 Power/HDD, LED x 2 USB 3.2 Gen 1 x 2, GbE port (RJ-45) x 1, PoE LAN x 4 (IEEE 802.3 at/af) HDMI x 1

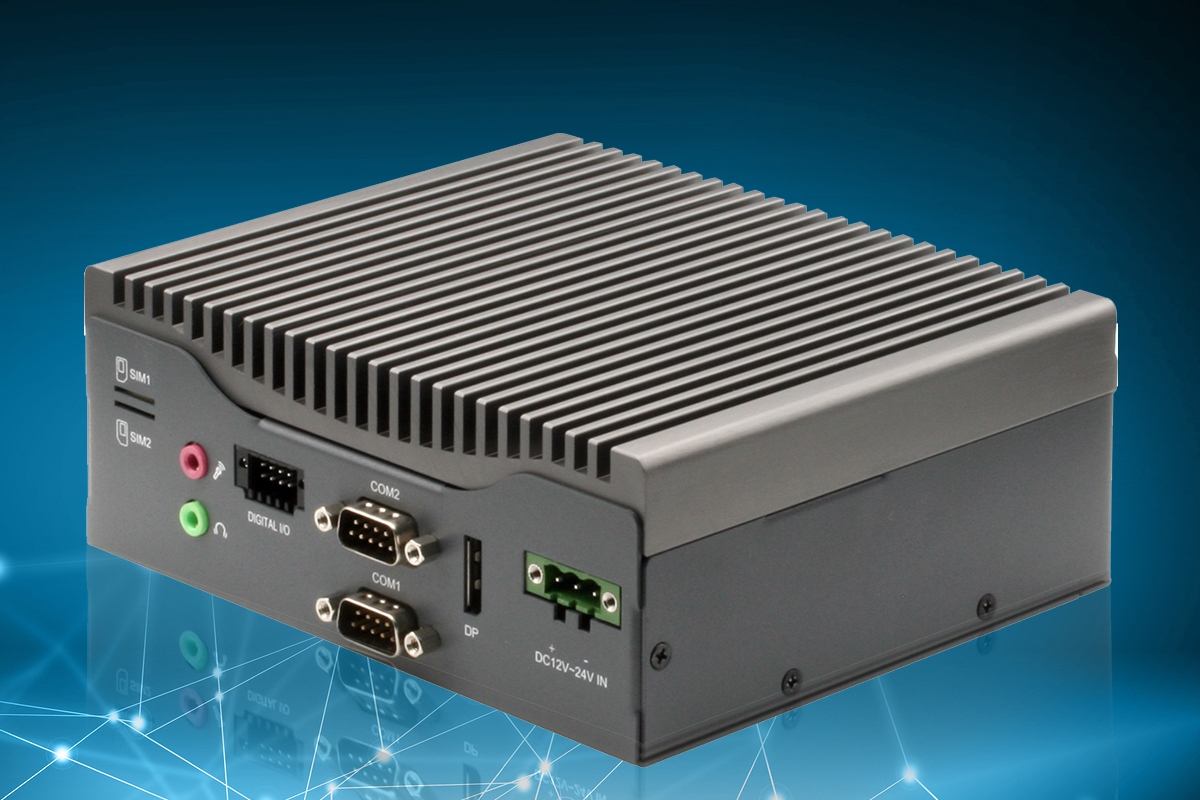

Rear I/O Panel DC-In power x 1, 8-bit DIO x 1, 4-ch digital input, 4-ch digital output RS-232/422/485 x 2, DP x 1, Audio Line-out x 1, Mic-In x 1 Micro SIM slot x 2

Storage

HDD Tray 2.5” HDD/SSD Bay x 1
CF/CFast/mSATA Slot

Environmental

Operating Temperature -4°F ~ 140°F (-20°C ~ 60°C)
Storage Temperature -40°F ~ 185°F (-40°C ~ 85°C)
Storage Humidity 10%~80% @40°C, non-condensing
Vibration/Shock MIL-STD-810G
Certification CE & FCC Class A

Power Requirement

Power Supply DC 12-24V

Mechanical

Removable HDD Tray
Internal System HDD Bay
Dimension 6.3” x 5.28” x 2.44” (160mm x 134mm x 62mm)
Gross Weight 5.07 lb (2.3 kg)
Note
