BOXER-6642-CML | Extreme Computing Power & Display Capability
BOXER-6642-CML | 10th Generation Intel Core i3/i5/i7/i9

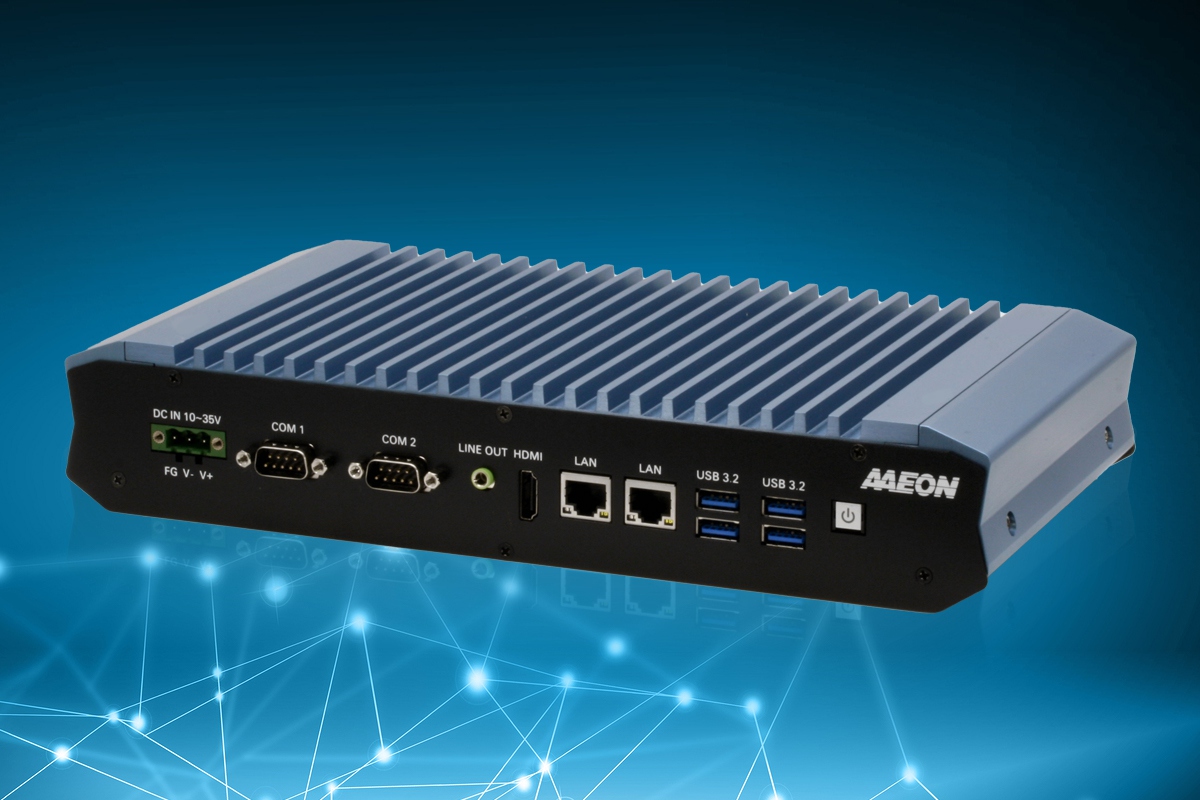

BOXER-6642-CML

Fanless Embedded Box PC with Socket Type 10th Generation Intel® Core™ Processor


Características

  • Extreme Computing Power & Graphic Display Capability
  • DDR4 slot x 2, up to 64GB
  • Support High Speed NVMe storage (M.2 2280)
  • GbE LAN x 2, RS232/422/485 x 4
  • Supports Intel® AMT
  • Support TPM 2.0
  • Wide Range 10-35V DC input
  • Wide Range 0 ~ 45°C Operating Temperature
Visión general

The BOXER-6642-CML is the first fanless industrial PC from AAEON to offer the 10th Generation Intel Core i3/i5/i7/i9 and Intel® Celeron® processors (up to 35W TDP). Utilizing a socket-type desktop chipset, the system can be easily scaled or upgraded to match the performance needs of any application. Additionally, its slim design, only 54mm thick, allows it to fit into almost any tight space, allowing it to be deployed right where it needs to be.

The BOXER-6642-CML features an M.2 2280 (M-Key) slot driven by PCIe 3.0 [x4] with support for fast NVMe SSDs. It also has an M.2 2230 (E-Key) slot to support Wi-Fi or Bluetooth connectivity. The BOXER-6642-CML is built with a full-sized Mini Card slot which supports PCIe and mSATA, set via the BIOS.

The BOXER-6642-CML features fanless design which keeps dust and other contaminants out, allowing reliable, long-lasting operation. It also features a wide voltage input (10 to 35V) and provides consistent operation without loss of performance in temperatures from 0°C up to 45°C.

The BOXER-6642-CML offers a broad range of I/O features including four serial COM ports, four USB3.2 Gen 2 ports, and two Gigabit Ethernet ports, providing support for Intel® vPro and Intel® AMT. The BOXER-6642-CML also delivers storage flexibility with NVMe support, mSATA, and 2.5” SATA III (6.0 Gbps) storage devices. The BOXER-6642-CML can also easily connect with cellular networks thanks to onboard SIM card slot, allowing for even more communication flexibility.

Especificaciones
BOXER-6642-CML

System

CPU

Intel® Core™ i9-10900TE
Intel® Core™ i7-10700TE
Intel® Core™ i5-10500TE
Intel® Core™ i3-10100TE
Intel® Celeron® G5900TE

Chipset Intel® Q470E
System Memory DDR4 SO-DIMM x 2, up to 64GB
Display Interface HDMI 1.4 x 1
Storage Device

M.2 2280 slot x 1 (PCIex4),
2.5” SATA SSD/HDD bay x 1

Ethernet Intel® i211-AT x 1, i219-LM x 1
I/O

HDMI x 1
RJ-45 x 2 for GbE LAN (i211-AT x 1, i219-LM x 1)
USB 3.2 Gen 2 x 4
USB 2.0 x 2
DB-9 x 4 for RS-232/422/485
DB15 x 1 for 8 channel DIO
Line out x 1
3 pin 10~35V Power Input x 1
Power Button with LED x 1

Expansion

M.2 2230 E Key x 1
M.2 2280 M Key x 1
Full-Size Mini Card x1 (mSATA/PCIe switch by BIOS, default PCIe)
SIM x 1

Indicator Power LED
OS Support

Windows® 10 IoT Enterprise 64-bit
Linux Ubuntu 20.04.2

Power Supply

Power Requirement 10-35V DC-in with 3-pin terminal block

Mechanical

Mounting Wallmount
Dimensions (W x H x D) 11.58" x 5.98" x 2.11" (292.4mm x 152mm x 53.5mm)
Gross Weight 8.4lb (3.8kg)
Net Weight 6.2lb (2.8kg)

Environmental

Operating Temperature

32°F ~ 113°F (0°C ~ 45°C) (35W CPU),
according to IEC68-2-14 with 0.5 m/s AirFlow

Storage Temperature -40°F ~ 176°F (-40°C ~ 80°C)
Storage Humidity 5 ~ 95% @ 40°C, non-condensing
Anti-Vibration 2 Grms/5 ~ 500Hz/operation (with SSD)
Anti-Shock 50G peak acceleration (11msec) (with SSD)
Certification CE/FCC class A
Descargas
Para detalles del empaque, especificaciones tecnicas y otra informaciónes del producto, descargue la hoja de datos o el manual para el usuario.
