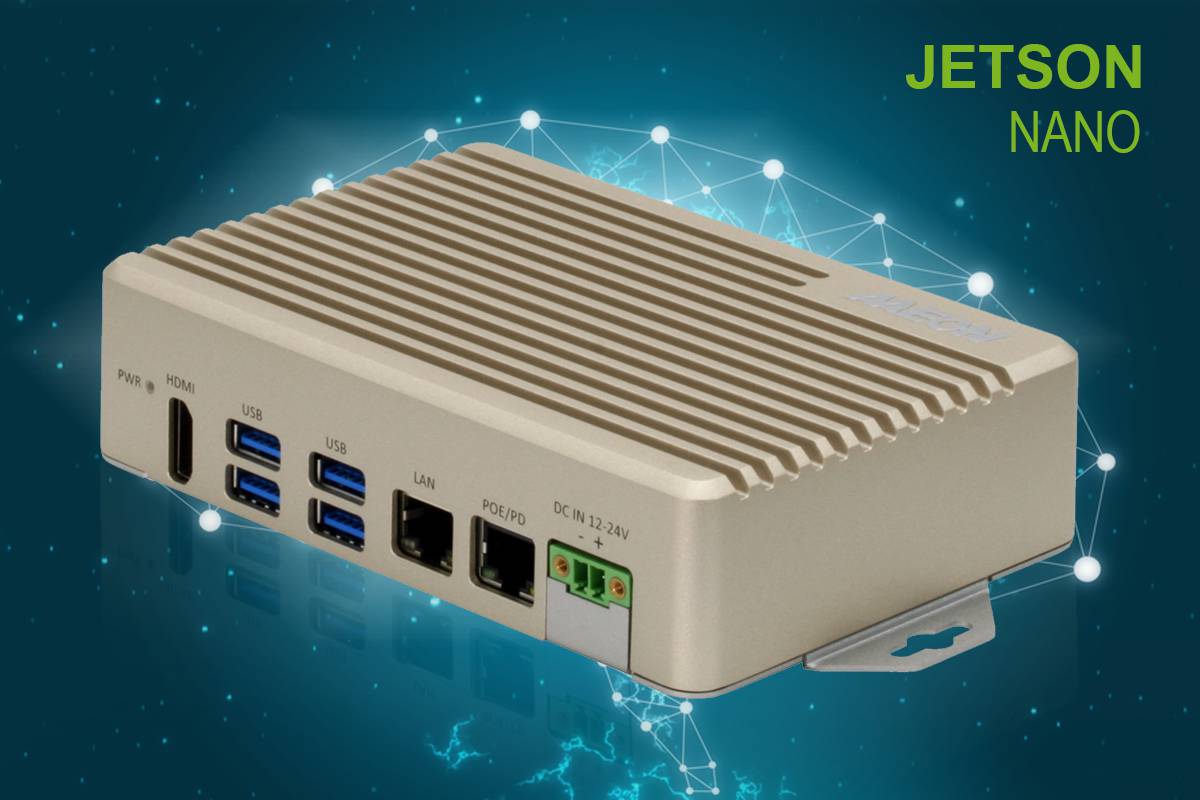

BOXER-8222AI
AI@Edge Fanless Embedded Box PC with NVIDIA® Jetson Nano™, PD Port
Características
- NVIDIA® Jetson Nano™
- PoE/PD x 1
- 4GB LPDDR4 + 32GB SD card slot
- USB 3.2 Gen 1 x 4
- M.2 E-key slot x 1 for WiFi function expansion
- DC 12 ~ 24V wide voltage power input
- Wide working temperature -10°C ~ 70°C
The BOXER-8222AI is powered by the innovative and energy efficient NVIDIA® Jetson Nano™ SoC. Specialized for AI edge computing, the Jetson Nano utilizes the quad-core ARM® Cortex®-A57 MPCore processor with NVIDIA Maxwell™ GPU architecture featuring 128 NVIDIA CUDA® cores. This innovative design allows processing speeds up to 472 GFLOPs and is capable of operating multiple neural networks or processing several high-resolution images at the same time. The NVIDIA Jetson Nano also features onboard 4GB RAM and MicroSD card slot supporting up to 32GB of storage.
The BOXER-8222AI features a PoE PD (Powered Device) LAN port, allowing for deployment without a dedicated power supply when connected to a PSE Gateway (Power Supply Equipment).
The BOXER-8222AI utilizes the 802.3at standard, supporting power input of 25.6W, more than enough to power the system and connected devices such as USB cameras and sensors.

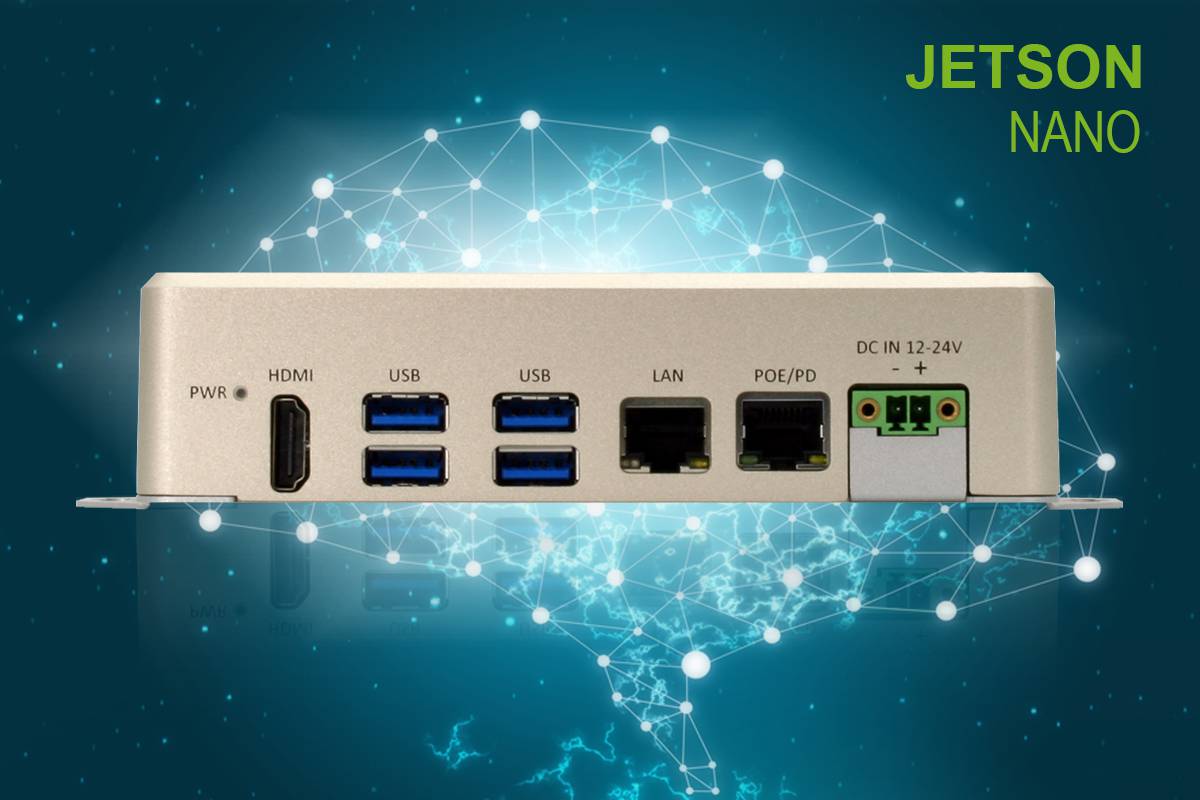

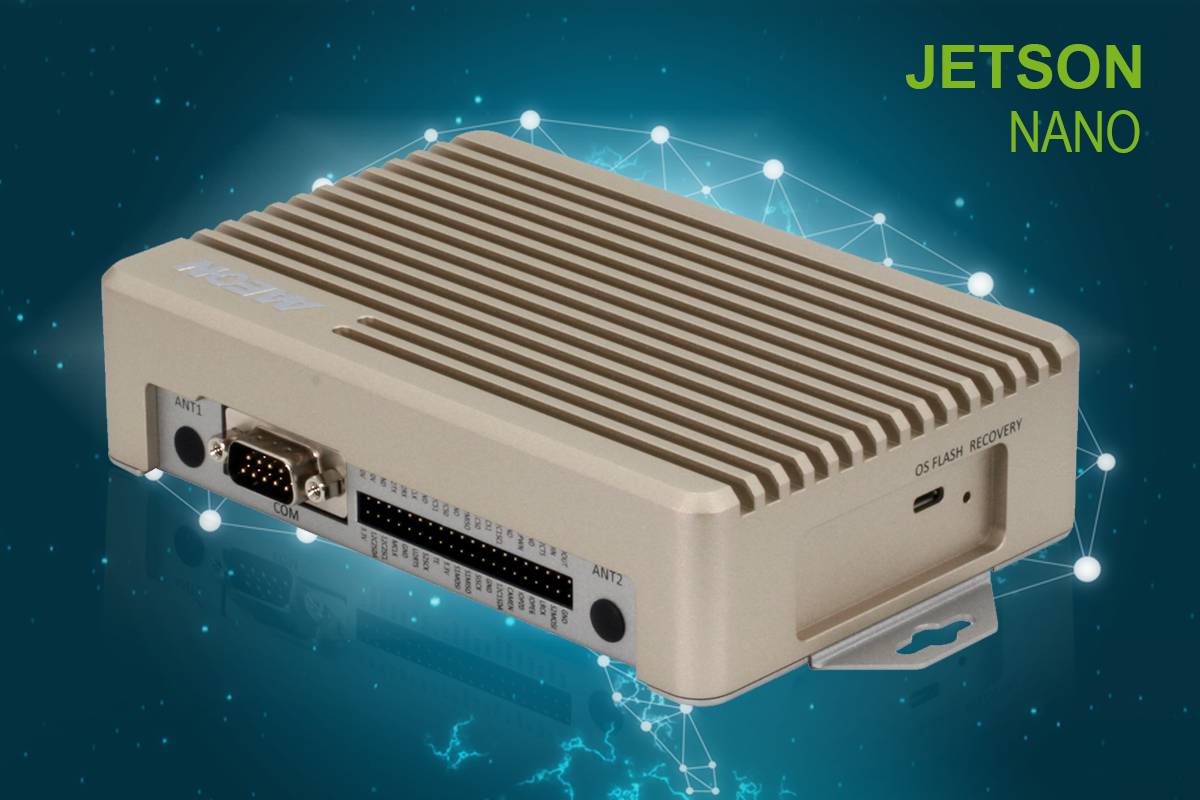

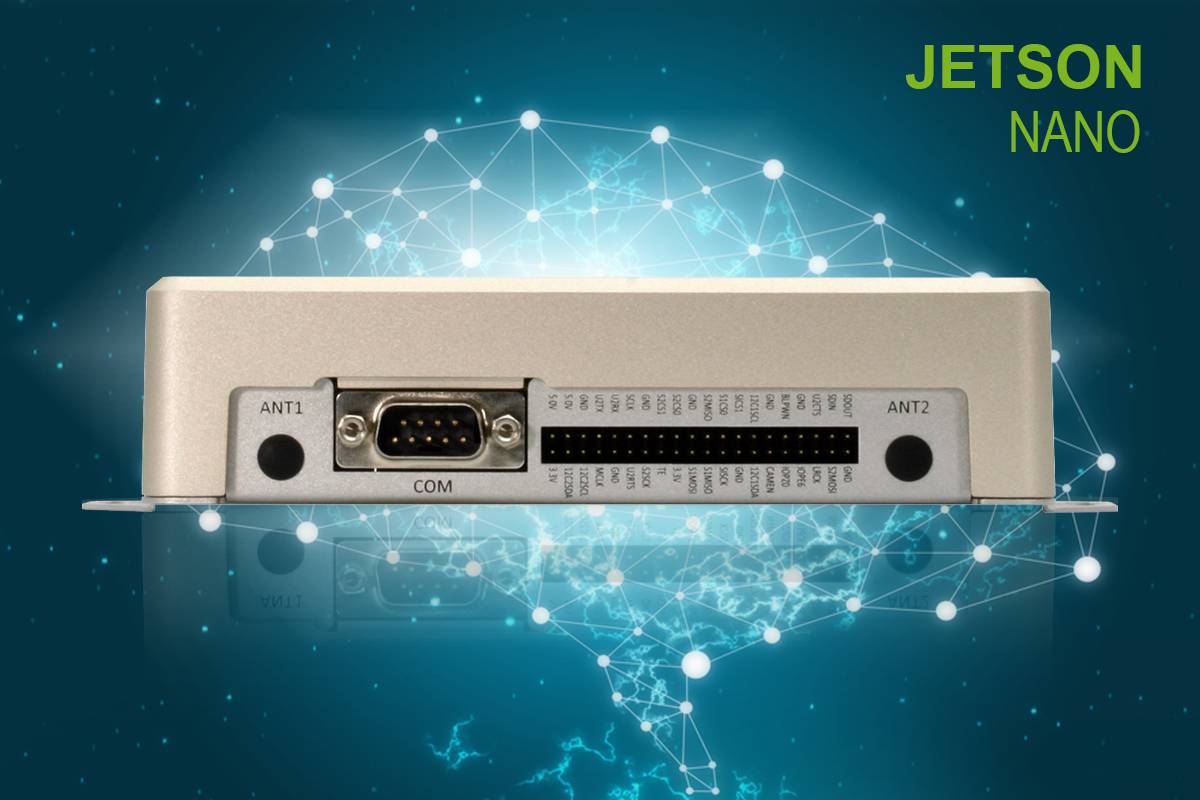

The BOXER-8222AI is designed with a flexible I/O loadout including a 40-pin I/O connector designed to support a wide range of sensors and controllers. It also features four USB3.2 Gen 2 ports, RS-232 COM port, as well as LAN and HDMI ports. The BOXER-8222AI also supports Wi-Fi expansion with an onboard M.2 2230 slot.
The BOXER-8222AI is designed to operate in a range of rugged environments, featuring a fan-less design to ensure reliable operation. It can operate in temperatures from -10°C up to 70°C without a loss in performance. Its compact size also makes it easy to deploy in tight spaces, putting it closer to where it’s needed.
System | |
| AI Accelerator | Nvidia Jetson Nano |
| CPU | Quad Core ARM® Cortex®-A57 MPCore Proccessor |
| System Memory | 4GB LPDDR4 |
| Storage Device | 32GB Micro-SD (A version) or 16GB eMMC (B version) |
| Display Interface | HDMI 2.0 |
| Ethernet | 10/100/1000Base-TX x 1 |
| I/O | USB 3.2 Gen 1 x 4 LAN x 1 RS-232 x 2 HDMI x 1 MicroSD x 1 DC Power Input x 1 Recovery Button x 1 Micro-USB for Flash OS x 1 |
| Expansion | M.2 E-Key 2230 x 1(for WiFi) |
| Indicator | Power LED x 1 |
| OS Support | Linux (AAEON ACLinux 4.9, Compliance with Ubuntu 18.04) |
Power Supply | |
| Power Requirement | 12Vdc w/ 2-pin terminal block |
Mechanical | |
| Mounting | Wallmount |
| Dimensions (W x D x H) | 3.39” x 2.87” x 1.3” (88mm x 75mm x 39mm) |
| Gross Weight | 1.10 lb (0.5 Kg) |
| Net Weight | 0.66 lb (0.3 Kg) |
Environmental | |
| Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C, according to IEC60068-2 with 0.5 m/s AirFlow) |
| Storage Temperature | -49°F ~176°F (-45°C ~ 80°C) |
| Storage Humidity | 95% @ 40°C, non-condensing |
| Anti-Vibration | 3 Grms/ 5 ~ 500Hz/ operation – MicroSD or eMMC |
| Certification | CE/FCC class A |
