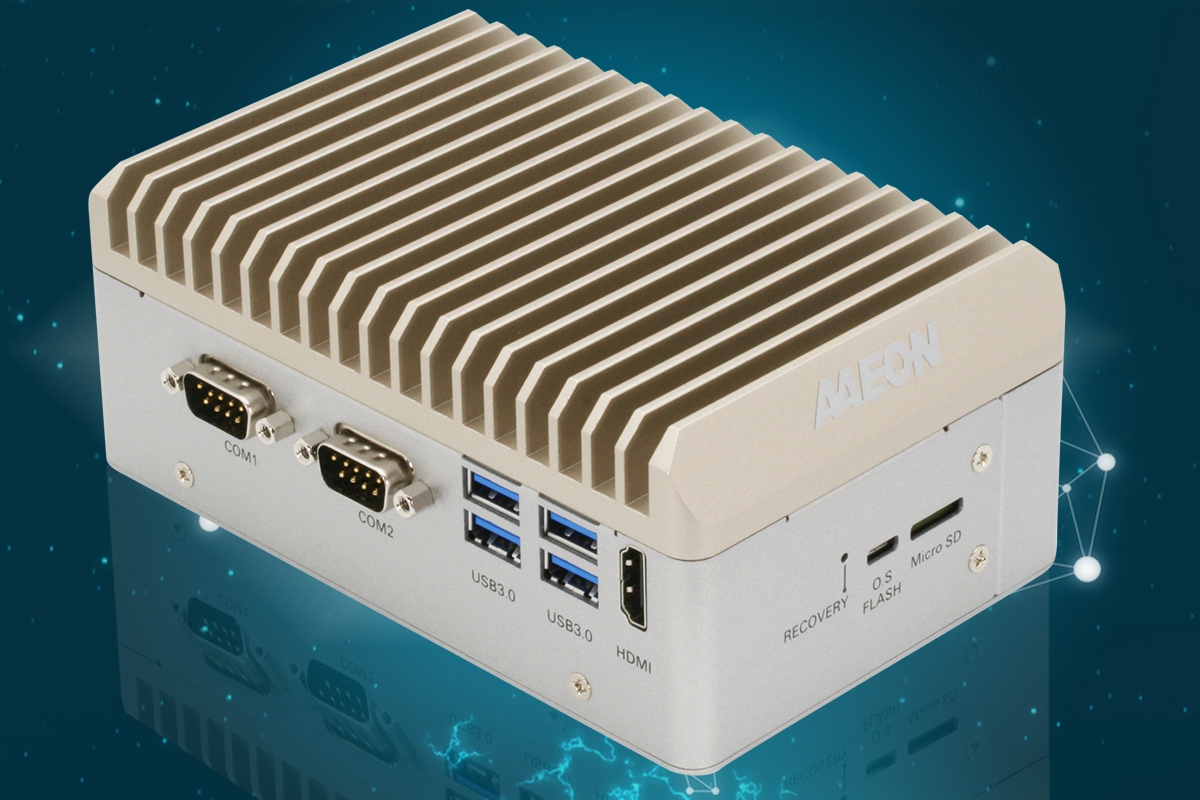

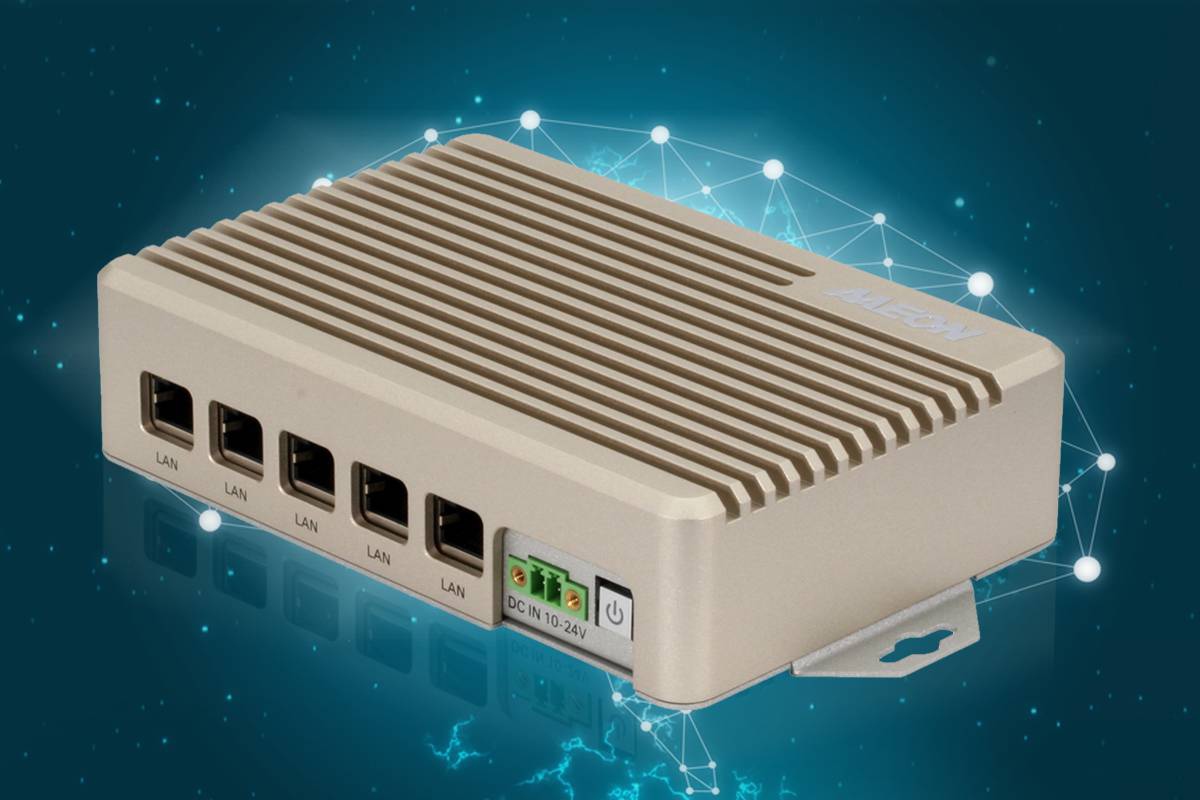

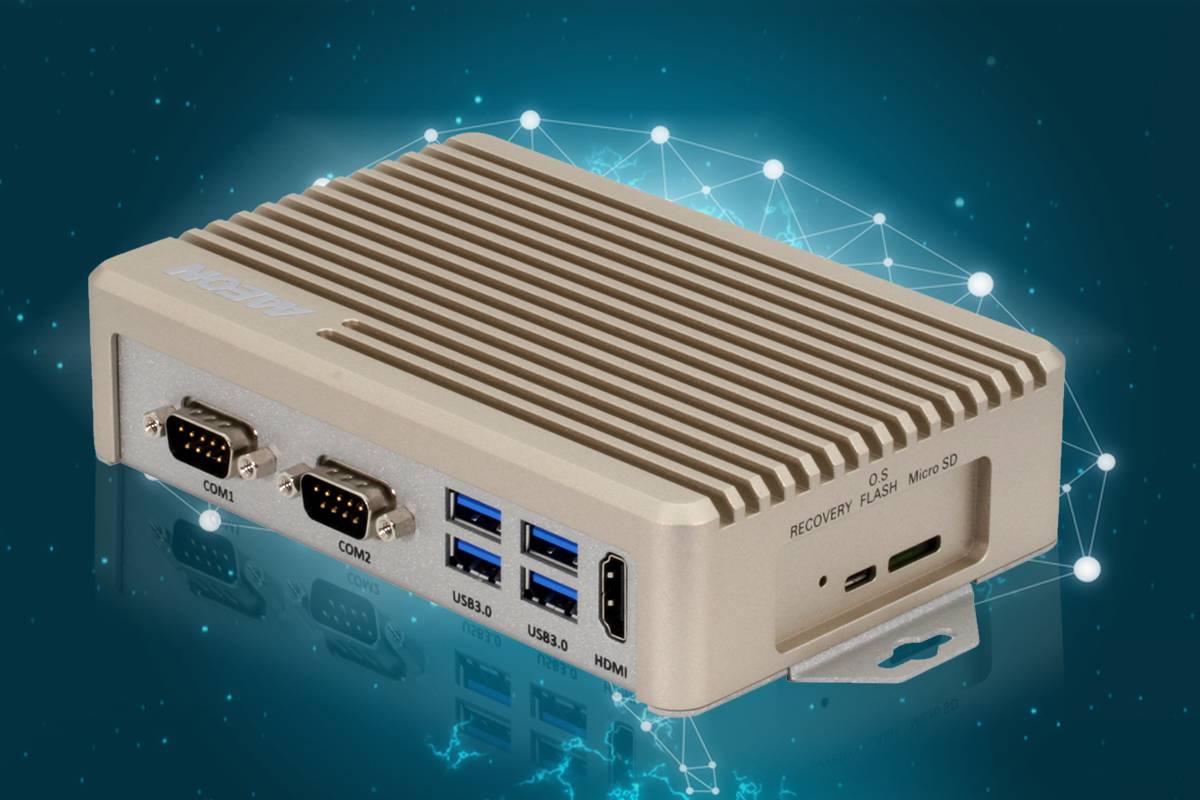

BOXER-8230AI
AI@Edge Compact Fanless Embedded AI System with NVIDIA® Jetson™ TX2 NX
Features
- NVIDIA Jetson TX2 NX
- 4GB LPDDR4
- Multi-storage option: 16GB eMMC / MicroSD slot / 2.5 drive bay
- Support Operating Temperature -25°C ~ 75°C
- GbE LAN x 5
- USB 3.2 Gen 1 x 4
- 10~24Vdc Power input
El sistema AI Edge integrado BOXER-8230AI combina el innovador NVIDIA® Jetson™ TX2 NX con una carga diseñada para impulsar aplicaciones inteligentes y redes perimetrales. NVIDIA Jetson TX2 NX funciona con la CPU NVIDIA Denver 2 de 64 bits de doble núcleo y el complejo de procesador MPCore Arm® Cortex®-A57 de cuatro núcleos, que ofrece 256 núcleos Cuda® y 4 GB de memoria LPDD4 integrada. En total, esto ofrece velocidades de procesamiento de IA de hasta 1,33 TFLOPS, lo que ofrece un rendimiento que encaja perfectamente entre Jetson Nano™ y Jetson Xavier™ NX. El sistema también cuenta con 16 GB de almacenamiento eMMC integrado que se puede ampliar a través de la ranura para tarjetas microSD.
El BOXER-8230AI presenta un diseño de E/S flexible con cuatro puertos USB 3.2 Gen 1, cinco puertos LAN Gigabit y dos puertos COM, lo que permite la implementación con una variedad de sensores o cámaras. El BOXER-8230AI tiene un diseño resistente para implementarse en una variedad de entornos. El diseño sin ventilador evita la entrada de polvo, lo que permite un funcionamiento fiable; mientras que el amplio rango de temperatura de funcionamiento (-15 °C ~ 65 °C) permite un rendimiento constante dondequiera que se implemente.
NVIDIA Jetson TX2 NX
The NVIDIA Jetson TX2 NX provides powerful AI edge computing without breaking budgets. Featuring a 6-core ARM CPU and Pascal™ GPU with 256 CUDA cores, it delivers processing speeds up to 1.33 FLOPS, capable of running multiple AI inferences, with great cost to performance value.

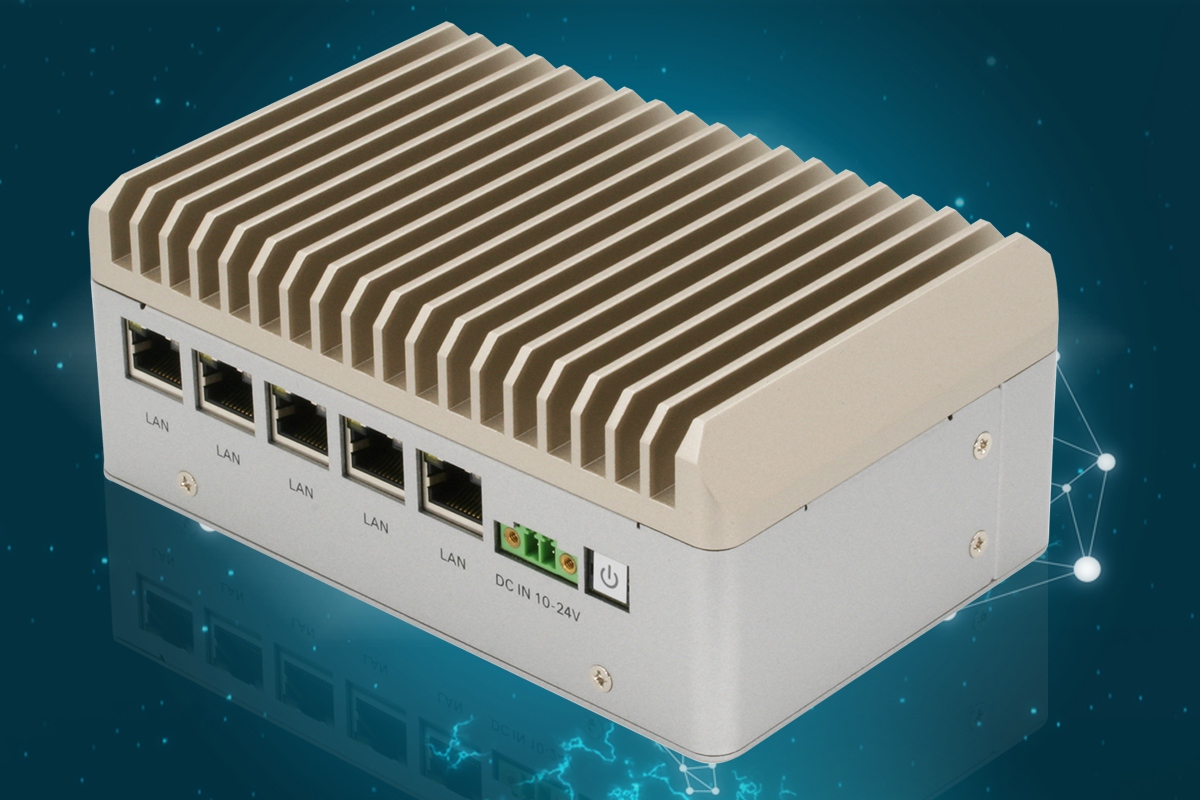

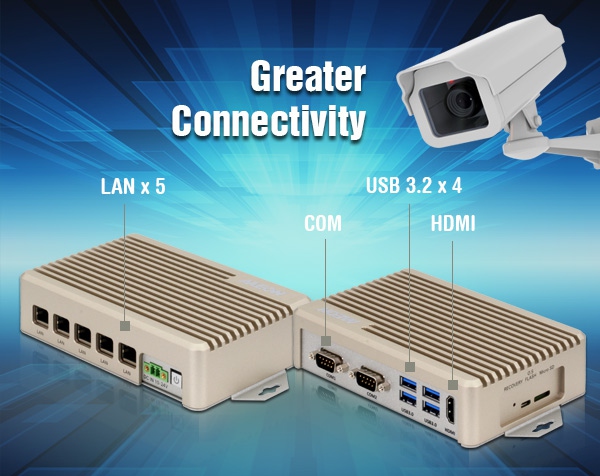

Greater Connectivity
The BOXER-8230AI features a broad I/O layout with five Gigabit Ethernet ports, four USB3.2 Gen 1 ports, COM ports and HDMI, providing greater flexibility to support more devices and applications while delivering higher bandwidth to enable video streaming without frame loss.

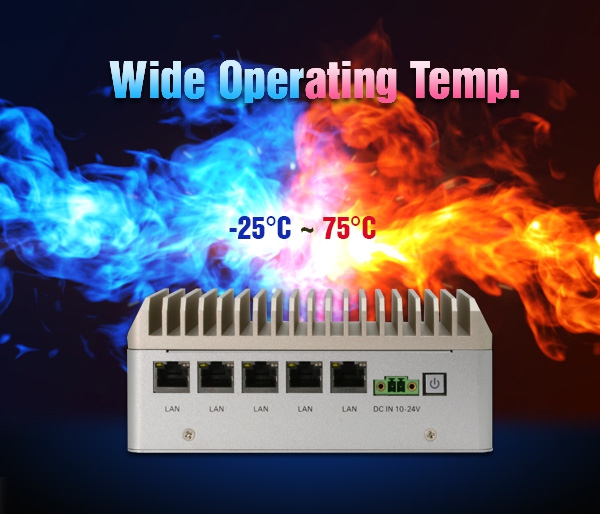

Wide Operating Temperature
The BOXER-8230AI features rugged design to operate in harsh environments, designed with a wide operating temperature range of -25°C up to 75°C, delivering consistent performance wherever it is deployed, even in extreme conditions.

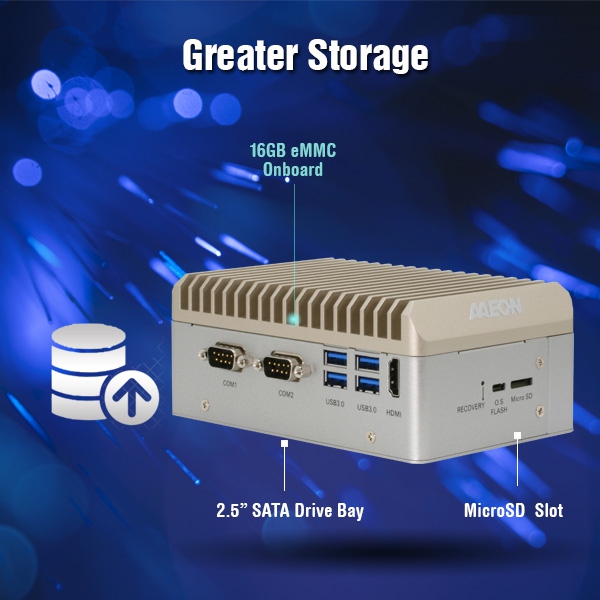

Greater Storage
Get more flexible and capable storage with 16 GB onboard eMMC storage, microSD slot and 2.5” SATA drive bay, enabling users to store more data, video or images locally on the system. AAEON services can also provide boot option customization based on per-project needs.

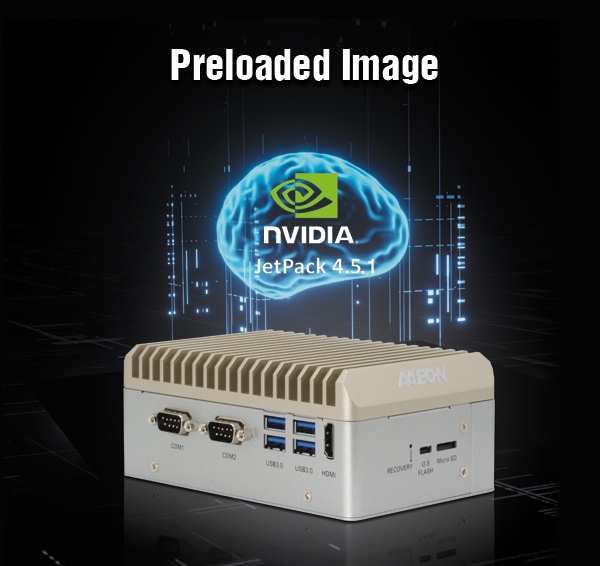

Preloaded Image
AAEON offers a range of services for the BOXER-8230AI, from providing NVIDIA JetPack 4.5.1 preinstalled on all new systems, to offering a range of per-basis software services such as third-party driver support and more.
System | |
| AI Accelerator | NVIDIA® Jetson™ TX2 NX |
| CPU | NVIDIA® Denver 2 (Dual-Core) Processor & ARM® Cortex® -A57 MPCore (Quad-Core) Processor |
| System Memory | 4GB 128-bit LPDDR4 @ 1600 MHz |
| Storage Device | eMMC 5.1 16GB |
| Display Interface | HDMI Type A x 1 for HDMI 2.0 |
| Ethernet | RJ-45 x 5 for GbE LAN |
| I/O | USB Type A x 4 for USB 3.2 Gen 1 |
| Expansion | SATA III Port x 1 for 2.5” SATA drive (A4/JP46E-A2 only) |
| Indicator | Power LED x 1 |
| OS Support | Linux (NVIDIA Jetpack 4.5 or above) |
Power Supply | |
| Power Requirement | DC-in 10V~24V with 2-pin terminal block ATX mode |
Mechanical | |
| Mounting | Wall mount kit |
| Dimensions (W x D x H) | A3/JP46E-A1 : 6.92” x 3.94” x 1.54”(175.8mm x 100.0mm x 39.0mm) |
| Gross Weight | A3/JP46E-A1 : 2.91lbs (1.3kg) |
| Net Weight | A3/JP46E-A1 : 1.51lbs (0.67kg) |
Environmental | |
| Operating Temperature | A3/JP46E-A1 : -13°F ~ 149°F(-25°C ~ 65°C,according to IEC60068-2 with 0.5 m/s AirFlow) |
| Storage Temperature | -40°F ~ 176°F (-40°C ~ 80°C) |
| Storage Humidity | 5 ~ 95% @ 40°C, non-condensing |
| Anti-Vibration | 3.5Grm / 5~500Hz / operation (eMMC, MicroSD, or SSD) |
| Anti-Shock | 50G peak acceleration (11 msec. duration, eMMC, microSD, or SSD) |
| Certification | CE / FCC class A |
