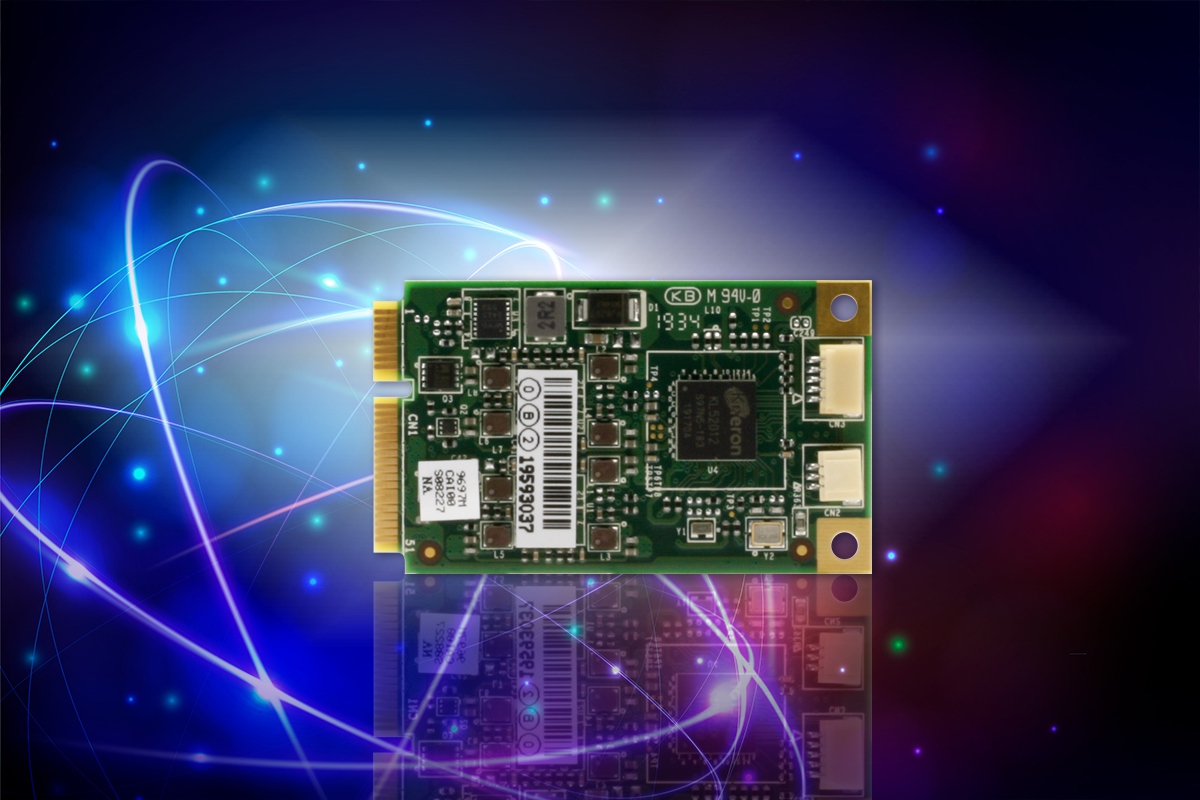

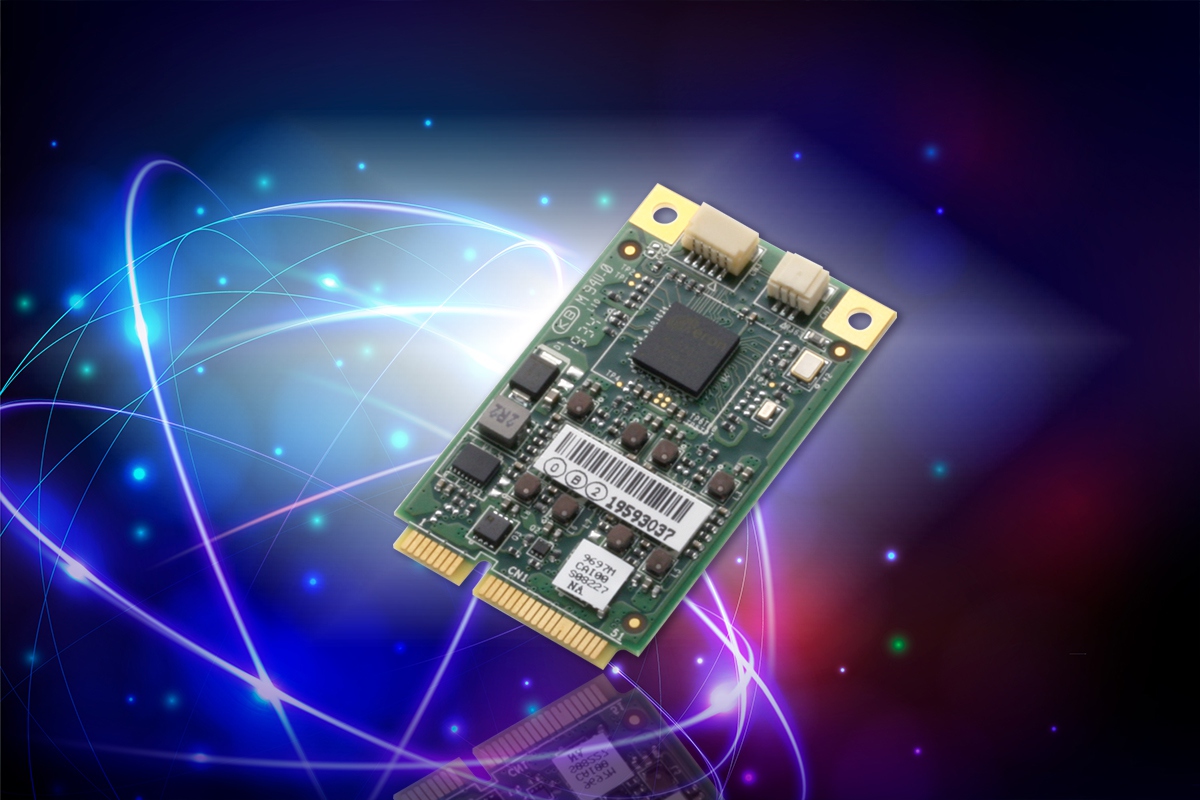

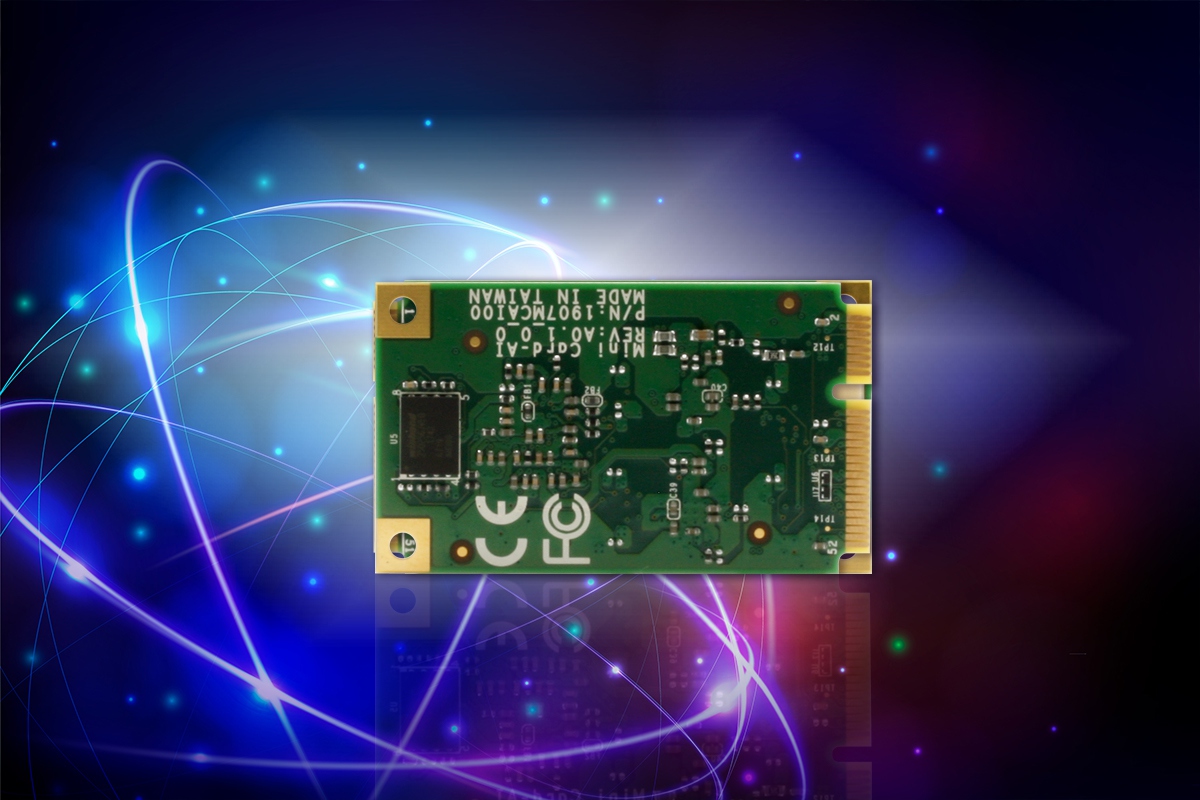

Mini-AI-520

AI Edge Computing Module with Kneron KL520 NPU


Características

  • Kneron KL520 NPU (Designed by ARM architecture)
  • Mini card(USB2.0 interface,Full size)
  • Accelerator for AI Edge Computing
  • Good for people monitoring, retail application
Visión general

AAEON has partnered with Kneron to deliver modules featuring their innovative AI Edge Computing processor, the KL520 Neural Processor Unit (NPU). The KL520 provides efficient AI computing performance of 0.35 TOPS per Watt, perfect for remote, mobile, and unmanned applications.

The MINI-AI-520 features the energy efficient KL520 in a mPCIe (Mini-Card, Full Sized) form factor that’s equally cost efficient. AAEON Kneron Modules are compatible with all of our embedded solutions which support mPCIe modules. The MINI-AI-520 with Kneron KL520 NPU offers the best balance of performance, efficiency and cost.

Especificaciones
Mini-AI-520

System

IC Kneron KL520
Type Integrated SoC
Support Framework ONNX, TensorFlow, Keras, Caffe
Support Model Vgg16, Resnet, GoogleNet, YOLO, Tiny YOLO, Lenet, MobileNet, DenseNet
Memory Type LPDDR2
NPU Performance 0.35 TOPS
Overall Power Consumption 0.5 W

Others

Operating Temperature 32°F ~ 158°F (0°C ~ 70°C)
Storage Temperature -40°F ~ 185°F (-40°C ~ 85°C)
Operating Humidity 0% ~ 90% relative humidity, non-condensing
Certification CE/FCC Class A
Descargas
Para detalles del empaque, especificaciones tecnicas y otra informaciónes del producto, descargue la hoja de datos o el manual para el usuario.
