UPX-Edge
UP Xtreme Edge Computing System
Features
- Intel® WHL-U Core™ i7/i5/i3/Celeron Processor SoC
- Onboard DDR4 memory, Max 16GB
- eMMC 64GB
- HDMI 2.0 x 1 (Support 4K at 60 Hz)
- COM ports (RS-232/422/485) x 2
- 16pin GPIO connectors (1 x GPIO for STM32, 1 x GPIO for 40pin HAT)
- Audio Jack x 1 (line out + Mic)
- 12-60V DC-in
- Fanless Chassis design
The UP Xtreme Edge Computing System, or UPX-Edge for short, is a complete embedded system that’s ready to go out of the box. Built on the UP Xtreme board, UPX-Edge is powered by 8th Generation Intel® Core™ and Celeron® processors (formerly Whiskey Lake) with up to 16GB of onboard RAM and 64GB of eMMC memory to power through any application. With the latest Intel® graphics solution, the UPX-Edge is capable of 4K video output, and features a built-in audio jack as standard.
The UPX-Edge is designed with key industrial I/O features for flexibility and easy integration with existing infrastructure. I/O ports include two external GPIO connections, two COM ports, and four USB 3.2 Gen 1 ports. The UPX-Edge can also hold up to extreme conditions, with an operating temperature range of -20°C to 70°C (tested with AI Core XM 2280, 2x Intel® Movidius™ Myriad™ X).
UPX-Edge makes deploying a powerful edge system easy, whether it’s as a factory IoT gateway, AI powered machine controller, or in a smart retail application.
System | |
| CPU | 8th generation Intel® Core™ i7/i5/i3/Celeron Processor SoC |
| Memory | Onboard DDR4 memory, Max 16GB |
| Graphics | Intel® Graphics, GEN 9 |
| Storage | eMMC 64GB |
| Ethernet | i7/i5 SKU LAN (i210 AT) x 1, LAN (i219 LM) x 1 |
| WIFI/BT | Optional |
| Audio | Line out + MIC x 1 |
| USB | USB 3.2 Gen 2 x 4 |
| Expansion Slot | M.2 2230 E Key x 1 |

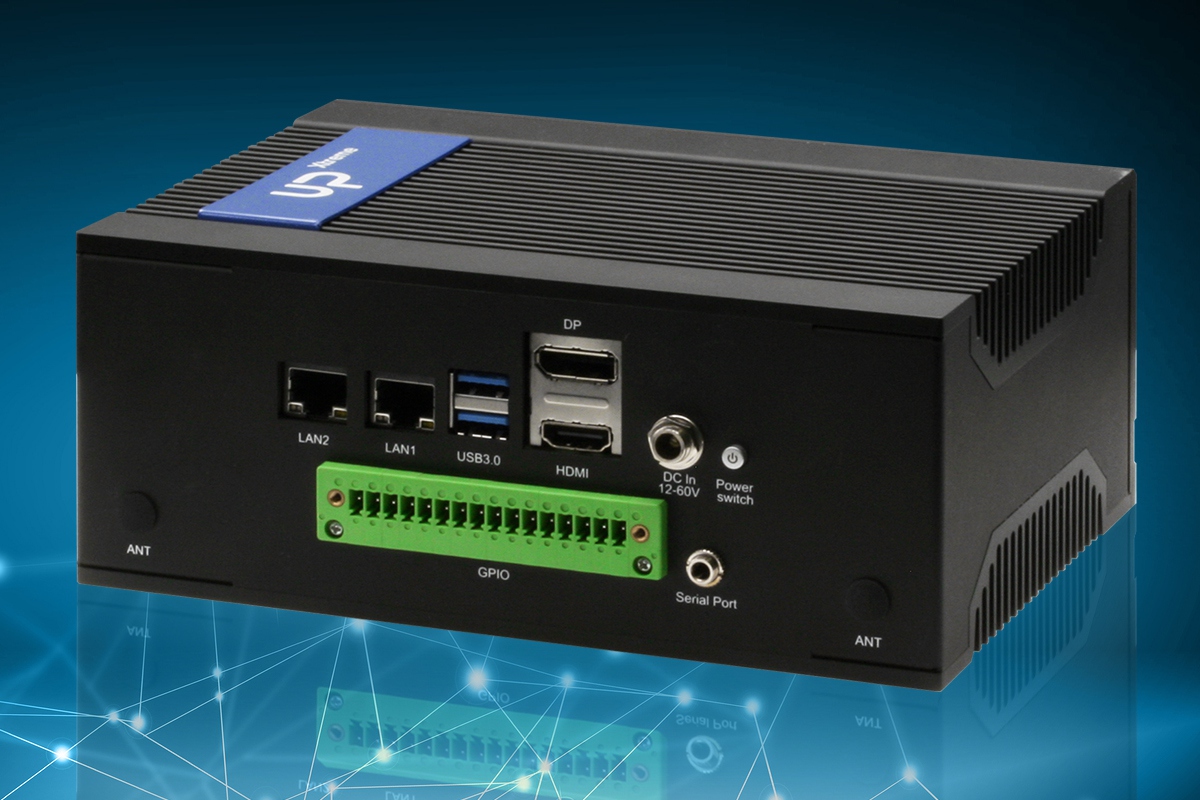

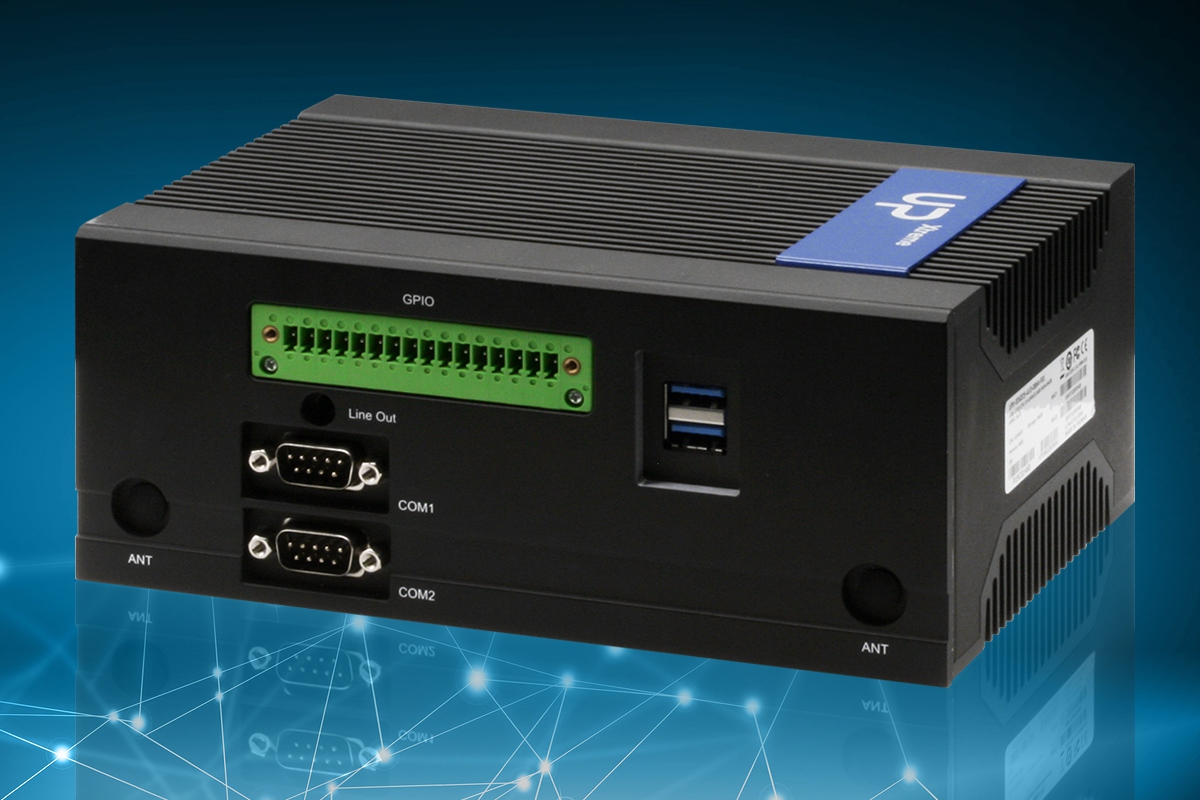

I/O Placements | |
| Power | DC-in Jack x 1, Power Button x 1 |
| USB | USB 3.2 Gen 2 STACK Connector for 2 ports (Front) x 1 |
| Display Port | HDMI 2.0 x 1 (Support 4K at 60 Hz), DP 1.2 x 1, |
| Ethernet | RJ45 connector x 2 |
| COM | RS-232/422/485 x 2 |
Environment | |
| Power | 12V - 60VDC |
| Form Factor | 7.48” x 5.12” x 3.1” (190mm x 130mm x 78.6mm) |
| Gross Weight | 6.61lbs (3kg) |
| Operating Temperature | eMMC: 32°F ~ 140°F (0°C ~ 60°C) |
| Operating Humidity | 0% ~ 90% relative humidity non-condensing |
| Certification | CE/FCC Class A, RoHS Compliant, REACH |
| OS Support | Win 10, Linux Ubuntu 18.04 with Kernel 5.0, Linux Yocto 2.7 with Kernel 4.19 |
