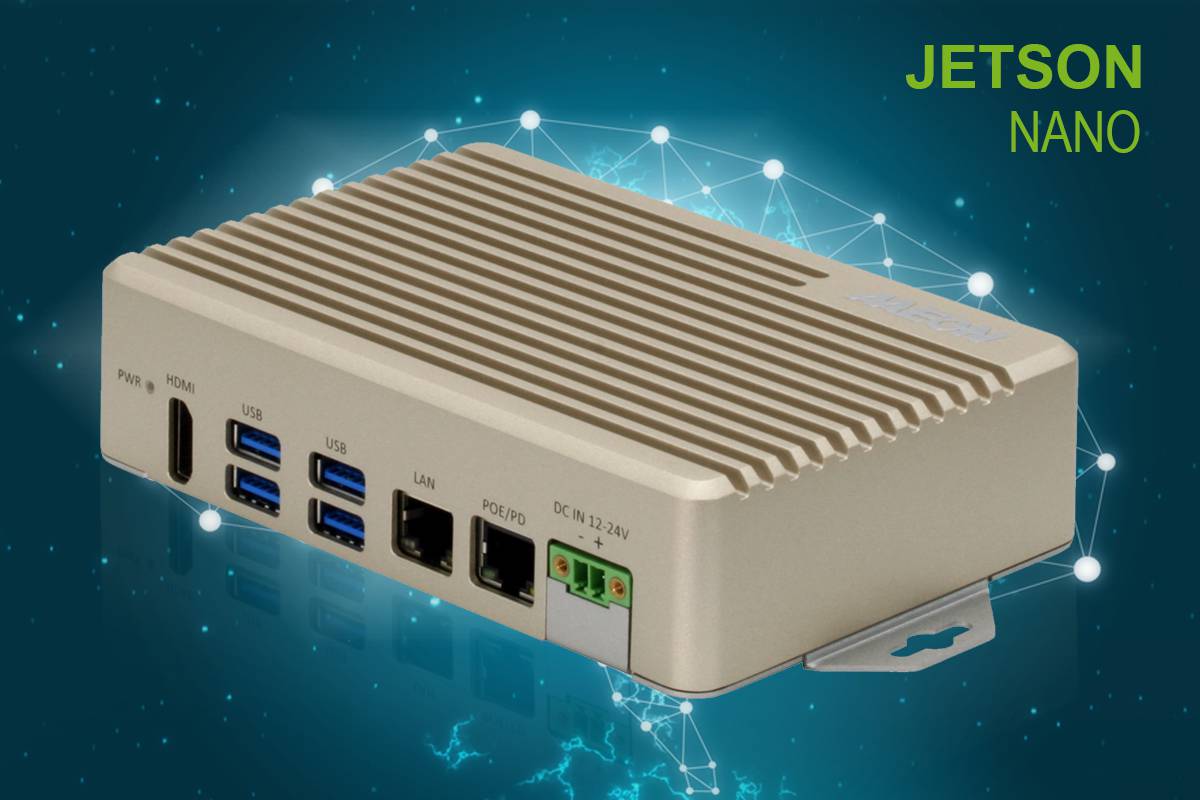

BOXER-8222AI | Fanless Embedded Box PC with NVIDIA Jetson Nano

UP Xtreme 7100 Edge

UP Xtreme 7100 System powered by Intel® Processor N-series, and Intel® Core™ i3-N305 Processor

Features

  • Intel® Processor N-series and Intel® Core™ i3-N305 Processor SoC
  • Low power consumption
  • 2.5GbE x 2 (Intel® I226-IT)
  • 2-channel CAN 2.0B x 1
  • Watchdog timer, Onboard TPM 2.0
  • DIO/GPIO via Terminal Block
  • Cable-free design
  • Wide 9V~36V power input
  • Fanless design
Overview

If you are looking for an out of the box, ready to deploy system-level solution, the UP Xtreme 7100 Edge (UPX-EDGE-ASL) contains all of the benefits of its board counterpart in a cable-free, VESA-mountable Mini PC measuring just 152mm x 124mm x 40mm. For extra protection, the UP Xtreme 7100 Edge also offers an optional shock absorber kit and wireless LAN for Wi-Fi 6 and 5G for enhanced connectivity..

Request a Quote

Making it the system for any project, the UP Xtreme 7100 Edge is also compatible with the Hailo-8™ M.2 2280 AI module, adding AI development capabilities to meet and exceed the demands of the next generation..

Shop Online
Specifications
UP Xtreme 7100 Edge

System

CPU

Intel® Core™ i3-N305
Intel® Processor N97

Memory Up to 16GB LPDDR5
Graphics Intel® UHD Graphics for 12th Gen Intel® Processors
Storage Up to 64GB eMMC
Ethernet 2.5GbE x 2 (Intel® I226-IT)
WIFI/BT Optional with M.2 2230 E-key x 1
Expansion Slot

M.2 3052 B-Key x 1 with Nano SIM slot (USB 3.0)
M.2 2230 E-Key x 1 (USB 2.0/PCIe)
M.2 2280 M-Key x 1 (PCIe Gen 3 [x2])
24V 8-in/8-out Digital I/O x 1 via Terminal Block (Output current: 500mA perchannel)
6 pin 2-channel CAN 2.0B x 1 via Terminal Block (10 ~ 1000 kbps)
DIP Switch for CANBus function x 1
CAN LED indicator x 2
SATA III x 1

Security Onboard TPM 2.0
OS Support Ubuntu 22.04 LTS (Kernel 5.15 and kernel 5.19)

I/O Placements

USB

USB 2.0 (Type-A) x 2
USB 3.2 (Type-A) x 2
USB 3.2 Gen 2 (Type-C) x 1 (Supports DP alt mode)

Display Port DP 1.4a x 1 (via USB Type-C)
Ethernet RJ45 x 2
COM RS-232/422/485 x 1 (Terminal Block) (Default RS232)
Audio —
GPIO 6 pin GPIO x 1 via Terminal Block

POWER Supply

Power requirement 9-36V
Power supply type AT/ATX (AT as default)
Power Consumption(Typical) 52W~55W

Mechanical

Mounting 75mm x 75mm VESA mount, optional Wall mount kit
Dimensions (WxHxD) 5.98” x 4.8” x 1.7” (152mm x 124mm x 40mm)
Net Weight 2.21lb (1.0Kg)
Gross Weight 3.31lb (1.5Kg)

Environment

Operating Temperature 32°F ~ 131°F (0°C ~ 55°C)/0.5m/s airflow
Operating Humidity 0% ~ 90% relative humidity, non-condensing
Storage Temperature -4°F ~ 158°F (-20°C ~ 70°C)
MTBF 421,998
Certification CE/FCC Class A, RoHS Compliant, REACH
Downloads
Datasheet
Manual
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
