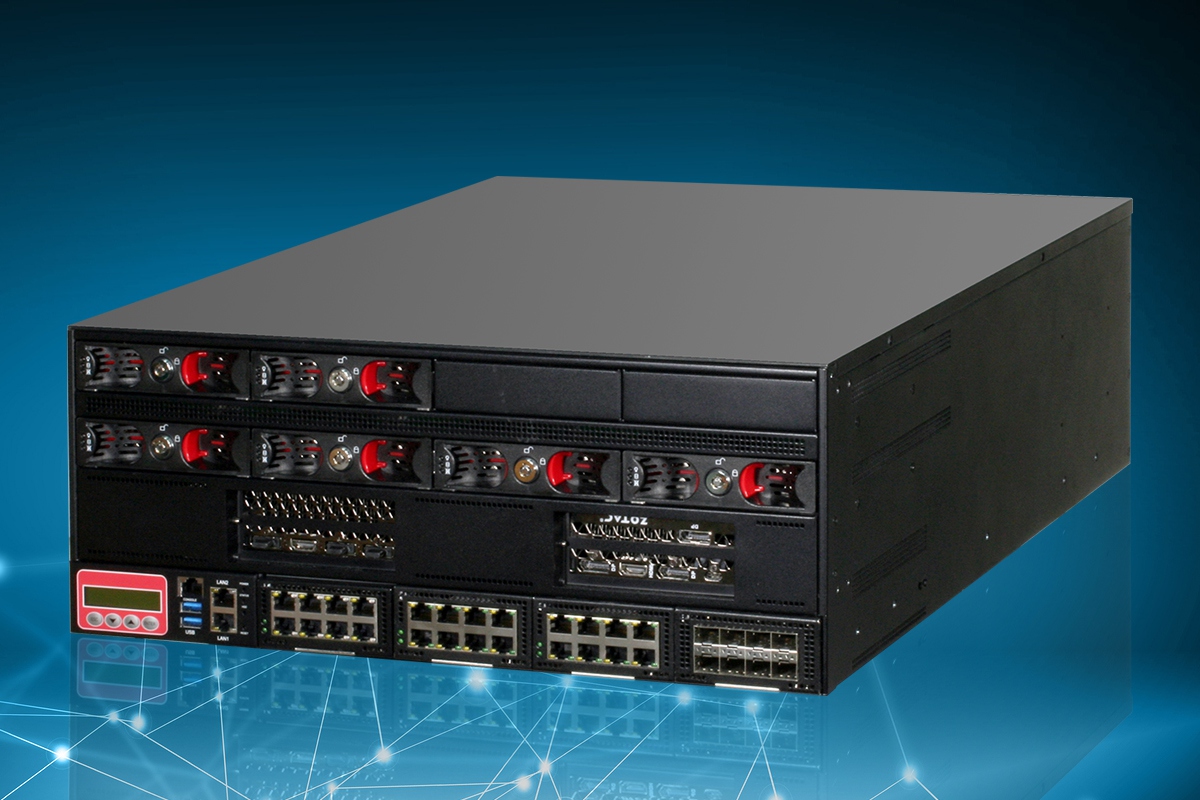

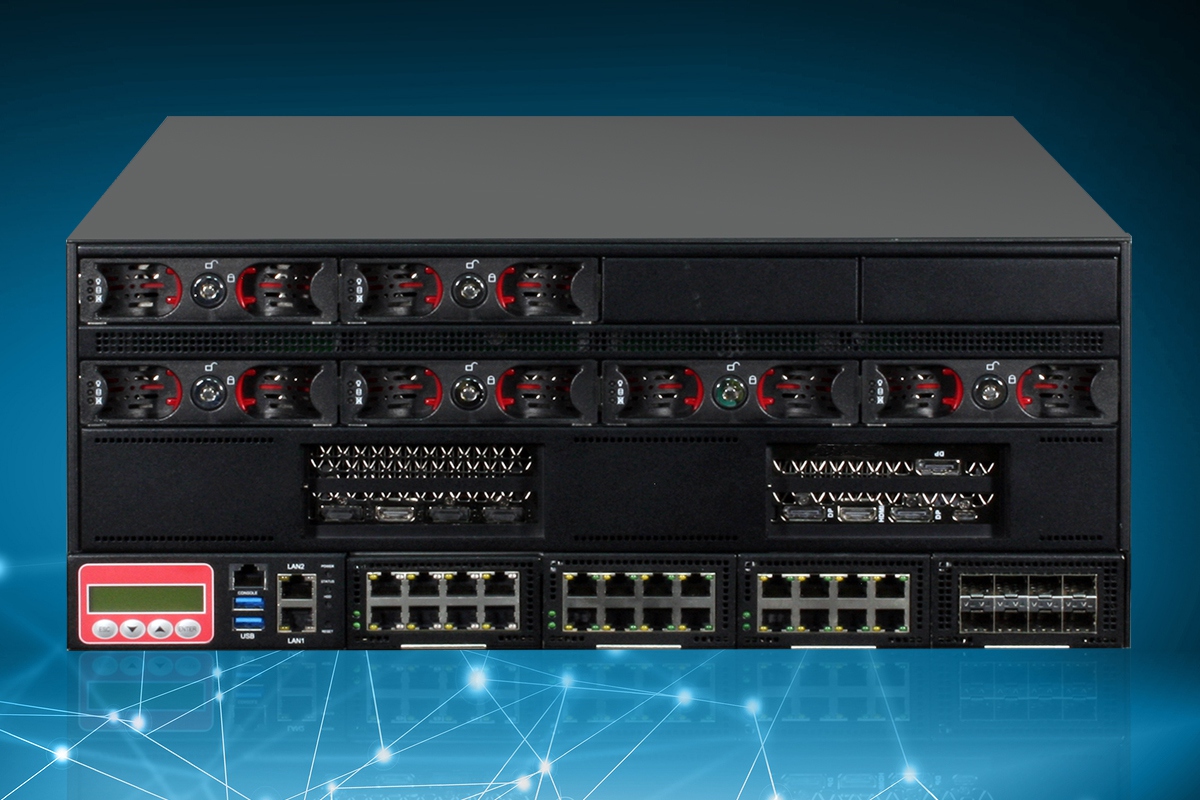

ZEUS-PUR0
4U Rackmount Purley Platform Server System, Support Xeon® FPGA CPU
Features- Dual Intel® Xeon® Processor Skylake-SP and Cascade Lake –SP processor. Intel® Communications Chipset C621
- DDR4 2133/2400/2666 MHz DIMM (8 DIMM Per CPU) RDIMM x 16, Up to 512 GB
- Up to 32 Gigabit Ethernet Ports Via NIM (Project Base Up to 32 Gigabit Ethernet Ports Via NIM)
- 6 x 3.5“ SATA HDD or 2.5“ SATA HDD x 6, M.2 2260 Socket x 1
- Option Rear Side PCIe [x4] x 4 (or PCIe [x8] x 2) + PCIe [x8] x 2 (Or PCIe [x16] x 1). Option Front PCIe [x16] x 2. Optional Parallel LCM with Keypad x 1. RJ-45 Console x 1, USB 3.0 x 2, 1 GbE LAN x 2
- 800~1600W CRPS Redundant Power. IPMI Support
ZEUS-PUR0 AI Edge Server offers high-performance AI computing to power a range of demanding AI applications, from Multi-access Edge Computing (MEC) to Smart Cities, or providing smart surveillance for an entire facility in a single platform.
The ZEUS-PUR0 is powered by two 2nd Generation Intel® Xeon® Scalable Processors (formerly Cascade Lake) built onto a 4U chassis designed to give maximum expandability and flexibility to integrate with your project.
The ample space and innovative thermal design allow deployment with up to four PCIe [x16] devices such as the NVIDIA RTX 2080 Ti, supplying in total over 56 TFLOPS of processing power. Alternatively, ZEUS-PUR0 can support up to six of AAEON’s AI Core XP8 PCIe [x4] cards, each with up to eight Intel® Movidius® Myriad™ X VPUs. This allows the ZEUS-PUR0 to handle multiple AI processes in parallel, or the same inference across a broader range of inputs.
System | |
| Form Factor | 4U Rackmount Server System |
| Processor | Intel® Xeon® Skylake-SP and Cascade Lake-SP Processors |
| System Memory | DDR4 2133/2400/2666 R-DIMM, Up to 512 GB |
| Chipset | Intel® C621 |
| Ethernet | Intel® i211 Gigabit Ethernet x 2 |
| Bypass | Depend on NIM module |
| BIOS | AMI BIOS |
| Serial ATA | SATA II port x 6 |
| Storage | 2.5” HDD x 6 or 3.5” HDD x 6, M.2 x 1 |
| Expansion Interface | NIM slot x 4 (Project Base NIM Slot x 8) |
| Watchdog Timer | 1~255 steps by software programmable |
| RTC | Internal RTC |
| System Fan | 5 |
| Front I/O Panel | Power LED x 1, Status LED x 1, HDD Active LED x 1 |
| Rear I/O Panel | AC Power Input x 1, Power Switch x 1, VGA port (Optional), Rear Expansion Slot (Option) |
| Color | Black |
| Power Supply | 800 ~1600W Redundant PSU |
| Dimension | (480mm x 600mm x 176mm) |
| Power Consumption | TBD |
| MTBF (Hours) | TBD |
Display | |
| Chipset | Intel® C621 |
| Graphic Engine | From IPMI or Mini PCIE Option |
| Resolution | — |
| Connector | VGA Option |
I/O | |
| Serial Port | RJ-45 Console x 1 |
| K/B and Mouse | N/A |
| USB | USB 3.0 x 2 |
Environmental | |
| Operating Temperature | 32°F ~ 104°F (0°C ~ 40°C ) |
| Storage Temperature | -4°F ~ 140°F (-20°C ~ 60°C) |
| Operating Humidity | 10% ~ 80% relative humidity, non-condensing |
| Storage Humidity | 10% ~ 80% @40°C; non-condensing |
| Vibration | 0.5 g rms/ 5 ~ 500Hz / operation (2.5” Hard Disk Drive) |
| Shock | 10 G peak acceleration (11 m sec. duration), operation |
