MXM 3.1 Type A Intel® Arc™ A370E/Intel® Arc™ A350E GPU

MXM-ACMA-PUC

System Box with 12th/13th Generation Intel Core Processor & MXM 3.1 Type A Intel® Arc™ A370E/Intel® Arc™ A350E GPU


Features

  • 12th/13th Gen Intel® Core™ Processor, up to 35W
  • DDR5 SODIMM 4800 x 2, up to 64GB
  • HDMI 2.0 x 1 (Supported by Main Board), DP++ 1.4 x 4 (Supported by MXM)
  • 2.5GbE x 3, 1GbE x 1
  • USB 3.2 Gen 2 x 2, USB 2.0 x 2
  • M.2 2280 M-Key x 1, M.2 3052 B-Key x 1, M.2 2230 E-Key x 1
  • Supports MXM 3.1 Type A Module, up to 55W (MXM-ACMA series)
  • COM Port x 2, GPIO 8-bit, DC 19V-24V
Overview

An integrated Intel® Arc™ GPU combined with 13th Gen Intel® Core™ processing power and an astounding combination of high-speed interfaces make the new MXM-ACMA-PUC the premier choice for bringing industrial-grade AI inferencing to the edge.

Be it service AI-assisted automated optical inspection or versatile machine vision solutions for smart city use, the MXM-ACMA-PUC offers elite performance in a power-efficient system designed for longevity.

Excel At The Edge

MXM-ACMA-PUC

Intel® Arc™ GPU

13th Gen Intel® Core™

Download Datasheet

Efficiency, Even Under Heavy AI Workloads

The MXM-ACMA-PUC’s selection of 13th Gen Intel® Core™ CPUs offer up to 16 cores and 24 threads of processing power for real-time data analysis and parallel computing. For enhanced machine learning and AI workload management, the system’s integrated MXM-ACMA module also provides an Intel® Arc™ A370E embedded GPU, able to run complex defect detection algorithms for precise, high-spec AI-assisted automated optical inspection tasks.

Bringing Utility to the Edge

Offering a total of four LAN ports, three running at 2.5GbE speed, alongside multiple USB 3.2 Gen 2 ports and an array of expansion slots for Wi-Fi, 5G, and NVMe storage, the MXM-ACMA-PUC is rich in connective potential, able to accommodate a variety of peripheral devices such as cameras and sensors. Paired with the system’s broad 0°C to 50°C temperature range, slimline dimensions, and integrated AI capabilities, the MXM-ACMA-PUC makes for an efficient engine with which to power traffic monitoring, safety, and other smart city solutions.

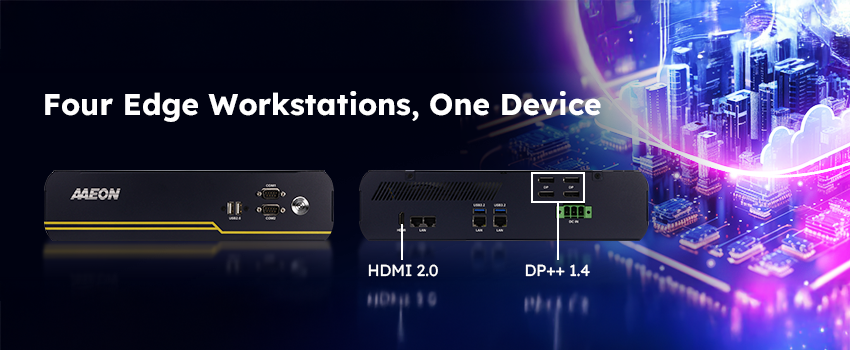

Four Edge Workstations, One Device

Joining the MXM-ACMA-PUC’s high-speed ethernet interfaces are one native HDMI 2.0 and four GPU-based DP++ 1.4 display outputs. Such a configuration allows the MXM-ACMA-PUC power four edge workstations simultaneously, with its high-performance CPU capable of handling real-time processing, its GPU able to execute AI inferencing tasks, and high-speed NVMe storage providing rapid access to data and minimal latency for large dataset management.

Specifications
MXM-ACMA-PUC

System

Form Factor MXM System
CPU 12th/13th Generation Intel® Core™ Processor, up to 35W
Chipset Intel® Q670E Chipset
Memory Type Dual Channel DDR5 4800 SODIMM x 2, up to 64GB
BIOS UEFI
Wake On Lan Yes
Watchdog Timer 255 Levels
Security TPM 2.0
RTC Battery Lithium Battery 3V/240mAh
Dimension 310mm x 160mm x 75mm
OS Support

Windows 10 (64bit)

Ubuntu 24.04/kernel 6.8

Power

Power Requirement +19V to +24V
Power Supply Type AT/ATX
Connector 3Pin Phoenix Connector
Power Consumption

Intel ® Core ™ i7-13700TE, DDR5 32GB x 2, Intel® Arc™ A370E, 3.54A @22.9V, 80.83W (Typical)

Intel ® Core ™ i7-13700TE, DDR5 32GB x 2, Intel® Arc™ A370E, 7.48A @23.1V, 167.71W (Max)

Controller

CPU Graphic Controller

Intel® UHD Graphics 770 (i5 SKU and above) Intel® UHD Graphics 730 (i3 SKU)

MXM-ACMA Graphic Module:

Intel® Arc™ A370E/Intel® Arc™ A350E Graphics

LVDS/eDP
Display Interface HDMI 2.0 x 1, up to 3840 x 2160 @60Hz (from Main Board) DP++ 1.4 x 4 (from MXM Module)
Multiple Display Up to 1 Simultaneous Displays from Main Board Up to 4 Simultaneous Displays from MXM-ACMA

Audio

CODEC
Audio Interface
Speaker

External I/O

Ethernet Intel® Ethernet Controller I226-LM, 2.5GbE RJ-45 x 3 Intel® Ethernet Connection I219-LM, GbE RJ-45 x 1
USB USB 3.2 Gen 2 x 2 , USB 2.0 x 2
Serial Port COM 1 ~ COM 2 (RS-232/422/485, RI as default, 5V/12V selected by BOM change)
Video HDMI 2.0 x 1, up to 3840 x 2160 @60Hz (from Main Board) DP++1.4 x 4 (from MXM Module) up to 1920 x 1080
Internal I/O
USB
Serial Port
Video
SATA SATA 6Gb/s x 2, +5V SATA Power Connector x 2
Audio
DIO/GPIO
SMBus/I2C
Touch
Fan 4-Pin Smart Fan (CPU) x 1, 3-Pin Fan (MXM-ACMA) x 1, System Fan x 1
SIM Nano SIM x 1
Front Panel Power Button, Power LED
Others

Expansion

Mini PCI-E/mSATA
M.2

M.2 2280 M-Key x 1 (PCIe 4.0 [x4] x 1)

M.2 3052 B-Key x 1 (PCIe 3.0 [x2] + USB 3.2 + USB 2.0)

M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB 2.0)

Others MXM 3.1 Type A Module

Environment & Certification

Operating Temperature 14°F ~ 122°F (-10°C ~ 50°C) with 0.7m/sec airflow
Storage Temperature -40°F ~ 185°F (-40°C ~ 85°C)
Operating Humidity 0% ~ 90% relative humidity, non-condensing
MTBF (Hours) 823,430 Hours
EMC CE/FCC Class A
Downloads
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
