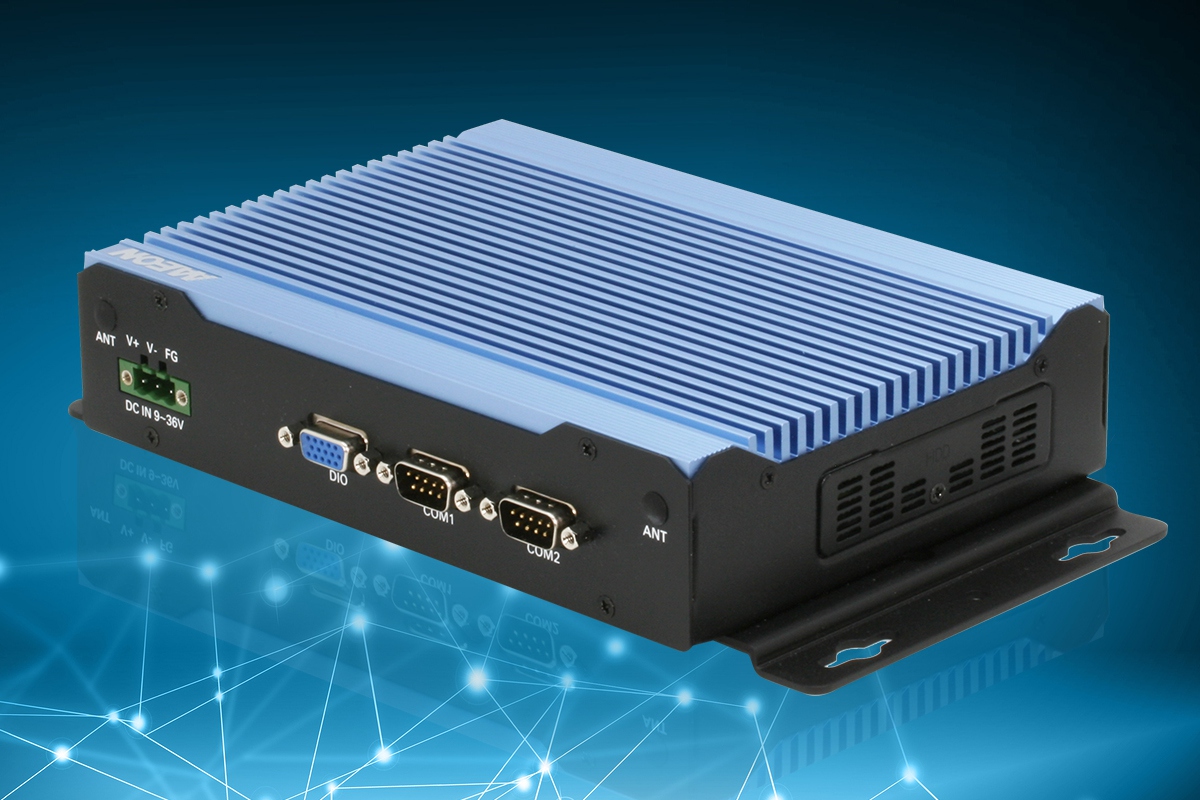

BOXER-6643-TGU
Fanless Embedded Box PC 11th Generation Intel® Core™ SoC Processor
功能特性
- Extreme Computing Power with Intel® SoC Processor
- DDR4 slot x 2, up to 64GB
- Support High Speed NVMe storage (M.2 2280)
- GbE LAN x 1 (Intel I219) + 2.5GbE LAN x 1 (Intel I225)
- Supports M.2 3052 B Key for 5G module
- Wide Range 9-36V DC input
- Wide Range -20~60 °C Operating Temperature
The BOXER-6643-TGU brings the power of 11th Generation Intel® Core™ U processors to a compact, rugged platform that delivers greater performance and capabilities over previous generations. The system supports up to 64GB of memory to unlock the full potential of the system’s processing capabilities. Along with the Intel® Iris® Xe embedded graphics, users can leverage the GPU to power AI and Edge Computing industrial applications, or high definition graphics in digital signage and kiosk applications.

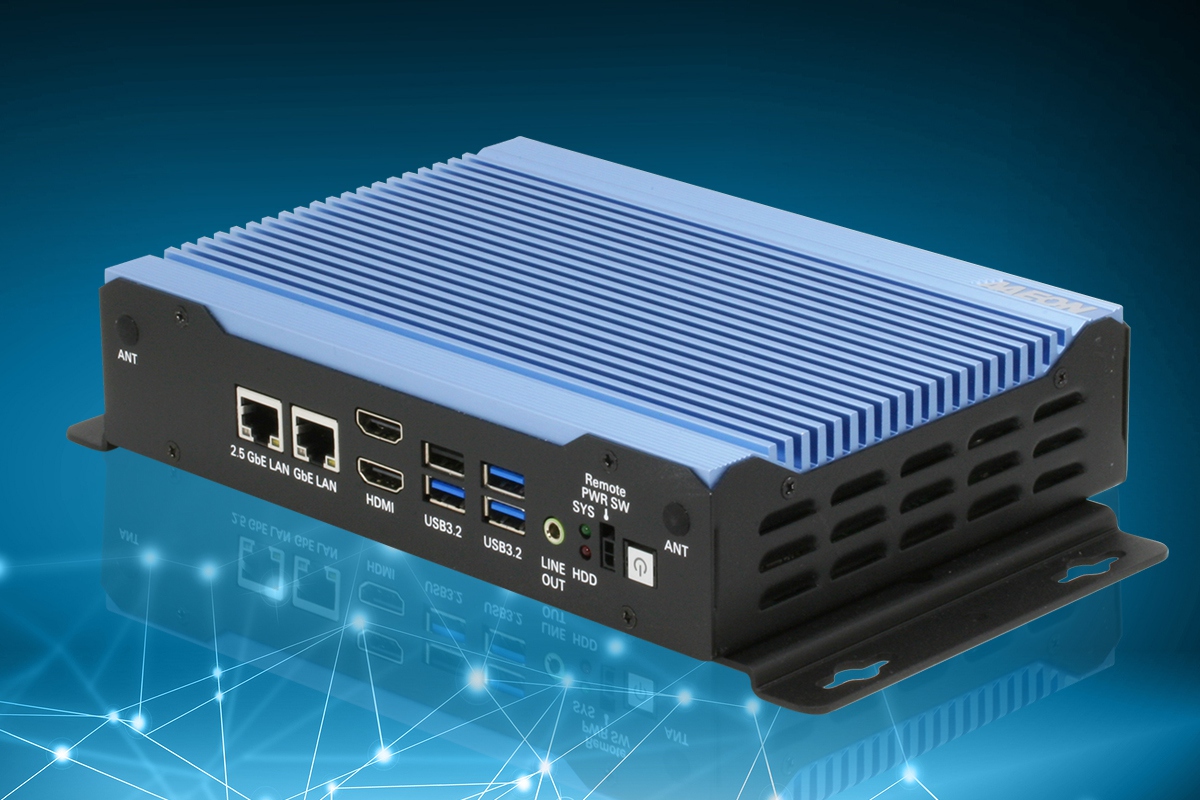

The BOXER-6643-TGU features two LAN ports, one 2.5 Gbps and one 1.0 Gbps, ensuring quick communication for real-time processing and control. The system also features expansion slots supporting wireless networks, including Wi-Fi, 4G and 5G cellular communication. Other I/O features include four USB3.2 Gen 2 slots, dual COM ports and 8-channel DIO.
The BOXER-6643-TGU supports storage options including mSATA and NVMe, and features a SATA III port connected directly to the board, eliminating cables that may come loose in high-vibration environments. The 2.5” SATA drive is easy to install and maintain, with a slide out tray located on the side of the system. Additionally, two easy-access panels on the bottom of the system allows users to quickly add on or upgrade expansion cards and memory modules.
Built to deploy anywhere, the BOXER-6643-TGU is designed with a compact form factor and rugged construction. Fan-less design keeps dust and contaminants out, while also delivering an operating temperature range of -20°C to 60°C. With a cable-free design, the system is suitable for high-vibration environments. Learn More about BOXER-6643-TGU.
System | |
| CPU | Intel® Core™ i7-1185G7E |
| Chipset | Intel® SoC |
| System Memory | DDR4 3200MHz SO-DIMM x 2, max 64GB |
| Display Interface | HDMI 2.0 x 2 |
| Storage Device | M.2 2280 M Key NVMe Slot x1 (PCIex4) |
| Ethernet | RJ-45 x 2 for 1G/2.5GbE LAN (i219x1, i225x1) |
| I/O | HDMI 2.0 x 2 |
| Expansion | M.2 3052 B Key x 1 (for 5G module) |
| Indicator | Power / System LED |
| OS Support | Windows® 10 IoT 64-bit |
Power Supply | |
| Power Requirement | DC-in 9-36V x1 for 3-pin Terminal Block |
Mechanical | |
| Mounting | Wallmount |
| Dimensions (W x H x D) | 9.84” x 5.62” x 2.03” (250 x 143 x 51.5) with bracket |
| Gross Weight | 3.3 lb (1.5 kg) |
| Net Weight | 4.4 lb (2.0 kg) |
Environmental | |
| Operating Temperature | -4°F ~ 140°F (-20°C ~ 60°C), according to IEC68-2 with 0.5 m/s AirFlow (w/ |
| Storage Temperature | -40°F ~ 176°F (-40°C ~ 80°C) |
| Storage Humidity | 5 ~ 95% @ 40°C, non-condensing |
| Anti-Vibration | 3 Grms/ 5 ~ 500Hz/ operation (with SSD) |
| Anti-Shock | 50G, IEC 68-2-27, half sine, 11 ms duration (with SSD) |
| Certification | CE/FCC class A |
