BOXER-8230AI

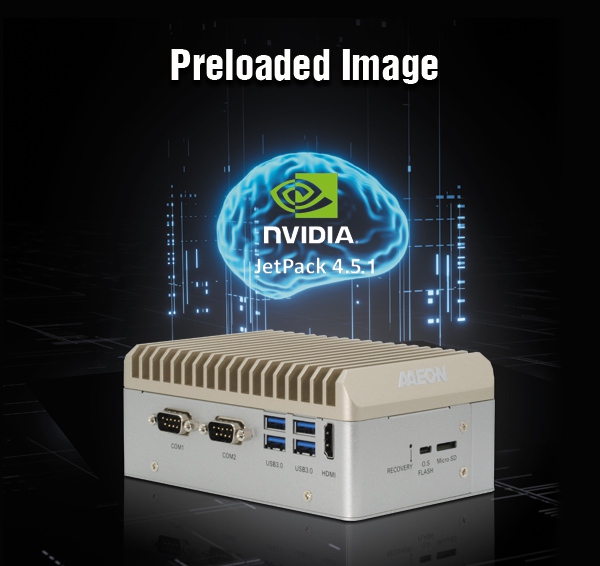

AI@Edge Compact Fanless Embedded BOX PC with NVIDIA® Jetson™ TX2 NX


功能特性

  • NVIDIA Jetson TX2 NX
  • 4GB LPDDR4

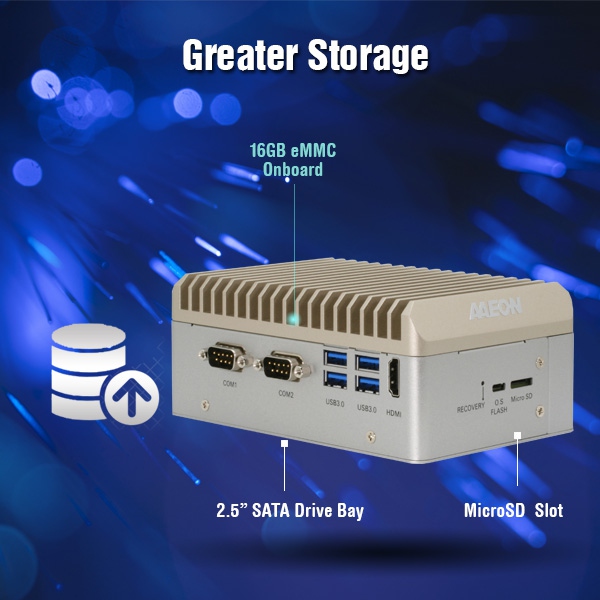

  • Multi-storage option: 16GB eMMC / MicroSD slot / 2.5 drive bay

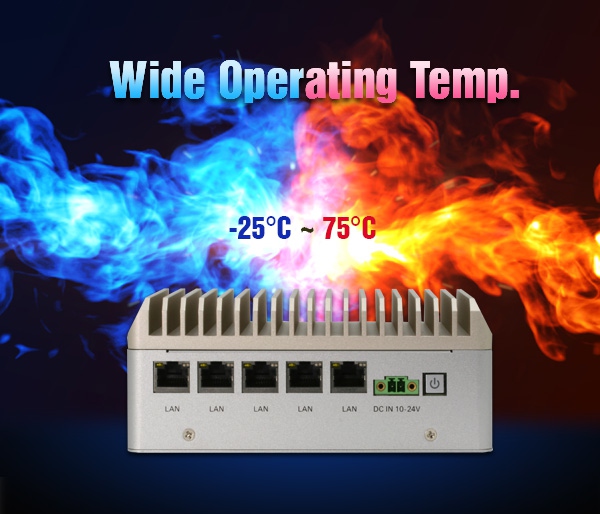

  • Support Operating Temperature -25°C ~ 75°C

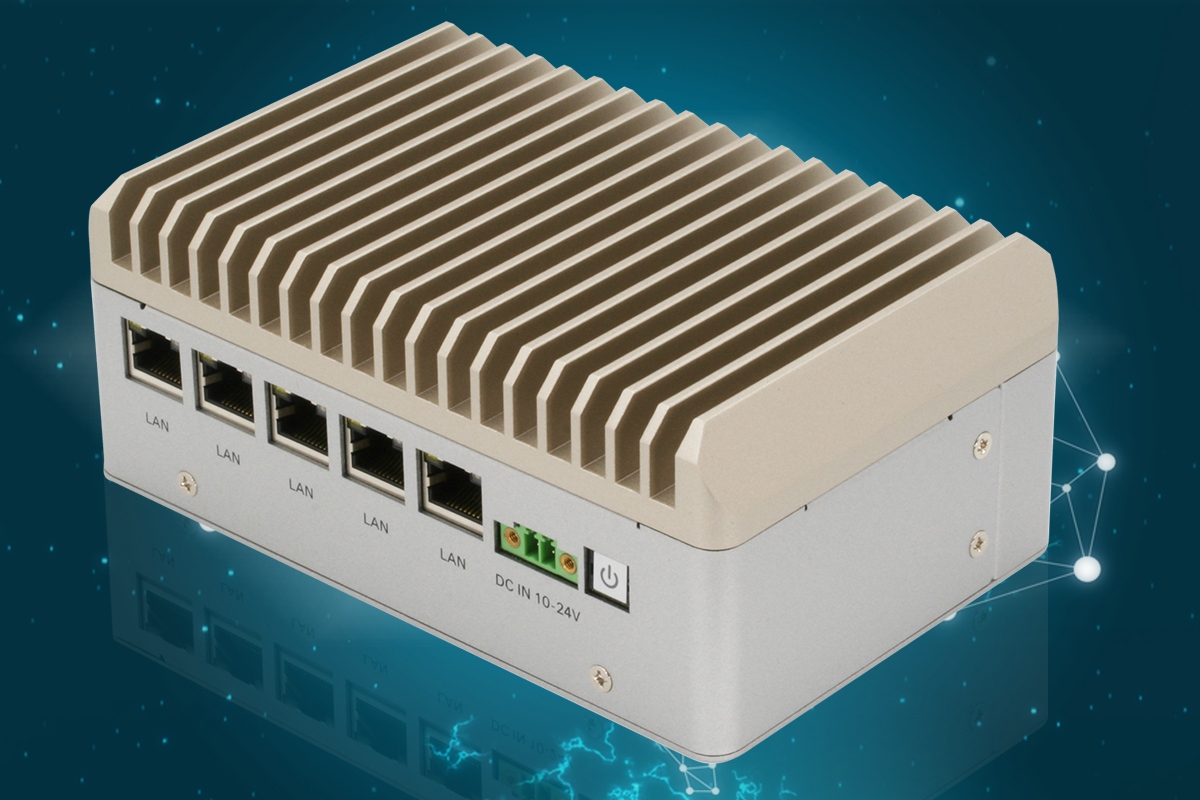

  • GbE LAN x 5
  • USB 3.2 Gen 1 x 4
  • 10~24Vdc Power input
產品介紹


The BOXER-8230AI embedded AI Edge system combines the innovative NVIDIA® Jetson™ TX2 NX with a loadout designed to power intelligent applications and edge networks. The NVIDIA Jetson TX2 NX is powered by the dual-core NVIDIA Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor complex, offering 256 Cuda® Cores and 4GB of onboard LPDD4 memory. In total, this offers AI processing speeds up to 1.33 TFLOPS, offering performance that slots in perfectly between the Jetson Nano™ and Jetson Xavier™ NX. The system also features 16GB of onboard eMMC storage that’s expandable through the microSD card slot.

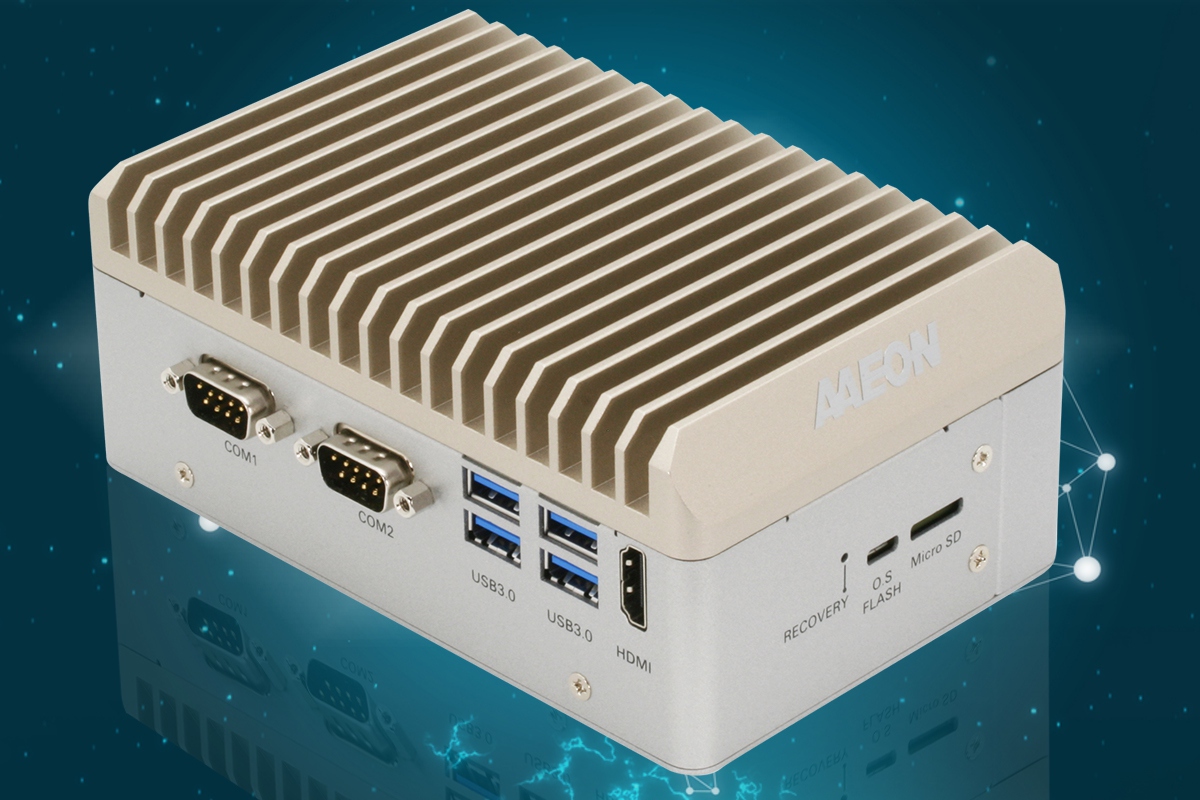

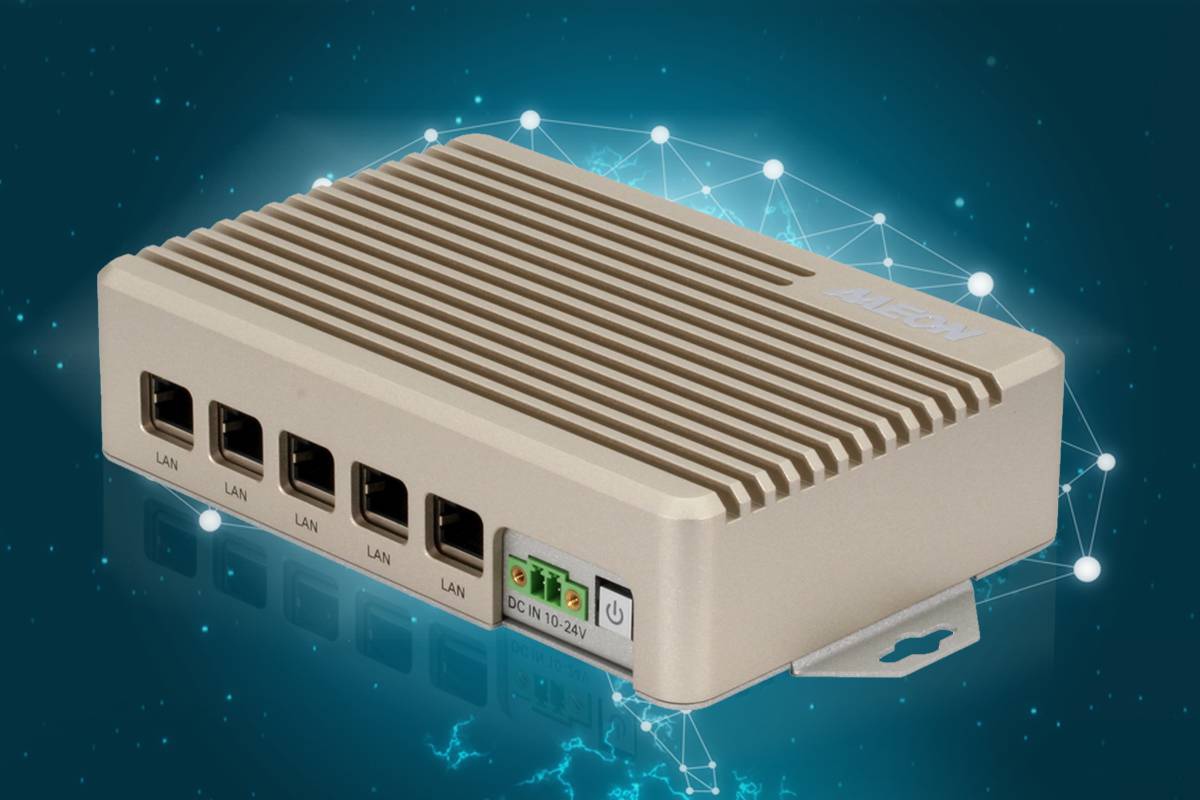

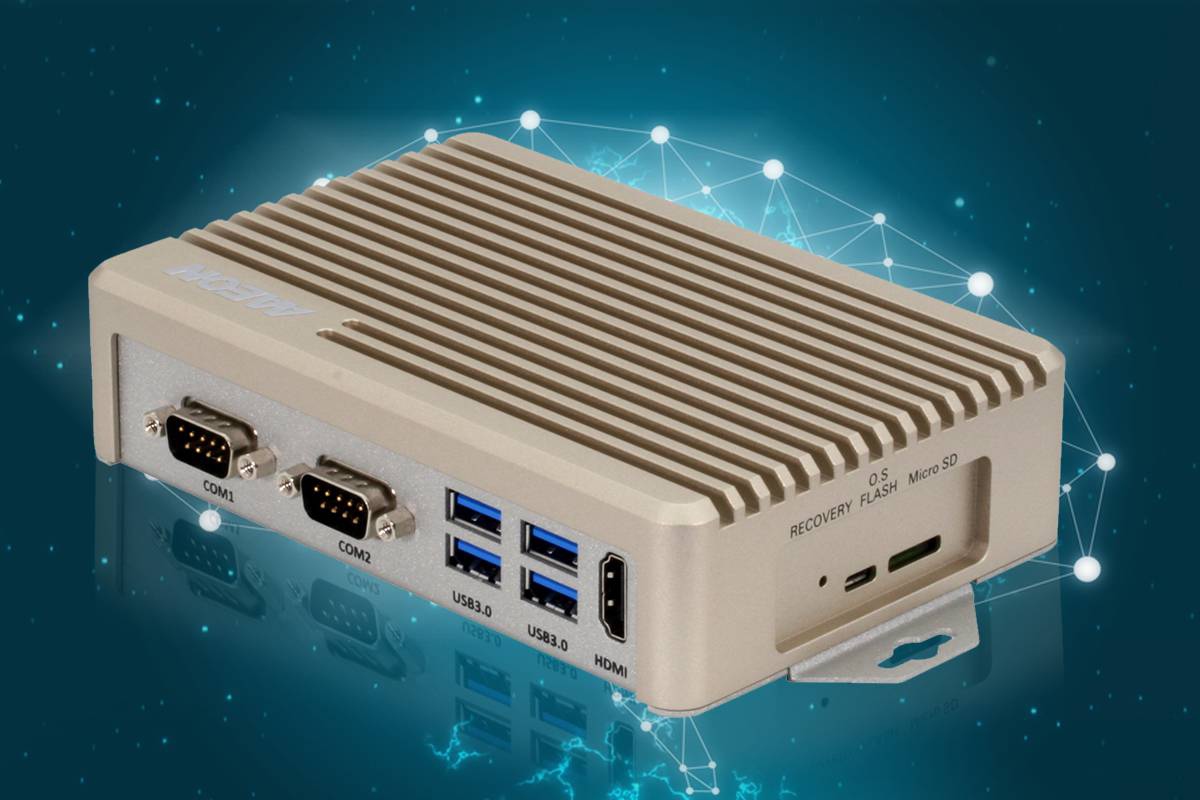

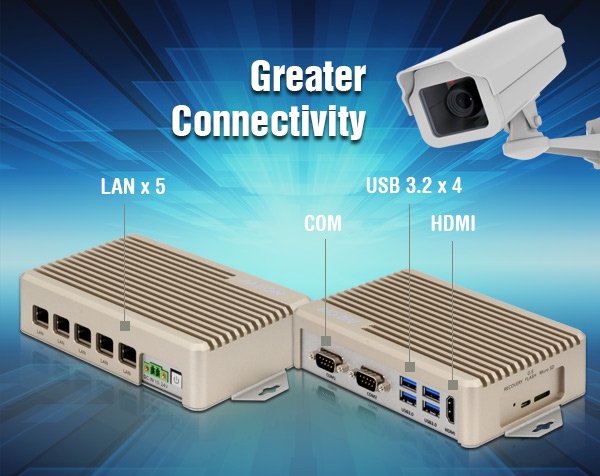

The BOXER-8230AI features a flexible I/O layout with four USB 3.2 Gen 1 ports, five Gigabit LAN ports and two COM ports, allowing deployment with a variety of sensors or cameras. The BOXER-8230AI is built rugged to deploy in a range of environments. Fanless design keeps out dust, allowing for reliable operation; while wide operating temperature range (-15°C ~ 65°C) enables consistent performance wherever it’s deployed.

產品規格
BOXER-8230AI

System

AI Accelerator NVIDIA® Jetson™ TX2 NX
CPU NVIDIA® Denver 2 (Dual-Core) Processor & ARM® Cortex® -A57 MPCore (Quad-Core) Processor
System Memory 4GB 128-bit LPDDR4 @ 1600 MHz
Storage Device eMMC 5.1 16GB, Micro SD card slot x 1, 2.5” SATA drive bay x 1 (A4 only)
Display Interface HDMI Type A x 1 for HDMI 2.0
Ethernet RJ-45 x 5 for GbE LAN
I/O

USB Type A x 4 for USB 3.2 Gen 1
DB-9 x 2 for RS-232
HDMI Type A x 1 for HDMI 2.0
MicroSD slot x 1
Micro USB x 1 for O.S Flash
Recovery button x 1
Power button with power LED x 1

Expansion SATA III Port x 1 for 2.5” SATA drive (A4 only)
Indicator Power LED x 1
OS Support Ubantu 18.04

Power Supply

Power Requirement DC-in 10V~24V with 2-pin terminal block ATX mode

Mechanical

Mounting Wall mount kit
Dimensions (W x D x H)

A3: 6.92” x 3.94” x 1.54”(175.8mm x 100.0mm x 39.0mm)
A4: 6.92” x 3.94” x 2.41”(175.8mm x 100.0mm x 61.3mm)

Gross Weight A3: 2.91lbs (1.3kg); A4: 3.5lbs (1.6kg)
Net Weight A3: 1.51lbs (0.67kg); A4: 2.0lbs (0.91kg)

Environmental

Operating Temperature

A3: -13°F ~ 149°F(-25°C ~ 65°C,according to IEC60068-2 with 0.5 m/s AirFlow)
A4: -13°F ~ 167°F(-25°C ~ 75°C,according to IEC60068-2 with 0.5 m/s AirFlow)

Storage Temperature -40°F ~ 176°F (-40°C ~ 80°C)
Storage Humidity 5 ~ 95% @ 40°C, non-condensing
Anti-Vibration 3.5Grm / 5~500Hz / operation (eMMC, MicroSD, or SSD)
Anti-Shock 50G peak acceleration (11 msec. duration, eMMC, microSD, or SSD)
Certification CE / FCC class A
