Edge AI Inference System, with NVIDIA® Jetson AGX Orin™
Edge AI Inference System powered by NVIDIA® Jetson AGX Orin™

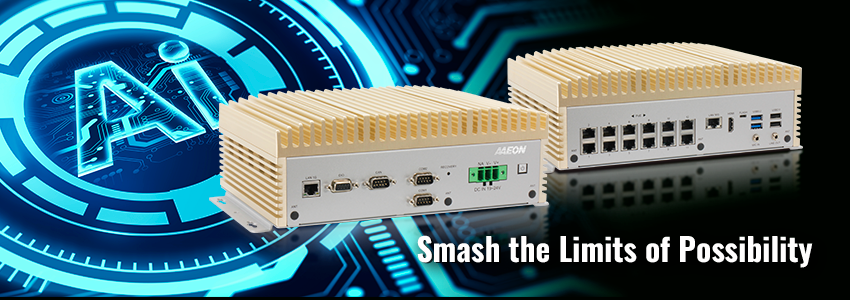

BOXER-8646AI

AI@Edge Fanless PoE Embedded AI System with NVIDIA® Jetson AGX Orin™


功能特性

  • NVIDIA® Jetson AGX Orin™
  • PoE/PSE GbE LAN x 12
  • 10G LAN x 1 and Giga LAN x 1
  • Multi-expansion: M.2 E Key / M.2 B Key / M.2 M Key
  • CANBus / COM / DIO
產品介紹

這款創下紀錄、全球領先的BOXER-8646AI,以多項優勢區別於先前的型號,透過10G LAN提供十倍的數據傳輸速度,以及透過NVIDIA® Jetson AGX Orin™達到高達200 TOPS的六倍人工智慧性能。

作為由NVIDIA Jetson AGX Orin驅動的系統,擁有12個PoE和10G LAN端口,BOXER-8646AI提升了跨市場AI邊緣解決方案的連接器品質和數量。再加上眾多的擴充選項和豐富的輸入/輸出介面,BOXER-8646AI在任何應用中實現了擴充、強化和靈活的可能性。

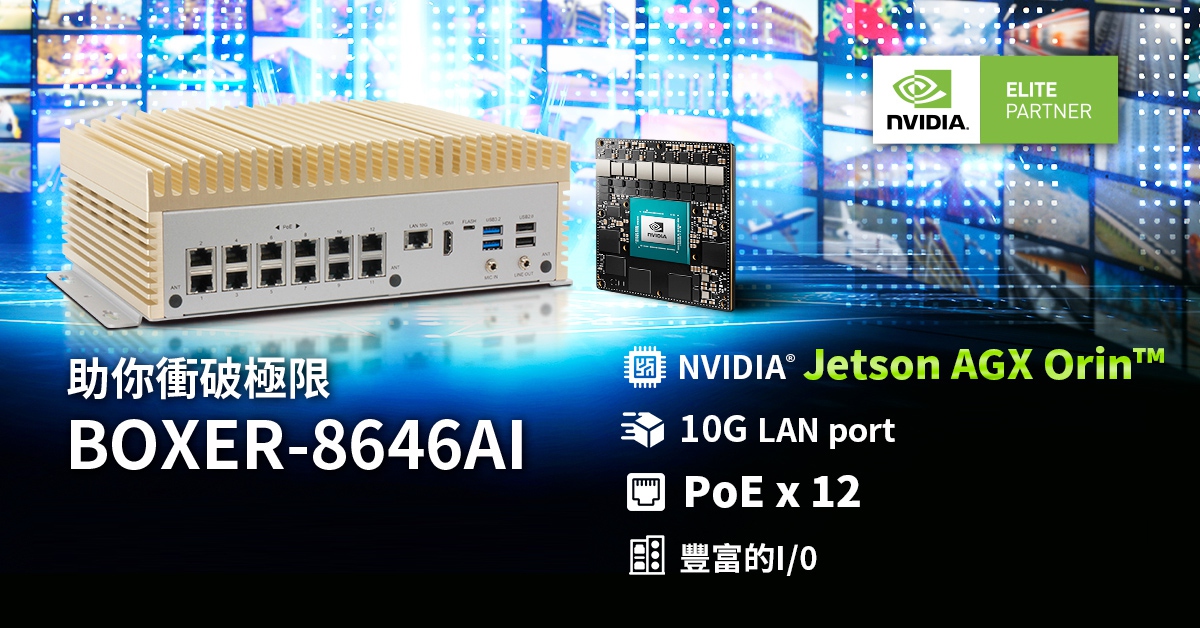

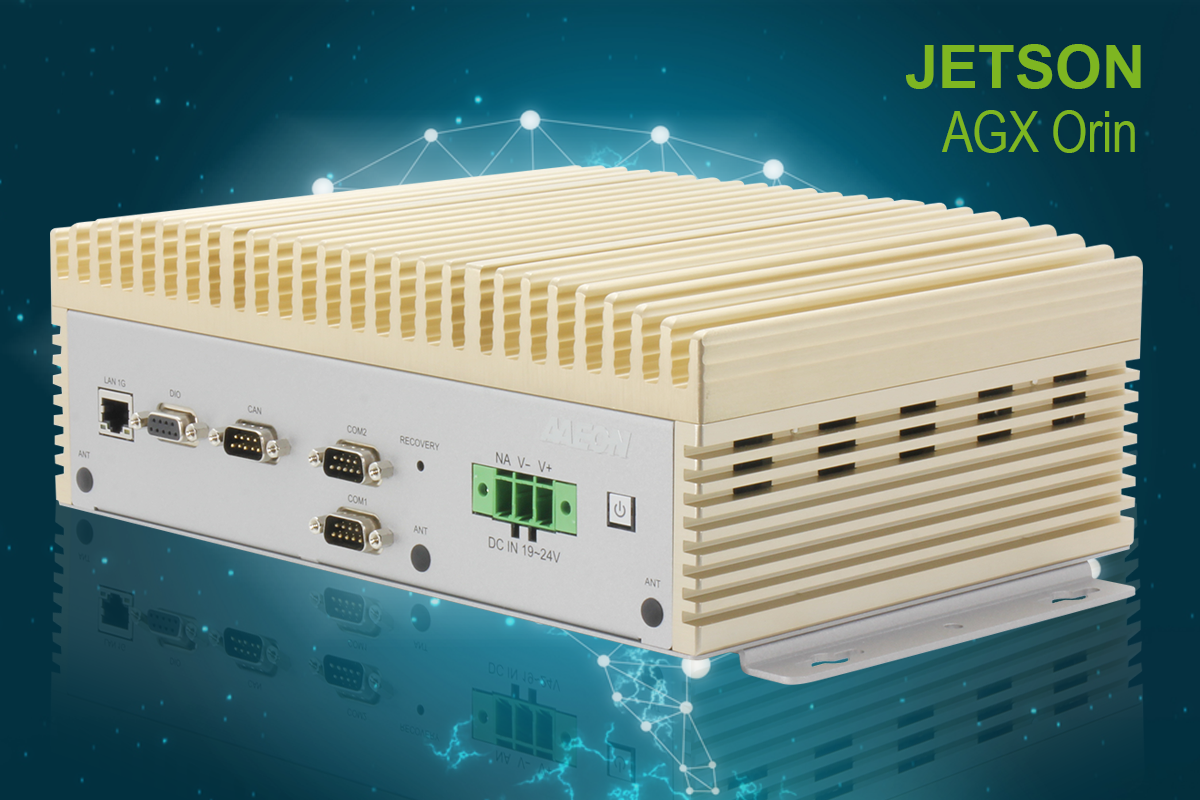

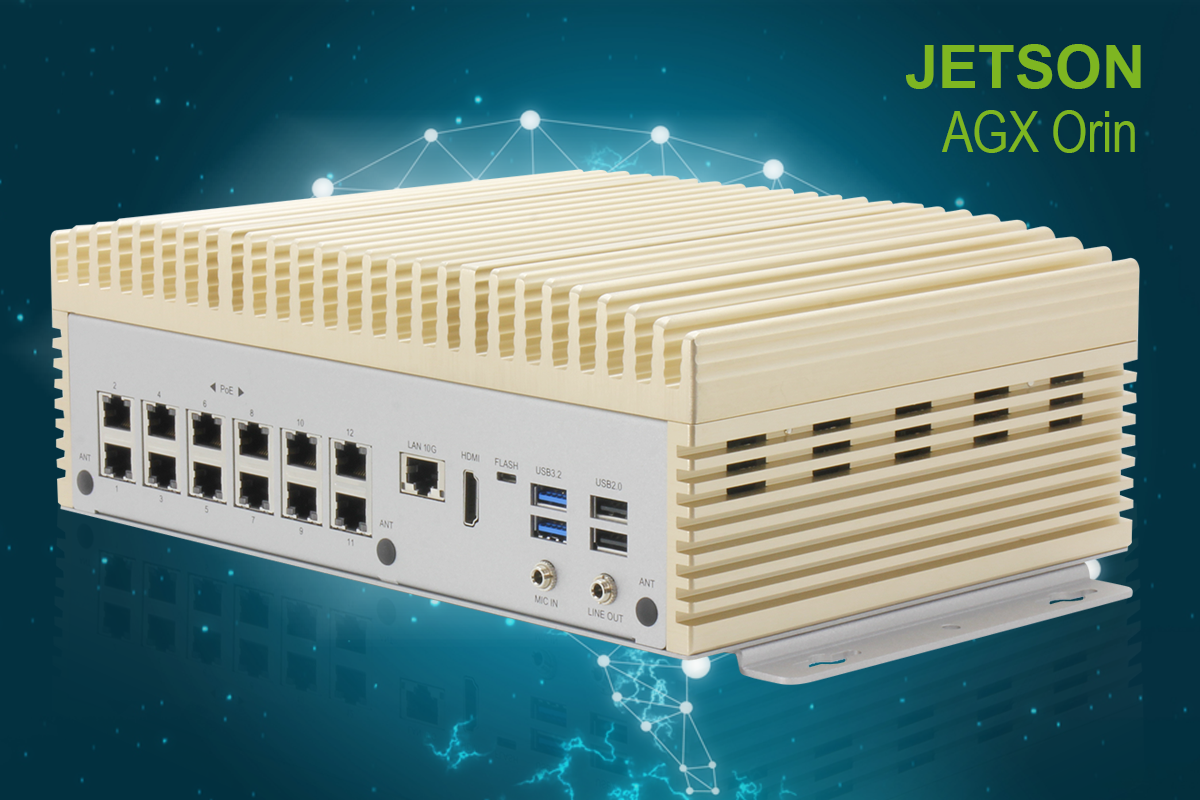

BOXER-8646AI

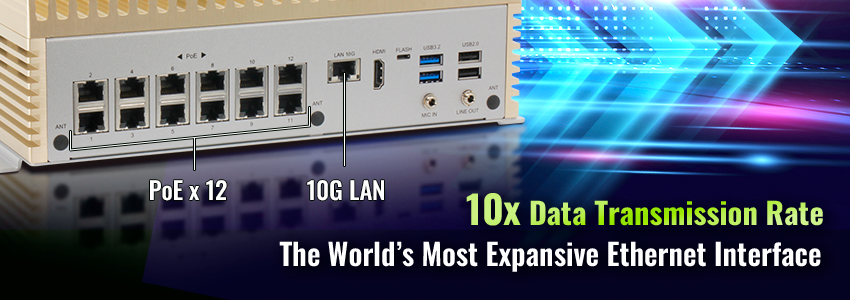

12 PoE LAN ports - BOXER-8646AI

Equipped with 12 PoE LAN ports, the BOXER-8646AI has the world’s most expansive ethernet interface, tripling the capacity of previous generations of Box PCs powered by NVIDIA Jetson SoMs. This record-breaking design enables users to power a greater number of high-quality peripheral cameras for any edge AI application, including smart safety and traffic management solutions. Complimenting this is the BOXER-8646AI’s exceptional data transmittance speed, with 10G LAN providing connective synergy like never before.

NVIDIA® Jetson AGX Orin™

The BOXER-8646AI’s record-breaking interface serves to augment the ingenuity of the NVIDIA® Jetson AGX Orin™. The system’s 12 PoE LAN ports channel up to 200 TOPS of AI performance, marrying unparalleled acceleration with preeminent power. As a consequence, the BOXER-8646AI offers not only greater scalability for solutions like smart parking and ANPR, but also substantially more power and sophistication.

Adding to a record-breaking PoE interface and tremendous computing power, the BOXER-8646AI is designed to expand the performance and reach of your project in every aspect of its design, including a wide -20°C ~ 50°C temperature range for greater deployment options. Further, LPDDR5 system memory, CAN Bus, and RS-232/422/485 support provide fast and reliable functionality for edge applications, while expansion options such as NVMe, Wi-Fi, and LTE remove the limits of possibility and make the BOXER-8646AI versatile, powerful, and unique.

Application Potential
Smart Safety
Traffic Management
Smart Parking
ANPR
Specifications
BOXER-8641AI

System

AI Accelerator NVIDIA® Jetson AGX Orin™
CPU 8-core ARM v8.2 64bit CPU, 2MB L2 + 4MB L3
System Memory 32GB LPDDR5
Storage Device

64GB eMMC 5.1 x 1

M.2 2280 NVMe M Key x 1

Display Interface HDMI Type A x 1 for HDMI 2.0
Ethernet

RJ-45 x 12 for GbE PoE/PSE (802.3af/at, MAX.:120W)

RJ-45 x 1 for 10G LAN

RJ-45 x 1 for Giga LAN

I/O

USB Type A for USB 3.2 Gen 1 x 2
USB Type A for USB 2.0 x 2
Micro USB x 1 for OS Flash
Mic-in x 1
Line-out x 1
DB-9 x 1 for CANbus FD x 2
DB-9 x 2 for RS-232/422/485
DB-9 x 1 for DIO x 8
3-pin terminal block x 1 for power input
Power button x 1
Recovery button x 1
Antenna hole x 6

Expansion

M.2 2230 E Key x 1 (Wifi/BT)
M.2 3052 B Key x 1 (LTE)
M.2 2280 NVMe M Key x 1
SIM Slot x 1

Indicator Power LED x 1
OS Support Linux (NVIDIA Jetpack 5.0 and above)

Power Supply

Power Requirement 3-pin terminal block x 1 for 19V~24V

Mechanical

Mounting Wall mount kit
Dimensions (W x D x H) 10.42 " x 7.24 " x 3.67" (264.76 mm x 184.00 mm x 93.30 mm)
Gross Weight 12.13lb (5.5kg)
Net Weight 9.92lb (4.5kg)

Environmental

Operating Temperature -4°F ~ 122°F (-20°C ~ 50°C with 0.5 m/s airflow)
Storage Temperature -40°F ~ 158°F (-40°C ~ 70°C)
Storage Humidity 5 ~ 95% @ 40°C, non-condensing
Anti-Vibration 3.5Grm / 5~500Hz
Anti-Shock 50G peak acceleration
Certification CE / FCC class A
下載
產品包裝內容與配件等資訊請下載上方「產品規格書」以參考詳情。
