AIOT-AIVD
AI IoT Video Analysis Gateway
Features
- Intel® Apollo Lake Pentium® N4200 Processor
- Onboard 8G memory, 64G eMMC storage
- Intel® Myriad™ X module
- LAN/USB/HDMI/DP
- Support 2nd storage HDD up to 1TB
- Optional Wi-Fi / Bluetooth
The compact AIOT-AIVD from AAEON is our latest Edge Computing system, built for embedded AI applications. Built around our UP Squared board, it features the Intel® Pentium™ N4200 processor paired with 8GB RAM and 64GB eMMC, perfect for edge computing. The AIOT-AIVD powers AI with our innovative AI Core X with Intel® Movidius™ Myriad™ X VPU, with processing speeds of up to 105 fps (80 typical) or 1 TOPS as a dedicated neural network.
The AIOT-AIVD is design to take Edge Computing where your project needs it. The AIOT-AIVD is designed with an improved active thermal solution, capable of operating in temperatures up to 60°C. Compatible with Intel® Distribution of OpenVINO toolkit, the compact and versatile AIOT-AIVD can power AI applications from Unmanned Stores to Smart Home Safety and Security.
SYSTEM | |
| CPU | Intel® Pentium® N4200 Processor |
| CHIPSET | Intel® System on Chip |
| MEMORY | Onboard 8GB LPDDR4 memory |
| STORAGE | 64GB eMMC on board 500GB HDD x 1 (Optional) |
| DISPLAY | HDMI x 1, DP x 1 |
| ETHERNET | Realtek® 8111G x 2 |
| USB | USB 3.0 x 3 |
| COM | — |
| DIGITAL I/O | — |
| EXPANSION SLOT | AI core X mini card module x 1 M.2 2230 E-Key x 1 |
| INDICATOR | — |
| WI-FI | 801.11ac (Optional) |
| BLUETOOTH | BT4.0 (Optional) |
| LORA | |
| POE | |
| OS SUPPORT | Windows® 10, Linux Ubuntu, OpenVino |
I/O Placements | |

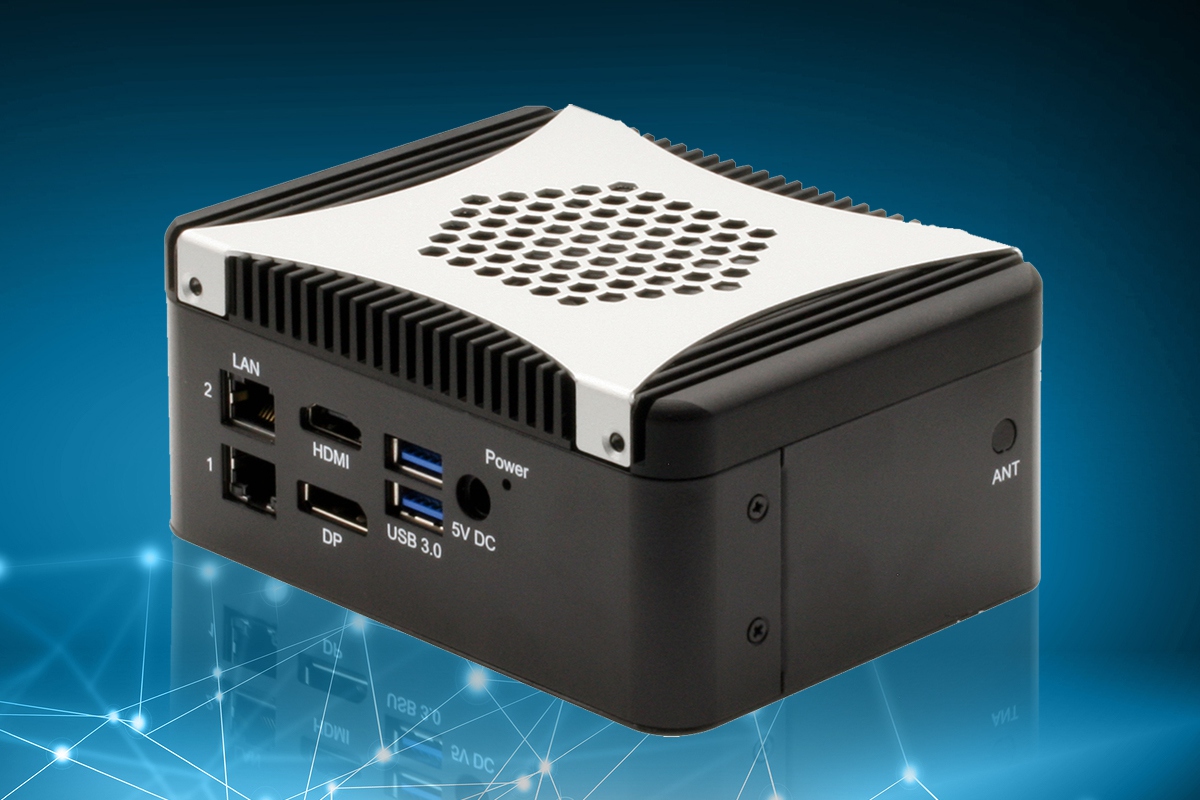

| Front I/O | RJ45 Connector x 2 Power button x 1 HDMI x 1 DP x 1 USB3.0 x 2 Power input x 1 Power button x 1 |

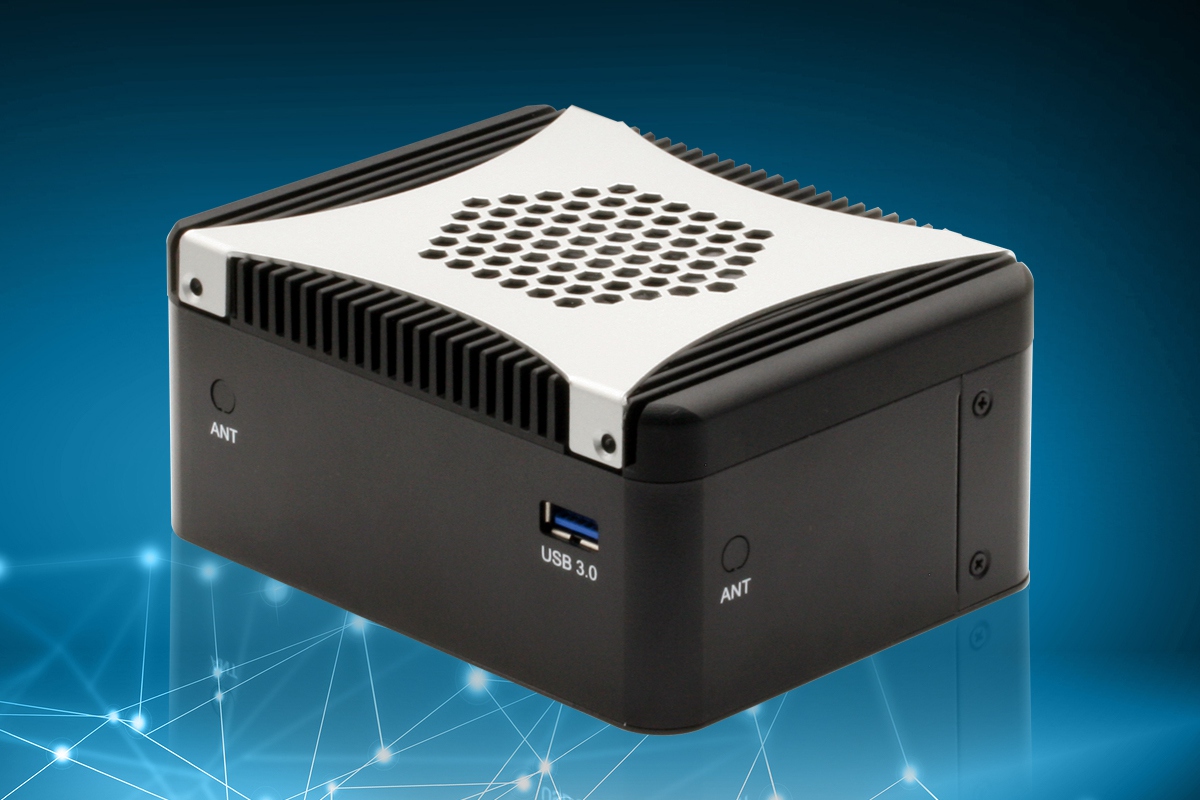

| Rear I/O | USB 3.0 x 1 Antenna connector x 1 (Optional) |
| Right side I/O | Antenna connector x 1 (Optional) |
| Left side I/O | Antenna connector x 1 (Optional) |
Power | |
| Power Requirement | 5V DC in |
Mechanical | |
| IP | — |
| Dimension | 4.96” x 3.74” x 2.28” (126 mm x 95 mm x 58 mm) |
| Mounting | VESA Mount |
| Gross Weight | 2.4lb (1.1 kg) |
| Net Weight | 1.5lb (0.7 kg) |
Environment | |
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C) |
| Storage Temperature | -4°F ~ 158°F (-20°C ~ 70°C) |
| Storage Humidity | 5~95% @ 40°C, non-condensing |
| Anti-Vibration | 3 Grms/ 5 ~ 500Hz/ operation – eMMC 1 Grms/ 5~ 500Hz/ operation – HDD |
| Certification | CE, FCC Class A |
