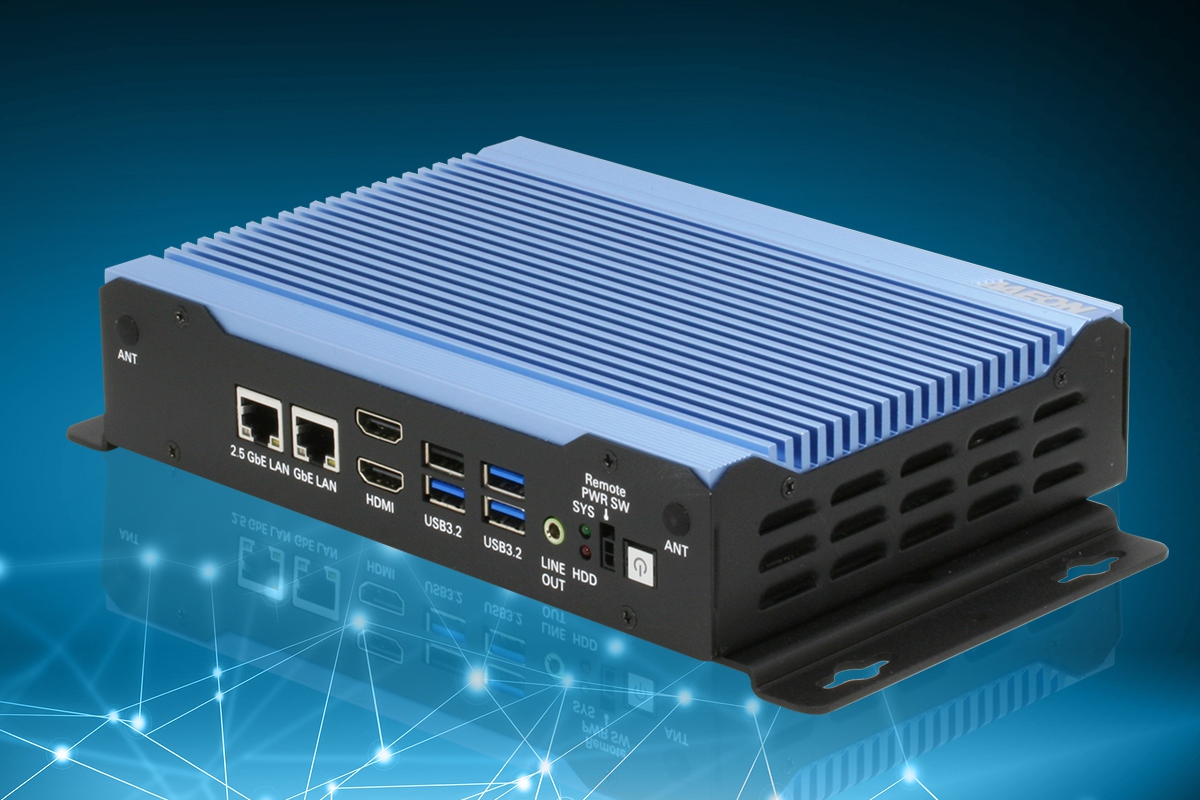

BOXER-6643-TGU Front View

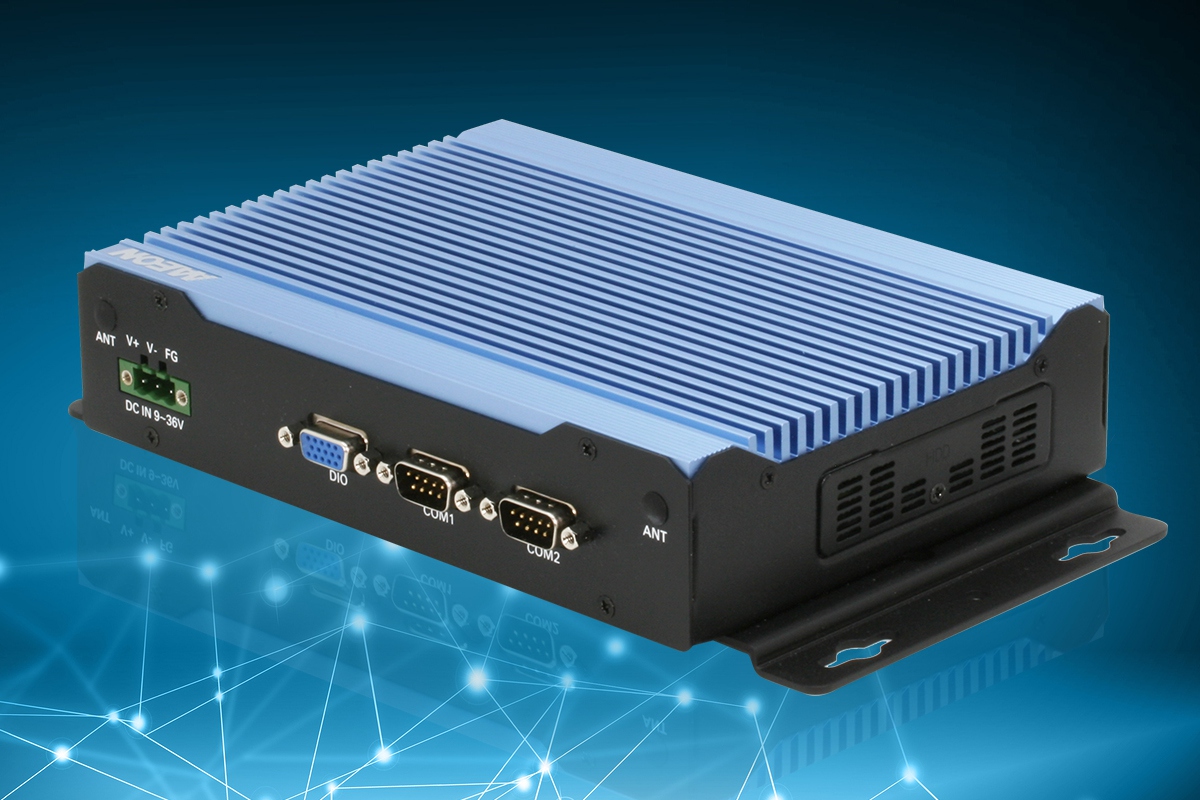

BOXER-6643-TGU Back View

BOXER-6643-TGU

Fanless Embedded Box PC 11th Generation Intel® Core™ SoC Processor


Features

  • Extreme Computing Power with Intel® SoC Processor
  • DDR4 slot x 2, up to 64GB
  • Support High Speed NVMe storage (M.2 2280)
  • GbE LAN x 1 (Intel I219) + 2.5GbE LAN x 1 (Intel I225)
  • Supports M.2 3052 B Key for 5G module
  • Wide Range 9-36V DC input
  • Wide Range -20~60 °C Operating Temperature
Overview

The BOXER-6643-TGU brings the power of 11th Generation Intel® Core™ U processors to a compact, rugged platform that delivers greater performance and capabilities over previous generations. The system supports up to 64GB of memory to unlock the full potential of the system’s processing capabilities. Along with the Intel® Iris® Xe embedded graphics, users can leverage the GPU to power AI and Edge Computing industrial applications, or high definition graphics in digital signage and kiosk applications.

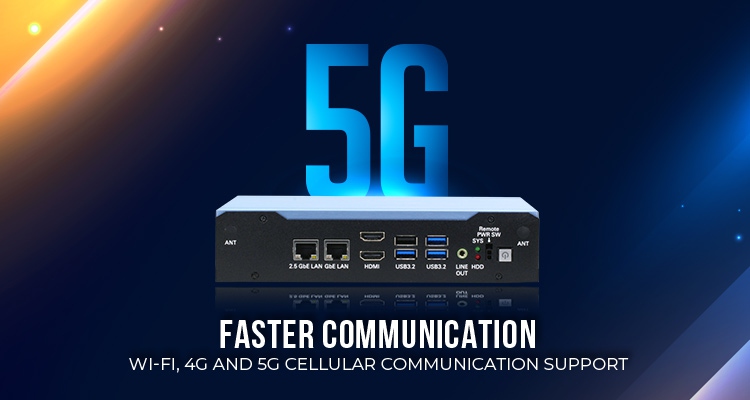

The BOXER-6643-TGU features two LAN ports, one 2.5 Gbps and one 1.0 Gbps, ensuring quick communication for real-time processing and control. The system also features expansion slots supporting wireless networks, including Wi-Fi, 4G and 5G cellular communication. Other I/O features include four USB3.2 Gen 2 slots, dual COM ports and 8-channel DIO.

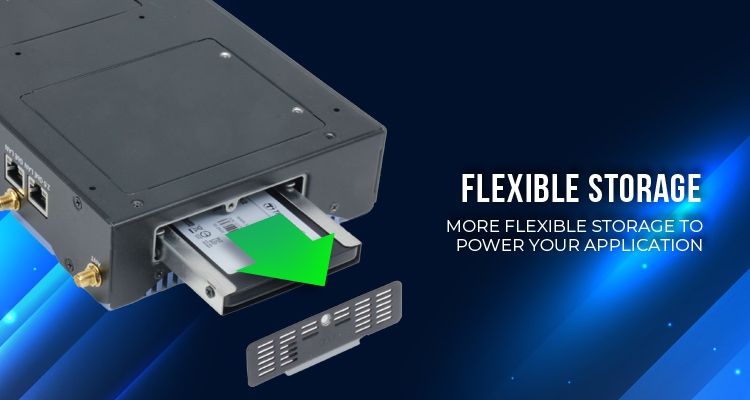

The BOXER-6643-TGU supports storage options including mSATA and NVMe, and features a SATA III port connected directly to the board, eliminating cables that may come loose in high-vibration environments. The 2.5” SATA drive is easy to install and maintain, with a slide out tray located on the side of the system. Additionally, two easy-access panels on the bottom of the system allows users to quickly add on or upgrade expansion cards and memory modules.

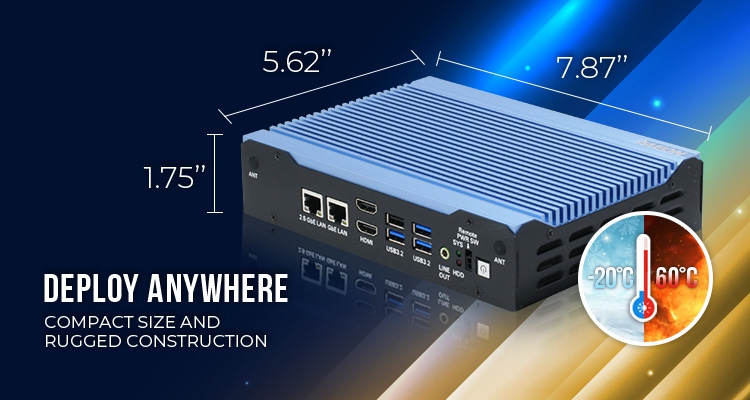

Built to deploy anywhere, the BOXER-6643-TGU is designed with a compact form factor and rugged construction. Fan-less design keeps dust and contaminants out, while also delivering an operating temperature range of -20°C to 60°C. With a cable-free design, the system is suitable for high-vibration environments. Learn More about BOXER-6643-TGU.

Specifications
BOXER-6643-TGU

System

CPU

Intel® Core™ i7-1185G7E
Intel® Core™ i5-1145G7E
Intel® Core™ i3-1115G4E

Chipset Intel® SoC
System Memory DDR4 3200MHz SO-DIMM x 2, max 64GB
Display Interface HDMI 2.0 x 2
Storage Device

M.2 2280 M Key NVMe Slot x1 (PCIex4)
2.5"SATA Drive Bay x1

Ethernet RJ-45 x 2 for 1G/2.5GbE LAN (i219x1, i225x1)
I/O

HDMI 2.0 x 2
RJ-45 x 2 for 1G/2.5GbE LAN (i219 x 1, i225 x 1)
USB Type-A x3 for USB3.2 Gen2
USB Type-A x1 for USB 2.0
DB-9 x 2 for RS-232/422/485
DB15 x1 Male for Digital I/O 8-channel
Line out x 1
3 pin 9~36V Power Input x 1
Power Button with LED x 1

Expansion

M.2 3052 B Key x 1 (for 5G module)
Full-Size Minicard x1 (PCIe + USB / SATA, Default PCIe + USB)
SIM Slot x 1

Indicator Power / System LED
OS Support

Windows® 10 IoT 64-bit
Window 10 Pro
Linux Ubuntu 20.04.2

Power Supply

Power Requirement DC-in 9-36V x1 for 3-pin Terminal Block

Mechanical

Mounting Wallmount
Dimensions (W x H x D)

9.84” x 5.62” x 2.03” (250 x 143 x 51.5) with bracket
7.87” x 5.62” x 1.75” (200 x 143 x 44.5) w/o bracket

Gross Weight 3.3 lb (1.5 kg)
Net Weight 4.4 lb (2.0 kg)

Environmental

Operating Temperature

-4°F ~ 140°F (-20°C ~ 60°C), according to IEC68-2 with 0.5 m/s AirFlow (w/
Industrial wide Temp. SSD/RAM)

Storage Temperature -40°F ~ 176°F (-40°C ~ 80°C)
Storage Humidity 5 ~ 95% @ 40°C, non-condensing
Anti-Vibration 3 Grms/ 5 ~ 500Hz/ operation (with SSD)
Anti-Shock 50G, IEC 68-2-27, half sine, 11 ms duration (with SSD)
Certification CE/FCC class A
Downloads
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
