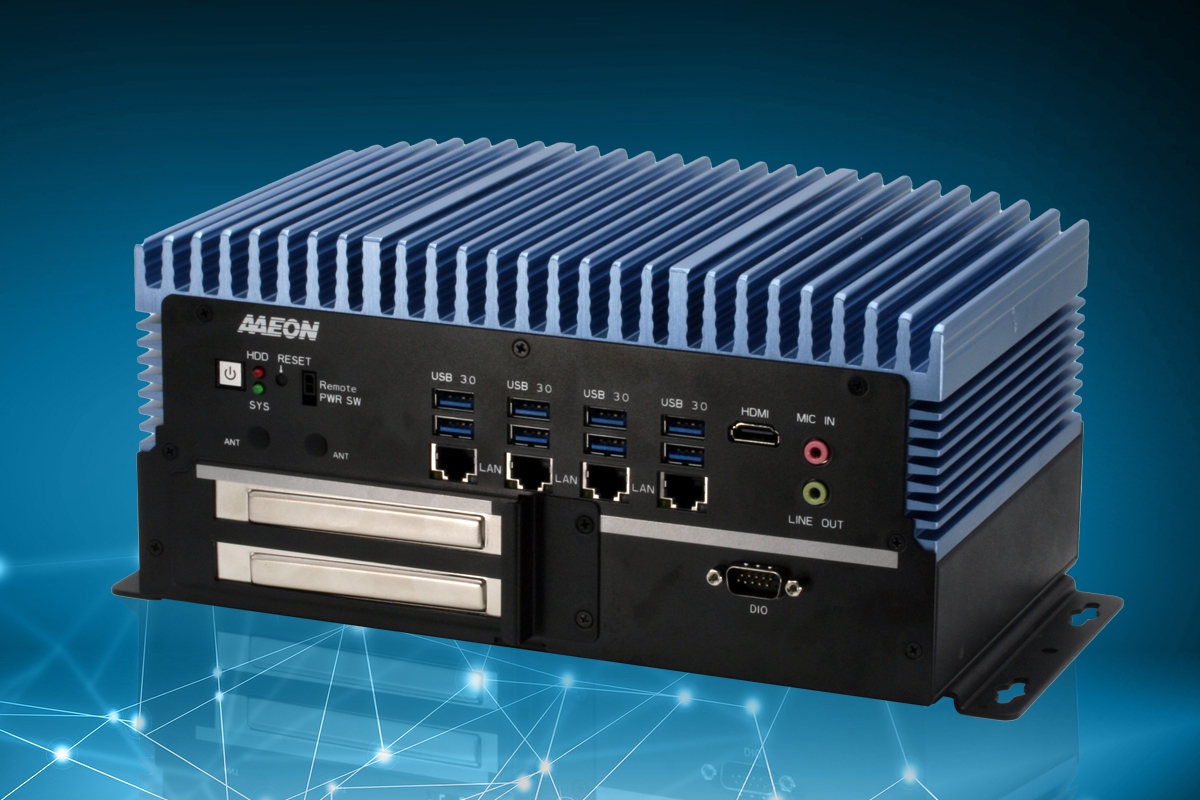

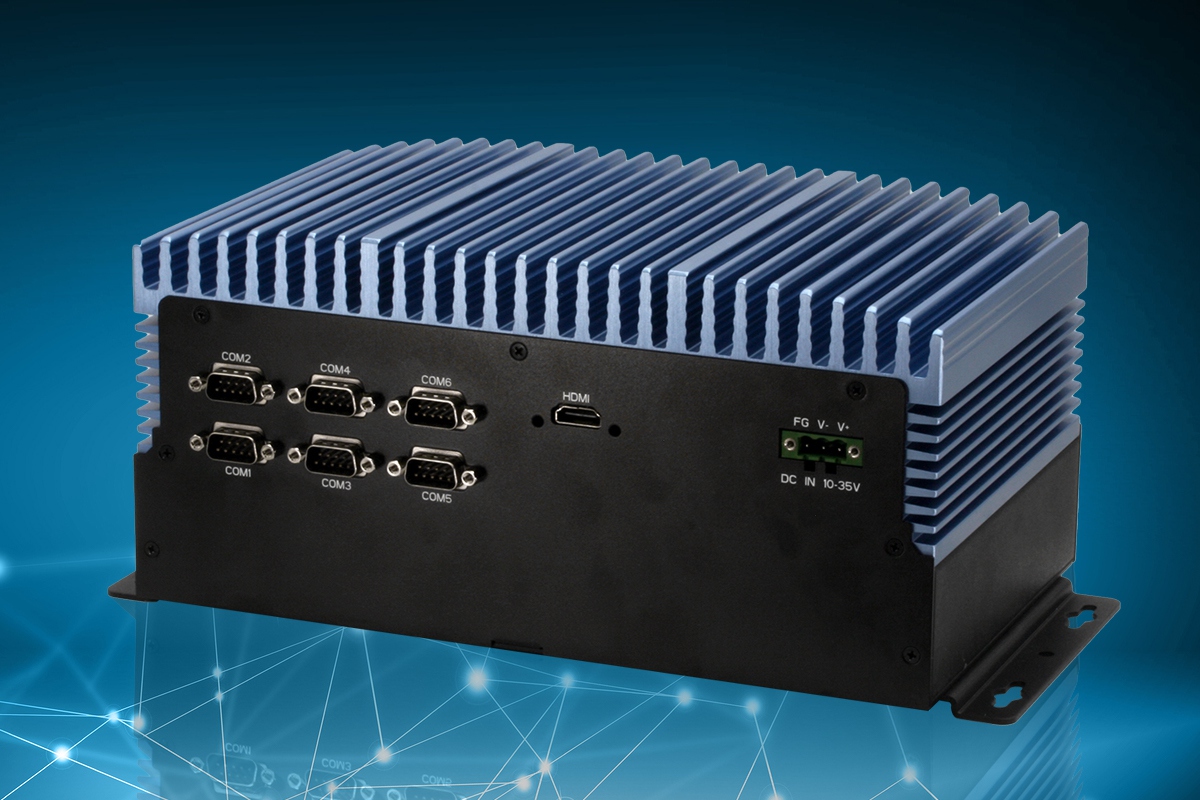

Fanless Embedded Box PC with Socket Type 8th/9th Generation Intel® Processor


Features

  • High Computing Power
  • Intel Coffee Lake-S LGA 1151 Desktop Processor
  • Support DDR4 ECC or Non-ECC SODIMM, Up to 64GB
  • Support HDMI x 2 Double Display
  • Support USB 3.2 Gen 1 x 8
  • PCIe [x4] & PCI [x1] Expansion
Overview

The BOXER-6839-CFL combines the power of 8th/9th Generation Intel® Core™ and Xeon® processors (formerly Coffee Lake) with expandability and a broad I/O layout, allowing it to power industrial applications and easily integrate with existing deployments.

The BOXER-6839-CFL supports 8th/9th Generation Intel® Core™ i3/i5/i7/i9 and Xeon® E processors (up to 71W TDP), delivering server grade performance. Combined with up to 64GB of memory, the BOXER-6839-CFL brings the processing power and speed needed to power a range of industrial and AI applications.

The BOXER-6839-CFL offers rugged construction, with fanless design capable of reliable operation in temperatures from -20°C up to 55°C. (CPU < 35W TDP).

The BOXER-6839-CFL offers expandability with three PCIe/PCI configurations to allow developers and users to quickly add on functionality with AI accelerators or frame grabber cards, AI modules or machine controller interfaces. The system also comes with flexibility built-in with a broad I/O loadout to connect with just about anything, featuring eight USB3.2 Gen 1 ports, six COM ports, 8-bit DIO and four LAN ports including one Intel i219 with support for vPro.

Specifications

System

CPU

Intel® Xeon® E-2124G
Intel® i9-9900T
Intel® i7-9700TE
Intel® i7-8700T
Intel® i5-8500T
Intel® i3-8100T
Pentium® G5400T
Celeron® G4900T

Chipset C246
System Memory

DDR4-2666 SO-DIMM slot x 2
Up to 64GB, ECC or Non-ECC Support

Display Interface HDMI x 2
Storage Device 2.5” SATA HDD/SSD Bay x 2
Ethernet RJ-45 x 4 for GbE LAN (i211-AT x 3, i219-LM x 1)
I/O

HDMI x 2
RJ-45 x 4 for GbE LAN (i211 x 3, i219 x 1)
USB 3.2 Gen 1 x 8
DB-9 x 6 for RS-232/422/485
Audio x 1 (MIC-in, Line-out)
DB-15 for DIO 8 bit x 1
3 pin 10~35V Power Input x 1
Power Button x 1
Remote Power switch x 1
Reset Button x 1

Expansion

Full-size Mini card x 1 (PCIe)
Full-size Mini card x 1 (PCIe/mSATA switch by BIOS, Default: mSATA)
SIM slot x 1
PCIE slot :
Riser card type 1: PCIe[x4] slot x 1 & PCIe[x1] x 1
Riser card type 2: PCIe[x4] slot x 1 & PCI x 1
Riser card type 3: PCI x 2

Indicator

HDD LED x 1
System LED x 1

OS Support Windows® 10 64-bit, Linux Ubuntu 20.04

Power Supply

Power Requirement 3-pin Phoenix DC Input 10~35V

Mechanical

Mounting Wallmount
Dimensions (W x H x D) 264mm x 156mm x 125mm
Gross Weight 13.2 lb (6.0 kg)
Net Weight 9.9 lb (4.5 kg)

Environmental

Operating Temperature

-4°F ~131°F (-20°C ~ 55°C) with 0.5 m/s airflow (with TDP ≦ 35W CPU)
-4°F~113°F (-20°C ~45°C) with 0.5 m/s airflow (with TDP > 35W CPU)

Storage Temperature -49°F ~ 176°F (-45°C ~ 80°C)
Storage Humidity 5~95% @ 40°C, non-condensing
Anti-Vibration 5 Grms/ 5 ~ 500Hz/ operation –SSD
Anti-Shock SSD: 50G @ wallmount, Half-sine, 11ms
Certification CE/FCC class A
Downloads
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
