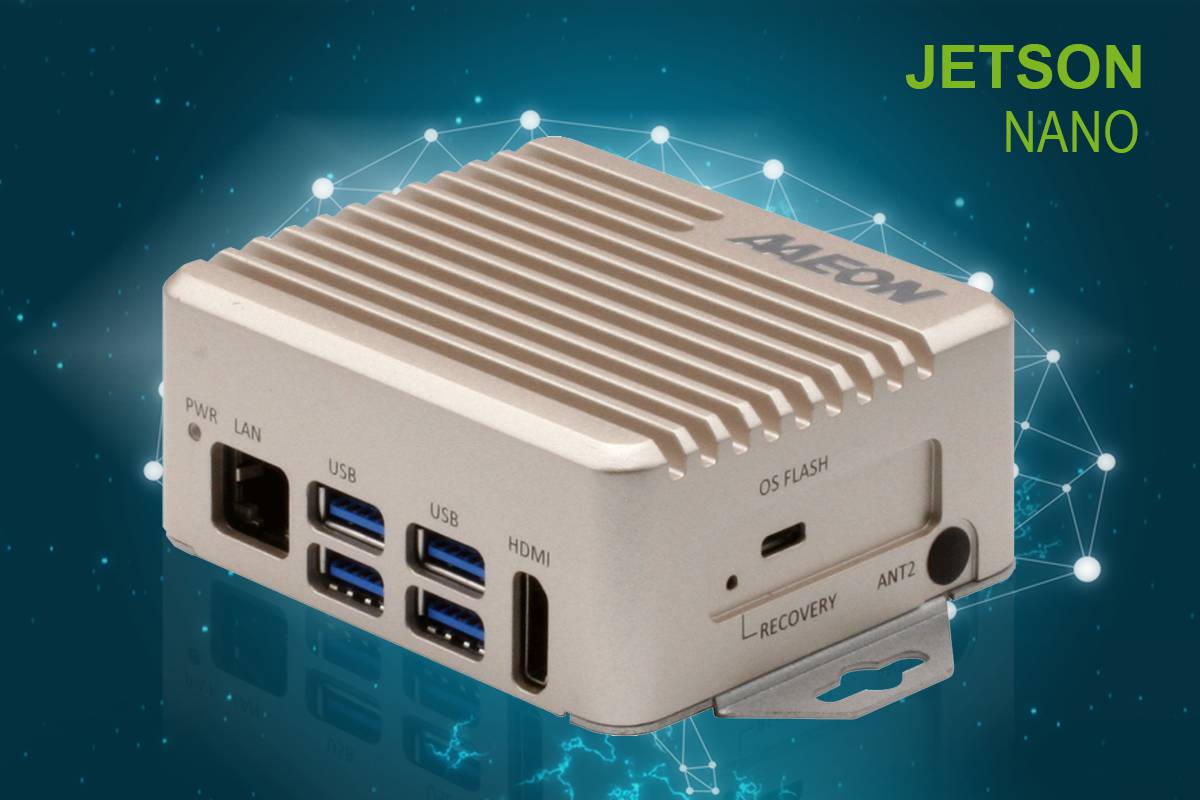

AI@Edge Compact Fanless Embedded BOX PC with NVIDIA Jetson Nano
- NVIDIA Jetson nano
- Quad core ARM A57 Processor
- 4GB LPDDR4 + 16GB Micro-SD or eMMC
- LAN x 1 + RS-232 x 2
- 12Vdc Power input
speeds up to 472 GFLOPs and is capable of operating multiple neural networks or processing several high-resolution images at the same time. The NVIDIA Jetson Nano also provides the BOXER-8221AI with 4GB RAM and 16 GB eMMC storage.
With the NVIDIA Jetson Nano, the BOXER-8221AI is able to provide both performance and price suitable for entry to mid-level deployment of AI and edge computing applications.
With four USB 3.2 Gen 1 ports and two COM ports, the BOXER-8221AI provides flexibility to integrate with a wide range of edge computing applications and projects.
The BOXER-8221AI is designed with AAEON’s dedication to providing rugged embedded PCs for industrial use. Its fanless design ensures long reliable operation, preventing dust or other contaminants from interfering with components. The BOXER-8221AI thermal design also allows the system to operate in temperatures from -20°C up to 50°C without a loss in performance, perfect for stable operation in almost every work environment.
|AI Accelerator||Nvidia Jetson Nano|
|CPU||Quad Core ARM® Cortex®-A57 MPCore Proccessor|
|System Memory||4GB LPDDR4|
|Storage Device||32GB Micro-SD (A version) or 16GB eMMC (B version)|
|Display Interface||HDMI 2.0|
|Ethernet||10/100/1000Base-TX x 1|
USB 3.2 Gen 1 x 4
|Expansion||M.2 E-Key 2230 x 1(for WiFi)|
|Indicator||Power LED x 1|
|OS Support|| |
Linux (AAEON ACLinux 4.9)
|Power Requirement||12Vdc w/ 2-pin terminal block|
|Dimensions (W x D x H)||3.39” x 2.87” x 1.3” (88mm x 75mm x 39mm)|
|Gross Weight||1.10 lb (0.5 Kg)|
|Net Weight||0.66 lb (0.3 Kg)|
|Operating Temperature||-4°F ~ 122°F (-20°C ~ 50°C, according to IEC60068-2 with 0.5 m/s AirFlow)|
|Storage Temperature||-49°F ~176°F (-45°C ~ 80°C)|
|Storage Humidity||95% @ 40°C, non-condensing|
|Anti-Vibration||3 Grms/ 5 ~ 500Hz/ operation – MicroSD or eMMC|
|Certification||CE/FCC class A|
