AI@Edge Fanless Embedded Box PC with NVIDIA® Jetson Nano™, PD Port
- NVIDIA® Jetson Nano™
- PoE/PD x 1
- 4GB LPDDR4 + 32GB SD card slot
- USB 3.2 Gen 1 x 4
- M.2 E-key slot x 1 for WiFi function expansion
- DC 12 ~ 24V wide voltage power input
- Wide working temperature -10°C ~ 70°C
The BOXER-8222AI is powered by the innovative and energy efficient NVIDIA® Jetson Nano™ SoC. Specialized for AI edge computing, the Jetson Nano utilizes the quad-core ARM® Cortex®-A57 MPCore processor with NVIDIA Maxwell™ GPU architecture featuring 128 NVIDIA CUDA® cores. This innovative design allows processing speeds up to 472 GFLOPs and is capable of operating multiple neural networks or processing several high-resolution images at the same time. The NVIDIA Jetson Nano also features onboard 4GB RAM and MicroSD card slot supporting up to 32GB of storage.
The BOXER-8222AI features a PoE PD (Powered Device) LAN port, allowing for deployment without a dedicated power supply when connected to a PSE Gateway (Power Supply Equipment).
The BOXER-8222AI utilizes the 802.3at standard, supporting power input of 25.6W, more than enough to power the system and connected devices such as USB cameras and sensors.

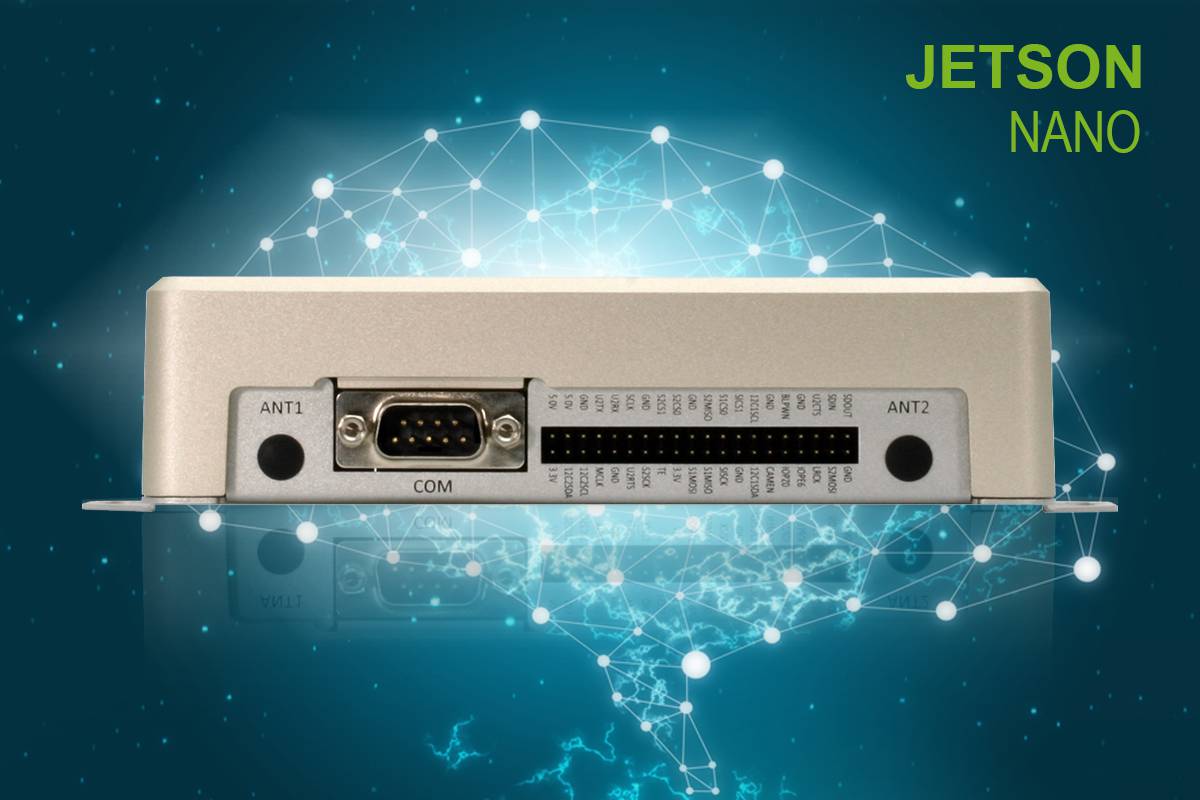

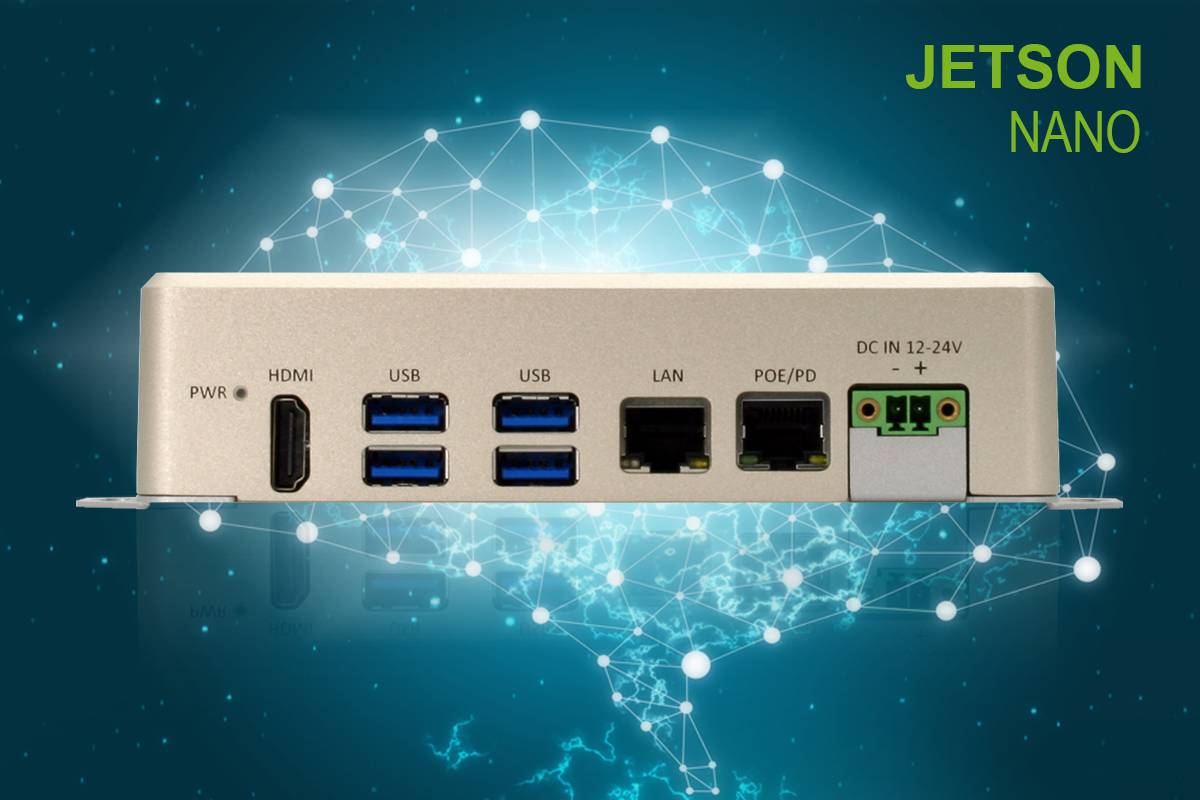

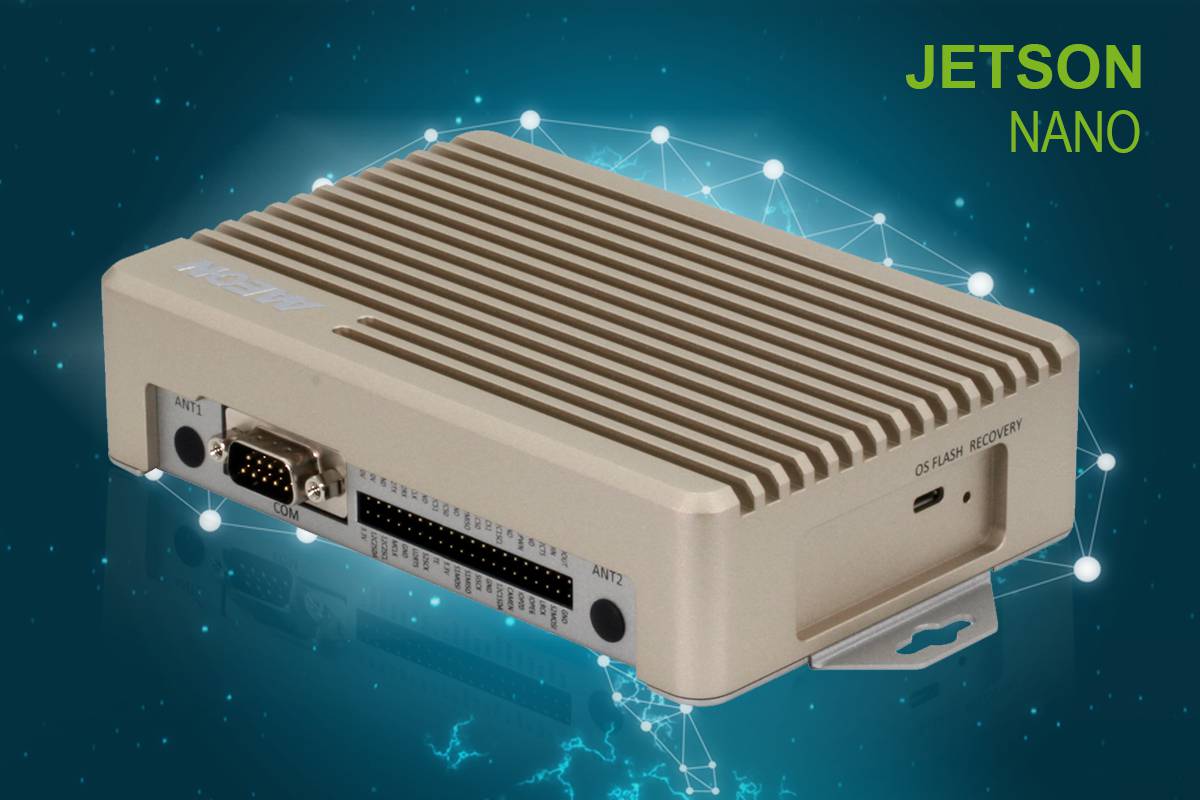

The BOXER-8222AI is designed with a flexible I/O loadout including a 40-pin I/O connector designed to support a wide range of sensors and controllers. It also features four USB3.2 Gen 2 ports, RS-232 COM port, as well as LAN and HDMI ports. The BOXER-8222AI also supports Wi-Fi expansion with an onboard M.2 2230 slot.

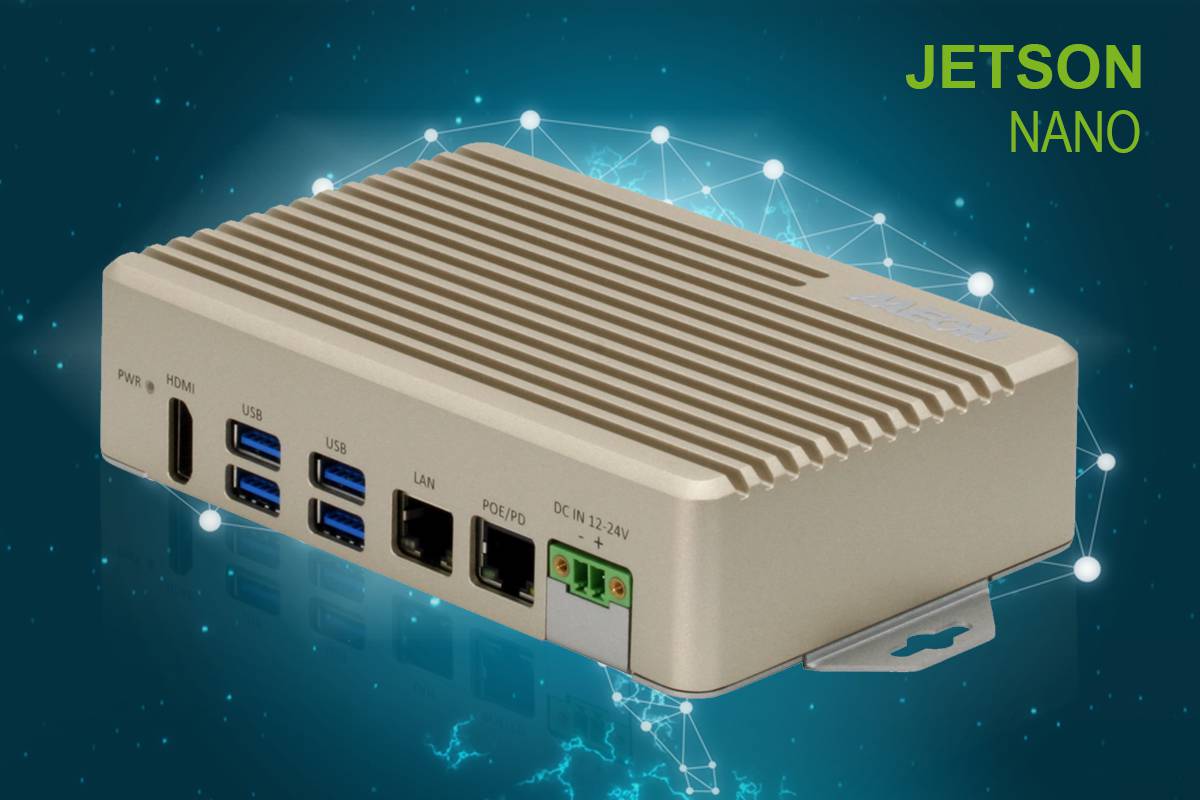

The BOXER-8222AI is designed to operate in a range of rugged environments, featuring a fan-less design to ensure reliable operation. It can operate in temperatures from -10°C up to 70°C without a loss in performance. Its compact size also makes it easy to deploy in tight spaces, putting it closer to where it’s needed.
|AI Accelerator||Nvidia Jetson Nano|
|CPU||Quad Core ARM® Cortex®-A57 MPCore Proccessor|
|System Memory||4GB LPDDR4|
|Storage Device||32GB Micro-SD (A version) or 16GB eMMC (B version)|
|Display Interface||HDMI 2.0|
|Ethernet||10/100/1000Base-TX x 1|
|I/O||USB 3.2 Gen 1 x 4 LAN x 1 RS-232 x 2 HDMI x 1 MicroSD x 1 DC Power Input x 1 Recovery Button x 1 Micro-USB for Flash OS x 1|
|Expansion||M.2 E-Key 2230 x 1(for WiFi)|
|Indicator||Power LED x 1|
|OS Support||Linux (AAEON ACLinux 4.9, Compliance with Ubuntu 18.04)|
|Power Requirement||12Vdc w/ 2-pin terminal block|
|Dimensions (W x D x H)||3.39” x 2.87” x 1.3” (88mm x 75mm x 39mm)|
|Gross Weight||1.10 lb (0.5 Kg)|
|Net Weight||0.66 lb (0.3 Kg)|
|Operating Temperature||-4°F ~ 122°F (-20°C ~ 50°C, according to IEC60068-2 with 0.5 m/s AirFlow)|
|Storage Temperature||-49°F ~176°F (-45°C ~ 80°C)|
|Storage Humidity||95% @ 40°C, non-condensing|
|Anti-Vibration||3 Grms/ 5 ~ 500Hz/ operation – MicroSD or eMMC|
|Certification||CE/FCC class A|
