BOXER-8230AI

AI@Edge Compact Fanless Embedded BOX PC with NVIDIA® Jetson™ TX2 NX


Features

  • NVIDIA Jetson TX2 NX
  • 4GB LPDDR4
  • Multi-storage option: 16GB eMMC / MicroSD slot / 2.5 drive bay
  • Support Operating Temperature -25°C ~ 75°C
  • GbE LAN x 5
  • USB 3.2 Gen 1 x 4
  • 10~24Vdc Power input
Overview


The BOXER-8230AI embedded AI Edge system combines the innovative NVIDIA® Jetson™ TX2 NX with a loadout designed to power intelligent applications and edge networks. The NVIDIA Jetson TX2 NX is powered by the dual-core NVIDIA Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor complex, offering 256 Cuda® Cores and 4GB of onboard LPDD4 memory. In total, this offers AI processing speeds up to 1.33 TFLOPS, offering performance that slots in perfectly between the Jetson Nano™ and Jetson Xavier™ NX. The system also features 16GB of onboard eMMC storage that’s expandable through the microSD card slot.


The BOXER-8230AI features a flexible I/O layout with four USB 3.2 Gen 1 ports, five Gigabit LAN ports and two COM ports, allowing deployment with a variety of sensors or cameras. The BOXER-8230AI is built rugged to deploy in a range of environments. Fanless design keeps out dust, allowing for reliable operation; while wide operating temperature range (-15°C ~ 65°C) enables consistent performance wherever it’s deployed.

NVIDIA Jetson TX2 NX

The NVIDIA Jetson TX2 NX provides powerful AI edge computing without breaking budgets. Featuring a 6-core ARM CPU and Pascal™ GPU with 256 CUDA cores, it delivers processing speeds up to 1.33 FLOPS, capable of running multiple AI inferences, with great cost to performance value.

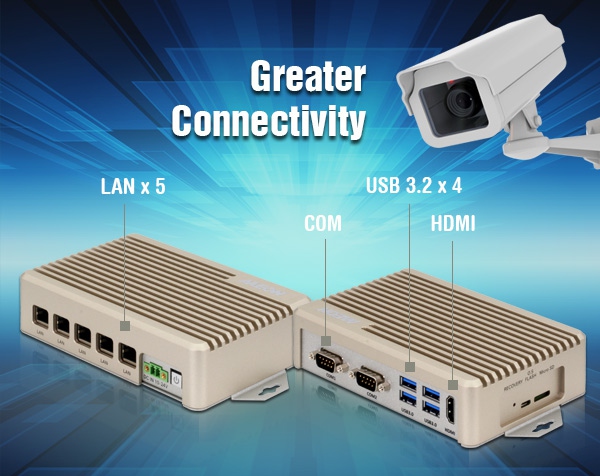

Greater Connectivity

The BOXER-8230AI features a broad I/O layout with five Gigabit Ethernet ports, four USB3.2 Gen 1 ports, COM ports and HDMI, providing greater flexibility to support more devices and applications while delivering higher bandwidth to enable video streaming without frame loss.

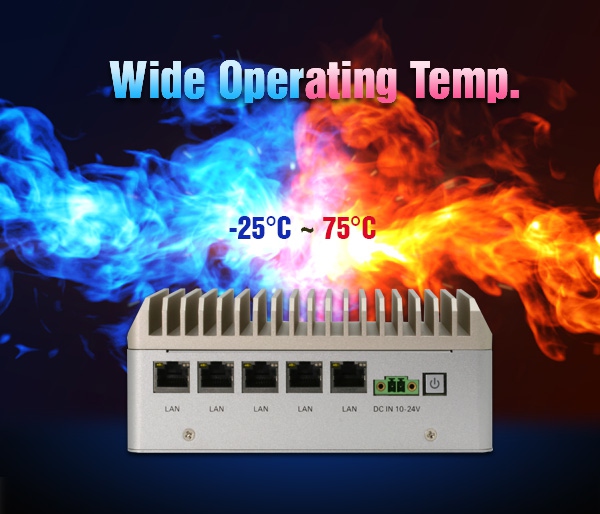

Wide Operating Temperature

The BOXER-8230AI features rugged design to operate in harsh environments, designed with a wide operating temperature range of -25°C up to 75°C, delivering consistent performance wherever it is deployed, even in extreme conditions.

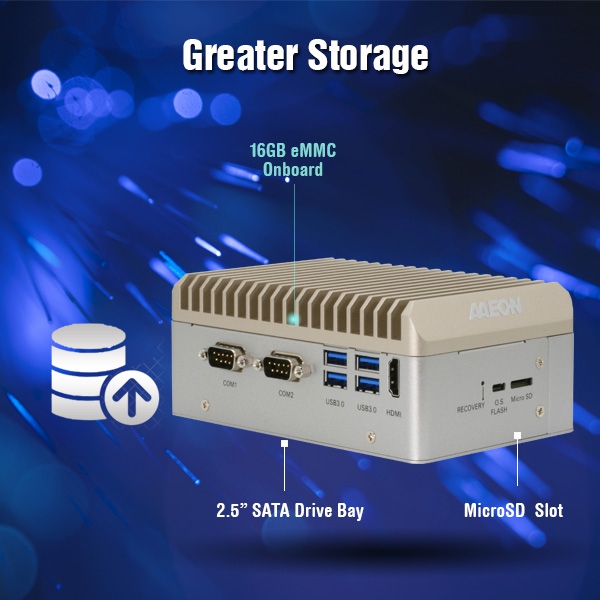

Greater Storage

Get more flexible and capable storage with 16 GB onboard eMMC storage, microSD slot and 2.5” SATA drive bay, enabling users to store more data, video or images locally on the system. AAEON services can also provide boot option customization based on per-project needs.

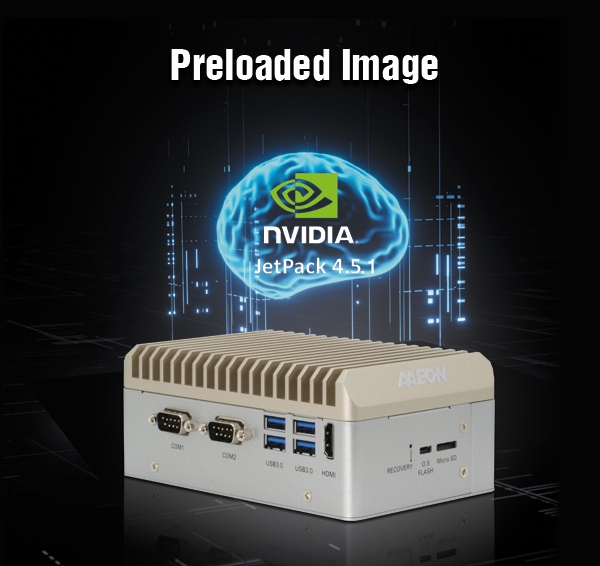

Preloaded Image

AAEON offers a range of services for the BOXER-8230AI, from providing NVIDIA JetPack 4.5.1 preinstalled on all new systems, to offering a range of per-basis software services such as third-party driver support and more.

Specification
BOXER-8230AI

System

AI Accelerator NVIDIA® Jetson™ TX2 NX
CPU NVIDIA® Denver 2 (Dual-Core) Processor & ARM® Cortex® -A57 MPCore (Quad-Core) Processor
System Memory 4GB 128-bit LPDDR4 @ 1600 MHz
Storage Device eMMC 5.1 16GB, Micro SD card slot x 1, 2.5” SATA drive bay x 1 (A4 only)
Display Interface HDMI Type A x 1 for HDMI 2.0
Ethernet RJ-45 x 5 for GbE LAN
I/O

USB Type A x 4 for USB 3.2 Gen 1
DB-9 x 2 for RS-232
HDMI Type A x 1 for HDMI 2.0
MicroSD slot x 1
Micro USB x 1 for O.S Flash
Recovery button x 1
Power button with power LED x 1

Expansion SATA III Port x 1 for 2.5” SATA drive (A4 only)
Indicator Power LED x 1
OS Support Ubantu 18.04

Power Supply

Power Requirement DC-in 10V~24V with 2-pin terminal block ATX mode

Mechanical

Mounting Wall mount kit
Dimensions (W x D x H)

A3: 6.92” x 3.94” x 1.54”(175.8mm x 100.0mm x 39.0mm)
A4: 6.92” x 3.94” x 2.41”(175.8mm x 100.0mm x 61.3mm)

Gross Weight A3: 2.91lbs (1.3kg); A4: 3.5lbs (1.6kg)
Net Weight A3: 1.51lbs (0.67kg); A4: 2.0lbs (0.91kg)

Environmental

Operating Temperature

A3: -13°F ~ 149°F(-25°C ~ 65°C,according to IEC60068-2 with 0.5 m/s AirFlow)
A4: -13°F ~ 167°F(-25°C ~ 75°C,according to IEC60068-2 with 0.5 m/s AirFlow)

Storage Temperature -40°F ~ 176°F (-40°C ~ 80°C)
Storage Humidity 5 ~ 95% @ 40°C, non-condensing
Anti-Vibration 3.5Grm / 5~500Hz / operation (eMMC, MicroSD, or SSD)
Anti-Shock 50G peak acceleration (11 msec. duration, eMMC, microSD, or SSD)
Certification CE / FCC class A
Downloads
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
