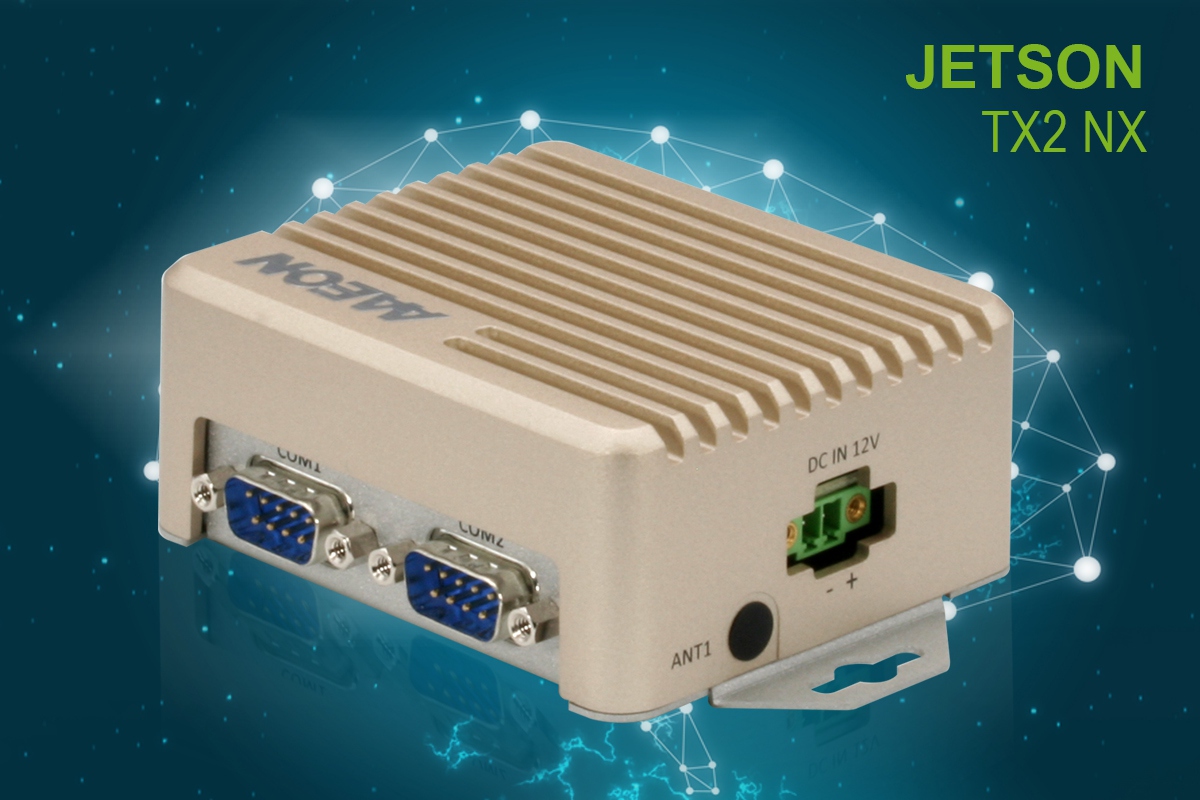

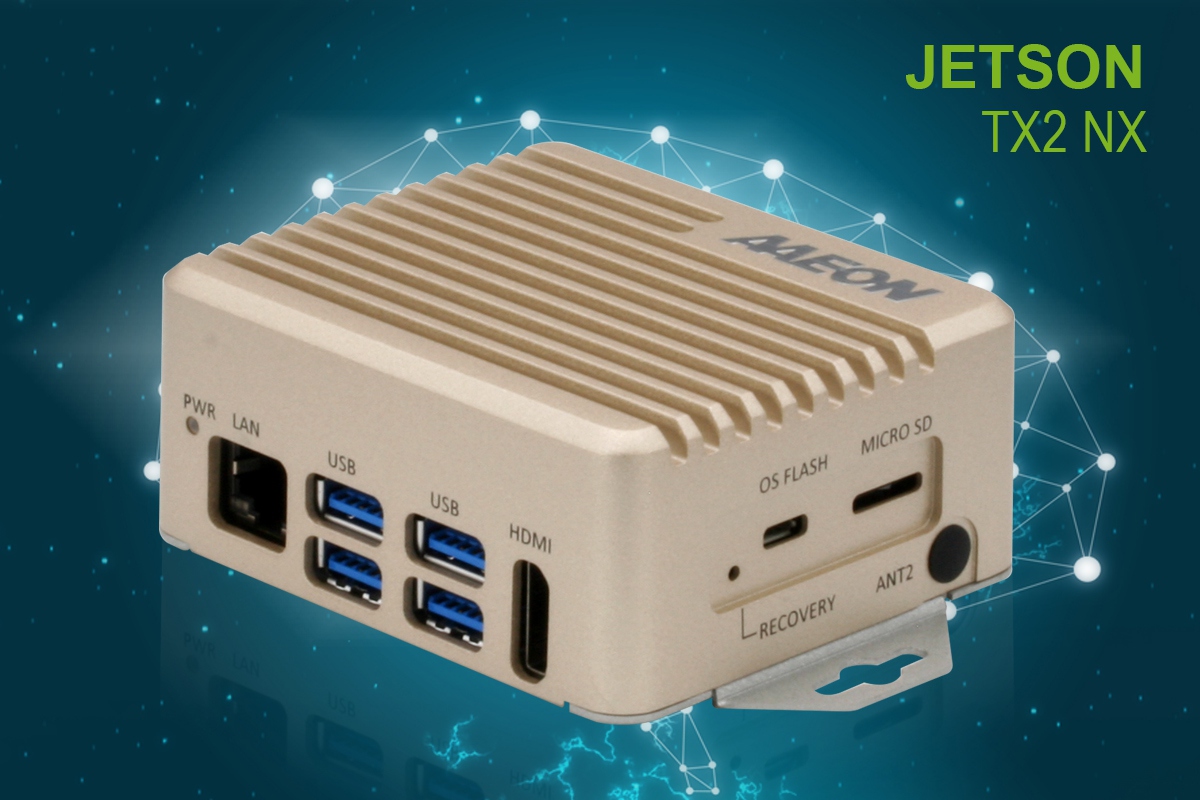

BOXER-8231AI
AI@Edge Compact Fanless Embedded BOX PC with NVIDIA Jetson TX2 NX
Features
- NVIDIA® Jetson™ TX2 NX
- 4GB LPDDR4 + 16GB eMMC
- USB3.2 Gen 1 x 4
- LAN x 1 + RS-232 x 2
- 12Vdc Power input
Overview
The BOXER-8231AI is the latest platform in AAEON’s lineup of AI Edge systems, powered by the NVIDIA® Jetson™ TX2 NX.
Shared the same I/O configurations as the BOXER-8221AI and the BOXER-8251AI with compact size (88 x 75 x 39mm) and rugged design means the BOXER-8231AI can operate in harsh work environments and provide flexibility for any AI application, like facial recognition, license plate identification and people counting.
Specifications
BOXER-8231AI
System | |
| AI Accelerator | NVIDIA® Jetson™ TX2 NX |
| CPU | 4 Core ARM A57 Complex and 2 core NVIDIA Denver2 64-bit CPU |
| System Memory | 4GB LPDDR4 |
| Storage Device | 16GB eMMC + MicroSD |
| Display Interface | HDMI 2.0 |
| Ethernet | 10/100/1000Base-TX x 1 |
| I/O | USB 3.2 Gen 1 x 4 |
| Expansion | M.2 E-Key 2230 x 1(for WiFi) |
| Indicator | Power LED x 1 |
| OS Support | Linux (AAEON ACLinux 4.9), Linux (NVIDIA Jetpack 4.5 and above) |
Power Supply | |
| Power Requirement | 12Vdc w/ 2-pin terminal block |
Mechanical | |
| Mounting | Wallmount |
| Dimensions (W x D x H) | 3.46” x 2.95” x 1.53” (88mm x 75mm x 39mm) |
| Gross Weight | 1.10 lb (0.5 kg) |
| Net Weight | 0.66 lb (0.3 kg) |
Environmental | |
| Operating Temperature | -25°C ~ 45°C, according to IEC60068-2 with 0.5 m/s AirFlow |
| Storage Temperature | -40°F ~ 176°F (-40°C ~ 80°C) |
| Storage Humidity | 95% @ 40°C, non-condensing |
| Anti-Vibration | 3.5 Grms/ 5 ~ 500Hz/ operation – eMMC |
| Anti-Shock | 50G peak acceleration (11 msec. duration) – eMMC |
| Certification | CE/FCC class A |
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
