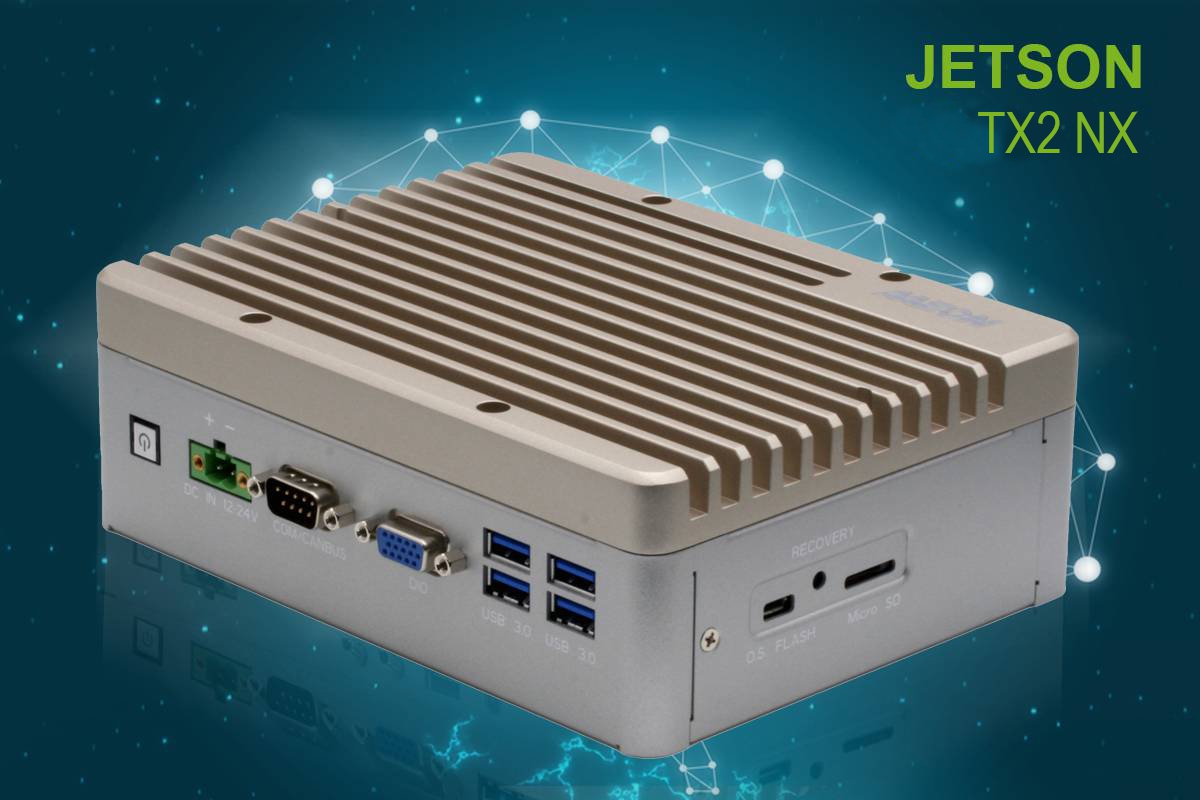

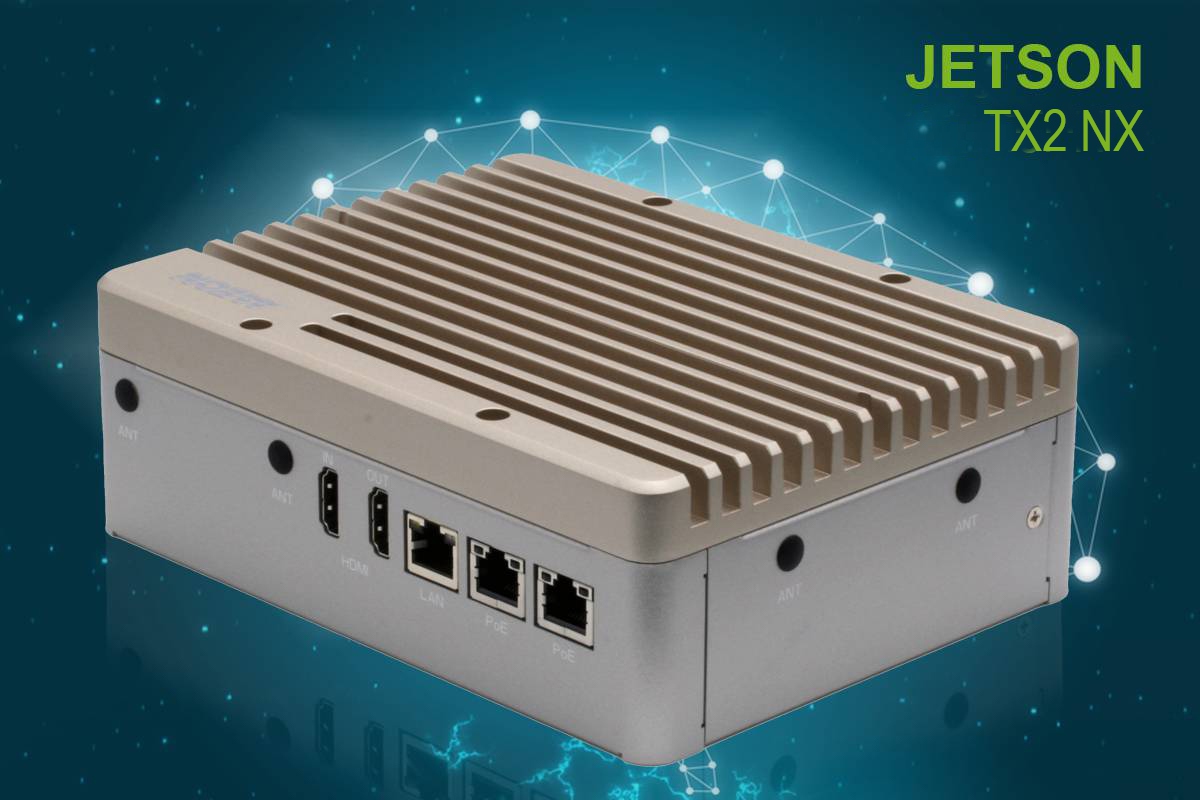

AI@Edge Compact Fanless Embedded BOX PC with NVIDIA® Jetson™ TX2 NX


  • NVIDIA Jetson TX2 NX
  • 4GB LPDDR4
  • Multi-storage option: 16GB eMMC / MicroSD slot / mSATA slot / 2.5 drive bay
  • GbE PoE/PSE LAN x 2
  • HDMI Input x 1 & HDMI Output x 1
  • Digital I/O 13-channel
  • Expansion support for WiFi/LTE

The BOXER-8233AI brings the innovative NVIDIA® Jetson™ TX2 NX and combines it with the flexibility of PoE PSE support and HDMI input. The NVIDIA Jetson TX2 NX is powered by the dual-core NVIDIA Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor complex, offering 256 Cuda® Cores and 4GB of onboard LPDD4 memory. In total, this offers AI processing speeds up to 1.33 TFLOPS, offering performance that slots in perfectly between the Jetson Nano™ and Jetson Xavier™ NX.

The BOXER-8233AI offers greater flexibility to meet the needs of a wide range of applications. Storage comes thanks to 16GM of onboard eMMC storage, which can be expanded using a microSD card, mSATA module, or a 2.5” SATA III (6.0 Gbps) drive that’s easy to install thanks to the quick access panel. The BOXER-8233AI features two PoE PSE ports (802.3af) delivering up to 60W total power.

Additionally, the BOXER-8233AI features HDMI input, allowing developers and users to quickly add AI powered visual analysis to a broad range of applications from NVR surveillance systems to security checkpoint X-ray scanners and medical devices.

The BOXER-8233AI also offers expandability thanks to its Mini Card slot and M.2 2230 slot, allowing users and developers to quickly add on functionality such as Wi-Fi network support. The BOXER-8233AI still provides a flexible I/O loadout, including four USB3.2 Gen 2 ports, COM and DIO ports, designed to connect with a wide range and number of sensors, control devices and more.



AI Accelerator NVIDIA® Jetson™ TX2 NX

NVIDIA® Denver 2 (Dual-Core) Processor & ARM® Cortex® -A57 MPCore (Quad-Core) Processor

System Memory 4GB 128-bit LPDDR4
Storage Device

MicroSD slot x 1
Full-size mSATA (sharing slot with Full-size minicard module)
2.5” SATA drive bay x 1

Display Interface HDMI Type A x 1 for HDMI 2.0

RJ-45 x 2 for GbE PoE/PSE (802.3at)
RJ-45 x 1 for GbE LAN


USB Type A x 4 for USB 3.2 Gen 1
USB Micro A/B x 1 for OS Flash
RJ45 x 2 for GbE PoE/PSE x 2 (802.3at) (Total 60W)
RJ-45 x 1 for GbE LAN
DB-9 x 1 for RS-232/485 & CANbus
DB15 x1 for Digital I/O 13-Channel (programmable)
Recovery port x1
MicroSD slot x 1
Antenna opening x 4
HDMI Type A for HDMI 2.0 output x 1
HDMI Type A for HDMI 1.4 input x 1
Power Button x 1


Full-size minicard slot x1 (PCIe/USB/mSATA, default PCIe)
M.2 E-Key 2230 x 1 (for WiFi)
SIM socket x 1
SATA III (6.0 Gbps) port x 1 for 2.5” drive

Indicator Power LED x 1
OS Support Linux (NVIDIA Jetpack 4.5.1)

Power Supply

Power Requirement DC 12V~24V with 2-pin terminal block ATX mode


Mounting Wall mount kit
Dimensions (W x D x H) 7.09“ x 5.35“ x 2.41“ (180.0 mm x 136 .0 mm x 61.1 mm)
Gross Weight 4.63 lbs. (2.1kg)
Net Weight 2.87 lbs. (1.3kb)


Operating Temperature 5°F ~ 131°F (-15°C ~ 55°C, according to IEC60068-2 with 0.5 m/s airflow)
Storage Temperature -40°F ~ 176°F (-40°C ~ 80°C)
Storage Humidity 5 ~ 95% @ 40°C, non-condensing
Anti-Vibration 3.5Grm / 5~500Hz / operation (eMMC, MicroSD, mSATA, or SSD)
Anti-Shock 50G peak acceleration (11 msec. duration, eMMC, microSD, mSATA, or SSD)
Certification CE / FCC class A / UKCA
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
