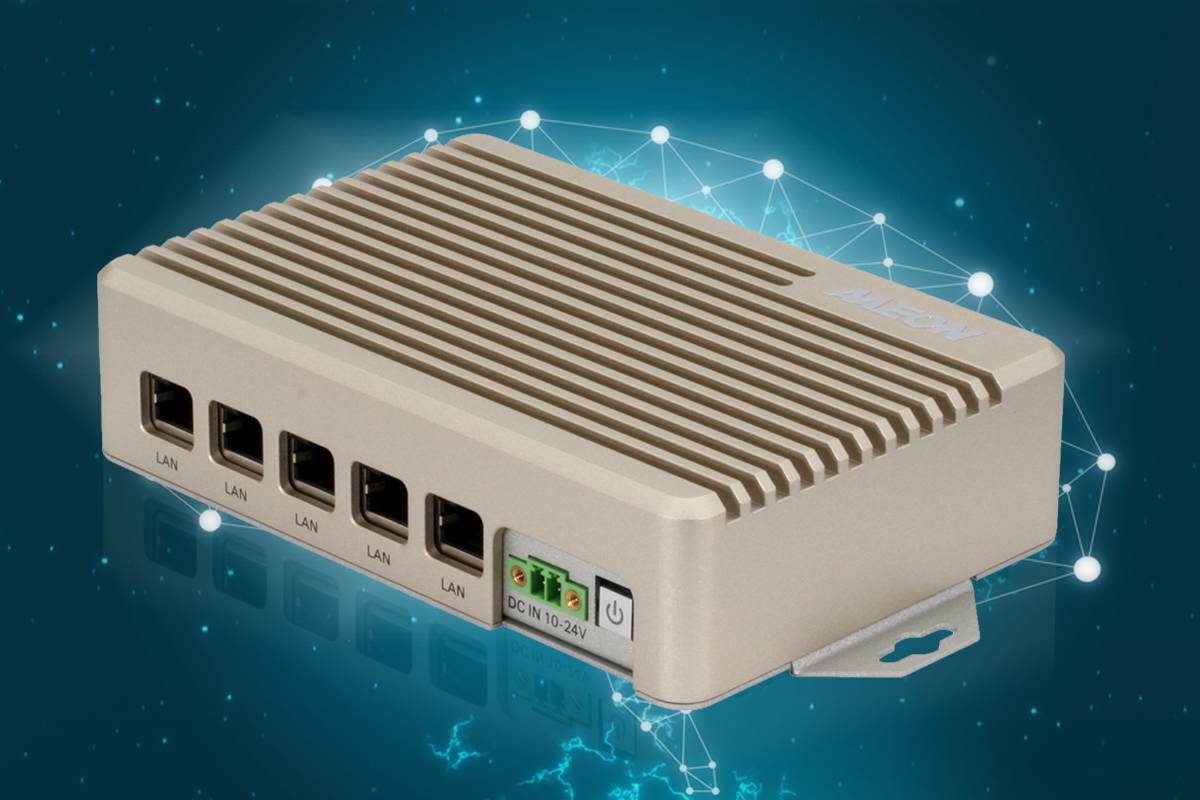

AI@Edge Fanless Embedded Box PC with NVIDIA Jetson Xavier NX, 5 GbE LAN Ports

Features

  • NVIDIA Jetson Xavier NX
  • 6-core NVIDIA Carmel ARM®v8.2 64-bit CP)
  • 8GB LPDDR4x + 16GB eMMC + Micro-SD card slot
  • USB 3.2 Gen 1 x 4
  • 10-24Vdc Power input
Overview

The BOXER-8250AI embedded AI Edge system brings the power of the NVIDIA® Jetson Xavier™ NX to powering intelligent applications and edge networks. The NVIDIA Jetson Xavier NX SoC features a six-core 64-bit ARM processor, boasting 384 CUDA® cores, 48 Tensor Cores, and two NVDIA engines capable of running multiple neural networks in parallel, delivering accelerated computing performance up to 21 TOPS. Built to bring dedicated AI processing to the edge, the system also features 8GB of LPDDR4 memory and 16GB of onboard eMMC memory that’s expandable through the Micro-SD card slot.

Request a Quote

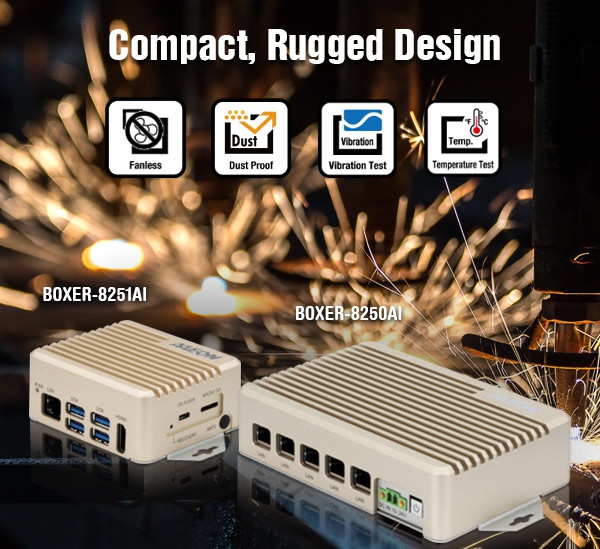

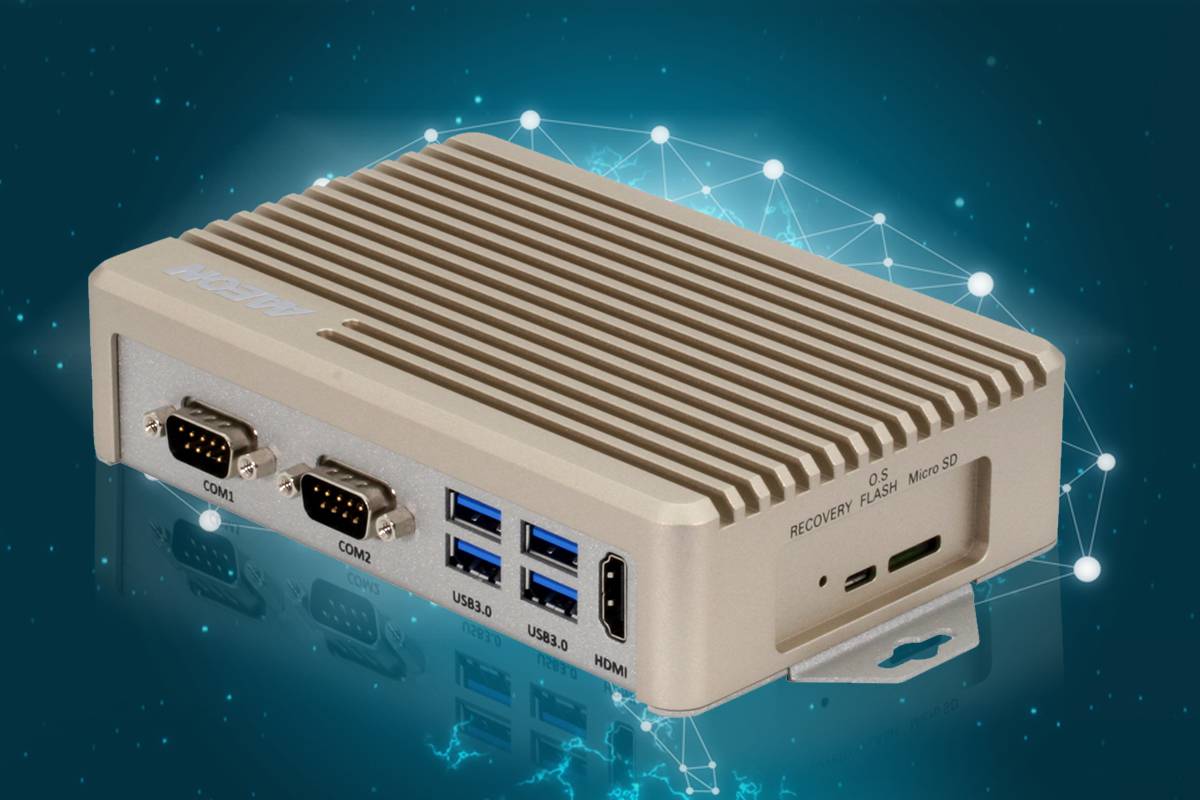

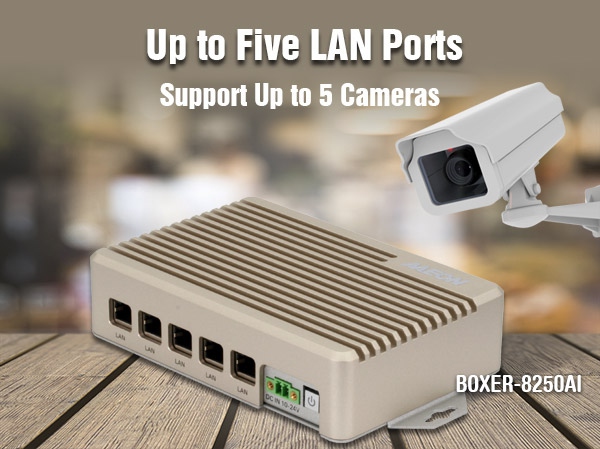

The BOXER-8250AI features a flexible I/O layout with four USB 3.2 Gen 1 ports, five Gigabit LAN ports and two COM ports, allowing deployment with a variety of sensors or cameras. The BOXER-8250AI is built rugged to deploy in a range of environments. Fanless design keeps out dust, allowing for reliable operation; while wide operating temperature range (-10°C ~ 65°C) enables consistent performance wherever it’s deployed.

Shop Online
Specifications
BOXER-8250AI

System

AI Accelerator Nvidia Jetson Xavier NX
CPU 6-core NVIDIA Carmel ARM® v8.2 64-bit CP
System Memory 8GB LPDDR4x
Storage Device 16 eMMC and Micro-SD card slot
Display Interface HDMI 2.0
Ethernet 10/100/1000Base-TX x 5
I/O

USB 3.2 Gen 1 x 4 GbE LAN x 5
RS-232 x 2
HDMI x 1
Micro-USB for Flash OS x 1 DC Power Input x 1
Power Button x 1 Recovery Button x 1
Micro-SD card slot x 1

Expansion —
Indicator Power LED x 1
OS Support ACLinux 4.9 or above (Compatible with Ubuntu 18.04)

Power Supply

Power Requirement 10 ~ 24V DC with 2-pin terminal block

Mechanical

Mounting Wallmount
Dimensions (W x D x H) 6.92” x 3.94” x 1.54” (175.8mm x 100.0mm x 39.0mm)
Gross Weight 2.48 Ibs (1.12 kg)
Net Weight 1.46 Ibs (0.66 kg)

Environmental

Operating Temperature 14°F ~ 149°F (-10°C ~ 65°C, according to IEC60068-2 with 0.5 m/s AirFlow)
Storage Temperature -40°F ~ 176°F (-40°C ~ 80°C)
Storage Humidity 95% @ 40°C, non-condensing
Anti-Vibration 3.5 Grms/ 5 ~ 500Hz/ operation MicroSD or eMMC
Certification CE/FCC class A
Downloads
Datasheet
Manual
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
