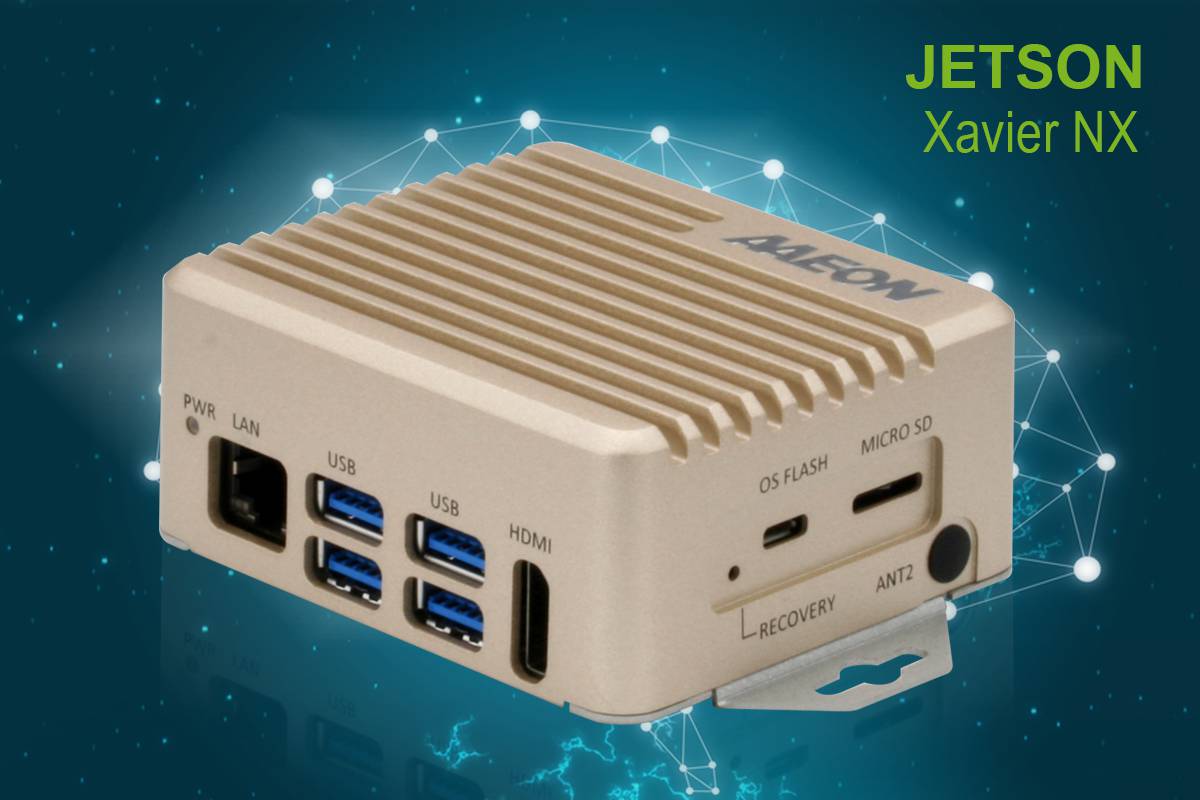

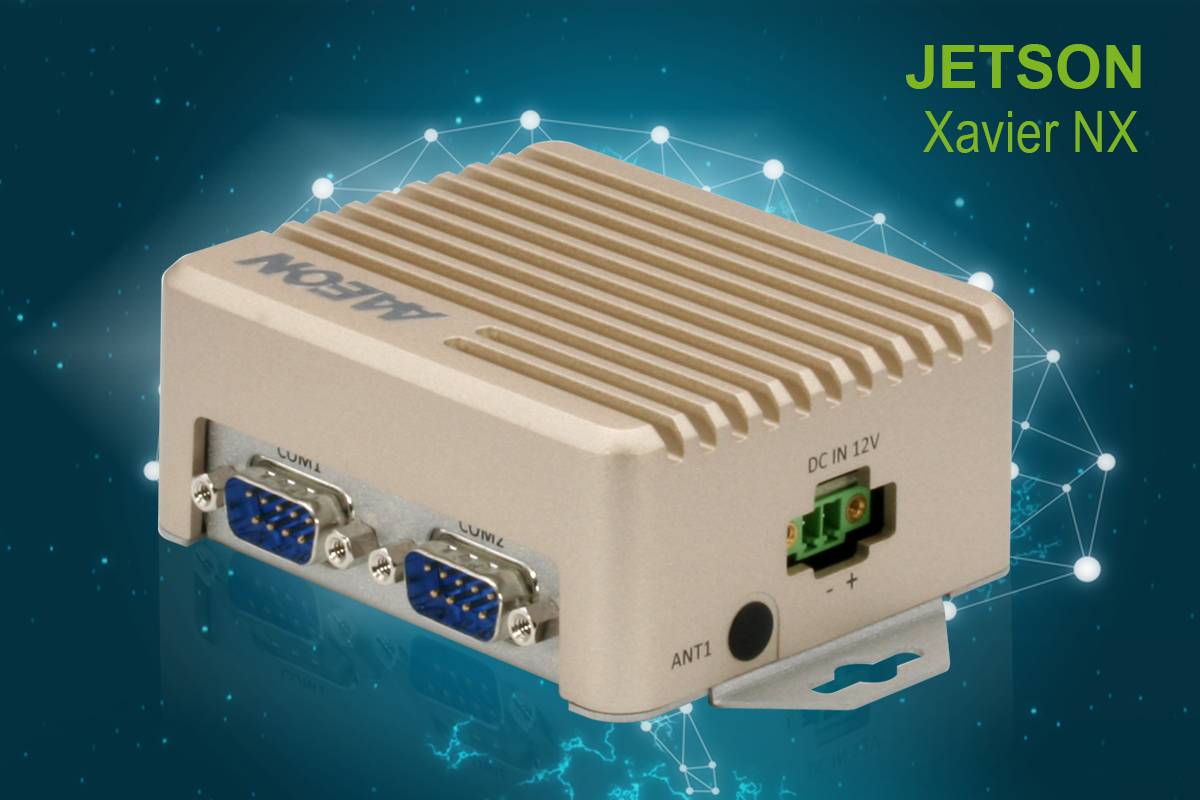

BOXER-8251AI

AI@Edge Compact Fanless Embedded BOX PC with NVIDIA Jetson Xavier NX


Features

  • NVIDIA Jetson Xavier NX
  • 6 Core ARM® Carmel®V8.2 Processor
  • 8GB LPDDR4 + 16GB eMMC
  • LAN x 1 + RS-232 x 2
  • 12Vdc Power input
  • Microsoft Azure Certified
Overview

The BOXER-8251AI is powered by the innovative Jetson Xavier NX from NVIDIA. Featuring a six-core 64-bit ARM processor, it boasts 384 CUDA® cores, 48 Tensor Cores, and two NVDIA engines capable of running multiple neural networks in parallel, delivering accelerated computing performance up to 21 TOPS. Built to bring dedicated AI processing to the edge, the system also features 8GB of LPDDR4 memory and 16GB of onboard eMMC memory that’s expandable through the Micro-SD card slot.

One of the most innovative features of the NVIDIA Jetson Xavier NX is the ability of users to select five different performance modes. These modes allow users to tailor the number of cores, processor speed, and power draw the system utilizes. The BOXER-8251AI also provides users with greater flexibility with its compact size and I/O features; with two COM ports and four USB 3.2 Gen 1 ports, as well as Gigabit Ethernet port. Its rugged, fanless design keeps dust and other contaminants out of the system, offering reliable and low-maintenance operation for more stable performance.

× Unboxing AAEON AI Edge Solutions with NVIDIA® Jetson Xavier™ NX
Specifications
BOXER-8251AI

System

AI Accelerator Nvidia Jetson Xavier NX
CPU 6 Core ARM® Carmel®V8.2 64bit CPU 6MB L2 + 4MB L3
System Memory 8GB LPDDR4
Storage Device 16GB eMMC + MicroSD
Display Interface HDMI 2.0
Ethernet 10/100/1000Base-TX x 1
I/O

USB 3.2 Gen 1 x 4, LAN x 1, RS-232 x 2, HDMI x 1,
MicroSD x 1, DC Power Input x 1, Recovery Button x 1,
Micro-USB for Flash OS x 1

Expansion M.2 E-Key 2230 x 1(for WiFi)
Indicator Power LED x 1
OS Support

Linux (AAEON ACLinux 4.9)
Linux (NVIDIA Jetpack 4.5)
Ubuntu18.04

Power Supply

Power Requirement 12Vdc w/ 2-pin terminal block

Mechanical

Mounting Wallmount
Dimensions (W x D x H)

Standard: 3.46” x 2.95” x 1.53” (88mm x 75mm x 39mm)
High heatsink Dimension: 3.54” x 3.30” x 2.04”(90mm x 84mm x 52mm)

Gross Weight

Standard: 1.10 lb (0.5 kg)
High heatsink: 1.76lb(0.8kg)

Net Weight

Standard: 0.66 lb (0.3 kg)
High heatsink: 1.3lb(0.6kg)

Environmental

Storage Temperature -40°F ~ 158°F (-40°C ~ 70°C)
Storage Humidity 95% @ 40°C, non-condensing
Anti-Vibration 3 Grms/ 5 ~ 500Hz/ operation – MicroSD or eMMC
Certification CE/FCC class A
Downloads
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
