BOXER-8254AI

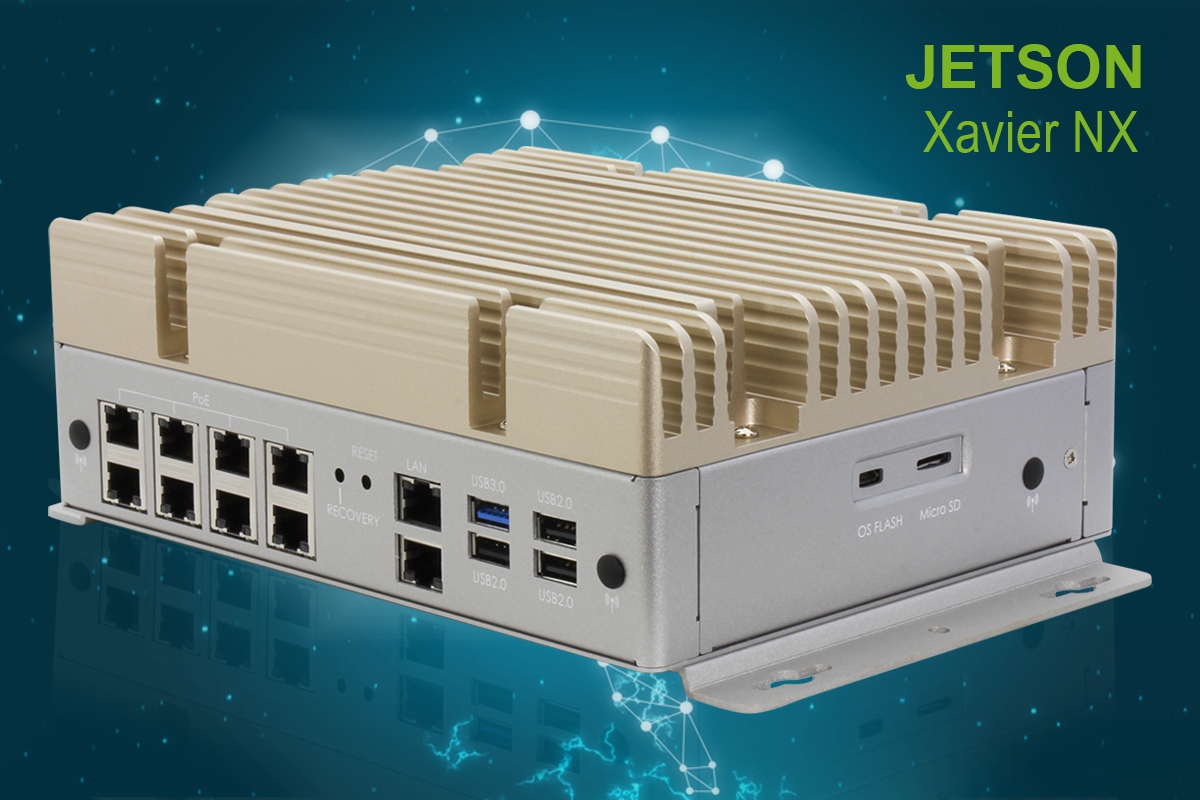

AI@Edge Compact Fanless Embedded BOX PC with NVIDIA Jetson Xavier NX & 8-port GbE PoE/PSE

Features

  • NVIDIA Jetson Xavier NX with 8GB LPDDR4x
  • Multi-storage option: 16GB eMMC / MicroSD slot / mSATA slot / 2.5”drive bay
  • PoE/PSE GbE LAN x 8
  • Digital I/O 6-channel (programmable)
  • Support CANbus 2.0A
Specifications
BOXER-8254AI

System

AI Accelerator NVIDIA Jetson Xavier NX
CPU 6 Core ARM® Carmel®V8.2 64bit CPU 6MB L2 + 4MB L3
System Memory 8GB LPDDR4x
Storage Device

16GB eMMC
MicroSD slot x 1
Full-size minicard slot x1 for mSATA (share with LTE slot)
SATA port x 1 for 2.5” drive

Display Interface HDMI 2.0
Ethernet 10/100/1000Base-TX x 2, GbE POE x 8

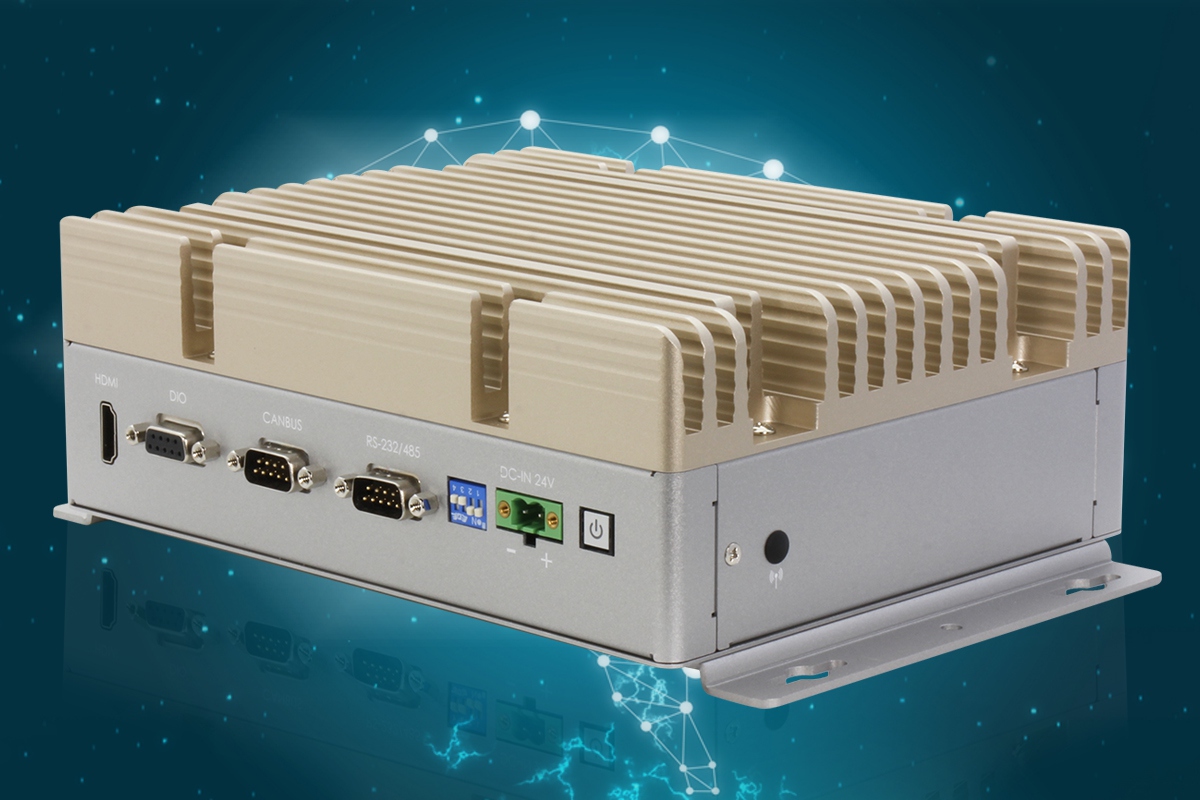

I/O

RJ-45 x 8 for GbE PoE (802.11af, total 120W)
RJ-45 x 2 for GbE LAN
USB Type A x 1 for USB 3.2 Gen 2
USB Type A x 3 for USB 2.0
USB Micro A/B x 1 for OS Flash
HDMI type A x1 for HDMI 2.0 a/b
DB-9 x 1 for RS-232/485 with COM switch
DB-9 x 1 for CANbus 2.0A
DB-9 x 1 for Digital I/O 6-channel (programmable)
MicroSD slot x 1
Power ON/OFF switch x 1
Recovery button x 1
Reset button x 1
SMA Antenna Opening x 4
2-pin terminal block for 24V power input

Expansion

Full-Size Mini-card slot (PCIe/USB/mSATA, default PCIe)
M.2 E-Key 2230 for WiFi
SATA port x 1 for 2.5” drive
Header x 1 for RS-232 x1
Header x 1 for USB2.0 x 1
SIM socket x 1

Indicator Power LED x 1
OS Support NVIDIA Jetpack 4.5 and above

Power Supply

Power Requirement DC 24V with 2-pin terminal block

Mechanical

Mounting Wall-mount
Dimensions (W x D x H) 8.27 “ x 6.46 “ x 2.95” (210mmx 164.2mm x 75mm)
Gross Weight 7.5 lbs (3.4kg)
Net Weight 5.51 lbs (2.5kg)

Environmental

Operating Temperature

5°F ~ 140°F (-15°C ~ 60°C, according to IEC60068-2 with 0.5 m/s AirFlow)

Storage Temperature -40°F ~ 176°F (-40°C ~ 80°C)
Storage Humidity 95% @ 40°C, non-condensing
Anti-Vibration 3.5 Grms/ 5 ~ 500Hz/ operation – MicroSD or eMMC
Anti-Shock

50G peak acceleration (11 msec. duration, eMMC, microSD, SATA, or SSD)

Certification CE / FCC class A
Downloads
Datasheet
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
