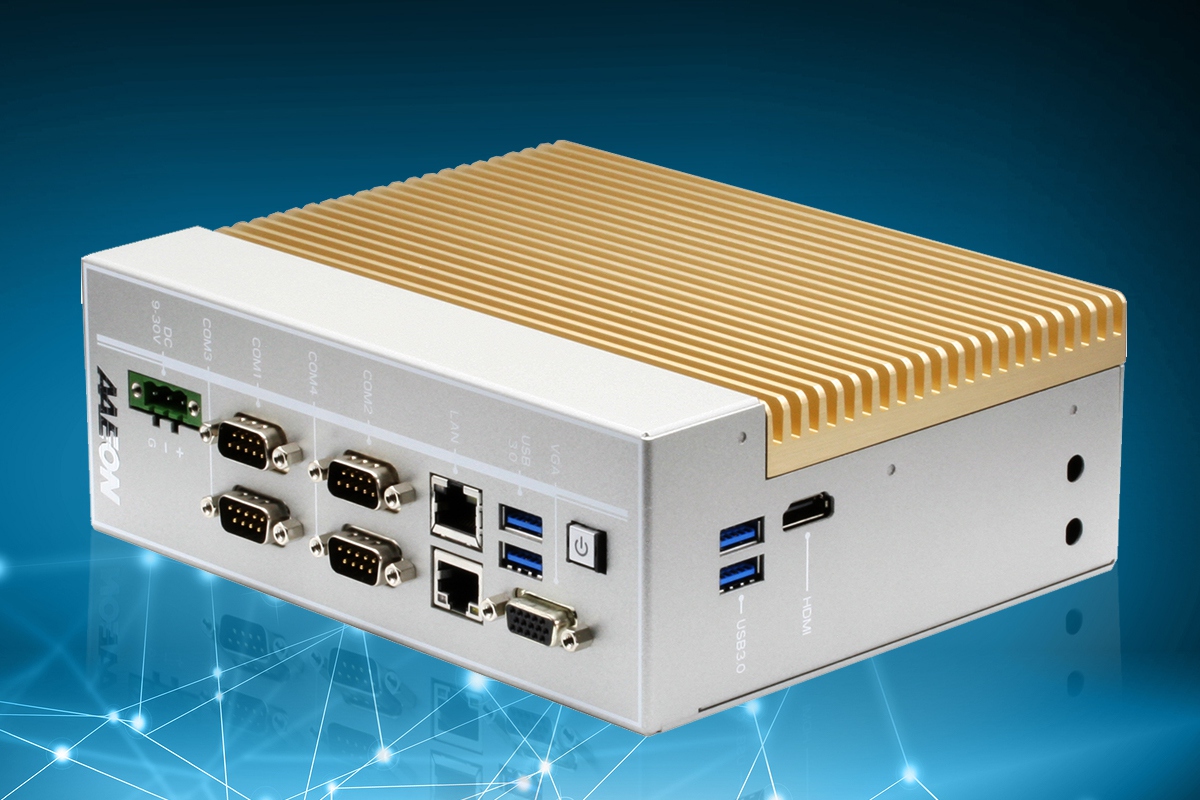

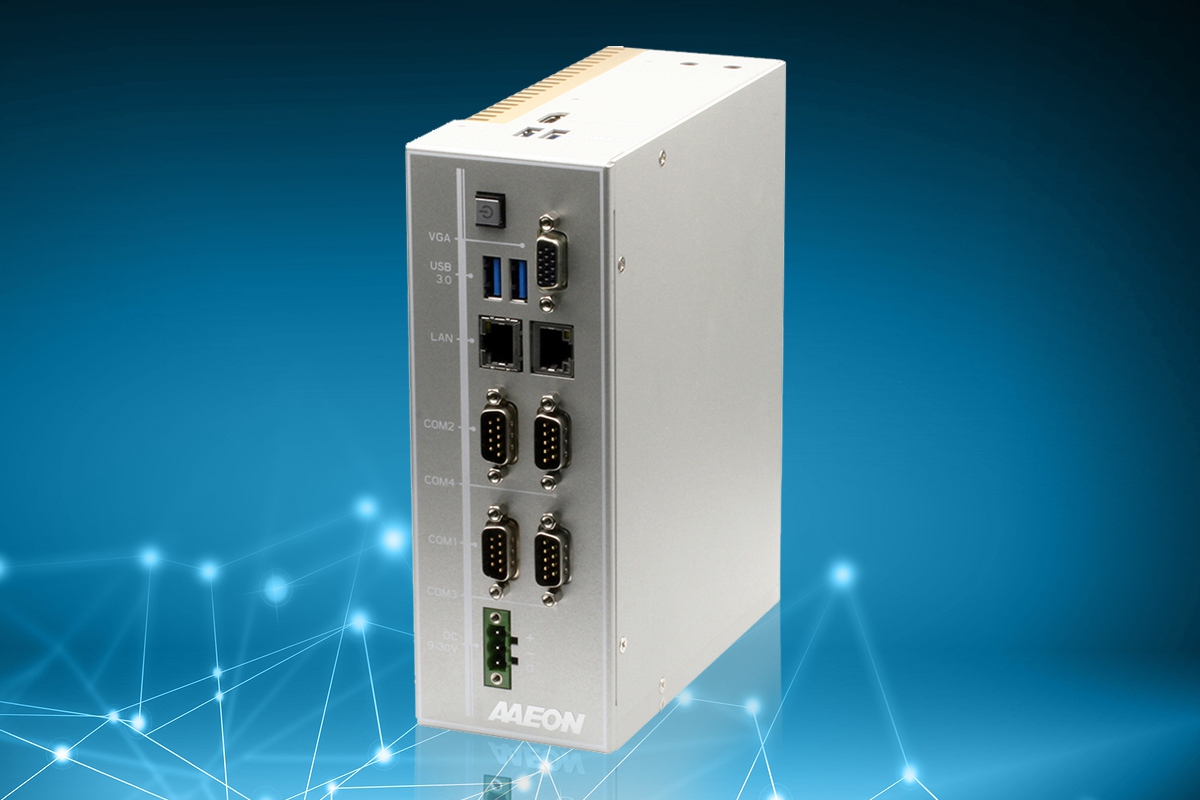

AI@Edge Din Rail Mount Embedded BOX PC with Dual Intel® Movidius™ Myriad™ VPUs & Intel® Core™ i3-6100U Processor


  • Built-in dual Intel® Movidius™ Myriad™ X VPUs
  • Built-in Intel® Core™ i3-6100U Processor
  • DDR4 SO-DIMM slot x 1, Support 2133MHz and up to 16GB
  • Supports Industrial-grade Intel® GbE LAN x 2
  • Supports BIOS Selectable RS-232/422/485 x 4
  • VGA + HDMI Dual Display Output / USB 3.2 Gen 1 x 4
  • 8-bit Digital Input and Output x 1 (Optional)
  • Wide Range DC 9~30V Input With Power Protection
  • Din-Rail Mount Design

At the core of the BOXER-8300AI series is the innovative AI Core X module from AAEON. Each AI Core X module features the Intel® Movidius™ Myriad™ X VPU. The Intel® Movidius™ Myriad™ X provides high performance processing, with speeds up to 105 fps (80 fps typical) and 1 TOPS as a dedicated neural network. The BOXER-8300AI Series features improved thermal design, allowing the Intel® Movidius™ Myriad™ X to operate at higher temperatures without loss of performance.

The BOXER-8320AI brings the power of the 6th Generation Intel® Core™ i3 Mobile Processor as well as two AI Core X modules, offering processing speeds up to 210 fps (160 typical). The fanless BOXER-8320AI is built with a din-rail mount design and form factor, allowing it to easily integrate into any industrial space, or control cabinet.

The advanced thermal design of the BOXER-8320AI allows it to operate in conditions from -20°C to 60°C. With the power of the Intel® Core™ i3 processor and two AI Core X modules, the BOXER-8320AI can be used in high-performance AI applications such as smart security, facial recognition, and more.

The BOXER-8300AI series offers users several advantages over other embedded AI@Edge systems. All BOXER-8300AI systems are compatible with the Intel® Distribution of OpenVINO toolkit, allowing users to run AI inferences on existing frameworks (such as TensorFlow or Caffe) or to create their own. The BOXER-8300AI supports expandable storage, supporting the full suite of Linux and Ubuntu. This also allows the BOXER-8300AI series to be expanded with support for wireless cards such as WiFi, 4G, or Bluetooth. Memory is also easy to replace and upgrade.



AI Accelerator Intel® Movidius™ Myriad™ X x 2
CPU Intel® Core™ i3-6100U
System Memory DDR4 SO-DIMM slot x 1, Support 2133MHz and up to 16GB
Storage Device HDD/SSD
Display Interface HDMI, VGA
Ethernet 10/100/1000 Base-TX x 2

DB-9 x4 for RS-232/422/485

RJ-45 x 2 for GbE (i210IT x 2) USB 3.2 Gen 1 x 4

VGA x 1

HDMI x 1

Antenna Holes x 2 Power Button Power Input

Indicator Power LED
OS Support Linux (Debian 9.8)

Power Supply

Power Requirement 9~30V with 3-pin terminal block



DIN Rail Mount

Wallmount (Monting kit is optional)

Dimensions (W x H x D) 2.68” x 7.33” x 5.96” (67mm x 186.2mm x 151.5 mm)
Gross Weight 6.1 lb (2.8 kg)
Net Weight 3.9 lb (1.8 kg)


Operating Temperature

-13°F ~140°F (-25°C ~ 60°C) with W.T. SSD (according to IEC68-2-14 with 0.5 m/s airFlow ; with industrial devices)

Storage Temperature -49°F ~ 176°F (-45°C ~ 80°C)
Storage Humidity 95% @ 40°C, non-condensing
Anti-Vibration 3 Grms/ 5 ~ 500Hz/ operation - SSD
Certification CE/FCC class A
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
