BOXER-8332-CFL

High Computing Power AI Edge Server with 8th/9th Generation Intel® Processor & Nvidia T4


Features

  • High Computing Power
  • Built in Nvidia T4 x1
  • Intel Coffee Lake-S LGA 1151 Desktop Processor
  • HDMI x2 for Dual Display
  • Support C246 PCH
  • Support PCIEx4

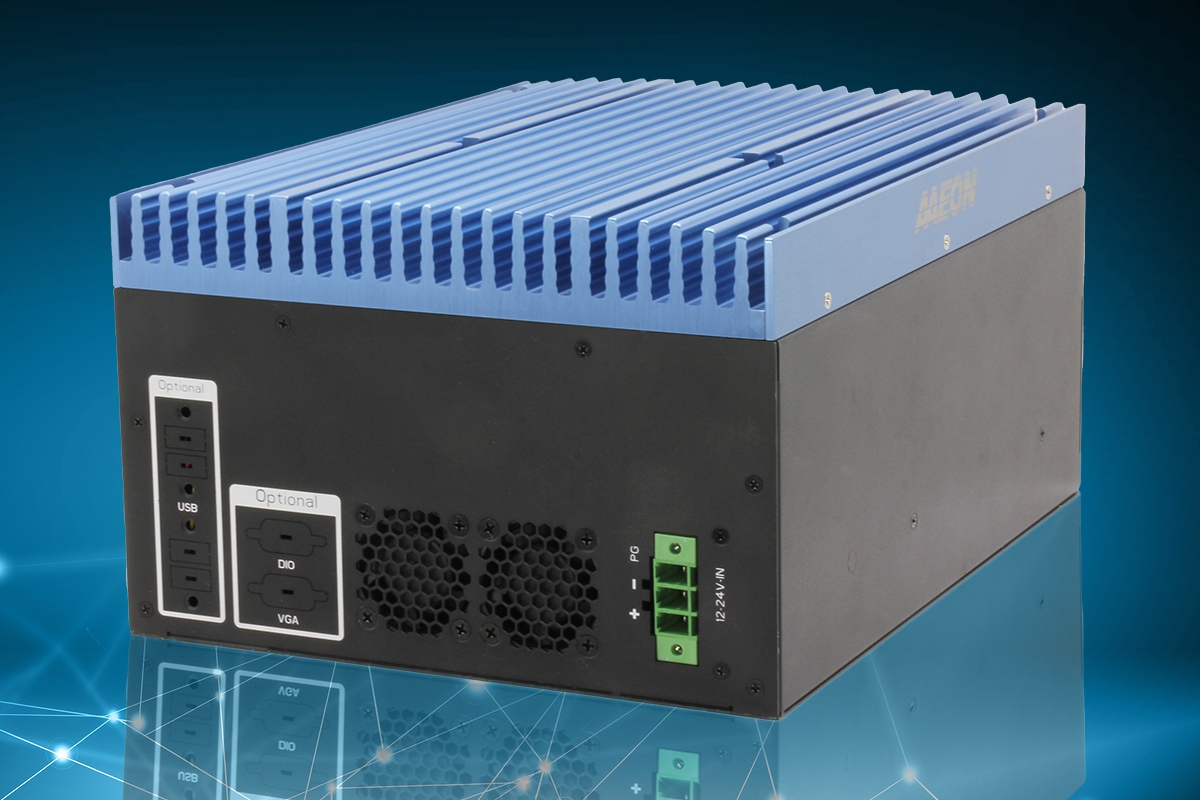

  • Single Power Input (for both System & one Graphics Card)
Overview

The BOXER-8332AI is built to bring the high performance of 8th/9th Generation Intel® Core™ processors (formerly Coffee Lake/Coffee Lake Refresh) to advanced applications including AI Edge Server. The system supports processors up to 71W TDP, and with its innovative thermal design, allows for uninterrupted performance in temperatures from -20°C to 60°C. The system also supports up to 128GB of memory for unlocked performance.

The BOXER-8332AI comes standard with the NVIDIA® T4 installed, but can support a wide range of passively-cooled GPUs. Additional expandability is available with two Mini Card slots, M.2, and PCIe [x4]. I/O features allow the system to connect to a wide range of cameras, sensors, and controllers, thanks to six USB3.2 Gen1 Ports, four COM ports, three Gigabit Ethernet ports and optional 8-bit DIO. The system is built with tight spaces in mind, allowing it to easily fit into machine cabinets and get closer to where the performance is needed.

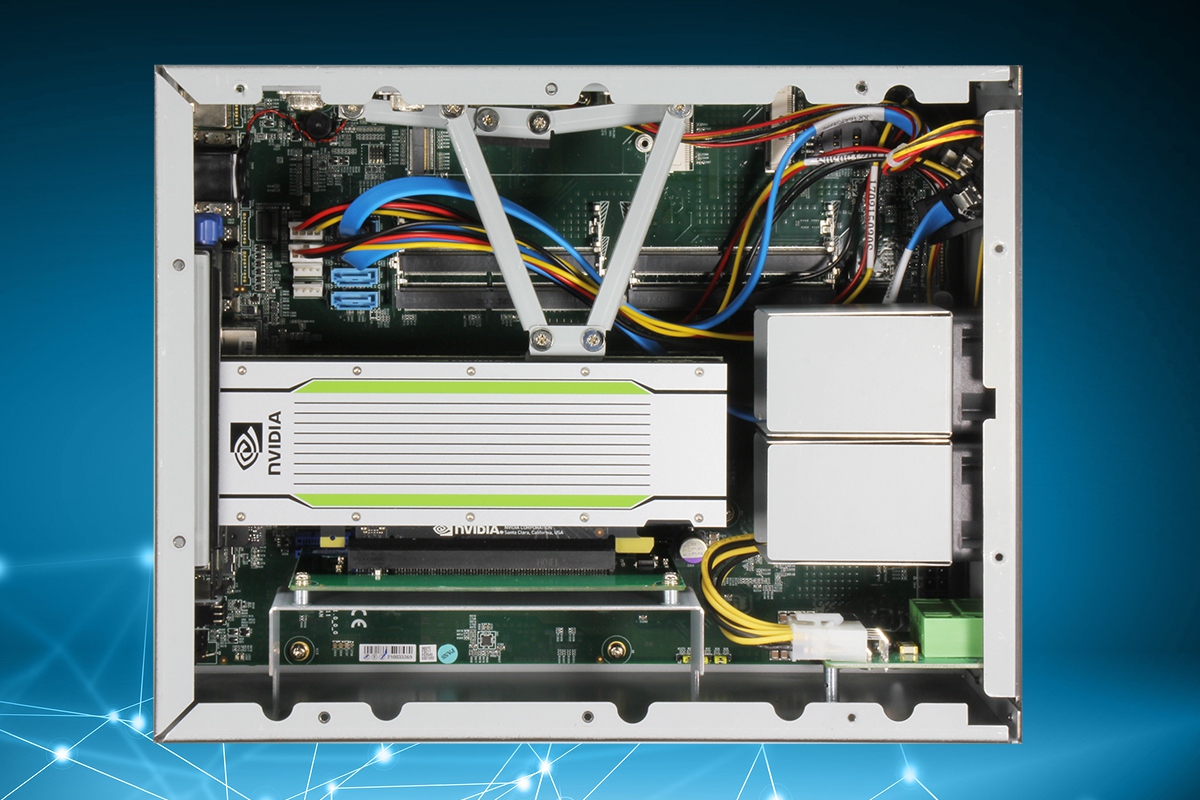

Additionally, the system is thermal tested with the GPU installed, and comes with a securing bracket, enabling the system to handle up to 1G vibrations and 5G drop and shock impacts with a GPU installed.

Specifications
BOXER-8332AI-CFL

System

CPU

Intel® Xeon® E-2124G
Intel® Core™ i9-9900T
Intel® Core™ i7-8700T
Intel® Core™ i5-8500T
Intel® Core™ i3-8100T
Intel® Pentium® G5400T
Intel® Celeron® G4900T
Note: Support max. TPD 71W Processor

Chipset C246, No H310 downward support
System Memory

DDR4 SO-DIMM socket x4 (double deck)
Support max. 2666MHz up to 128GB
Support un-buffered and ECC / non-ECC type SODIMM

Display Interface

HDMI 1.4 x2
Support Dual Independent Display, 4K Ultra HD displays

Storage Device

2.5” SATA Drive Bay x2 (4 SATA Port w/ RAID Function)
Half-size Minicard x1 for mSATA (optional)
M.2 2280 NVMe slot x1

Ethernet RJ-45 x3 for GbE LAN (Intel i211AT x2, i219LM x1)

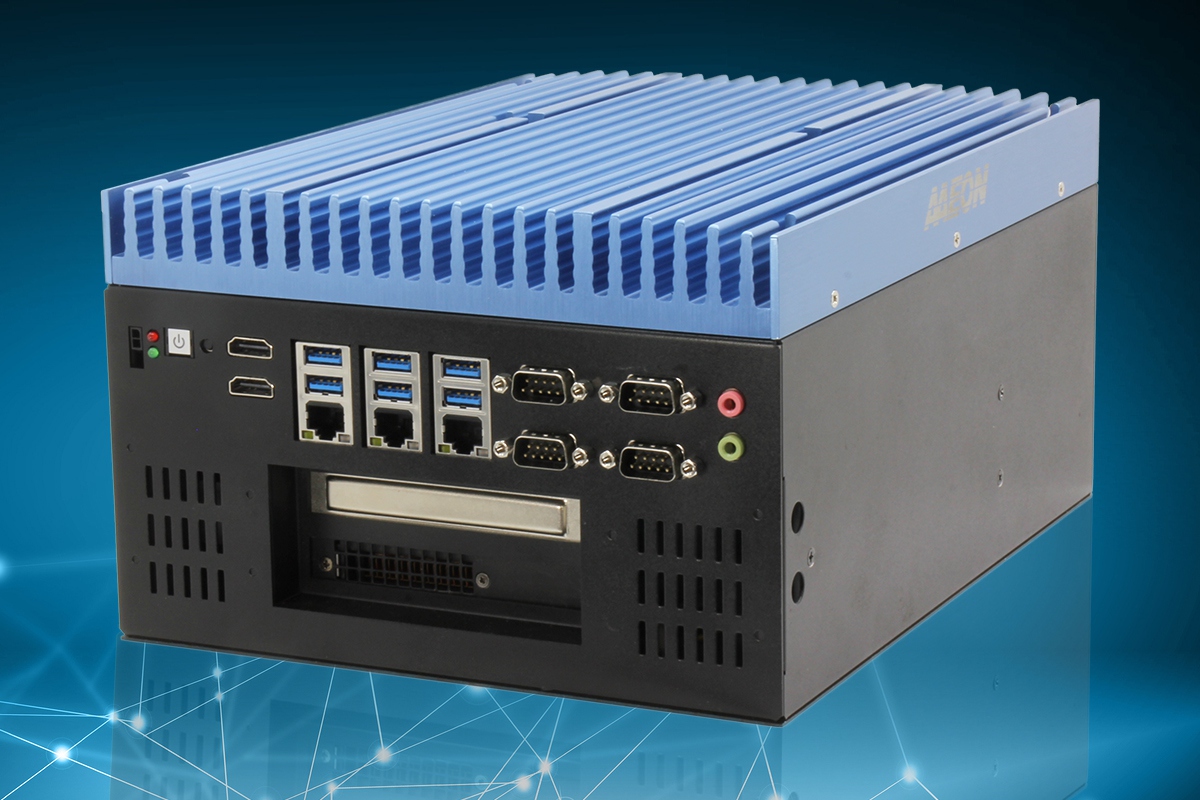

I/O

USB Type-A x6 for USB3.2 Gen1
DB9 x4 For RS-232/422/485
Mic-in x1, Line-out x1
Power ON/OFF switch x1
Remote power on/off connector x1
Reset switch x1
SMA Antenna Holes x3

Expansion

Full-size Minicard x1 (PCIE + USB with 1 SIM Slot)
Half-size Minicard x1 (PCIE + USB, optional for mSATA)
M.2 M key (2280) x1 (PCIEx4)
Built in Nvidia T4 x1 (The Cover of T4 has two colors black and silver)
PCIE [x4] x1

Indicator

System Power LED x1 (Green)
Storage Active LED x1 (Red)

OS Support

Windows® 10 Enterprise 64 bit
Ubuntu 20.04.1/Kernel 5.4

Power Supply

Power Requirement DC In 12~24V x1 for 3-pin Terminal block

Mechanical

Mounting Wallmount
Dimensions (W x H x D) 8.66“ x 5.91“ x 11.02“ (220 mm x 150 mm x 280 mm)
Gross Weight 17.64 lb (8 kg)
Net Weight 15.43 lb (7 kg)

Environmental

Operating Temperature 32°F~104°F (0°C ~ 40°C) IEC68-2 with 0.5 m/s AirFlow
Storage Temperature -49°F~176°F (-45°C ~ 80°C)
Storage Humidity 5 ~ 95% @ 40°C, non-condensing
Anti-Vibration SSD : Random, 1Grms, 5~500Hz
Anti-Shock SSD : 5G @ wallmount, Half-sine, 11ms
Certification CE/FCC class A , UKCA
Downloads
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
