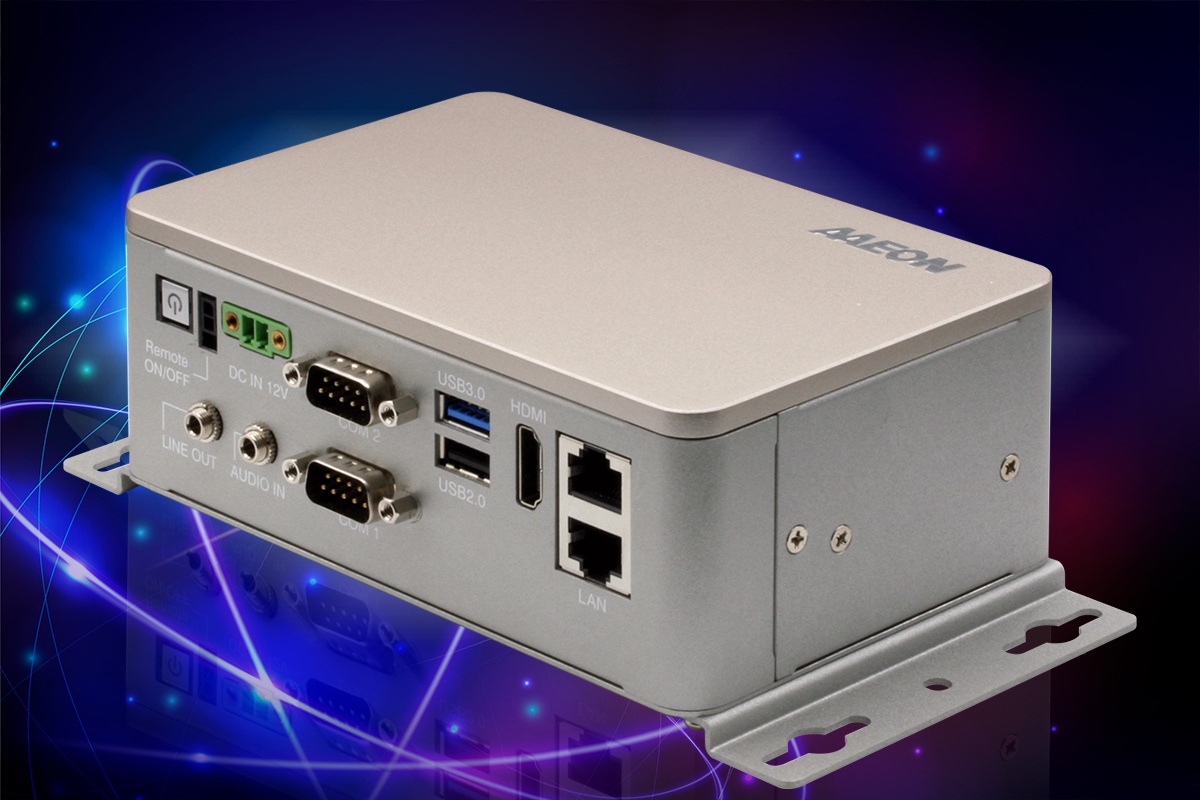

AI@Edge Fanless Embedded Box PC with HiSilicon HI3559A Platform


  • HiSilicon Hi3559A
  • Onboard 4GB/8GB DDR4 & 32GB/64GB eMMC
  • Support GbE LAN x 2
  • Support USB 3.2 Gen 1 Type A x 1
  • Support Audio in/Line out
  • Support 2.5" SATA Storage device

The BOXER-8410AI offers AI and Edge processing power provided by the 5-core HiSilicon HI3559A ARM SoC. Built for stability and ruggedness, the BOXER-8400AI provides reliable AI and edge computing power no matter where it’s deployed. With up to 8GB of memory and 64GB of eMMC storage, the BOXER-8410AI provides ample performance to enable deploying a wide range of AI Edge applications, from Smart Parking to Smart Communities.

With rugged design, the BOXER-8410AI can deploy practically anywhere. It’s fanless design helps keep dust and contaminants out, and allows the system to operate from -20°C up to 55°C without loss in performance. It also provides a flexible I/O loadout including two COM ports, one USB3.2 Gen 1 and one USB2.0 port, and two Gigabit Ethernet ports. Users can also enhance storage capability with a 2.5” SATA drive.



AI Accelerator Hi3559A

Dual-core ARM Cortex A73@1.8 GHz Dual-core ARM Cortex A53@1.2 GHz Single-core ARM Cortex A53@1 GHz Neon acceleration and integrated FPU

System Memory 4GB/8GB LPDDR4
Storage Device Onboard 32GB/64GB eMMC Micro-SD slot x 1 SATA III (6.0 Gbps) Port x 1
Display Interface HDMI 2.0 x 1
Ethernet 10/100/1000 Base-TX x 2

Power Button with LED indicator x 1 USB 3.2 Gen 1 Type A x 1

USB 2.0 Type A x 1

Micro USB Type B (USB 2.0) x 1 (for flash image) RJ-45 GbE LAN x 2

DB-9 RS-232 x 2

DB-9 Console Port x 1 Audio in x 1

Line out x 1

2-pin terminal block +12V DC-in x 1 MicroSD x 1

Remote Power On/Off

Indicator Power LED x 1
OS Support HiLinux

Power Supply

Power Requirement 12VDC-in with 2-pin terminal block


Mounting Wallmount kit (default)
Dimensions (W x D x H) 150 mm(W) x 96 mm(D) x 56 mm(H)
Gross Weight 2.20 lbs. (1 kg)
Net Weight 1.10 lbs. (0.5 kg)


Operating Temperature -4°F ~ 131°F (-20°C ~ 55°C, according to IEC60068-2 with 0.5 m/s AirFlow)
Storage Temperature -4°F ~176 °F (-40°C ~ 80°C)
Storage Humidity 5 ~ 95% @ 40°C, non-condensing
Anti-Vibration Random, 1Grm, 5 ~ 500Hz
Certification CE/FCC class A
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
