Edge AI Inference System, with NVIDIA® Jetson AGX Orin™
Edge AI Inference System powered by NVIDIA® Jetson AGX Orin™


AI@Edge Fanless PoE Embedded AI System with NVIDIA® Jetson AGX Orin™


  • NVIDIA® Jetson AGX Orin™
  • PoE/PSE GbE LAN x 12
  • 10G LAN x 1 and Giga LAN x 1
  • Multi-expansion: M.2 E Key / M.2 B Key / M.2 M Key
  • CANBus / COM / DIO

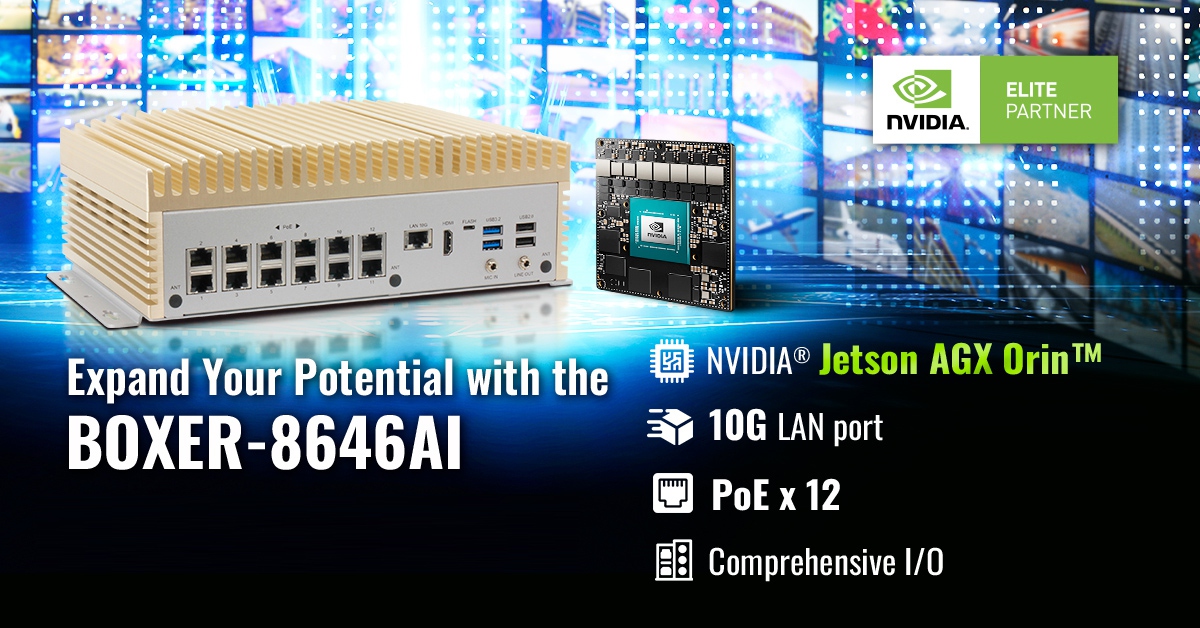

The record-breaking, world-leading BOXER-8646AI distinguishes itself from previous models by offering ten times the data transmission rate via 10G LAN and six times the AI performance, with up to 200 TOPS via the NVIDIA® Jetson AGX Orin™.

The only system powered by the NVIDIA Jetson AGX Orin to host 12 PoE and 10G LAN ports, the BOXER-8646AI raises both the quality and quantity of connectors available for cross-market AI edge solutions. Complimented by a multitude of expansion options and a comprehensive I/O, the BOXER-8646AI scales, enhances, and diversifies what’s possible across any application.

12 PoE LAN ports - BOXER-8646AI

Equipped with 12 PoE LAN ports, the BOXER-8646AI has the world’s most expansive ethernet interface, tripling the capacity of previous generations of Box PCs powered by NVIDIA Jetson SoMs. This record-breaking design enables users to power a greater number of high-quality peripheral cameras for any edge AI application, including smart safety and traffic management solutions. Complimenting this is the BOXER-8646AI’s exceptional data transmittance speed, with 10G LAN providing connective synergy like never before.

NVIDIA® Jetson AGX Orin™

The BOXER-8646AI’s record-breaking interface serves to augment the ingenuity of the NVIDIA® Jetson AGX Orin™. The system’s 12 PoE LAN ports channel up to 200 TOPS of AI performance, marrying unparalleled acceleration with preeminent power. As a consequence, the BOXER-8646AI offers not only greater scalability for solutions like smart parking and ANPR, but also substantially more power and sophistication.

Adding to a record-breaking PoE interface and tremendous computing power, the BOXER-8646AI is designed to expand the performance and reach of your project in every aspect of its design, including a wide -20°C ~ 50°C temperature range for greater deployment options. Further, LPDDR5 system memory, CAN Bus, and RS-232/422/485 support provide fast and reliable functionality for edge applications, while expansion options such as NVMe, Wi-Fi, and LTE remove the limits of possibility and make the BOXER-8646AI versatile, powerful, and unique.

Application Potential
Smart Safety
Traffic Management
Smart Parking


AI Accelerator NVIDIA® Jetson AGX Orin™
CPU 8-core ARM v8.2 64bit CPU, 2MB L2 + 4MB L3
System Memory 32GB LPDDR5
Storage Device

64GB eMMC 5.1 x 1

M.2 2280 NVMe M Key x 1

Display Interface HDMI Type A x 1 for HDMI 2.0

RJ-45 x 12 for GbE PoE/PSE (802.3af/at, MAX.:120W)

RJ-45 x 1 for 10G LAN

RJ-45 x 1 for Giga LAN


USB Type A for USB 3.2 Gen 1 x 2
USB Type A for USB 2.0 x 2
Micro USB x 1 for OS Flash
Mic-in x 1
Line-out x 1
DB-9 x 1 for CANbus FD x 2
DB-9 x 2 for RS-232/422/485
DB-9 x 1 for DIO x 8
3-pin terminal block x 1 for power input
Power button x 1
Recovery button x 1
Antenna hole x 6


M.2 2230 E Key x 1 (Wifi/BT)
M.2 3052 B Key x 1 (LTE)
M.2 2280 NVMe M Key x 1
SIM Slot x 1

Indicator Power LED x 1
OS Support Linux (NVIDIA Jetpack 5.0 and above)

Power Supply

Power Requirement 3-pin terminal block x 1 for 19V~24V


Mounting Wall mount kit
Dimensions (W x D x H) 10.42 " x 7.24 " x 3.67" (264.76 mm x 184.00 mm x 93.30 mm)
Gross Weight 12.13lb (5.5kg)
Net Weight 9.92lb (4.5kg)


Operating Temperature -4°F ~ 122°F (-20°C ~ 50°C with 0.5 m/s airflow)
Storage Temperature -40°F ~ 158°F (-40°C ~ 70°C)
Storage Humidity 5 ~ 95% @ 40°C, non-condensing
Anti-Vibration 3.5Grm / 5~500Hz
Anti-Shock 50G peak acceleration
Certification CE / FCC class A
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
