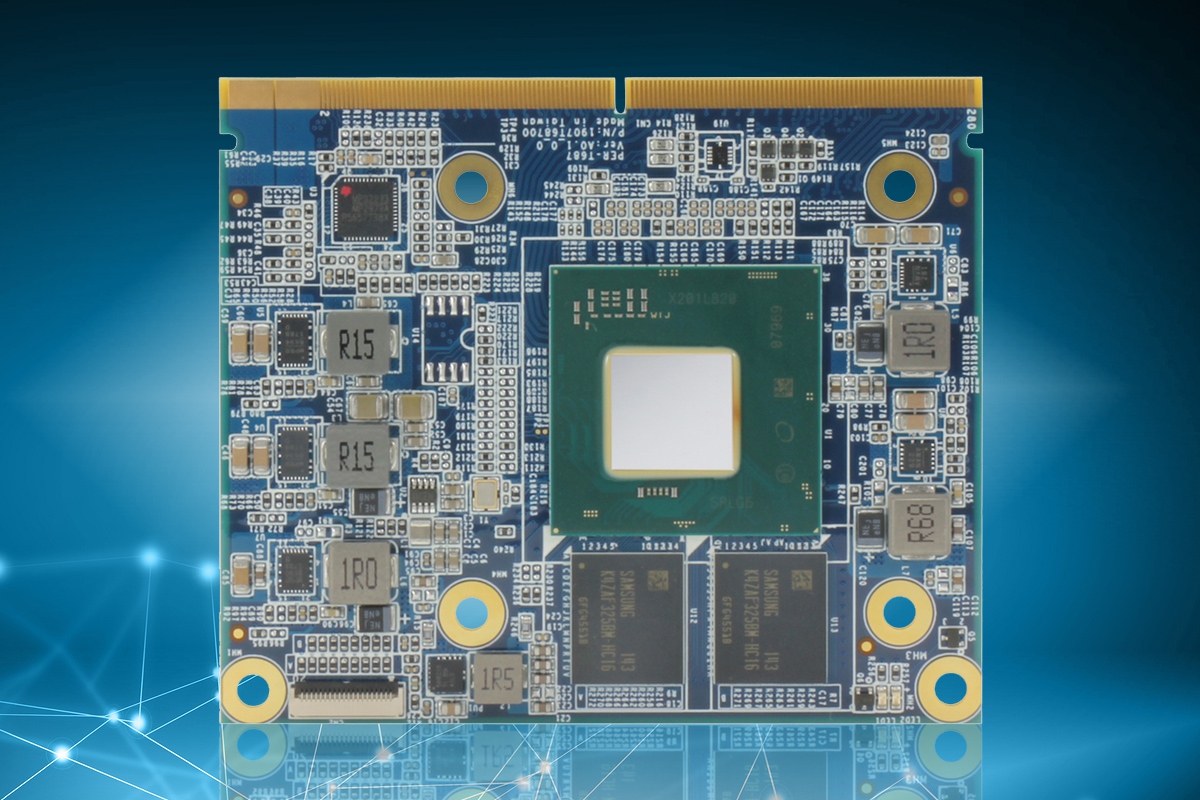

MXM-ACMA
Embedded MXM 3.1 Type A Module with Intel® Arc™ A370/A350 GPU
Features
- Intel® Arc™ A370M/A350M Embedded GPU, up to 8 Xe-cores
- 4GB GDDR6 Memory
- PCIe 4.0 [x8] Interface
- DP++ 1.4/HDMI 2.1 x 4
- Standard MXM 3.1 Type A form factor
- OpenCL™/OpenGL®/oneAPI/Direct X12/Ray Tracing Support
The MXM-ACMA introduces the MXM 3.1 Type A GPU module form factor to the AAEON lineup, offering potent, efficient graphics acceleration powered by Intel® Arc™ A-Series graphics. Equipped with 4GB of GDDR6 memory, ray tracing, and Intel® Deep Link Technologies, the MXM-ACMA expedites data handling and optimizes rendering capabilities for a variety of embedded solutions, such as digital signage, gaming, edge AI, and healthcare imaging.
The MXM-ACMA introduces the MXM 3.1 Type A GPU module form factor to the AAEON lineup, offering potent, efficient graphics acceleration powered by Intel® Arc™ A-Series graphics. Equipped with 4GB of GDDR6 memory, ray tracing, and Intel® Deep Link Technologies, the MXM-ACMA expedites data handling and optimizes rendering capabilities for a variety of embedded solutions, such as digital signage, gaming, edge AI, and healthcare imaging.
System | |
| Form Factor | Standard MXM 3.1 Type A form factor |
| GPU | Intel® Arc™ A370M GPU (8 Xe-cores, TGP 35W) |
| Memory | 4GB GDDR6, 64-bit , Bandwith 112GB/s |
| Display Interface | DP++ 1.4 x 4 or HDMI 2.1 x 4 |
| Dimension | 3.2“ x 2.7“ (82mm x 70mm) |
| Power Consumption | Intel® Arc™ A370M GPU, TGP 35W |
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C) in 0.5m/sec airflow |
| Storage Temperature | -40°F ~ 185°F (-40°C ~ 85°C) |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| OS Support | Windows 10 (64bit) / Windows 11 |
| Others | OpenCL™ 4.6/OpenGL® 3.0/oneAPI/DirectX 12 Ultimate/Ray Tracing Support |
