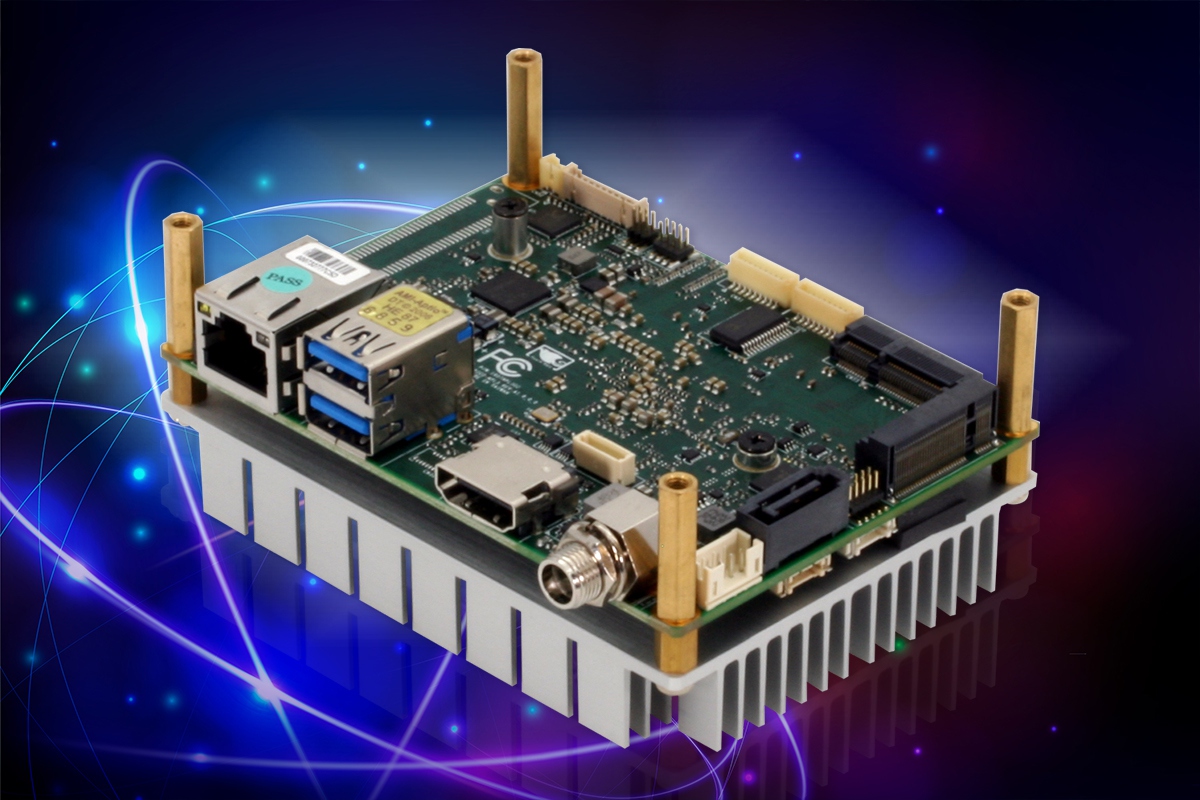

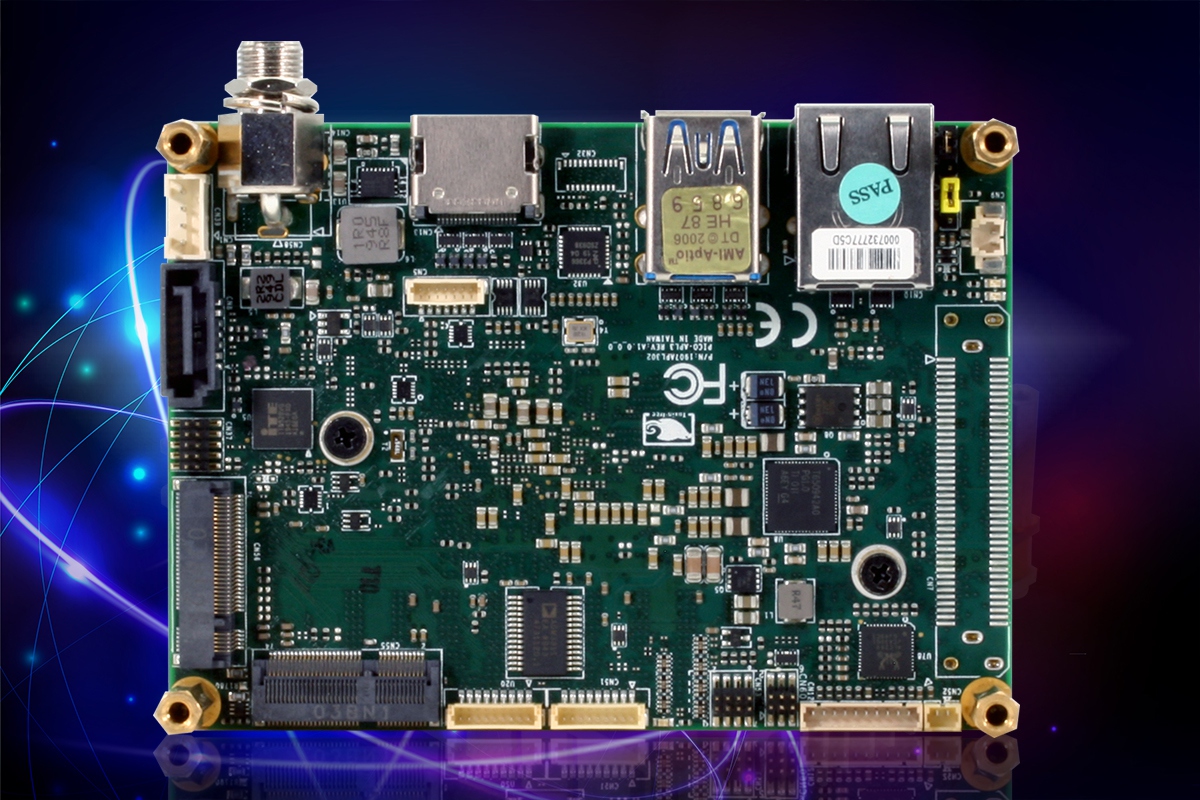

PICO-APL3-A10-FAI1

AI Edge Computing Kit with Kneron KL520 NPU


Features

  • Intel® Pentium® N4200 Processor SoC
  • Onboard Storage eMMC 32GB
  • Onboard DDR3L 4GB
  • Single Gigabit Ethernet Support
  • HDMI 1.4b for Display
  • USB 3.2 Gen 1 x 2, USB 2.0 x 2, SATA 6.0Gb/s x 1
  • M.2 B Key (2280) x 1, M.2 E Key (2230) x 1
  • M2AI-2280-520 x 1
  • EverFocus Full HD Camera EUA1200 x 1
Overview
Specifications
PICO-APL3-A10-FAI1

System

Form Factor Pico-ITX
CPU Intel® Atom™ Processor SoC
CPU Frequency Up to 2.4 GHz
Chipset Intel® Atom™ Processor SoC
Memory Type Onboard DDR3L 4GB
Max. Memory Capacity 4GB
BIOS AMI/SPI
Wake On LAN Yes
Watchdog Timer 255 Levels
Power Requirement +12V, AT/ATX
Power Supply Type Lockable
Power Consumption (Typical) Intel® N4200 processor, DDR3L 4GB, 1.1A@12V

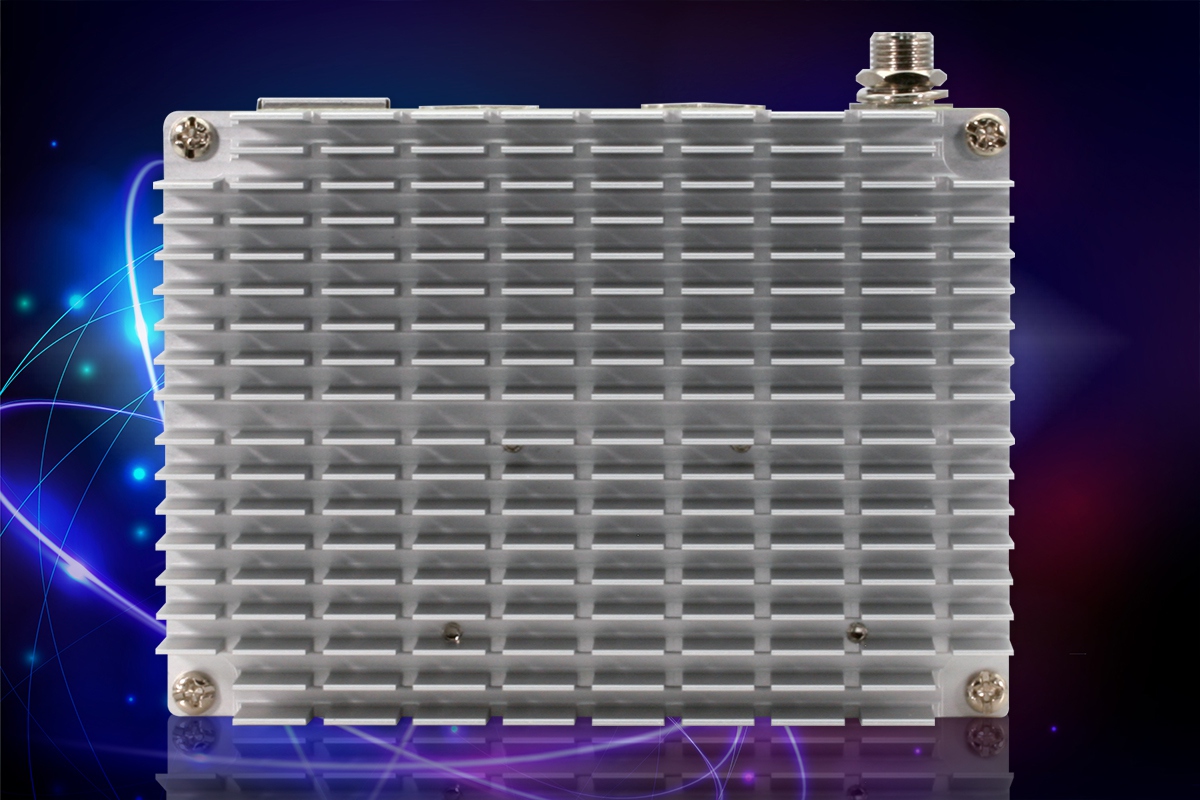

System Cooling Heatsink
Dimension 3.94“ x 2.84“ (100 mm x 72 mm)
Gross Weight 0.55 lb (0.25 kg)
Operating Temperature 32°F ~ 140°F (0°C ~ 60°C)
Storage Temperature -40˚F ~ 176˚F (-40˚C ~ 80˚C)
Operating Humidity 0% ~ 90% relative humidity, non-condensing
MTBF (Hours) 110,000
Certification CE,FCC

Display

Chipset Intel® Atom™ Processor SoC
Resolution HDMI 1.4b: 3840 x 2160@30Hz
LCD Interface
I/O
Storage/SSD SATA 6.0Gb/s x 1, 5V/12V Power reserved M.2 2280 (B Key) x 1 eMMC 32GB
Ethernet Realtek 8111G x 1
USB Port USB 3.2 Gen 1 x 2 Rear IO USB 2.0 x 2 (Internal, co-use with FAN connector)
Serial Port COM1: RS-232
Audio
DIO 4-bit
Expansion Slot M.2 2230 x 1 (E-Key) I2C, Smbus
SIM
TPM
Touch
Downloads
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
