AI@Edge Compact Fanless Embedded BOX PC with Google Edge TPU
- Intel® Atom® x5-E3940 Processor
- 2 x Intel® Myriad™ X VPU inside
- Supports DDR3L SODIMM up to 8 GB
- Supports Two Display by HDMI x1, DP x 1
- Intel® Giga Ethernet x 5 Ports, including 4 x PoE Ports, 1 x LAN
- 4-CH DI & 4-CH DO (Isolation, optional )
- -20 °C to 60 °C fanless operation
The VPC-3350AI is based on a flexible platform powered by Intel® Atom™ x5 E3940 (formerly Apollo Lake) paired with two Intel® Movidius® Myriad™ X VPU modules. Together, these modules provide the VPC-3350AI with processing speeds up to 210 FPS and 8 TOPs as a dedicated neural network accelerator (evaluated by GooLeNet). This configuration of two VPUs with processor allows the VPC-3350AI to support asynchronous processing of AI models, allowing for higher framerates and faster, smoother image processing for AI inferences.
The VPC-3350AI features an innovative thermal solution providing wide temperature operations from -20°C to 60°C, perfect for operating in almost any environment.
The VPC-3350AI is designed with an assortment of I/O ports including four POE ports, two COM, and USB 3.2 Gen 1 ports, allowing for flexibility to integrate with any project.
AAEON’s industry leading OEM/ODM and manufacturer services provide options for clients to configure the VPC-3350AI to their needs, including providing up to four Intel® Movidius® Myriad™ X VPUs, expanded I/O and functionality for in-vehicle operations.
With Intel® Movidius® Myriad™ X, the VPC-3350AI is a perfect fit for AI and edge computing applications, including license plate and facial recognition. As an in-vehicle AI embedded system, it helps to power driver safety applications such as advanced driver-assist systems (ADAS) or driver monitoring and behavior analysis for heavy vehicle operators.
|Form Factor||Multi-PoE & Fanless Appliance|
|Processor||Intel® Pentium®/ Celeron®/ Atom™ Processor (Default: E3940; Project base: N4200/N3350, or E3950 w/ customized chassis)|
|AI Accelerator||2 x Intel® Myriad™ X, up to 4 Myriad™ X (Project base)|
|Main Memory||Up to 8GB, DDR3L 204-pin SODIMM|
|Display||HDMI x 1, DP x 1|
|Ethernet||Intel® i211 (colay i210)|
|Smart PoE||4 ports, sharing 60W of power budget for every four PoE ports|
|Expansion Slot||SATA x 1|

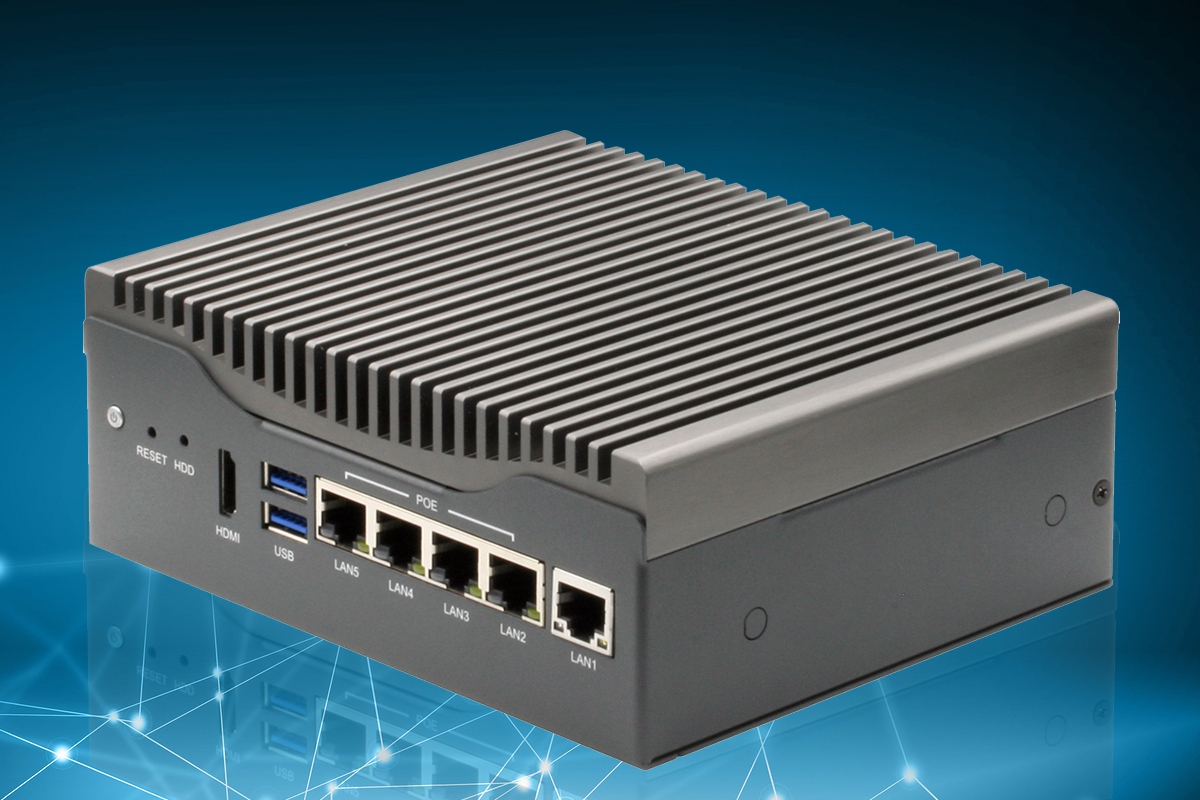

|Front I/O Panel||Power Button x 1, Reset Button x 1 Power/HDD, LED x 2 USB 3.2 Gen 1 x 2, GbE port (RJ-45) x 1, PoE LAN x 4 (IEEE 802.3 at/af) HDMI x 1|

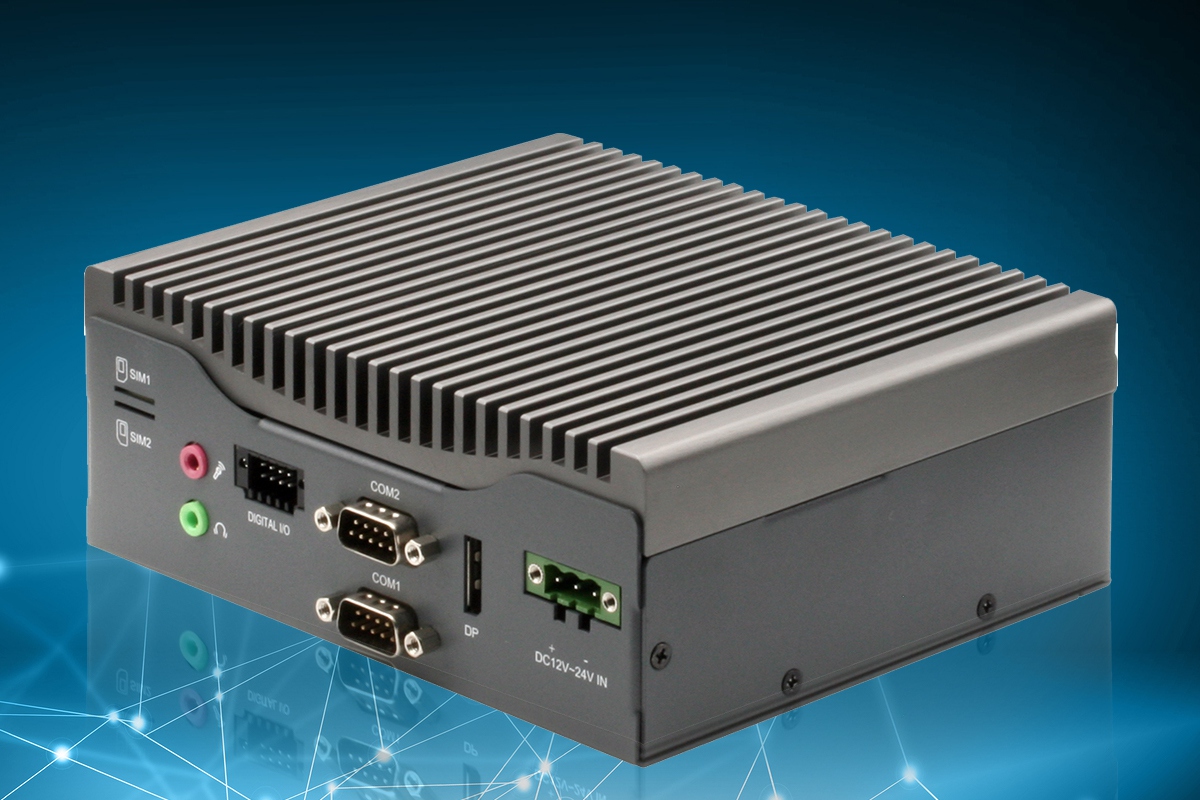

|Rear I/O Panel||DC-In power x 1, 8-bit DIO x 1, 4-ch digital input, 4-ch digital output RS-232/422/485 x 2, DP x 1, Audio Line-out x 1, Mic-In x 1 Micro SIM slot x 2|
|HDD Tray||2.5” HDD/SSD Bay x 1|
|Operating Temperature||-4°F ~ 140°F (-20°C ~ 60°C)|
|Storage Temperature||-40°F ~ 185°F (-40°C ~ 85°C)|
|Storage Humidity||10%~80% @40°C, non-condensing|
|Certification||CE & FCC Class A|
|Power Supply||DC 12-24V|
|Removable HDD Tray||—|
|Internal System HDD Bay||—|
|Dimension||6.3” x 5.28” x 2.44” (160mm x 134mm x 62mm)|
|Gross Weight||5.07 lb (2.3 kg)|
