Compact Fanless Embedded AI System with NVIDIA® Jetson Orin NX
Compact Fanless Embedded AI System with NVIDIA® Jetson Orin NX

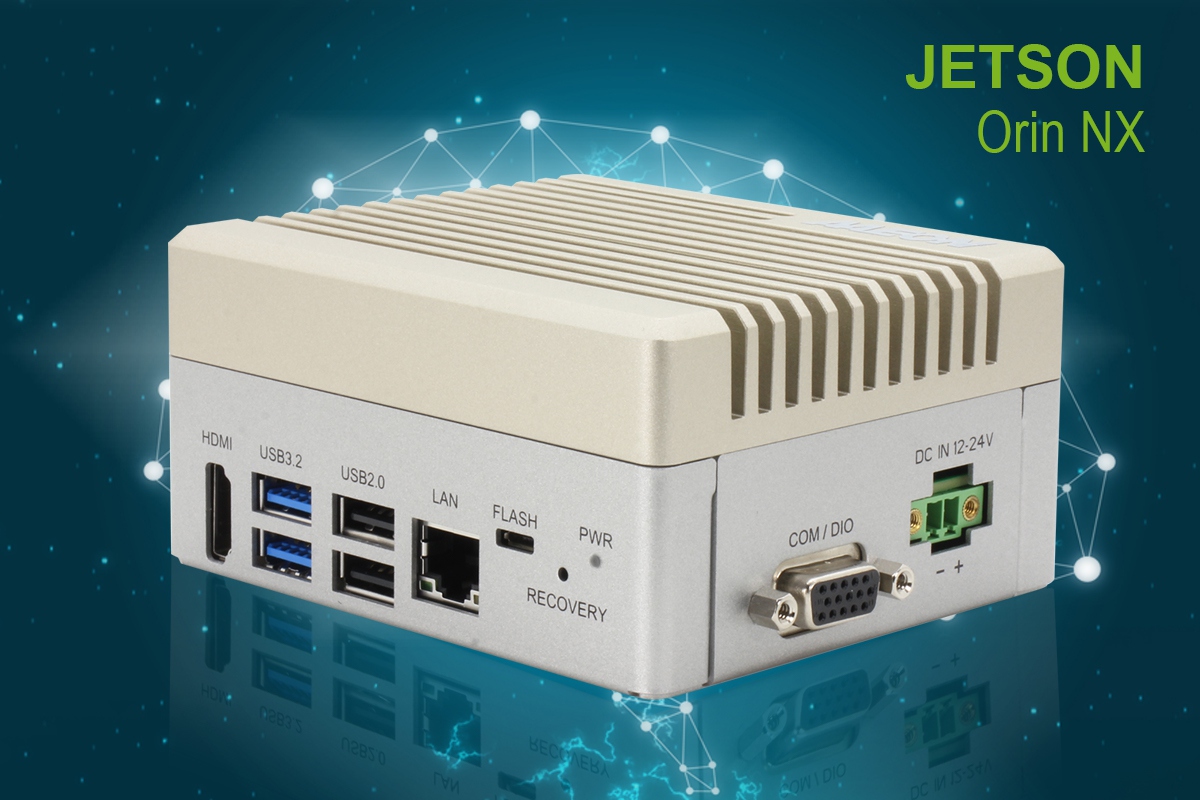

BOXER-8651AI

AI@Edge Compact Fanless Embedded AI System with NVIDIA® Jetson Orin NX


Features

  • NVIDIA® Jetson Orin NX
  • Expansion: M.2 2230 E-Key x 1, M.2 3052 B-Key x 1
  • USB 3.2 Gen 2 (Type-A) x 2 & USB 2.0 (Type-A) x 2
  • COM, DIO, CANBus
  • Operating Temperature: -5°F~ 131°F (-15°C ~ 55°C)
Overview

Con solo 105 mm x 90 mm x 52 mm, el BOXER-8651AI es el sistema sin ventilador más pequeño del mercado diseñado para aprovechar las capacidades avanzadas de NVIDIA® Jetson Orin™ NX, lo que lo convierte en la plataforma definitiva para llevar la IA al límite. El BOXER-8651AI, que se implementa fácilmente mediante montaje en pared para ofrecer un rendimiento óptimo en términos de conectividad e informática en tiempo real, prospera incluso en los espacios más reducidos.

El BOXER-8651AI está diseñado para agregar valor y ofrecer soluciones listas para el mercado para proyectos en diversas industrias, brindando a su empresa una ventaja no solo en sofisticación, sino también en eficiencia y velocidad de comercialización.

NVIDIA® Jetson Orin™ NX

Equipped with an NVIDIA Ampere architecture GPU featuring 1024 CUDA® and 32 Tensor Cores, the BOXER-8651AI, integrated with the NVIDIA Jetson Orin™ NX module, delivers cutting-edge inferencing capabilities with up to 70 TOPS of AI performance and dedicated Deep Learning Accelerator fixed-function hardware for handling more complex workloads.

NVIDIA JetPack™ Support

Compatible with NVIDIA JetPack™ 5.0 and higher, the BOXER-8651AI enables users to harness a comprehensive library of tools for building top-tier inferencing models. This enhances application performance by accelerating graphics, data processing, and image classification functions which can be tailored to your specific needs.

The BOXER-8651AI features versatile I/O options, including DB-9 and DB-15 ports for RS-232 (Rx/Tx/CTS/RTS)/RS-485, CANBus, and DIO functions, facilitating high-speed serial communication with external devices, even in industrial settings with legacy infrastructure. Additionally, the device provides HDMI 2.1 display output, GbE LAN, and a variety of USB Type-A ports, supporting both USB 3.2 Gen 2 and USB 2.0 functionality.

With the ability to operate in a wide temperature range from -5°F to 131°F (-15°C to 55°C) and a compact wall-mountable chassis, the BOXER-8651AI is well-suited for deployment in various settings and conditions across a range of markets. Its anti-shock and vibration resistance features further enhance its durability in challenging deployment spaces.

Accommodating software stacks that can handle the execution of multiple simultaneous complex tasks requires substantial storage. Therefore, the BOXER-8651AI features an M.2 3052 B-Key slot to accommodate M.2 2242 B+M Key SSDs and an M.2 2230 E-Key slot for additional storage capacity. These versatile expansion slots can also be used for wireless communication functions, including 4G, 5G, Wi-Fi, and Bluetooth, making it ideal for handling multiple complex tasks.

Specifications
BOXER-8651AI

System

AI Accelerator NVIDIA® Jetson Orin NX
CPU 6-core Arm® Cortex®-A78AE ARMv8.2 64-bit CPU
System Memory 8GB/16GB LPDDR5
Storage Device

M.2 3052 B-Key x 1 for M.2 2242 B+M Key SSD (Default Storage)
M.2 2230 E-Key x 1 (Optional)

Display Interface HDMI 2.1 (Type-A) x 1
Ethernet RJ-45 x 1 for GbE LAN
I/O

USB 3.2 Gen 2 (Type-A) x 2
USB 2.0 (Type-A) x 2
DB-9 for RS-232 (Rx/Tx/CTS/RTS)/485 x 1 and CANBus FD x 1
DB-15 for RS-232 (Rx/Tx)/422/485 x 1 and DIO x 8
Micro USB x 1 for OS Flash
Recovery Button x 1
Antenna x 2

Expansion

M.2 3042/3052 B Key x 1 (4G/5G/M.2 2242 B+M Key storage)
M.2 2230 E Key x 1 (Wifi/BT/Storage)
SIM Slot x 1

Indicator Power LED x 1
OS Support Linux (NVIDIA Jetpack™ 5.0 up)

Power Supply

Power Requirement 12V~24V DC in with 2 pins terminal block x 1

Mechanical

Mounting Wallmount
Dimensions (W x D x H)

4.13” x 3.54” x 2.05” (105mm x 90mm x 52mm), w/o bracket

Gross Weight 2.4 lb. (1.1Kg)
Net Weight 1.58 lb. (0.7Kg)

Environmental

Operating Temperature

-5°F ~ 131°F (-15°C ~ 55°C), according to IEC60068-2 with 0.5 m/s AirFlow

Storage Temperature -40°F ~ 185°F (-40°C ~ 85°C)
Storage Humidity 5% ~ 95% @ 40C, non-condensing
Anti-Vibration 3.5Grm / 5~500Hz / Operation
Anti-Shock 50G peak acceleration
Certification CE/FCC class A
Downloads
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
