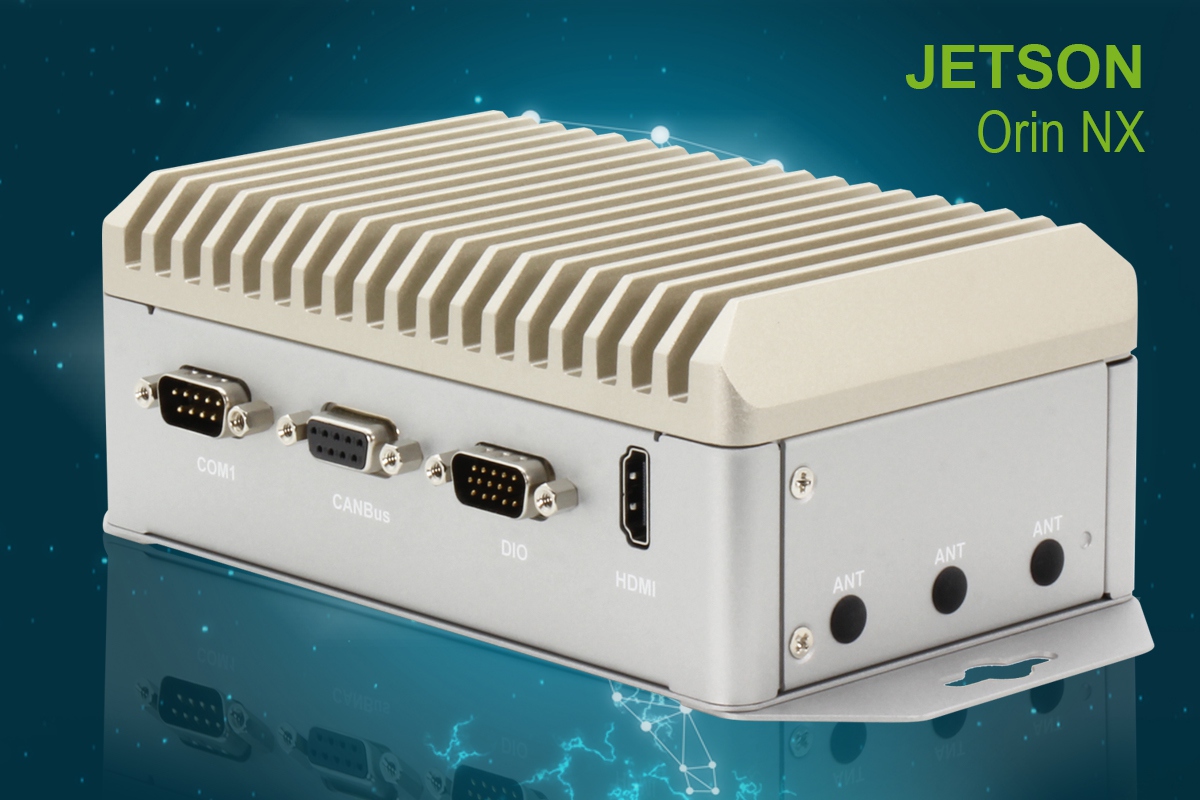

BOXER-8652AI

AI@Edge Compact Fanless Embedded AI System with NVIDIA® Jetson Orin™ NX


Features

  • NVIDIA® Jetson Orin™ NX
  • 8GB/16GB LPDDR5
  • Supports M.2 E-Key x 1, M.2 B-Key x 1, M.2 M-Key x 1
  • Supports DB-9 x 1 for CANBus
  • Supports GbE LAN x 2
Overview

Compacto, inteligente y listo para el mercado, el nuevo BOXER-8652AI ofrece un conjunto único de atributos diseñados para llevar la IA de vanguardia al sector minorista. Aprovecha las capacidades de clase mundial de NVIDIA® Jetson Orin™ NX y las canaliza a través de un sistema diseñado por expertos equipado con una gran cantidad de funciones que conducen a un rendimiento perfecto, incluidos múltiples puertos Ethernet y COM, así como opciones de expansión versátiles.

Todas estas características innovadoras están alojadas en un chasis increíblemente compacto y de fácil montaje, lo que convierte al BOXER-8652AI en una opción ideal para implementar en cualquier entorno minorista.

NVIDIA® Jetson Orin™ NX

The BOXER-8652AI features the NVIDIA® Jetson Orin™ NX module, offering up to 5 times the AI performance of the NVIDIA® Jetson Xavier™ NX, giving it the critical tools needed to build smart retail applications, such as real-time data analysis, object detection, and computer vision tasks. The system’s compatibility with NVIDIA Jetpack™ 5.0 and beyond also provides users with a powerful development library for customizing inference models to meet their project’s unique requirements.

Edge & Wireless

Combining the power of the NVIDIA® Jetson Orin™ NX and flexible SSD-based storage, the BOXER-8652AI boasts both the capability and capacity required for building advanced inference models for edge data analytics. Additionally, the system's M.2 E and B-Key slots provide support for Wi-Fi and 5G, making it an ideal choice for wirelessly transmitting data to a central source or data center.

Compact & mountable

Despite its powerful features and extensive configuration of interfaces and expansion options, the BOXER-8652AI maintains a remarkably compact form factor, measuring just 5.98” x 3.78” x 2.42” (152mm x 96 mm x 61.5mm). This feature, combined with its wall-mountable design, makes it an ideal solution for discreet and hassle-free deployment.

Dual LAN

The dual LAN ports of the BOXER-8652AI offer robust connectivity, making it an ideal choice for cost-effective IP camera installation. This feature enables the acquisition of crucial on-edge data through reliable and efficient hardware, which can then be processed by the system's GPU for real-time insights. This, in turn, aids business analysts in identifying trends in consumer behavior.

CAN/DIO

The BOXER-8652AI is equipped with CANBus and DIO via DB-9 and DB-15 ports, offering multiple communication protocols. Its DIO functionality can be synchronized with RFID readers, weight sensors, and barcode scanners to track inventory levels, while CANBus enhances asset management for operational security.

RS-232/422/485

A second DB-9 port provides support for RS-232/422/485, offering a valuable tool for automating legacy retail hardware devices without the need for costly and time-consuming retrofits. Furthermore, the versatility of this feature allows stores to utilize it for a range of tasks, such as temperature monitoring for perishable stock.

Specifications
BOXER-8652AI

System

AI Accelerator NVIDIA® Jetson Orin™ NX
CPU 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
System Memory 8GB/16GB LPDDR5
Storage Device M.2 2280 M-Key x 1
Display Interface HDMI 2.0 (Type-A) x 1
Ethernet RJ-45 x 2 for 10/100/1000 Base-T
I/O

USB 3.2 Gen 2 (Type-A) x 2
USB 2.0 (Type-A) x 2
Micro USB x 1 for OS Flash
DB-9 x 1 for CANbus
DB-9 x 1 for RS-232/422/485
DB-15 x 1 for 13-bit DIO
Power ON/OFF switch x 1
Recovery button x 1
Antenna Hole x 6

Expansion

M.2 2230 E-Key x 1 (Wi-Fi/Bluetooth)
M.2 3042/3052 B-Key x 1 (4G/5G)
M.2 2280 M-Key x 1

Indicator Power LED x 1
OS Support

Linux (NVIDIA Jetpack™ 5.0 and up)

Power Supply

Power Requirement DC-in 12-24V with 2-pin terminal block

Mechanical

Mounting Wall mount kit
Dimensions (W x D x H)

5.98” x 3.78” x 2.42” (152mm x 96 mm x 61.5mm)

Gross Weight

3.97lb (1.8kg)

Net Weight

2.65lb (1.2kg)

Environmental

Operating Temperature -5°F ~ 140°F (-15°C ~ 60°C with 0.5 m/s airflow)
Storage Temperature -40°F ~ 176°F (-40°C ~ 85°C)
Storage Humidity 5 ~ 95% @ 40°C, non-condensing
Anti-Vibration 3.5Grm / 5~500Hz
Anti-Shock 50G peak acceleration
Certification CE / FCC class A
Downloads
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
