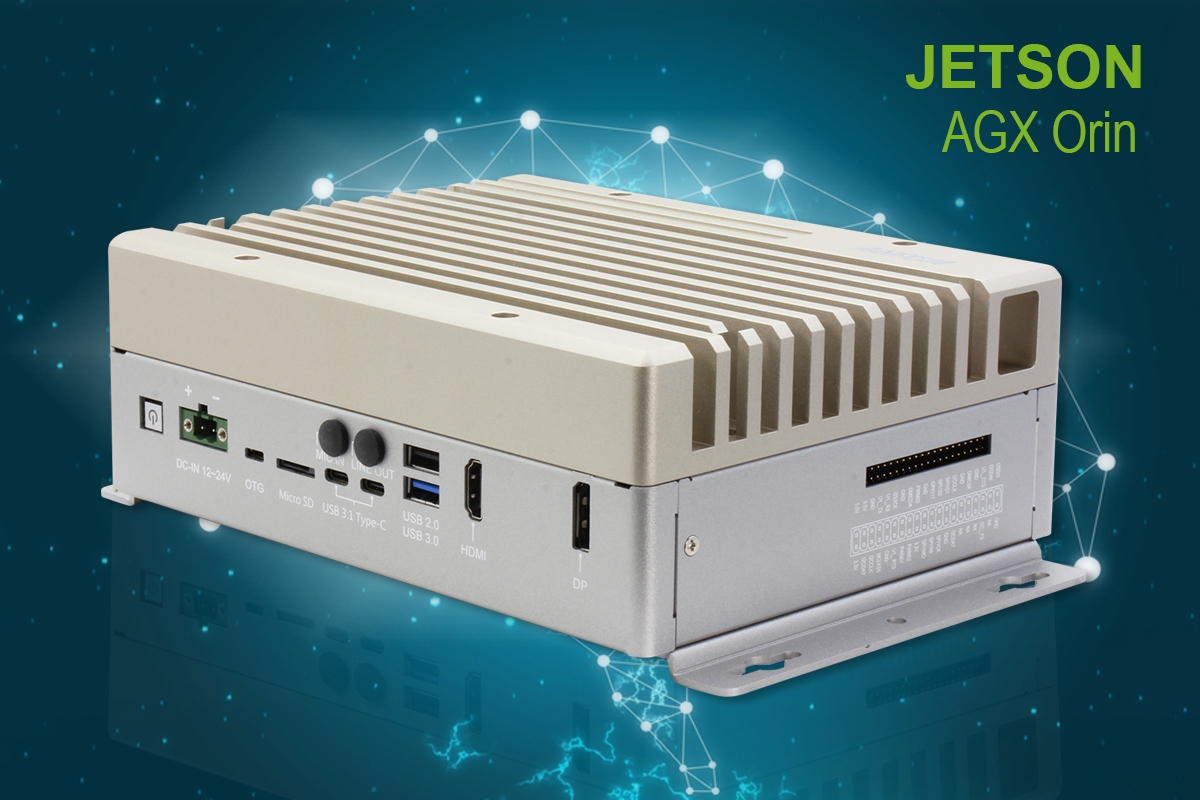

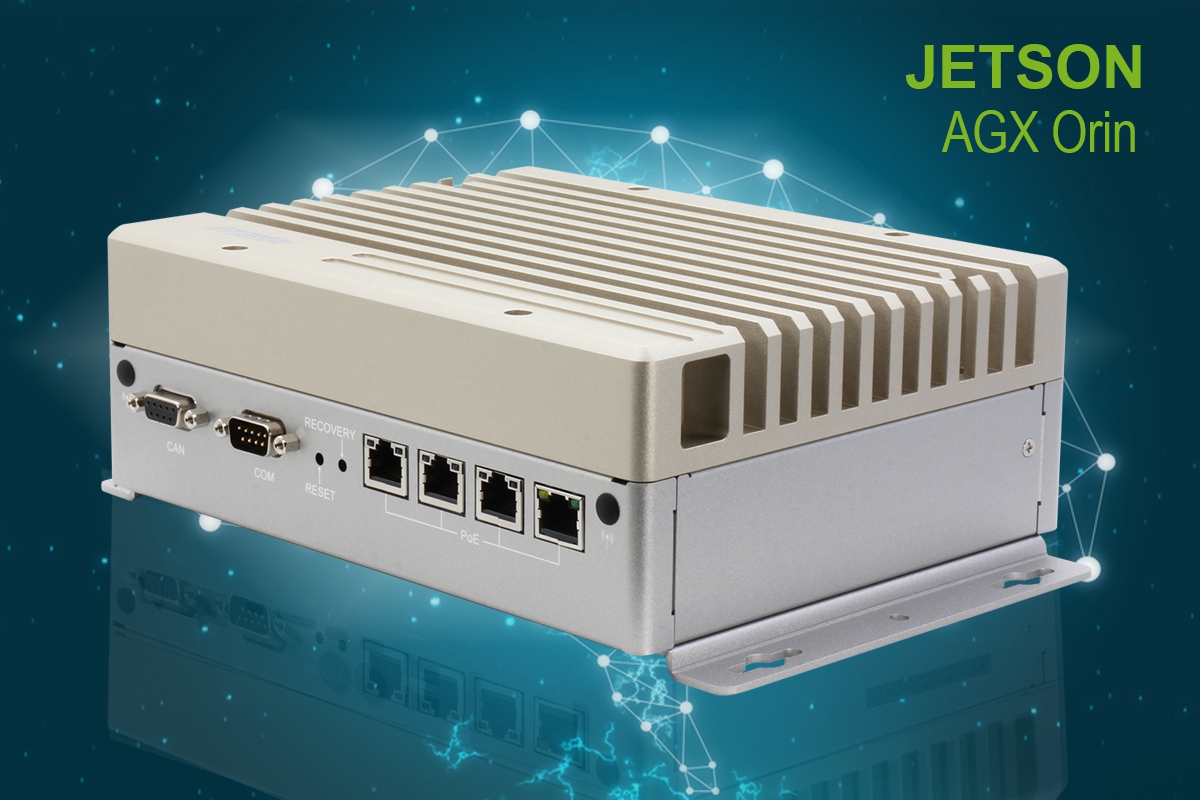

BOXER-8640AI

AI@Edge Fanless Embedded AI System with NVIDIA® Jetson AGX Orin™ 32GB

Características

  • NVIDIA® Jetson AGX Orin™
  • PoE/PSE 802.3af x 4 (Max. 60W)
  • RS-232/422/485 x 1, CANBus x 1
  • 40-pin Header, Mic-in/Line-out
  • M.2 2230 E-Key, M.2 2280 M-Key, 2.5” SATA Drive Bay
Visión general

Impulsado por NVIDIA® Jetson AGX Orin™, el Box PC sin ventilador BOXER-8640AI ofrece capacidades de IA preeminentes al borde para más usos que nunca. La arquitectura Ampere de NVIDIA Jetson AGX Orin cuenta con 1792 CUDA® y 56 núcleos Tensor, lo que la hace capaz de hasta 200 TOPS. Esto permite que el BOXER-8640AI aproveche el rendimiento de inferencia que cambia el paradigma en múltiples transmisiones de video simultáneamente.

Solicitar presupuesto

El hardware diseñado por expertos de AAEON amplía el potencial de las aplicaciones al admitir el último SDK NVIDIA JetPack™, brindando a los creadores un marco completo con el cual aprovechar herramientas de aceleración de IA, multimedia, gráficos y visión por computadora de clase mundial para cualquier aplicación. Una faceta clave de la utilidad del BOXER-8640AI es su versatilidad en la implementación, con un impresionante amplio rango de temperatura de -4°F ~ 131°F (-20°C ~ 55°C), lo que lo hace adecuado para su implementación en cualquier entorno. Además, la densidad y sofisticación de su diseño está representada por sus cuatro puertos LAN PoE, que combinan potencia con función multipropósito.

Industry 4.0

The BOXER-8640AI’s wide temperature range means it thrives in industrial environments, while LPDDR5x support and an array of peripheral connectors such as PoE cameras provide a platform for manufacturing quality assurance applications to operate in real-time.

Smart Retail

The NVIDIA Ampere Architecture’s elite AI inferencing provide object detection capabilities that make smart retail applications, such as frictionless shopping, precise and reliable. To facilitate this, the BOXER-8640AI hosts both PoE LAN and USB 3.2 ports.

Smart Transport

The BOXER-8640AI is rugged and durable. A wide temperature range of -4°F ~ 131°F (-20°C ~ 55°C) coupled with a 12V~24V DC input makes in-vehicle, such as passenger information systems, and off-road transportation solutions, such as ANPR and object detection possible.

AMR

A full-function I/O with real-time object detection and multi-sensor fusion gives the BOXER-8640AI enhanced positional accuracy when deployed as an AMR solution. Additionally, its mix of durability and 200 TOPS of computing power courtesy of the NVIDIA Jetson AGX Orin’s Ampere Architecture make it perfect for deployment as both a service robot and outdoor AMR.

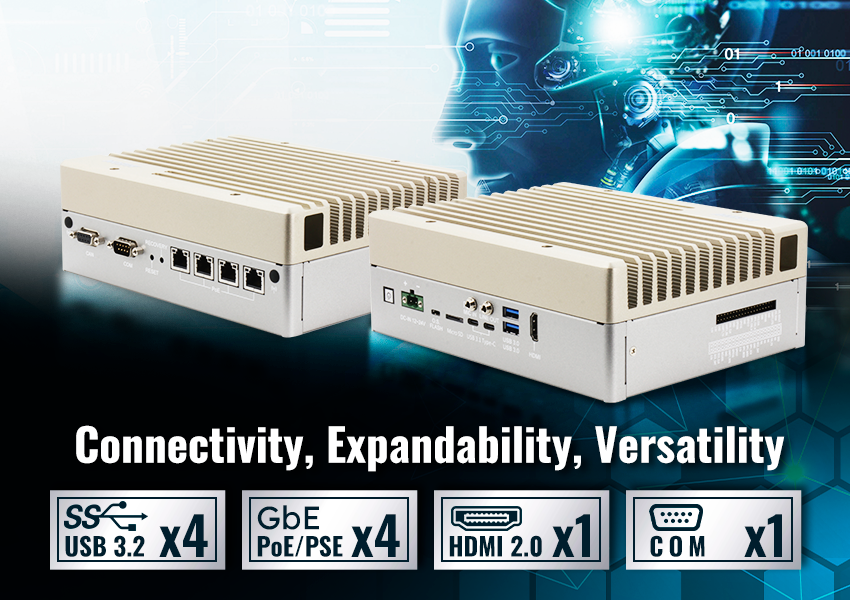

The BOXER-8640AI’s I/O is precisely configured to channel the AI performance of the NVIDIA Jetson AGX Orin, and to fully utilize the tools provided by the NVIDIA JetPack SDK. With a plethora of ports including one HDMI, four PoE LAN, and four USB 3.2 ports, users have a comprehensive interface through which to tailor solutions to their project. Further, the BOXER-8640AI offers storage options that are both vast and expandable, with 64GB eMMC onboard complimented by a MicroSD Card slot, 2.5” SATA drive bay, and NVMe via an M.2 2280 M-Key. Coupling these features gives customers both the means and microarchitecture to bring their ideas to fruition.

Especificaciones
BOXER-8640AI

System

AI Accelerator NVIDIA® Jetson AGX Orin™
CPU

AGX Orin 32GB: 8-core Arm® Cortex®-A78AE CPU
AGX Orin 64GB: 12-core Arm® Cortex®-A78AE CPU

System Memory

32GB LPDDR5
64GB LPDDR5

Storage Device

64GB eMMC 5.1
Micro SD Card Slot x 1
2.5” SATA Drive Bay x 1
M.2 2280 M-Key x 1

Display Interface HDMI 2.0 x 1
Ethernet RJ-45 for GbE PoE/PSE 802.3af x 4 (Max. 60W)
I/O

USB 3.2 Gen 2 (Type-A) x 2
USB 3.2 Gen 2 (Type-C) x 2
RS-232/422/485 x 1
CANBus x 1
Mic-in x 1
Line-out x 1
MicroSD Slot x 1
Micro USB x 1 for OS Flash
Recovery Button x 1
Power Button x 1
40-pin Header compliant with NVIDIA Jetson Orin Nano Developer Kit
(without CANBus)

Expansion

USB 2.0 Header x 1 (Optional, Circuit Reserved)
M.2 2230 E-Key x 1 (Wifi/BT)
M.2 2280 M-Key x 1 (NVMe)
2.5” SATA Drive Bay x 1
RS-232/422/485 Pin Header x 1

Indicator Power LED x 1
OS Support Linux (NVIDIA Jetpack™ 5.0 or above)

Power Supply

Power Requirement DC 12V~24V 2-pin terminal

Mechanical

Mounting Wallmount
Dimensions (W x D x H) 8.26” x 6.46” x 2.91” (210mm x 164.2mm x 74mm)
Gross Weight 8.3 lb. (3.76Kg)
Net Weight 6.4 lb. (2.9Kg)

Environmental

Operating Temperature -4°F ~ 131°F (-20°C ~ 55°C, according to IEC60068-2 with 0.5 m/s AirFlow)
Storage Temperature -40°F ~ 158°F (-40°C ~ 70°C)
Storage Humidity 95% @ 40°C, non-condensing
Anti-Vibration Random, 3 Grms, 5 ~ 500Hz
Anti-Shock 50G Peak Acceleration
Certification CE/FCC class A
Descargas
Ficha de datos
Manual
Para detalles del empaque, especificaciones tecnicas y otra informaciónes del producto, descargue la hoja de datos o el manual para el usuario.
