BOXER-8641AI

BOXER-8641AI

AI@Edge Compact Fanless Embedded AI System with NVIDIA Jetson AGX Orin


Características

  • NVIDIA® Jetson AGX Orin™
  • Multi-storage option: 64GB eMMC / MicroSD slot / 2.5” SATA drive bay/ M.2 2280 M Key
  • Support M.2 E Key / M.2 B Key / M.2 M Key
  • Support GbE LAN x 2
Visión general

El BOXER-8641AI funciona con el módulo NVIDIA Jetson AGX Orin. Con una E/S increíblemente rica empaquetada en un dispositivo compacto (18013662.1mm), el BOXER-8641AI está equipado con seis ranuras USB junto a una ranura para tarjetas microSD y dos puertos LAN Gigabit. Esto significa que el BOXER-8641AI tiene tanto las capacidades de hardware como de software para acomodar cualquier número de aplicaciones de IA, como la fabricación autónoma de alta gama y la agricultura inteligente, dado que incluye el kit de desarrollo de software NVIDIA JetPack™ 5.0. , que soporta la pila completa de software NVIDIA CUDA® para hacer el desarrollo de aplicaciones más fácil y rápido.

Otro beneficio para los clientes de AAEON es que el kit de desarrollador Jetson AGX Orin cuenta con el mismo módulo de factor de forma de 699 pines que los módulos anteriores, asegurando la compatibilidad con las placas portadoras de AAEON cargadas con módulos NVIDIA existentes de la misma configuración. Esto permite una migración suave para actualizar las aplicaciones existentes de IA en el borde.

NVIDIA Jetson AGX Orin - BOXER-8641AI Fanless Embedded BOX PC

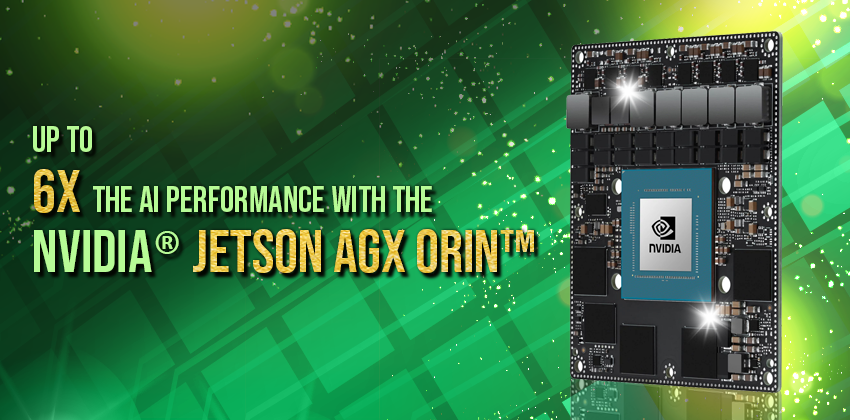

Up to 6x the AI Performance with the NVIDIA® Jetson AGX Orin™

Combining an 8-core ARM v8.2 64bit CPU and NVIDIA Ampere architecture, the BOXER-8641AI harnesses the full potential of the NVIDIA Jetson AGX Orin, possessing 1792 CUDA® and 56 Tensor cores for up to 200 TOPS, offering up to 6 times the AI performance of its predecessor. The BOXER-8641AI’s processing speed and inferencing capability subsequently shifts object detection function from GPU cards directly to the edge, simplifying the deployment of autonomous logistics vehicle applications.

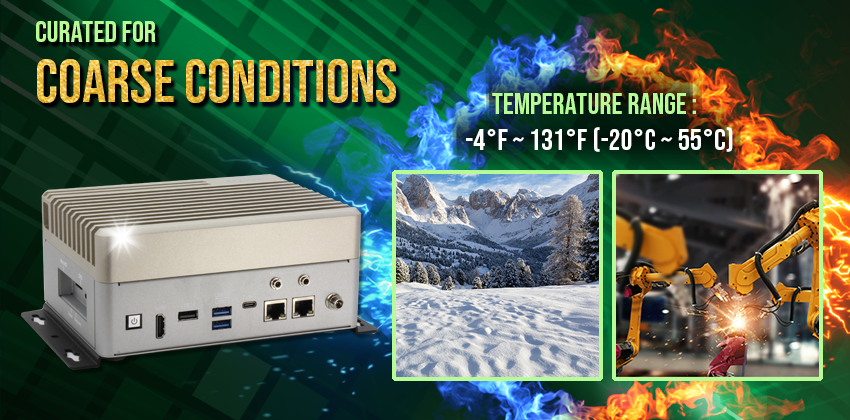

Curated for Coarse Conditions

A wide temperature range of -4°F ~ 131°F (-20°C ~ 55°C) illustrates the BOXER-8641AI’s rugged deployment suitability. Further, its compact size and light weight mean its operation is not limited, enabling it to run industrial AMR and autonomous mining vehicle applications, where its object detection can offer elite logistics solutions for tight, industrial settings with low-visibility.

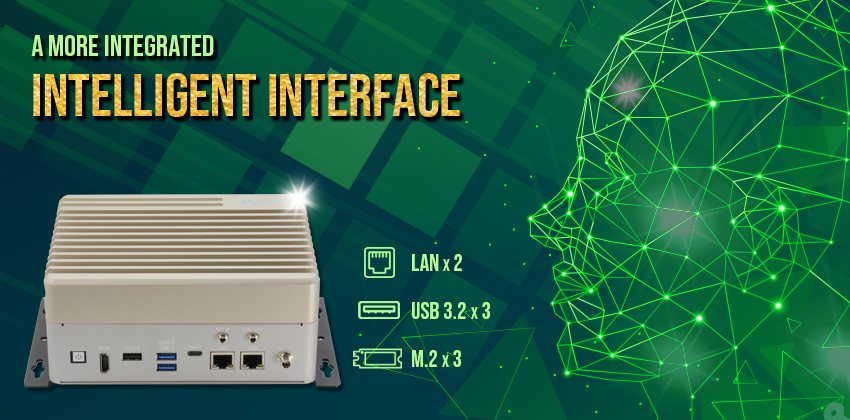

A More Integrated Intelligent Interface

To channel the sophistication of the NVIDIA® Jetson AGX Orin®, the BOXER-8641AI is equipped with a dense selection of features conducive to numerous vertical markets. With two GbE LAN and three USB 3.2 ports alongside 32GB LPDDR5x system memory and M.2 keys supporting 5G, Wi-Fi, and NVMe, the BOXER-8641AI ensures lightning-fast communication with peripheral hardware such as cameras and sensors which make it the ideal smart retail solution.

× The next-gen AI Edge solutions powered by NVIDIA Jetson AGX Orin
Especificaciones
BOXER-8641AI

System

AI Accelerator NVIDIA® Jetson AGX Orin™
CPU

AGX Orin 32GB: 8-core Arm® Cortex®-A78AE CPU
AGX Orin 64GB: 12-core Arm® Cortex®-A78AE CPU

System Memory

32GB LPDDR5
64GB LPDDR5

Storage Device

64GB eMMC 5.1 x 1
MicroSD slot x 1
SATA drive bay x 1

Display Interface HDMI Type A for HDMI 2.0 x 1
Ethernet RJ-45 for GbE LAN x 2

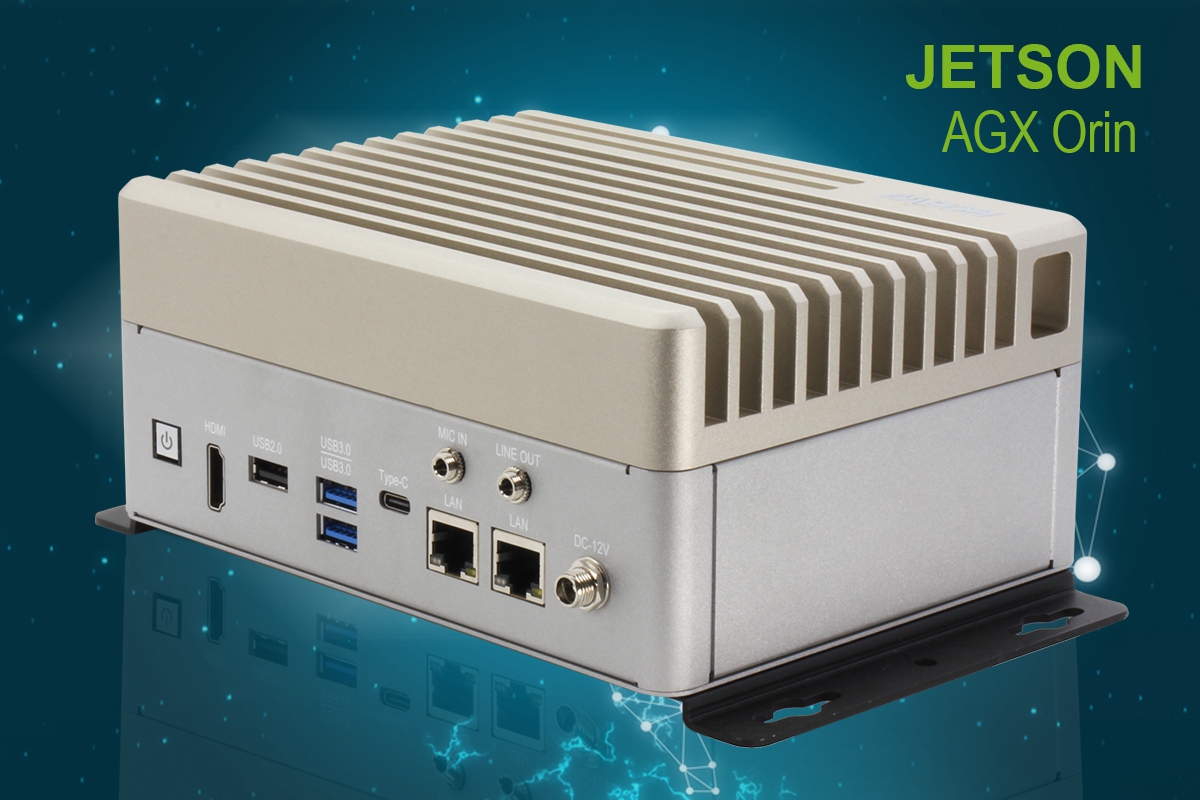

I/O

USB Type A for USB 3.2 Gen 2 x 2
USB Type C for USB 3.2 Gen 2 x 1
USB Type A for USB 2.0 x 1
Micro USB x 1 for OS Flash
Mic in and Line out x1
Reset Button x 1
Recovery Button x 1
MicroSD card slot x 1
Antenna opening x 4
Power Button x 1

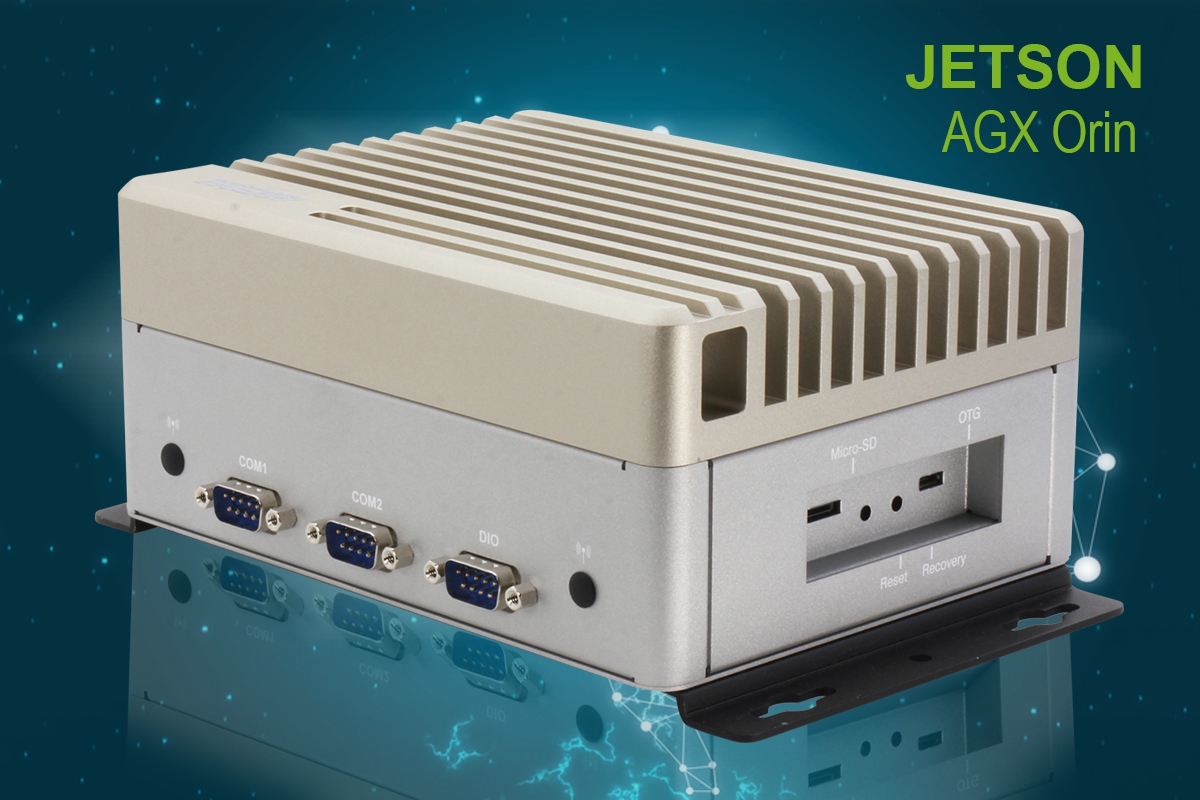

DB-9 x 2 for RS-232/422/485
DB-9 x 1 for DIO x 8

Expansion

M.2 E-Key 2230 ( for Wifi/BT ) x 1
M.2 B-Key 3052 x 1
M.2 M-Key 2280 ( NVMe ) x 1
2.5” SATA drive bay
SIM Slot x 1

Indicator Power LED x 1
OS Support Linux ( NVIDIA Jetpack 5.0 or above )

Power Supply

Power Requirement 12V DC with lockable DC Jack

Mechanical

Mounting Wall mount kit
Dimensions (W x D x H) 7.09 “ x 5.35 “ x 3.11“ (180.0 mm x 136 .0 mm x 79.1 mm)
Gross Weight 7.8lb ( 3.55kg )
Net Weight 5.5lb ( 2.5kg )

Environmental

Operating Temperature -4°F ~ 131°F (-20°C ~ 55°C with 0.5 m/s airflow)
Storage Temperature -40°F ~ 158°F (-40°C ~ 70°C)
Storage Humidity 5 ~ 95% @ 40°C, non-condensing
Anti-Vibration 3.5Grm / 5~500Hz / operation-eMMC,MicroSD or SSD
Anti-Shock 50G peak acceleration (11 msec. duration,eMMC,microSD,or SSD)
Certification CE / FCC Class B
Descargas
Para detalles del empaque, especificaciones tecnicas y otra informaciónes del producto, descargue la hoja de datos o el manual para el usuario.
