UP XTREME ARL
Sistema UP Squared Pro 710H Edge con procesadores de la serie Intel Atom® x7000 RE, procesadores Intel® serie N y procesadores Intel® Core™ i3-N305
Características
- Procesadores Intel® Core™ Ultra 5/7
- Memoria LPDDR5 6400 de doble canal, hasta 64 GB
- Hasta 3 pantallas simultáneas
- Múltiple expansión M.2 (2280 M-Key x2, 3052 B-Key para 5G, 2230 E-Key para Wi-Fi/BT)
- 2.5GbE x1, GbE x1
- USB 3.2 Gen 2 (Type A x 2)
- TPM 2.0 y amplia entrada de CC (9–36V)
El UP Xtreme ARL Edge es un sistema robusto y listo para implementar que aprovecha la potencia de procesamiento bruta y el rendimiento de inferencia de los procesadores Intel® Core Ultra serie 200H para eliminar los puntos débiles de integración en la robótica industrial.
Al combinar interfaces serie heredadas y de red de alta velocidad con un motor de IA capaz de gestionar cargas de trabajo complejas, el UP Xtreme ARL Edge es el paquete completo, listo para implementarse a escala en entornos de misión crítica.
System | |
| Processor | Intel® Core™ Ultra 5 processor 225H (18M Cache, up to 4.90 GHz) Intel® Core™ Ultra 7 processor 255H (24M Cache, up to 5.10 GHz) Intel® Core™ Ultra 7 processor 265H (24M Cache, up to 5.30 GHz) |
| Graphics | Intel® Arc™ graphics |
| Memory | Up to 64GB onboard LPDDR5 (Dual-Channel) |
| Storage | M.2 2280 M-Key x 2 SATA 6Gb/s x 1 |

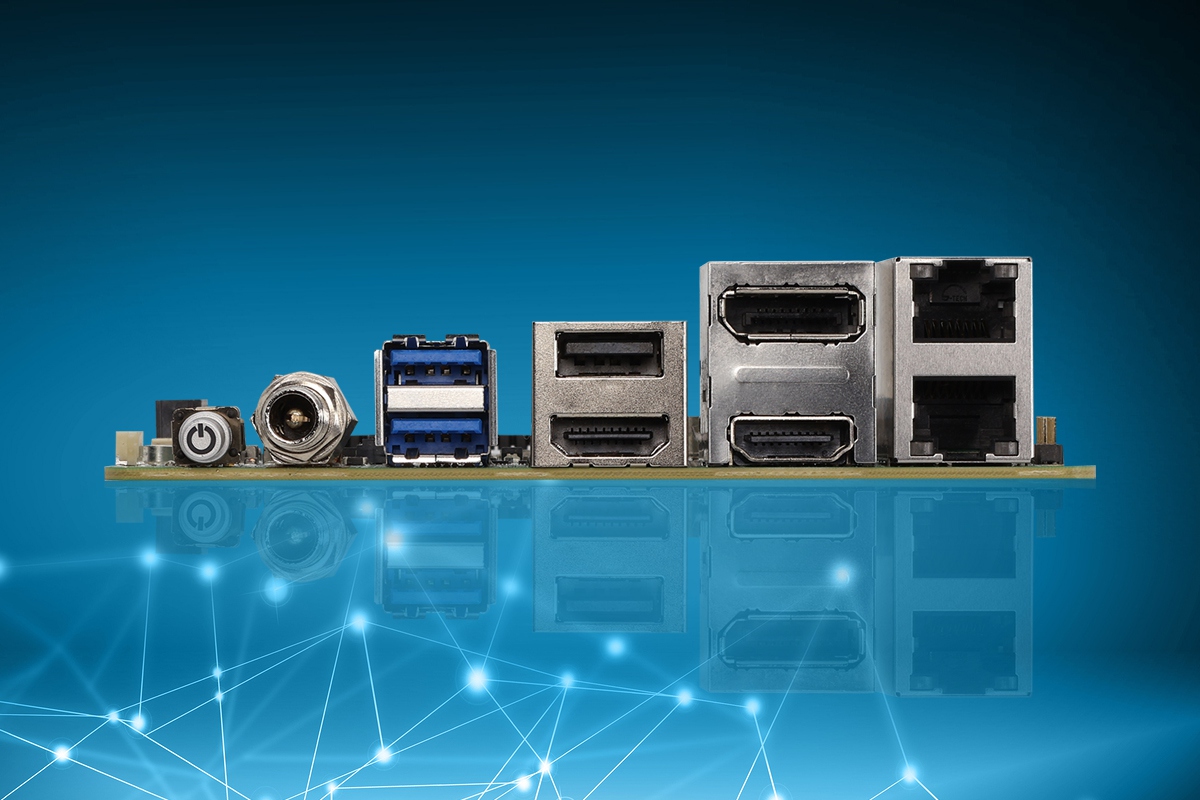

| I/O | HDMI 2.1 x 2 DP 2.1 x 1 Audio Jack x 1 (Mic-in+Line-out) RS-232/422/485 10-pin header x 2 |
| Camera | MIPI-CSI via 61-Pin FPC Connector x 1 |
| USB | USB 2.0 x 2 (from 10 pin header x 1) USB 2.0 (Type-A) x 1 USB 3.2 Gen 2 (Type-A) x 2 |

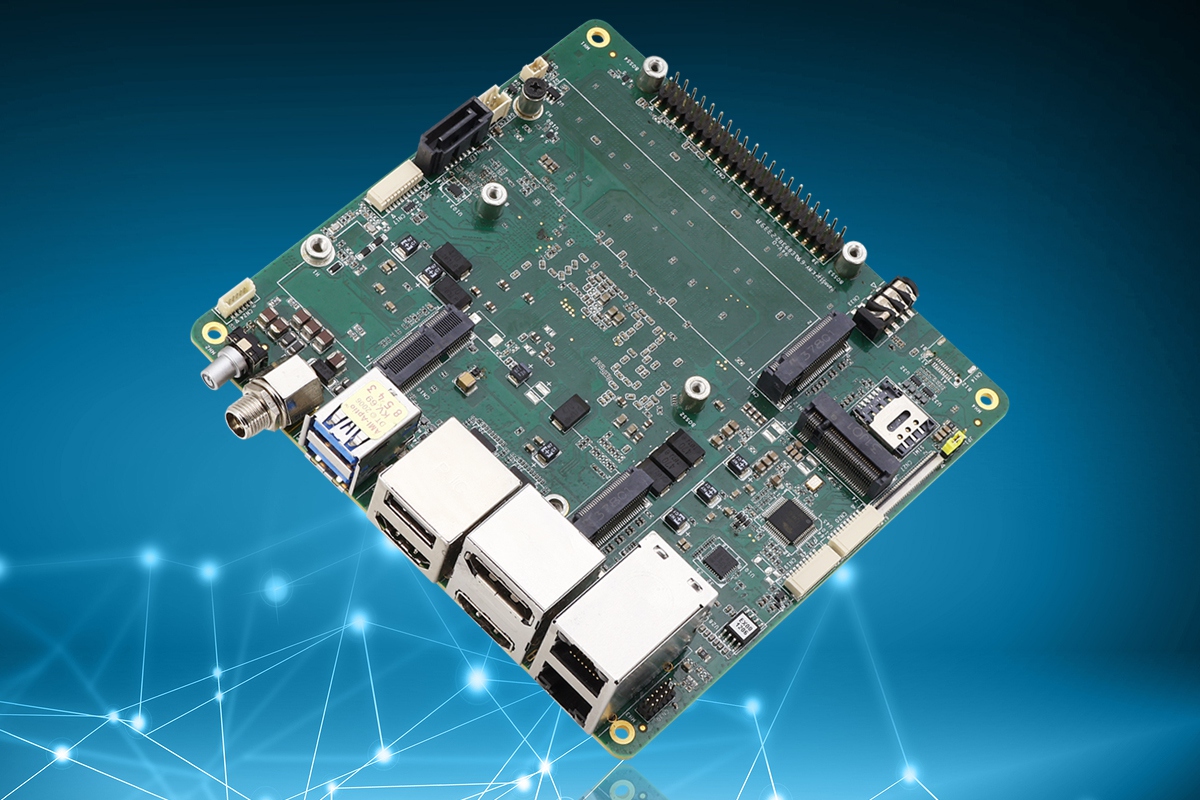

| Expansion | 40-pin GPIO x 1 M.2 2230 E-Key x 1 (PCIe Gen 3 [x1], USB 2.0) M.2 2280 M-Key x 2 (PCIe Gen 4 [x4]) M.2 3052 B-Key x 1 (PCIe Gen 3 [x1], USB 3.2 Gen 2 [x1]) with Nano SIM slot (USB 3.0) SATA 6Gb/s x 1 |
| Display Interface | HDMI 2.1 x 2 DP 2.1 x 1 |
| Ethernet | 2.5GbE x 1 (via Intel® Ethernet Controller I226-IT), GbE x 1 (Intel® Ethernet Connection I219) |
| Security | Onboard TPM 2.0 |
| RTC | Yes |
| OS Support | Win 11 LTSC/ 10 LTSC Linux: Ubuntu 24.04 LTS, Yocto 5+ |
Power Requirement | |
| Power | 9-36V DC-in (Lockable plug) |
| Power Supply Type | AT/ATX (ATX as default) |
| Power Consumption (Typical) | 57.6W ~ 86.4W |
Mechanical | |
| Dimension | 4.74“ x 4.82“ (120.35mm x 122.5mm) |
| Net Weight | 12.7 lb. (0.36Kg) |
| Gross Weight | 1.32lb (0.6kg) |
Environment | |
| Operating Temperature | 32°F - 140°F (0°C - 60°C) |
| Operation Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF | 1,263,279 |
| Certification | CE/FCC Class A, RoHS Compliant, REACH |
