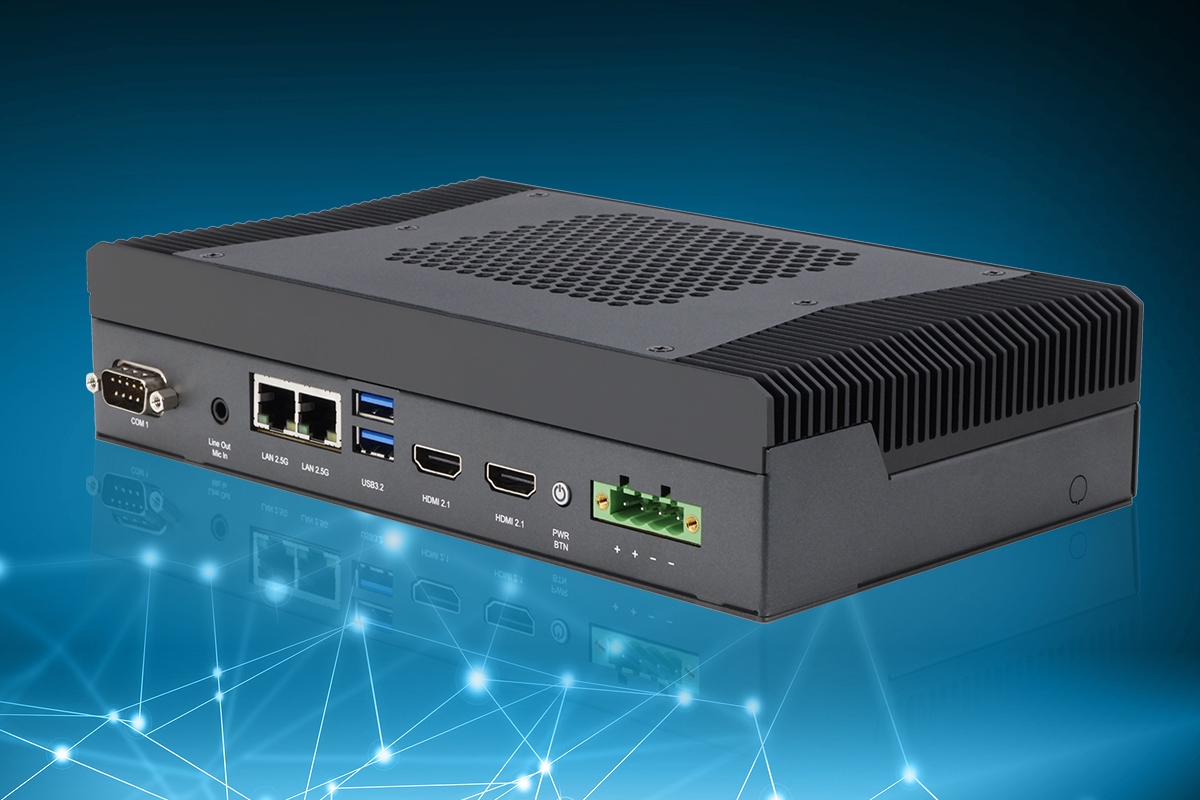

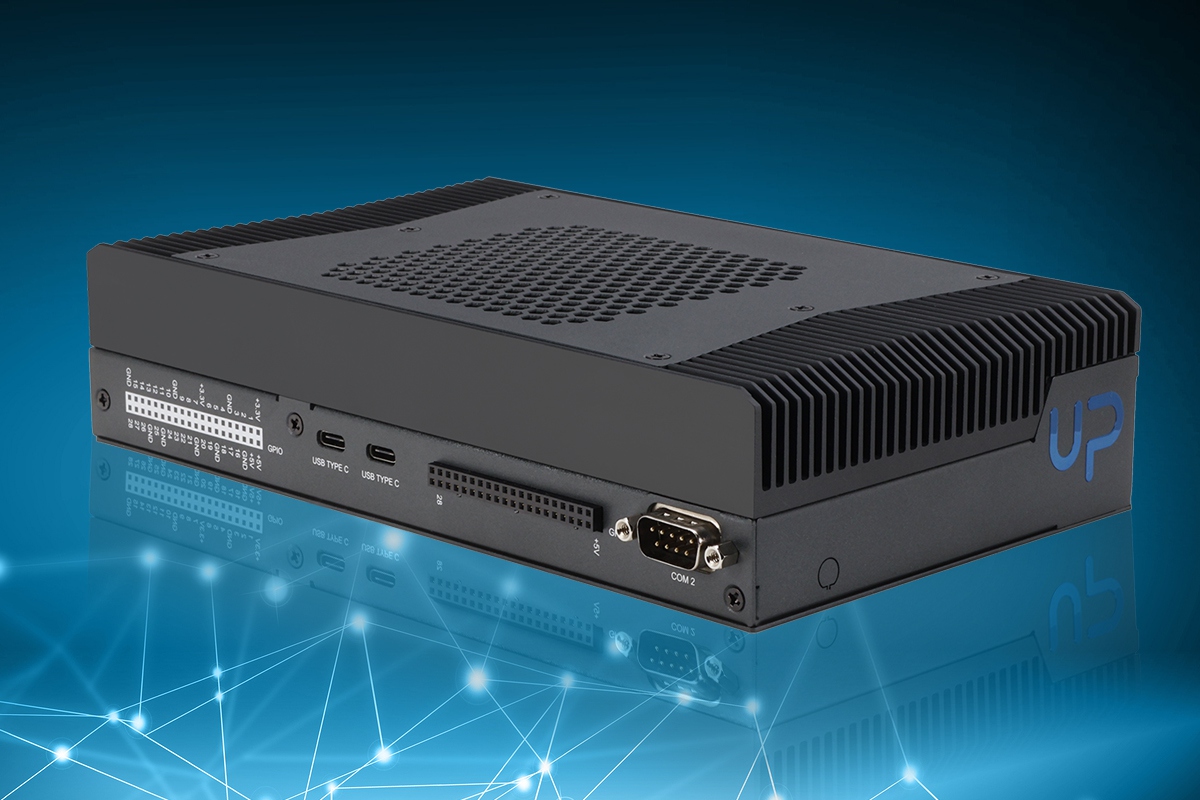

UP XTREME PTL EDGE
Sistema de IA en el borde Intel® Core™ Ultra Serie 3 (180 TOPS)
Características
- Procesadores Intel® Core™ Ultra Serie 3
- SODIMM DDR5 6400 MHz de doble canal x 2, hasta 128 GB
- Triple expansión M.2: M.2 2280 M-Key x 2, M.2 2230 E-Key x 1 para Wi-Fi/BT
- Hasta 4 pantallas simultáneas
- LAN 2.5GbE dual, USB 3.2 Gen 2 Type-A x 2, USB 4.0 Type-C x 2
- TPM 2.0 integrado, amplia entrada de CC de 19-36V
El UP Xtreme PTL Edge está diseñado para aprovechar el rendimiento de los procesadores Intel® Core™ Ultra Serie 3, ofreciendo hasta 180 TOPS de rendimiento de IA en un formato de mini PC compacto. Basado en la nueva arquitectura híbrida de rendimiento de Intel, el sistema integra gráficos de GPU Intel® Arc™ y una NPU Intel® 5.0 optimizada para la energía, a fin de soportar cargas de trabajo exigentes de IA en el borde.
Además de sus capacidades informáticas de IA, el UP Xtreme PTL Edge ofrece conectividad versátil para la implementación en el borde, que incluye USB 4.0 Type-C, puertos USB Type-A, LAN 2.5GbE dual, puertos COM opcionales para comunicación RS-232/422/485 y GPIO opcional. El sistema también admite hasta cuatro pantallas 8K simultáneas a través de puertos HDMI 2.1, DisplayPort 2.1 y USB 4.0, lo que lo hace adecuado para aplicaciones que requieren salida visual de alta resolución, automatización y procesamiento en el borde en tiempo real.
System | |
| CPU | Intel® Core™ Ultra 5 processor 325 (12M Cache, up to 4.50 GHz) Intel® Core™ Ultra 7 processor 356H (18M Cache, up to 4.70 GHz) Intel® Core™ Ultra X7 processor 358H (18M Cache, up to 4.80 GHz) |
| Memory | DDR5 6400 MHz, Dual Channel SODIMM x 2, up to 128GB |
| Graphics | Intel® Core™ Ultra 5 processor 325 - Intel® Graphics Intel® Core™ Ultra 7 processor 356H - Intel® Graphics Intel® Core™ Ultra X7 processor 358H - Intel® Arc™ B390 GPU |
| Storage | M.2 2280 M-Key x 2 |
| Ethernet | 2.5GbE x 2 (via Intel® Ethernet Controller I226-IT) |
| WIFI/BT | M.2 2230 E-key x 1 |
| Expansion Slot | 40-pin GPIO x 1 M.2 2230 E-Key x 1 (PCIe Gen 4 [x1], USB 2.0) M.2 2280 M-Key x 2 (PCIe Gen 4 [x4], PCIe Gen 5 [x4]) |
| Security | Onboard TPM 2.0 |
| OS Support | Windows 11 IoT Enterprise Ubuntu 24.04 LTS |
I/O Placements | |
| USB | USB 3.2 Gen 2 (Type-A) x 2 USB 4.0 (Type-C) x 2 |
| Display Port | HDMI 2.1 x 2 DP 2.1 x 2 via USB 4.0 Type-C |
| Ethernet | 2.5GbE x 2 (via Intel® Ethernet Controller I226-IT) |
| COM | RS-232/422/485 x 2 |
| Audio | Audio Jack x 1 (Mic-in+Line-out) |
| GPIO | 40-pin GPIO x 1 |
Power Supply | |
| Power requirement | 19-36V DC-in |
| Power supply type | AT/ATX |
| Power Consumption(Typical) | TBD |
Mechanical | |
| Mounting | VESA Mount/Wallmount(optional) |
| Dimensions (WxHxD) | 8.6” x 5.1” x 2” (218mm x 129mm x 49.5mm) |
| Net Weight | 3.13 lb (1.42Kg) |
| Gross Weight | 4.23 lb (1.92 Kg) |
Environment | |
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C), 0.5m/s airflow |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| Storage Temperature | -40˚F ~ 176˚F (-40˚C ~ 80˚C) |
| MTBF | TBD |
| Certification | CE/FCC Class A, RoHS Compliant, REACH |
