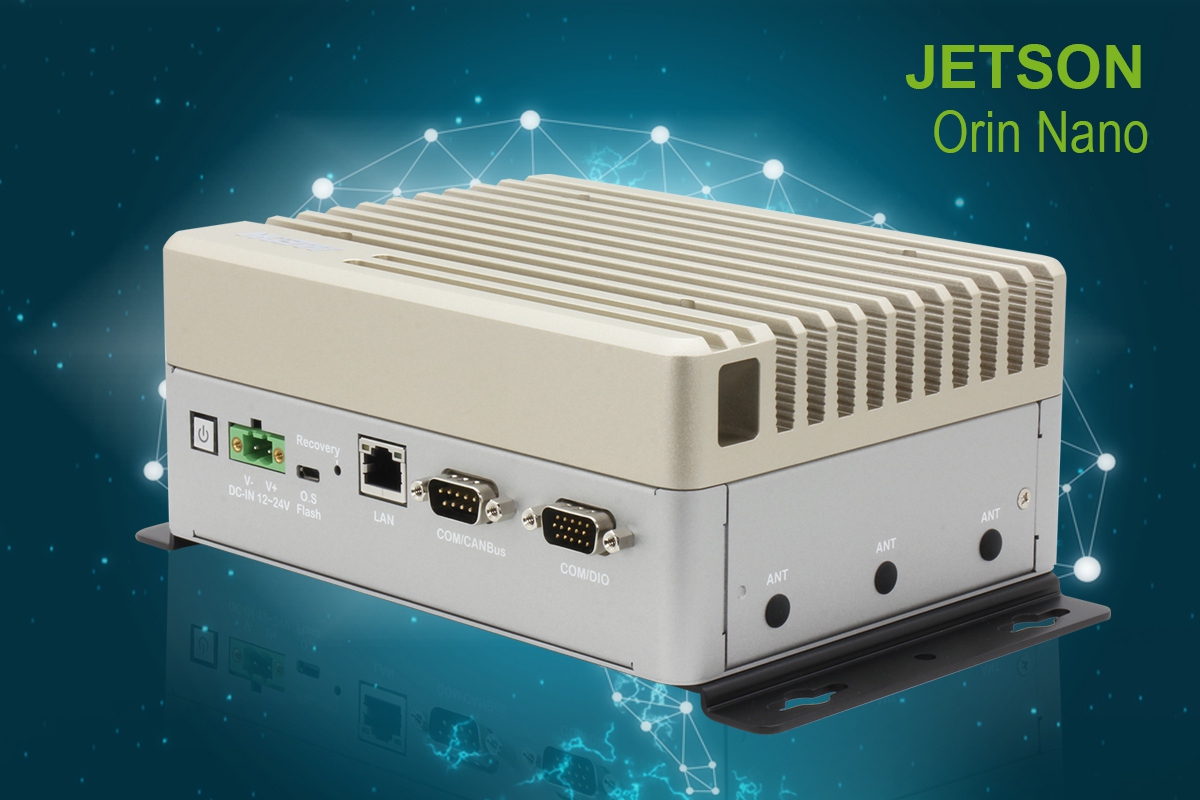

BOXER-8623AI

采用NVIDIA® Jetson Orin Nano™的AI@Edge 紧凑型无风扇嵌入式 AI系统

功能特性

  • NVIDIA® Jetson Orin Nano™
  • GbE PoE/PSE 802.3af/at x 4 + GbE LAN x 1
  • M.2 2230 E-Key x 1, M.2 2280 M-Key x 1, M.2 3042/3052 B-Key x 1
  • COM/CANBus/DIO
  • 工作温度: -15°C ~ 65°C
产品介绍

介绍BOXER-8623AI，这是AAEON AI系统系列中强大的新成员，搭载了Jetson Orin Nano™。配备了环境强壮的硬件和优雅的接口，这对组合在将动态AI功能引入边缘方面，从独立的智能城市解决方案到集成的工业部署中都是今年的亮点。

产品咨询

BOXER-8623AI拥有四个PoE LAN端口、环境韧性以及广泛的接口选择，技术创新与稳健可靠并存。

线上商店
产品规格
BOXER-8623AI

System

AI Accelerator NVIDIA® Jetson Orin Nano™
CPU 6-core Arm® Cortex®-A78AE ARMv8.2 64-bit CPU
System Memory

4GB LPDDR5
8GB LPDDR5

Storage Device M.2 2280 M Key x 1
Display Interface HDMI 1.4 (Type-A) x 1
Ethernet

RJ-45 x 1 for GbE LAN
RJ-45 x 4 for GbE PoE/PSE 802.3af/at (Max.60W)

I/O

USB 3.2 Gen 2 (Type-A) x 4
DB-9 x 1 for RS-232 (Rx/Tx/CTS/RTS) x 1 and CANBus FD x 1
DB-15 x 1 for RS-232(Rx/Tx)/422/485 x 1 and DIO x 8
Micro USB x 1 for OS Flash
Power Button x 1
Recovery Button x 1
Antenna Hole x 6

Expansion

M.2 2280 M-Key x 1 (NVMe)
M.2 3042/3052 B-Key x 1
M.2 2230 E-Key x 1
SIM Slot x 1

Indicator Power LED x 1
OS Support

Linux (NVIDIA Jetpack™ 5.0 and up)

Power Supply

Power Requirement 12V ~ 24V DC in with 2-pin Terminal Block x 1

Mechanical

Mounting Wall Mount
Dimensions (W x D x H)

7.09” x 5.35” x 2.95” (180mm x 136mm x 75mm)

Gross Weight 7.7 lb (3.5kg)
Net Weight 5.5 lb (2.5kg)

Environmental

Operating Temperature

5°F ~ 149°F (-15°C ~ 65°C), according to IEC60068-2 with 0.5 m/s AirFlow

Storage Temperature -40°F ~ 185°F (-40°C ~ 85°C)
Storage Humidity 5% ~ 95% @ 40°C, non-condensing
Anti-Vibration 3.5Grm / 5~500Hz / Operation
Anti-Shock 50G peak acceleration
Certification CE/FCC class A
下载
产品规格书
使用手冊
产品包装内容与配件等信息请下载上方“产品规格书”以参考详情。
