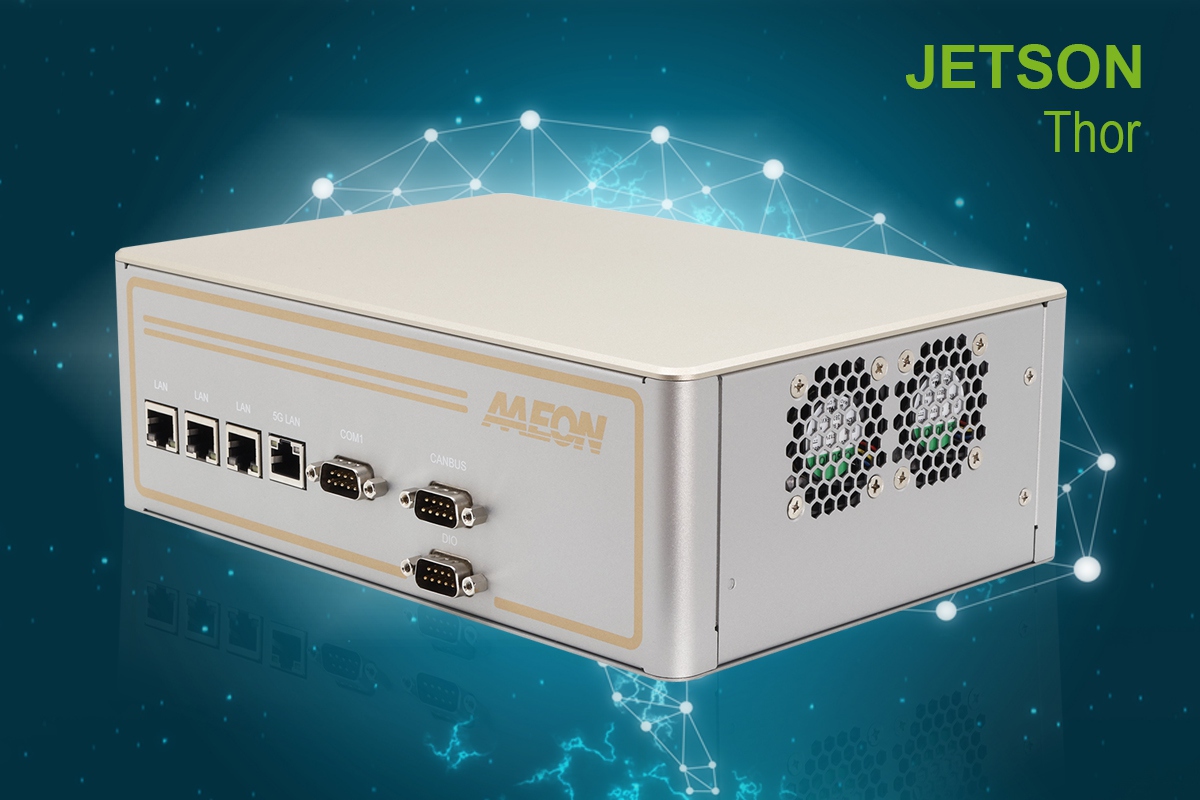

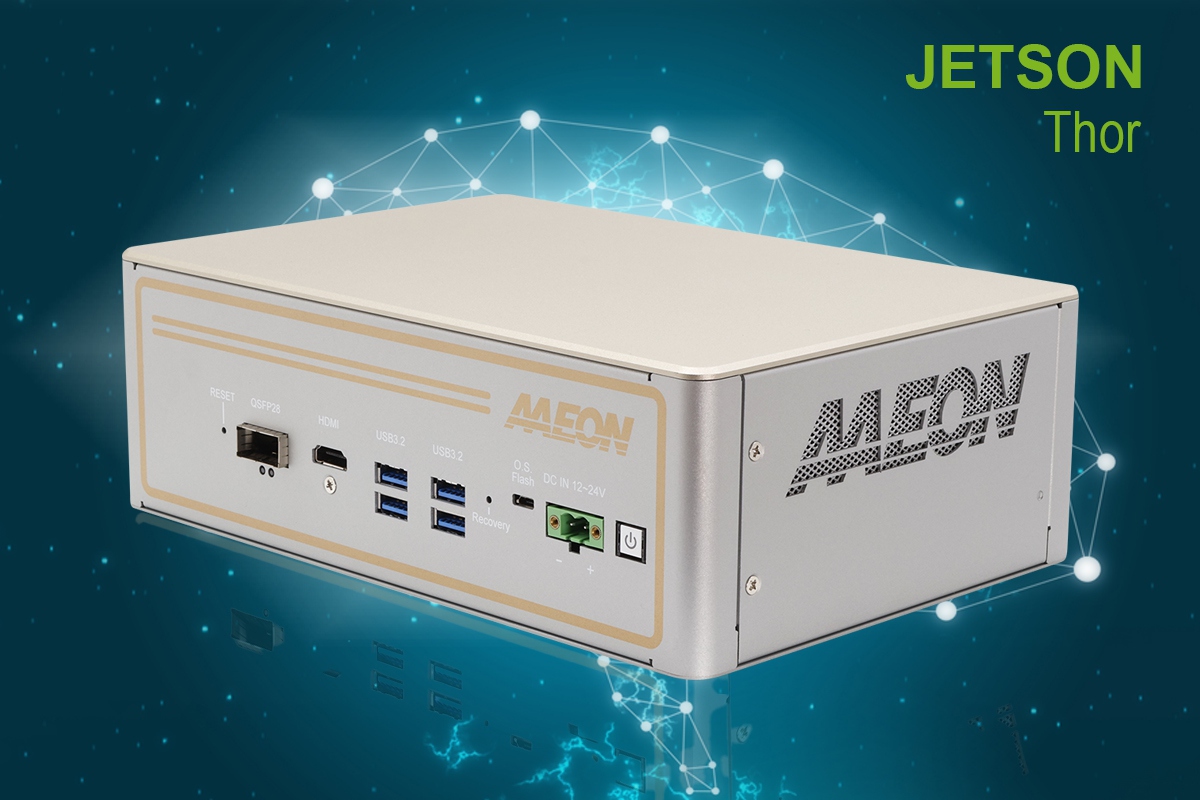

BOXER-8741AI
搭载 NVIDIA® Jetson Thor™ 的边缘 AI 嵌入式电脑
特性
- NVIDIA® Jetson T5000™
- QSFP28 x 1，支持 25GbE x 4
- 5GbE LAN x 4
- RS-232/485、CAN FD、DIO/GPIO
- 支持 5G、Wi-Fi 与 NVMe SSD 的 M.2 扩展
- MIL-STD-810H 军规级防震/防冲击
通过研扬先进的 BOXER-8741AI 边缘 AI 电脑，为新一代边缘 AI 赋能，该产品搭载 NVIDIA® Jetson™ T5000 模块。凭籍由 NVIDIA Blackwell 架构 GPU 驱动的卓越 AI 性能，BOXER-8741AI 结合了扩展性、高速接口与紧凑的加固型硬件，足以支持如人形机器人与边缘服务器部署等严苛的边缘 AI 工作负载。
BOXER-8741AI 专为机器人平台而打造，支持多个实时视觉传感器、控制模块与执行器。凭籍其丰富的 I/O、灵活的加固型外壳选项，以及低延迟的 AI 处理能力，该系统为开发人员提供了加速开发新一代人形机器人与智能边缘应用所需的一切。
System | |
| AI Accelerator | NVIDIA® Jetson T5000™ (2560-core NVIDIA Blackwell architecture GPU with fifth-gen Tensor Cores) |
| CPU | 14-core Arm® Neoverse®-V3AE 64-bit CPU |
| System Memory | 128GB 256-bit LPDDR5X |
| Storage Device | M.2 2280 M-Key x 1 |
| Display Interface | HDMI 1.4a x 1 |
| Ethernet | QSFP28 x 1 for 4 x 25GbE (4 x Independent MAC, aggregate up to 100Gbps) RJ-45 x 4 for 5GbE |
| I/O | DB-9 x 1 for CAN FD x 2 DB-9 x 1 for RS-232/485 x 1 DB-9 x 1 for GPIO 8-bit USB 3.2 Gen 2 (Type-A) x 4 Micro USB x 1 for OS Flash Reset Button x 1 |
| Expansion | M.2 2280 M-Key x 1 for NVMe M.2 3052 B-Key x 1 for 4G/5G/LTE M.2 2230 E-Key x 1 for WiFi/BT |
| Indicator | System LED x 1 |
| OS Support | NVIDIA JetPack™ 7.0 and above |
Power Supply | |
| Power Requirement | 2-pin Terminal Block x 1 for 12~24Vdc Power Input (pitch 5mm) |
Mechanical | |
| Mounting | Wallmount |
| Dimensions (W x D x H) | 9.4” x 6.4” x 3.1” (240mm x 164.8mm x 80.1mm) |
| Gross Weight | TBD |
| Net Weight | TBD |
Environmental | |
| Operating Temperature | -13°F~140°F (-25°C~60°C) according to IEC68-2-14 with 0.7 m/s AirFlow |
| Storage Temperature | -40°F~185°F (-40°C~85°C) |
| Storage Humidity | 5 ~ 95% @ 40C, non-condensing |
| Anti-Vibration | MIL-STD-810H |
| Anti-Shock | MIL-STD-810H |
| Certification | FCC/CE Class A |
