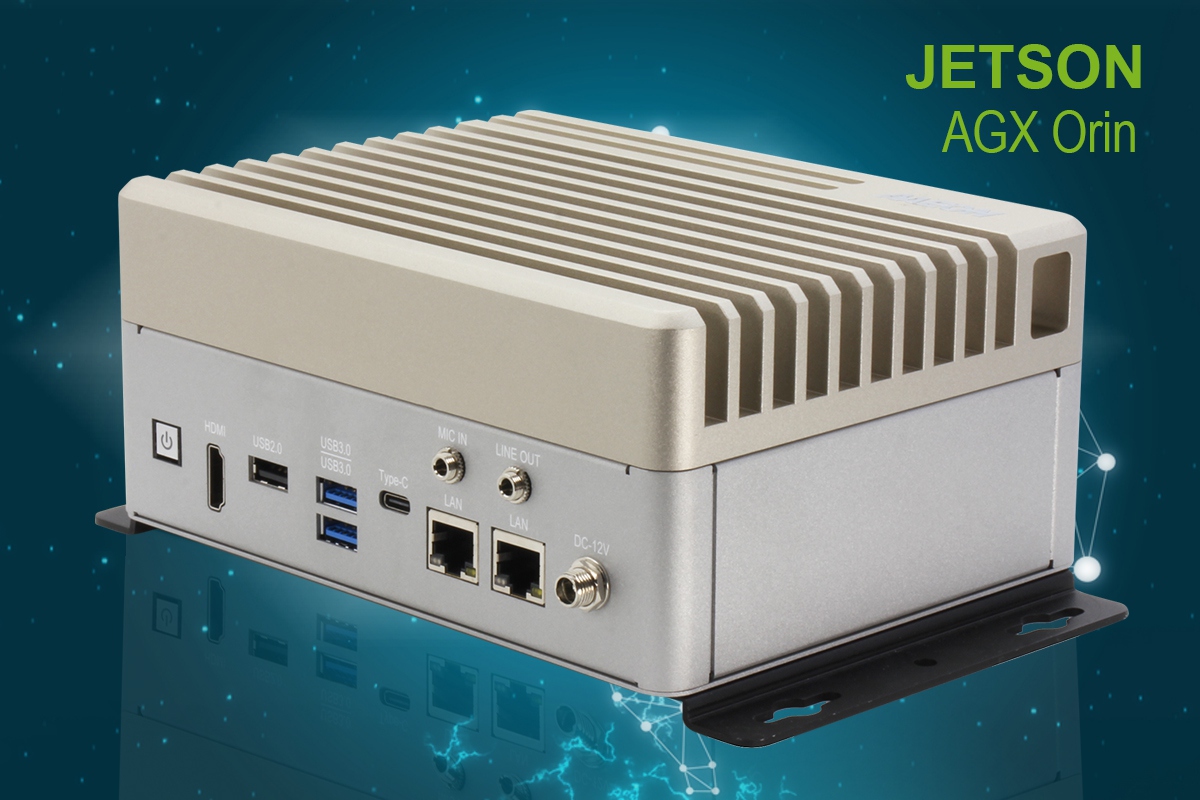

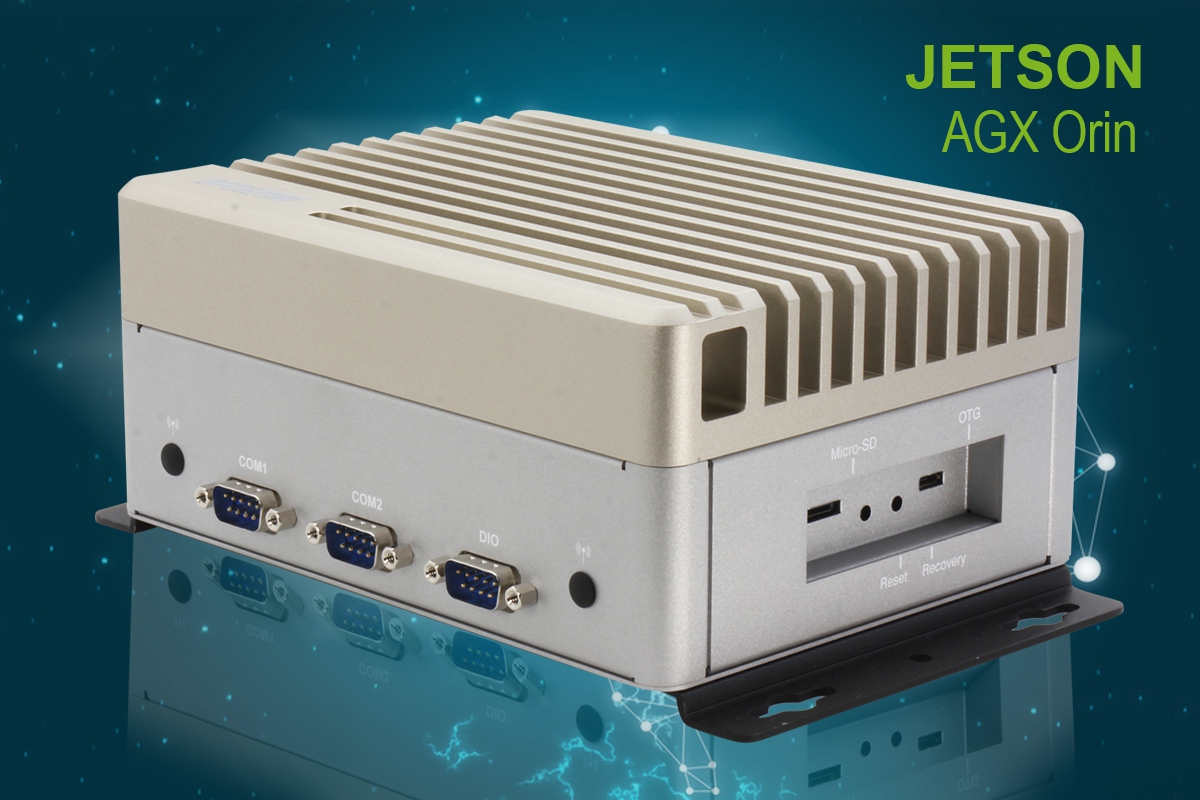

AI@Edge Compact Fanless Embedded AI System with NVIDIA Jetson AGX Orin
- NVIDIA® Jetson AGX Orin
- 32GB LPDDR5x
- Multi-storage option: 64GB eMMC / MicroSD slot / 2.5” SATA drive bay/ M.2 2280 M Key
- Support M.2 E Key / M.2 B Key / M.2 M Key
- Support GbE LAN x 2
- Azure Certified Device
The BOXER-8641AI is powered by the NVIDIA Jetson AGX Orin module. With an incredibly rich I/O packed into a compact device (180*136*62.1mm), the BOXER-8641AI is equipped with six USB slots alongside a microSD card slot, and two Gigabit LAN ports. This means the BOXER-8641AI has both the hardware and software capabilities to accommodate any number of AI applications, such as high-end autonomous manufacturing and smart agriculture, given the inclusion of the NVIDIA JetPack™ 5.0 software development kit, which supports the full NVIDIA CUDA® software stack to make application development easier and faster.
A further benefit to AAEON customers is that the Jetson AGX Orin developer kit features the same 699-pin form factor module as previous modules, ensuring compatibility with AAEON carrier boards loaded with existing NVIDIA modules of the same configuration. This allows for smooth migration to upgrade existing edge AI applications.
Up to 6x the AI Performance with the NVIDIA® Jetson AGX Orin™
Combining an 8-core ARM v8.2 64bit CPU and NVIDIA Ampere architecture, the BOXER-8641AI harnesses the full potential of the NVIDIA Jetson AGX Orin, possessing 1792 CUDA® and 56 Tensor cores for up to 200 TOPS, offering up to 6 times the AI performance of its predecessor. The BOXER-8641AI’s processing speed and inferencing capability subsequently shifts object detection function from GPU cards directly to the edge, simplifying the deployment of autonomous logistics vehicle applications.
Curated for Coarse Conditions
A wide temperature range of -4°F ~ 131°F (-20°C ~ 55°C) illustrates the BOXER-8641AI’s rugged deployment suitability. Further, its compact size and light weight mean its operation is not limited, enabling it to run industrial AMR and autonomous mining vehicle applications, where its object detection can offer elite logistics solutions for tight, industrial settings with low-visibility.
A More Integrated Intelligent Interface
To channel the sophistication of the NVIDIA® Jetson AGX Orin®, the BOXER-8641AI is equipped with a dense selection of features conducive to numerous vertical markets. With two GbE LAN and three USB 3.2 ports alongside 32GB LPDDR5x system memory and M.2 keys supporting 5G, Wi-Fi, and NVMe, the BOXER-8641AI ensures lightning-fast communication with peripheral hardware such as cameras and sensors which make it the ideal smart retail solution.
|AI Accelerator||NVIDIA® AGX Orin|
|CPU||8-core ARM v8.2 64bit CPU, 2MB L2 + 4MB L3|
|System Memory||32GB 256-Bit LPDDR5x 205GB/s|
|Storage Device|| |
64GB eMMC 5.1 x 1
MicroSD slot x 1
SATA drive bay x 1
|Display Interface||HDMI Type A for HDMI 2.0 x 1|
|Ethernet||RJ-45 for GbE LAN x 2|
USB Type A for USB 3.2 Gen 2 x 2
M.2 E-Key 2230 ( for Wifi/BT ) x 1
|Indicator||Power LED x 1|
|OS Support||Linux (NVIDIA Jetpack 5.0 and above)|
|Power Requirement||12V DC with lockable DC Jack|
|Mounting||Wall mount kit|
|Dimensions (W x D x H)||7.09 “ x 5.35 “ x 2.41“ (180.0 mm x 136 .0 mm x 61.1 mm)|
|Gross Weight||7.8lb ( 3.55kg )|
|Net Weight||5.5lb ( 2.5kg )|
|Operating Temperature||-4°F ~ 131°F (-20°C ~ 55°C with 0.5 m/s airflow)|
|Storage Temperature||-40°F ~ 158°F (-40°C ~ 70°C)|
|Storage Humidity||5 ~ 95% @ 40°C, non-condensing|
|Anti-Vibration||3.5Grm / 5~500Hz / operation-eMMC,MicroSD or SSD|
|Anti-Shock||50G peak acceleration (11 msec. duration,eMMC,microSD,or SSD)|
|Certification||CE / FCC Class B|
