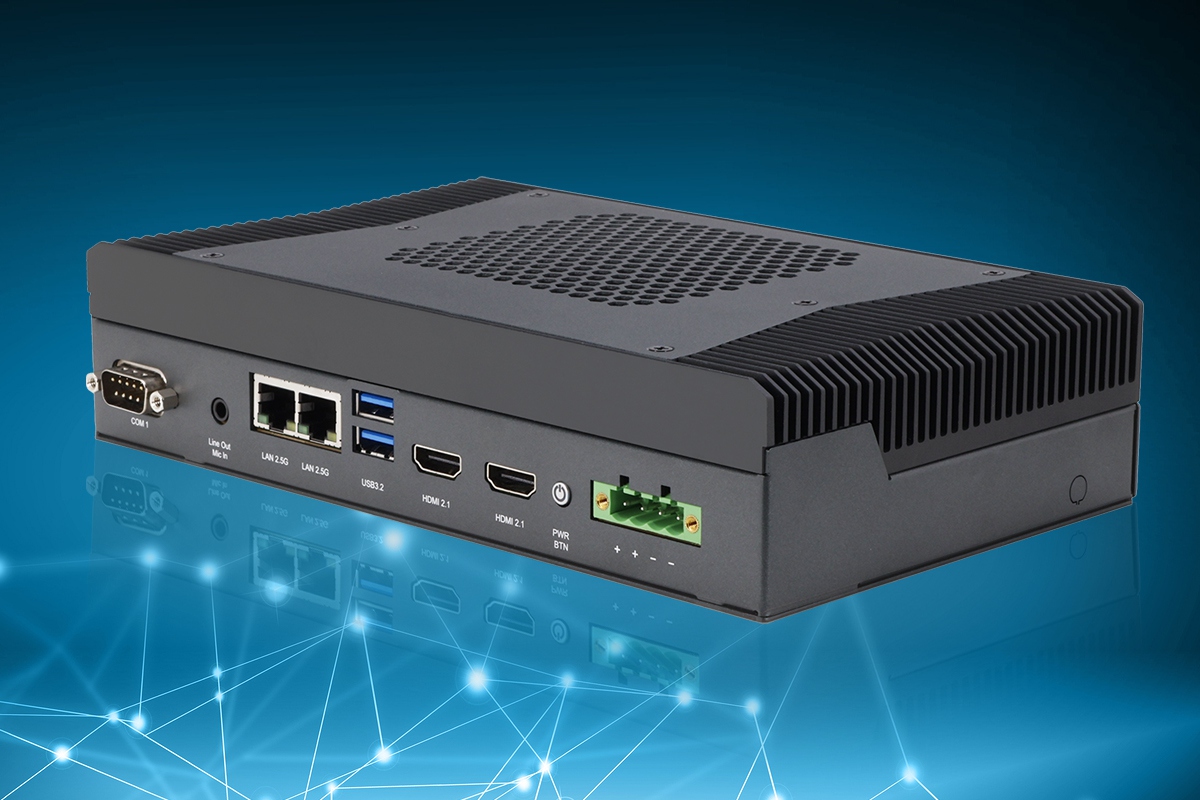

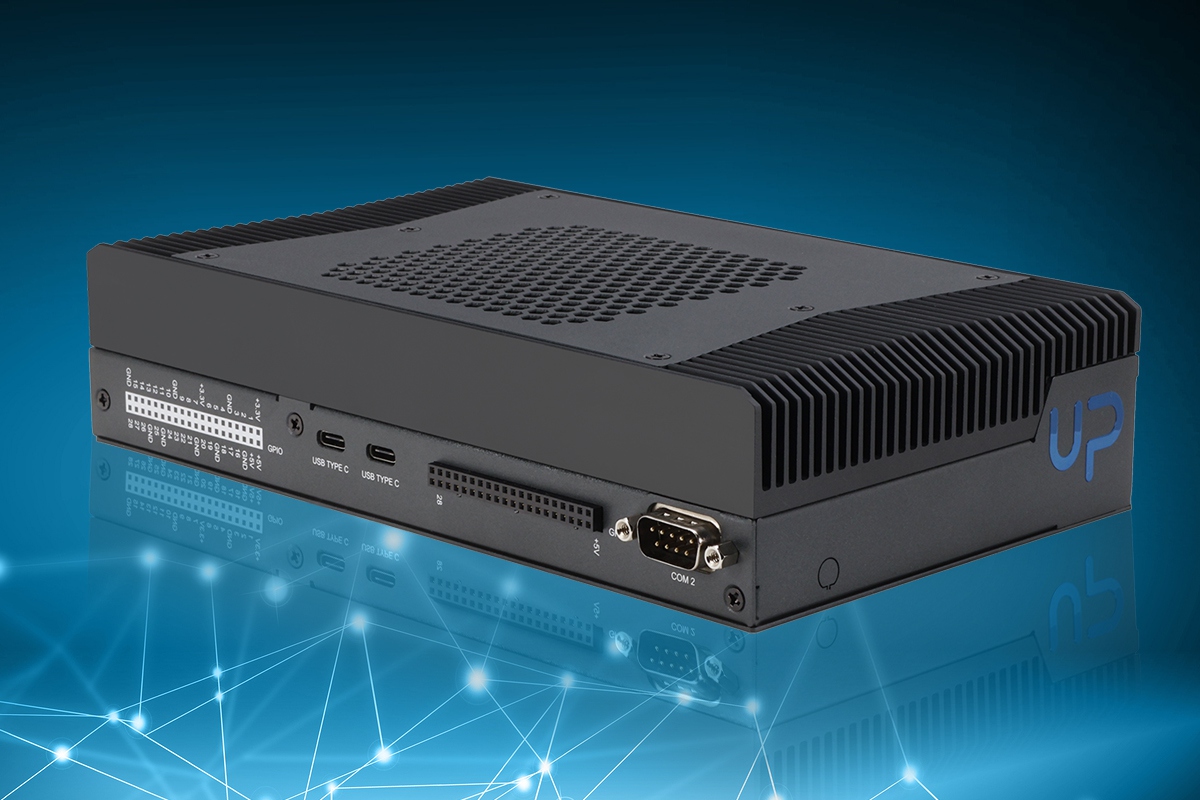

UP XTREME PTL EDGE
Intel® Core™ Ultra Series 3 Edge AI System (180 TOPs)
Features
- Intel® Core™ Ultra Series 3 Processors
- DDR5 6400 MHz Dual Channel SODIMM x 2, up to 128GB
- Triple M.2 Expansion: M.2 2280 M-Key x 2, M.2 2230 E-Key x 1 for Wi-Fi/BT
- Up to 4 Simultaneous Displays
- Dual 2.5GbE LAN, USB 3.2 Gen 2 Type-A x 2, USB 4.0 Type-C x 2
- Onboard TPM 2.0, Wide DC Input 19-36V
The UP Xtreme PTL Edge is designed to harness the performance of Intel® Core™ Ultra Series 3 processors, delivering up to 180 TOPS of AI performance in a compact mini PC form factor. Built on Intel’s new performance hybrid architecture, the system integrates Intel® Arc™ GPU graphics and a power-optimized Intel® NPU 5.0 to support demanding edge AI workloads.
In addition to its AI computing capabilities, the UP Xtreme PTL Edge offers versatile connectivity for edge deployment, including USB 4.0 Type-C, USB Type-A ports, dual 2.5GbE LAN, optional COM ports for RS-232/422/485 communication, and optional GPIO. The system also supports up to four simultaneous 8K displays through HDMI 2.1, DisplayPort 2.1, and USB 4.0 ports, making it suitable for applications requiring high-resolution visual output, automation, and real-time edge processing.
System | |
| CPU | Intel® Core™ Ultra 5 processor 325 (12M Cache, up to 4.50 GHz) Intel® Core™ Ultra 7 processor 356H (18M Cache, up to 4.70 GHz) Intel® Core™ Ultra X7 processor 358H (18M Cache, up to 4.80 GHz) |
| Memory | DDR5 6400 MHz, Dual Channel SODIMM x 2, up to 128GB |
| Graphics | Intel® Core™ Ultra 5 processor 325 - Intel® Graphics Intel® Core™ Ultra 7 processor 356H - Intel® Graphics Intel® Core™ Ultra X7 processor 358H - Intel® Arc™ B390 GPU |
| Storage | M.2 2280 M-Key x 2 |
| Ethernet | 2.5GbE x 2 (via Intel® Ethernet Controller I226-IT) |
| WIFI/BT | M.2 2230 E-key x 1 |
| Expansion Slot | 40-pin GPIO x 1 M.2 2230 E-Key x 1 (PCIe Gen 4 [x1], USB 2.0) M.2 2280 M-Key x 2 (PCIe Gen 4 [x4], PCIe Gen 5 [x4]) |
| Security | Onboard TPM 2.0 |
| OS Support | Windows 11 IoT Enterprise Ubuntu 24.04 LTS |
I/O Placements | |
| USB | USB 3.2 Gen 2 (Type-A) x 2 USB 4.0 (Type-C) x 2 |
| Display Port | HDMI 2.1 x 2 DP 2.1 x 2 via USB 4.0 Type-C |
| Ethernet | 2.5GbE x 2 (via Intel® Ethernet Controller I226-IT) |
| COM | RS-232/422/485 x 2 |
| Audio | Audio Jack x 1 (Mic-in+Line-out) |
| GPIO | 40-pin GPIO x 1 |
Power Supply | |
| Power requirement | 19-36V DC-in |
| Power supply type | AT/ATX |
| Power Consumption(Typical) | TBD |
Mechanical | |
| Mounting | VESA Mount/Wallmount(optional) |
| Dimensions (WxHxD) | 8.6” x 5.1” x 2” (218mm x 129mm x 49.5mm) |
| Net Weight | 3.13 lb (1.42Kg) |
| Gross Weight | 4.23 lb (1.92 Kg) |
Environment | |
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C), 0.5m/s airflow |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| Storage Temperature | -40˚F ~ 176˚F (-40˚C ~ 80˚C) |
| MTBF | TBD |
| Certification | CE/FCC Class A, RoHS Compliant, REACH |
