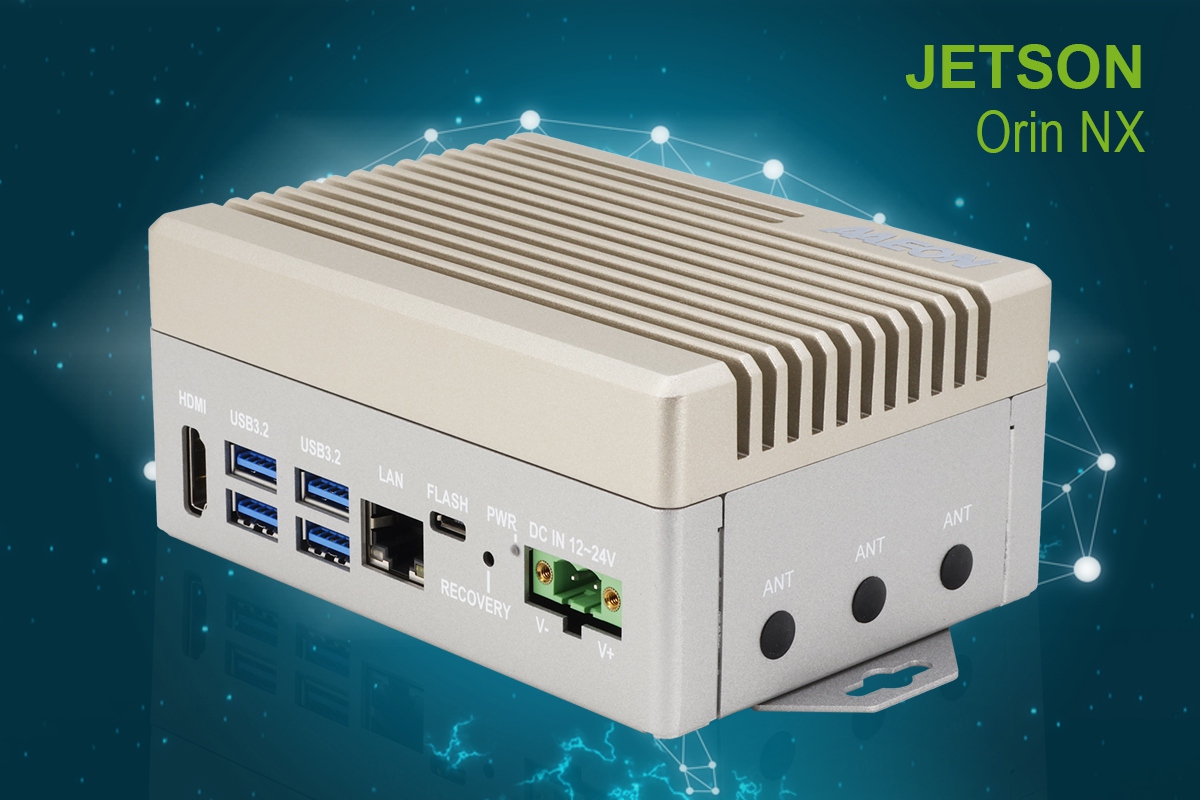

BOXER-8651AI-PLUS
AI@Edge Compact Fanless Embedded AI System with NVIDIA® Jetson Orin™ NX
Features
- NVIDIA® Jetson Orin™ NX with Super Mode
- Supports NVIDIA JetPack™ 6.2
- USB 3.2 Gen 2 (Type-A) x 4
- DB-9 x 1 for RS-232(Rx/Tx/RTS/CTS) & CANBus
- 10-pin terminal block for DIO x 8
- Onboard TPM
- M.2 2230 E-Key, M.2 3052 B-Key
- Operating Temperature: -13°F - 131°F (-25°C - 55°C)
Boasting an NVIDIA® Jetson Orin NX™ module with Super Mode for enhanced AI performance in a compact, remotely-manageable system, the BOXER-8651AI-Plus not only offers exceptional quality as an embedded edge AI system, but also as a scalable node within larger edge deployment ecosystems.
Out-of-band management, extensive wired and wireless communication interfaces, and an onboard TPM chip bring the edge closer than ever, allowing users to securely deploy the BOXER-8651AI-Plus anywhere with ease.

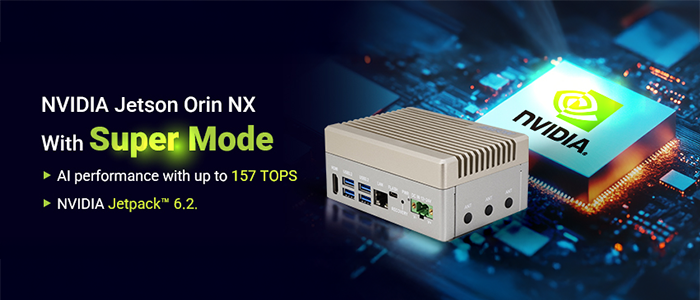

NVIDIA Jetson Orin NX with Super Mode
AAEON’s first embedded AI system equipped with the NVIDIA® Jetson Orin™ NX with Super Mode, the BOXER-8651AI-PLUS offers a substantial boost in AI performance with up to 157 TOPS. Alongside this, the system leverages the enhanced software stack, greater flexibility in power consumption, and performance optimization available through NVIDIA Jetpack™ 6.2.

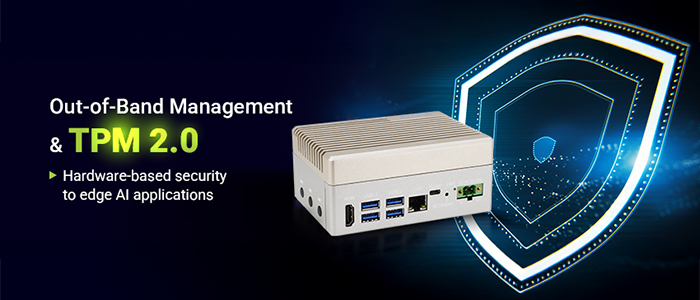

Out-of-Band Management & TPM 2.0
With the BOXER-8651AI-PLUS’ out-of-band management capabilities, innovators are free to scale solutions to even greater heights by monitoring, updating, and protecting the system remotely. Alongside this, the introduction of an onboard TPM 2.0 chip offers an added layer of hardware-based security to edge AI applications, storing cryptographic keys independent from the on-system memory and protecting against physical tampering and firmware attacks.

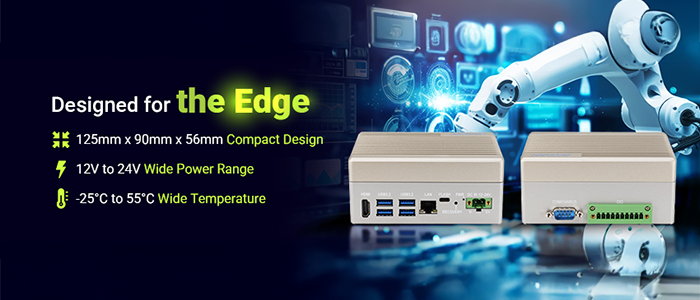

Designed for the Edge
A robust PC providing a flexible 12V to 24V power input range and -25°C to 55°C temperature tolerance in a chassis measuring just 125mm x 90mm x 56mm, the BOXER-8651AI-PLUS is exceptionally compact and edge-ready. Moreover, it offers an overwhelming selection of interfaces for its size, with four USB 3.2 Gen 2 and one RJ-45 LAN port for peripheral device installation joined by RS-232 and CANBus functions via DB-9 port for inter-device communication.
System | |
| AI Accelerator | NVIDIA® Jetson Orin™ NX |
| CPU | Orin NX 8GB: 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU Orin NX 16GB: 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU |
| System Memory | Orin NX 8GB: 8GB LPDDR5 Orin NX 16GB: 16GB LPDDR5 |
| Storage Device | M.2 3052 B-Key x 1 for M.2 2242 B+M Key SSD (Default Storage) M.2 2230 E-Key x 1 (Optional) |
| Display Interface | HDMI 1.2 (Type-A) x 1, up to 1920 x 1080 |
| Ethernet | RJ-45 x 1 for GbE LAN |
| I/O | USB 3.2 Gen 2 (Type-A) x 4 DB-9 for RS-232 (Rx/Tx/CTS/RTS) & CANBus FD x 1 10-Pin header for DIO x 8 Micro USB x 1 for OS Flash Recovery Button x 1 Antenna x 6 |
| Expansion | M.2 3042/3052 B Key x 1 (4G/5G/M.2 2242 B+M-Key storage) M.2 2230 E Key x 1 (Wi-Fi/BT) SIM Slot x 1 |
| Indicator | Power LED x 1 |
| OS Support | Linux (NVIDIA Jetpack™ 6.2 and above) |
Power Supply | |
| Power Requirement | 12VDC ~ 24VDC via 2-pin Terminal Block |
Mechanical | |
| Mounting | Wallmount |
| Dimensions (W x D x H) | 4.92 “ x 3.54 “ x 2.2” (125mm x 90mm x 56mm) |
| Gross Weight | 3.13 lb. (1.42Kg) |
| Net Weight | 1.85 lb. (0.84Kg) |
Environmental | |
| Operating Temperature | -13°F ~ 131°F (-25°C ~ 55°C with 0.7m/s airflow) |
| Storage Temperature | -40°F ~ 185°F (-40°C ~ 85°C) |
| Storage Humidity | 5 ~ 95% @ 40°C, non-condensing |
| Anti-Vibration | 3.5 Grms, 5~500Hz with SSD |
| Anti-Shock | 50G peak acceleration |
| Certification | CE / FCC class A |
